Enerdrive ePRO PLUS Battery Monitor
SKU: EN55050 Learn More»
FREE SHIPPING
This item is sent via Express Courier. All freight is fully insured.
Accessories
.png)
Product Description

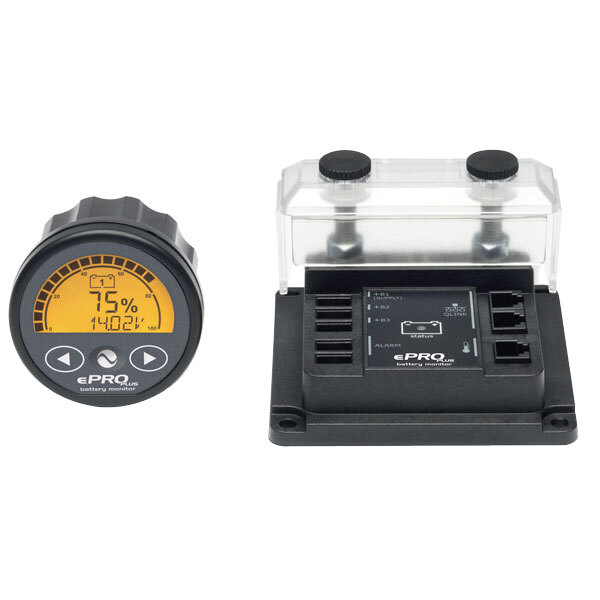

Enerdrive ePRO PLUS Battery Monitor, 5 Year Warranty. The ePRO PLUS is the latest generation, highly advanced battery monitor. It consists of an intelligent shunt and a remote control display unit. The shunt has a Grid Optimized footprint for perfect integration with Enerdrives DC Modular products.
- Complete battery status information at a glance (%, V, A, Ah, W, h:m, °C)
- Supports up to three battery banks (12V, 24V and 48V)
- Very simple ‘Plug and Play’ installation
- Perfect integration with Enerdrive DC Modular products
This advanced battery monitor not only shows the true state of charge of your battery system. It also offers a large amount of additional features to optimally supervise your battery system and control external equipment. The ePRO PLUS is compatible with lead based and Lithium batteries (LiFePO4).
The ePRO PLUS can monitor up to three battery banks. The inputs for battery bank 2 and 3 can also be configured for other purposes, like mid-point voltage measurement, keyswitch input, setup lock or backlight control. The ePRO PLUS battery monitor can measure DC currents up to 600Amps (500Amp continuous) and voltages up to 70Vdc. So any lead- or lithium based battery from 12V up to 48V can be monitored.
The installation time is minimal, requiring only one supply wire to the intelligent shunt base and a single ‘QuickLink’ cable between the shunt base and the control/display unit (CDU). Additionally, the battery minus cable must be interrupted in order to insert the shunt into the high current circuit. The fused supply wire and the QuickLink cable are both included in the package, avoiding the need for a separate connection kit.
Specifications
SKU EN55050
Brand Enerdrive
GTIN 9342616000359
Warranty Period: 5 Years
Product Category Battery Monitors
Model EN55050
Product Type ePRO PLUS Battery Monitor. 12v to 48v battery systems with current up to 600Amps (500A continuous).
Dimensions Shunt: 100x100 mm (Footprint), 24mm (Base Height), 64.5mm (Total Height) / Display: 64mm (Frnt Panel), 51.5mm (body), 36mm (Total Depth)
Operating temperature range -20..+50°C
Input Voltage 7..70Vdc1) (Main Battery), 1..70Vdc (2nd & 3rd Battery)
Battery Capacity 10..10000Ah
Storage Range (temp) -30..+70°C
Supply Voltage Range 7..70Vdc
Net Weight (kg) 1
Protection Class IP20 (CDU front panel only IP65)
Supply Current 10mA @ 12V / 6mA @ 24V / 5mA @ 48V
Input Current Range -600..+600A2)
Videos
Enerdrive Battery Monitor Installation & Review: ePRO Plus
Must Know Features of the Enerdrive ePRO Plus Battery Monitor
Customer Review Of The Enerdrive Elite 100Ah Lithium Battery & ePRO Plus Battery Monitor
Product Q&A
-
Hey,Looking at the ePRO PLUSAre you able to plug in 2 control and display units in too the "QLINK" ports? Thanks Kyle
HI Kyle,
Thank you for your inquiry.
It is possible to install two displays if required. Both displays would be connected to the two QLINK ports on the shunt.
-
Can this be setup to isolate my battery if it drops below a certain voltage?if not what do I need?
Hi There,
These units are not designed as a low battery cut off. They do have the option to have a low voltage alarm set up.
What you would need is a stand alone low battery cut off.
You can find our range on this page:
https://www.mygenerator.com.au/battery-protection.html
Customer Reviews
Great product and service Review by Robert LeatchPurchased this battery and monitor for installation on my boat and so far (1 month) it has performed flawlessly. Eady to install with simple documentation. Have mainly used Victeon products to date but will now be seriously looking at Enerdrive as a quality competitor.(Posted on 7 June 2023)
Easy Install Review by Ashley EdlingtonEasy to install and even easier to set-up once powered.(Posted on 25 September 2022)
Great product simple and easy to install Review by Ralph WilliamsonCan run two Engel crush legs in summer for 20 plus hours and still have 75% SOC. Run the car for 15-20 minutes and it’s back at 100% Amazing game changer(Posted on 20 January 2021)
Excellent service and product Review by Myles CarrollEasy to install, works well.(Posted on 13 September 2020)
