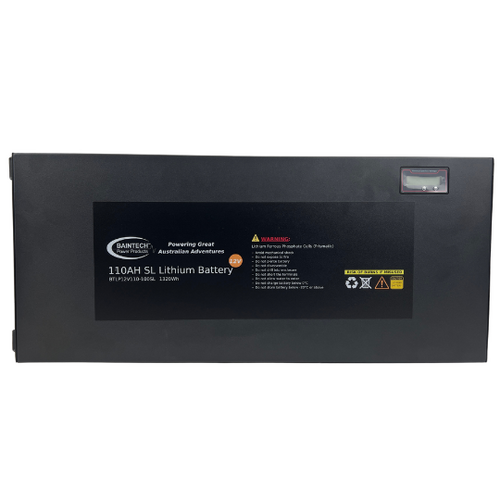

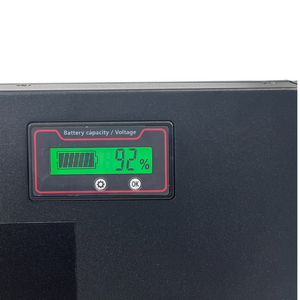

Baintech 12V 110 AH Slimline Lithium Battery with Digital Display
SKU: BTLP12V110-100SL Learn More»
Product Description
Baintech 12V 110 AH Slimline Lithium Battery with Digital Display, 5 Year Warranty. The 12V 110Ah Slimline Lithium Battery with 100ah BMS & digital display is perfect for powering your 12V set-up including upto 1000w inverter. This lithium battery is strong and safe due to its aluminium casing and built-in BMS that protects you from temperature, over-voltage, and short circuit. Our unique BMS will further increase safety and durability. Can be connected in parallel for increase capacity, and connected in series for increase voltage Max 48V.
Features:
- Custom Built BMS
- Up to 5000 Charging Cycles | Lifecycle at 50% DOD
- Slimmest Design in the market
- Almost 2x the Capacity of a Lead acid battery
- Aluminum Powder Coated Enclosure
- Australian Designed
- Connect in Parallel: More capacity & Power
- Lightweight: Only 15kg
- 595mm L x 260mm W x 50mm D
- With brackets attached 650mm L x 260mm W x 50mm D
- Guaranteed 5 year warranty
Specifications:
- Max Charge Current – 100A, 100 Continuous outflow
- Peak current – 250A(10s)
- BMS Low Voltage Cut-off – 8.8V (2.2+0.05v) pc)
- BMS Reconnect voltage – 10.8V (2.7+0.05v) pc)
- Weight – 15kg
- Case dimension (L*W*H) – 635 x 260 x 50mm
- Cell type / Chemistry – LiFePO4 chemistry
- BMS: low voltage, high voltage, over temperature
- Over current, short-circuit protection, Balancing etc.
- Discharge Temperature -20～+65℃
- Charge Temperature 0～+45℃
- Storage Temperature Range 0～+45℃
- Battery High Temperature Protection 60℃
- Dimensions: 595 x 260 x 50mm
Specifications
SKU BTLP12V110-100SL
Brand Baintech
Warranty Period: 5 Years
Product Category Batteries
Battery Voltage 12V
Amp Hours (Ah) 110
Product Type Lithium(Slimline) Battery
Nominal Voltage 12.8V
Nominal Capacity 110Ah
Cycle Life (DOD – 80% under controlled conditions) 2000 cycles
Battery Charge Temperature 0 ℃ to 45 ℃
Maximum Charge Current 100A
Dimensions 595 x 260 x 50mm
Weight (kg) 15
Videos
Baintech's Lithium Dual Camping Battery Setup
Why Weight Should Be Your Priority When Choosing A 4WD Battery
Do you need a Dedicated Lithium Battery Charger?
AGM vs Lithium Batteries For Your 4WD
Why Lithium Batteries are Cheaper in the Long Run
Baintech's Guide To Choosing A Marine Battery: Lithium For Your Boat
AGM vs Lithium: Why Lithium Batteries Are The Better Option For Your 4WD
Introducing The New Australian Made Baintech Lithium Battery Range
How to charge & run appliances from the Baintech in-built DC-DC Lithium Battery Range
New 110Ah Slimline Lithium Battery with Digital Display
Product Q&A
-
Which Battery Charger is suitable for my 95Ah Baintech Slimline Lithium Battery?
Baintech recommends the Victron 7A IP65 Smart Charger – it has a dedicated lithium charging profile suited to the Baintech Lithium Batteries. You will need to adapt the charger leads to a Grey Anderson Plug.
-
hii have a RedArc- bcdc1240d charger as i have a solar panal on the roof of my car. Will this do the job of charging the slimline lithium battery? thanksMark
HI Mark,
Whilst the BCDC1240D is primarily designed for batteries of 200Ah or larger, there should be no issue using it to charge the slimline battery. It can handle a maximum charge current of 100A
-
It says to use a 100a fuse , is that leading from the car / starter battery into the lithium battery? or from the lithiumbattery out to accessories?
Hi There,

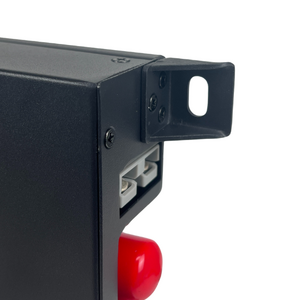

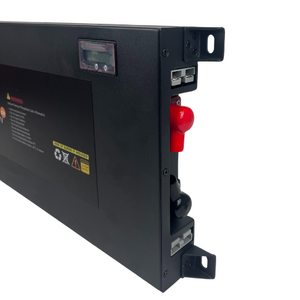

A 100A fuse is required for both Anderson plugs on the side of the battery.
These Anderson plugs can both be used for charging or for loads, thus requiring a fuse on each one.
-
why does your information state 50a BMS but the baintech site states 100a BMS?
Hi There,
It looks like the spec has been updated since we uploaded this product. These will come with a 100A BMS per the specs from Baintech.
-
Hi,Some of the reports/websites state that this battery has an in-built DC-DC charger, however the specs and Baintech site don't specify that. Are you able to confirm whether or not it has any type of charging interface within and whether or not it can b
Hi There,
This battery does not have an included DC DC charger.
Customer Reviews
best value battery that I have ever used Review by clarrie vivianthis battery is light weight, I can carry it under my arm. it charges from solar with no problem. have used to mainly power cpap unit with humidifier through a 400watt pure sine wave inverter no problems. it lies flat with the unit sitting on top.(Posted on 12 November 2020)
