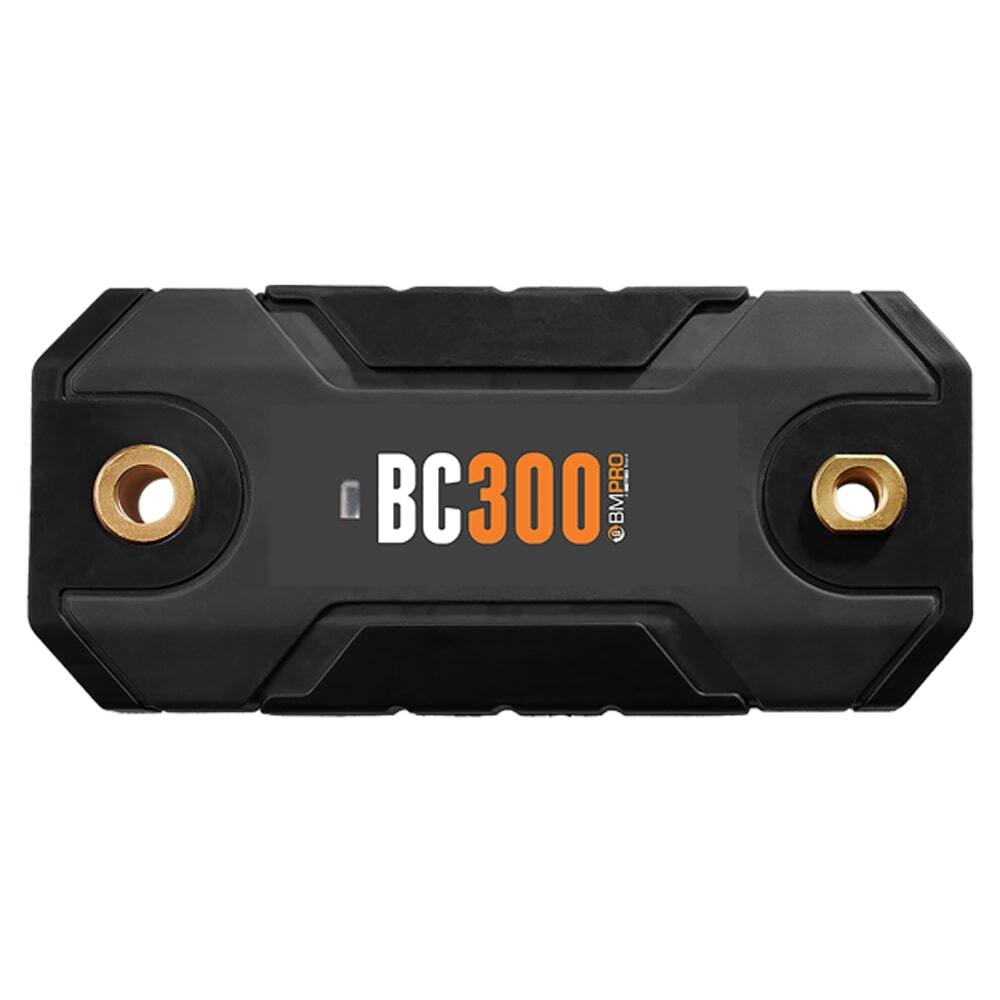

BMPRO BC300 External Shunt and CommLink

Product Description

BMPRO BC300 External Shunt and CommLink, 2 Year Warranty. BMPRO BC300 External Shunt and CommLink provides additional battery monitoring for your BatteryPlus35 and J35 systems.

The addition of the BC300 to the BatteryPlus35 and J35 battery management systems allows high current loads and external charge sources to connect direct to battery via the BC300 External Shunt. This enhances system behaviour with temperature monitoring of the battery for greater protection.

BC300 also provides your BatteryPlus35 and J35 with additional information on battery usage so your displays such as the Trek, JControl and JHub are always up-to-date on battery Time Remaining and State of Charge.

The BC300 External Shunt and CommLink communicates via Bluetooth and CAN bus. The BC300 External Shunt is designed for 12V batteries up to 800AH in capacity. The shunt is rated for ±240A constant and 300A peak.

Note: This product will only work if you already have a BMPRO BP35 or J35 Battery Management System.

Features:

• High current/external charge monitoring
• Wireless Bluetooth communication to Commlink – easy to install / retrofit
• DIY installation and simple pairing procedure
• Compatible with Lead Acid and LiFePO4 deep cycle batteries

Battery Properties Monitored:

• Voltage
• Current (charging / discharging)
• Energy usage (Ah)
• Temperature (not displayed)

The table below illustrates which BMPRO range products are compatible and if any prerequisites will apply to the combination

Please CLICK HERE for more information on these BMPRO combinations and relevant prerequisites
