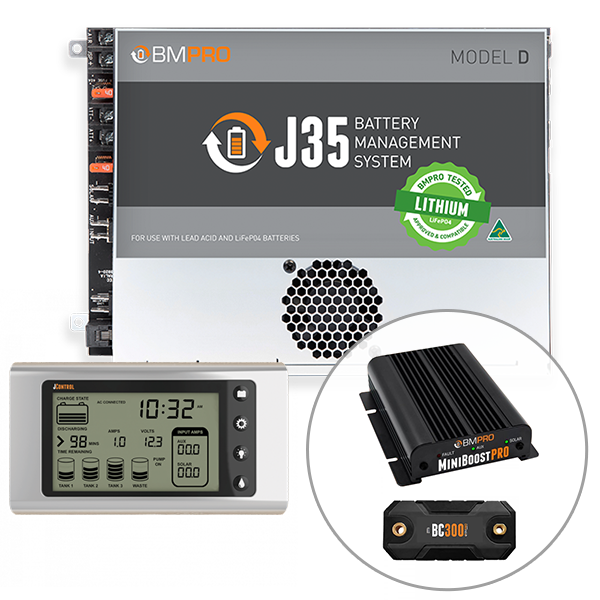

BMPRO J35D BMS Existing Full Lithium Upgrade Bundle with MiniBoostPro 30A DC-DC Charger, JControl & B300 Shunt

SKU: FullLithium2 Learn More»
BMPRO J35D BMS Existing Full Lithium Upgrade Bundle with MiniBoostPro 30A DC-DC Charger, JControl & B300 Shunt
Free Shipping
$2,599
$2,822

FREE SHIPPING

This item is sent via Express Courier. All freight is fully insured.

Accessories

$89

Sold Out

$53

$149

$292

$529

$62

$71

$80

Click '+' to show more accessories
Express Shipping Price Match Guarantee Customer Reviews

Product Description

NEW BMPRO J35D BMS Existing Full Lithium Upgrade Bundle with MiniBoostPro 30A DC-DC Charger, JControl & B300 Shunt, 2 Year Warranty

Pack Includes:

  • BMPRO J35D Lithium Compatible Battery Management System, BMPJ35D
  • BMPRO MiniBoostPro 12V 30A DC-DC Battery Charger with Solar Input, BMPMB1230
  • BMPRO JControl 12V Display & Control Unit, BMPJCONTROL
  • BMPRO BC300 External Shunt and CommLink, BMPBC300+COMM



BMPRO J35D Lithium Compatible Battery Management System

J35 Model D is lithium compatible battery management system specifically designed for Jayco Australia. It features a built-in solar regulator and a multi-stage battery charger to ensure long battery life.

Use J35D to charge all types of lead acid batteries as well as lithium (LiFePO4) batteries. J35 allows charging of battery banks of up to 600Ah in capacity.

J35D allows you to charge the caravan battery to the optimal charge level from 230-240 Volt mains, your solar panel (28 Amp, or three panels 450W total), or from any auxiliary input, such as a power generator or your vehicle.

J35D will increase the life span of your battery thanks to the multiple battery protection features, such as low voltage disconnect, storage mode and multistage charging. There are 14 outputs to connect your DC appliances, including hot water, water pump, lights, and many more. Built in electronic fuses protect the loads.

Offered as an option in a range of Jayco caravan models, the J35D can recover and charge a heavily discharged LiFePO4 battery. The internal Battery Management System (BMS) of a LiFePO4 battery will turn off if it detects that the battery is heavily discharged. The J35D will provide the voltage to restart the LiFePO4 battery’s BMS and then commence charging of the LiFePO4 battery.

Pair J35D with the monitor, such as JControl, or a JHub app, to monitor your caravan power and control its functions.

We recommend using J35D power and battery management system with BMPRO Invicta Lithium batteries.

Features:

  • 14 x 12VDC outputs
  • 35A maximum output current
  • 30A maximum charging current
  • Solar 28 Amp
  • Lithium (LiFePO4) compatible

Product Manual



BMPRO MiniBoostPro 30A 12V DC to DC Battery Charger with Solar Input

BMPRO’s MiniBoostPRO is a compact DC-DC charger with solar input, specially designed for the RV market. The MiniBoostPRO offers effective charging of your caravan, 4WD or camper trailer’s house battery from the towing vehicle’s electrical system.

Blending both solar and auxiliary inputs, the MiniBoostPRO provides a combined charging current of up to a maximum of 30A, with a preference to solar. It features proprietary technology designed to charge from modern car alternators.

The MiniBoostPRO provides a multi stage charging profile.
It functions when wired directly to 12V batteries and enhances BMPRO’s BatteryPlus35 and J35 battery management systems.
A range of protective features built into the MiniBoostPRO will guard your caravan or camper trailer’s charging capacity.

Features:

  • 30A multi-stage DC-DC charger
  • Dual input solar/aux up to 30A
  • Multi battery chemistry selector
  • Suitable for modern smart alternators
  • BMPRO BP35 and J35 compatible
  • BMPRO signature durability and ease of use
  • 2 year warranty

Product Manual



BMPRO JControl 12V Display & Control Unit

The 12V digital battery monitor JControl is a display and control unit that connects to a J35 and displays a range of battery and water tank information. It acts as a fuel gauge by monitoring the current going in and out of the battery. It also displays information such as battery volts, solar and AUX input current, charge and discharge status, remaining battery capacity and water tank levels. JControl can be mounted on any internal wall of your caravan.

MONITOR:

  • Battery voltage and charge status
  • Battery charging and discharging currents
  • Auxiliary and solar charging currents
  • Time remaining to discharge
  • Level indication of up to 4 water tanks
  • Time am/pm
  • Water pump status
  • Battery on/off status

Features also include:

  • Button to control a water pump through J35
  • Button to disconnect the battery from the loads

Product Card

Product Manual



The table below illustrates which BMPRO range products are compatible and if any prerequisites will apply to the combination

Please CLICK HERE for more information on these BMPRO combinations and relevant prerequisites

BMPRO Compatibility Table

*This combination will have certain prerequisites - please CLICK HERE for more information





BMPRO BC300 External Shunt and CommLink

BMPRO BC300 External Shunt and CommLink provides additional battery monitoring for your BatteryPlus35 and J35 systems.

The addition of the BC300 to the BatteryPlus35 and J35 battery management systems allows high current loads and external charge sources to connect direct to battery via the BC300 External Shunt. This enhances system behaviour with temperature monitoring of the battery for greater protection.

BC300 also provides your BatteryPlus35 and J35 with additional information on battery usage so your displays such as the Trek, JControl and JHub are always up-to-date on battery Time Remaining and State of Charge.

The BC300 External Shunt and CommLink communicates via Bluetooth and CAN bus. The BC300 External Shunt is designed for 12V batteries up to 800AH in capacity. The shunt is rated for ±240A constant and 300A peak.

Note: This product will only work if you already have a  BMPRO BP35 or J35 Battery Management System.

Features:

  • High current/external charge monitoring
  • Wireless Bluetooth communication to Commlink – easy to install / retrofit
  • DIY installation and simple pairing procedure
  • Compatible with Lead Acid and LiFePO4 deep cycle batteries

Battery Properties Monitored:

  • Voltage
  • Current (charging / discharging)
  • Energy usage (Ah)
  • Temperature (not displayed)

Product Card

Product Manual

The table below illustrates which BMPRO range products are compatible and if any prerequisites will apply to the combination

Please CLICK HERE for more information on these BMPRO combinations and relevant prerequisites

BMPRO Compatibility Table

Specifications

SKU FullLithium2

Brand BMPRO

Warranty Period: 2 Years

Product Category Battery Management System

Battery Output Voltage Range Gel: 14.2V, AGM/Wet: 14.4.V, LiFePO4: 14.6V (Battery Charger)

Dimensions 160x131x41 mm (L x W x H) (Battery Charger) | 156mm x 94mm x 22mm (JControl)

Input Voltage 240 VAC nominal, ± 10%, 50-60 Hz (J35D BMS)

Output 0.9/3.0/4.0 Amps (JControl)

Input 240V, 50Hz (JControl)

Output System Voltage Output System Voltage(Battery Charger)

Ambient Temperature 0-50 °C (J35D BMS)

Output Current Rating 35A Continuous (load + battery current) (J35D BMS)
