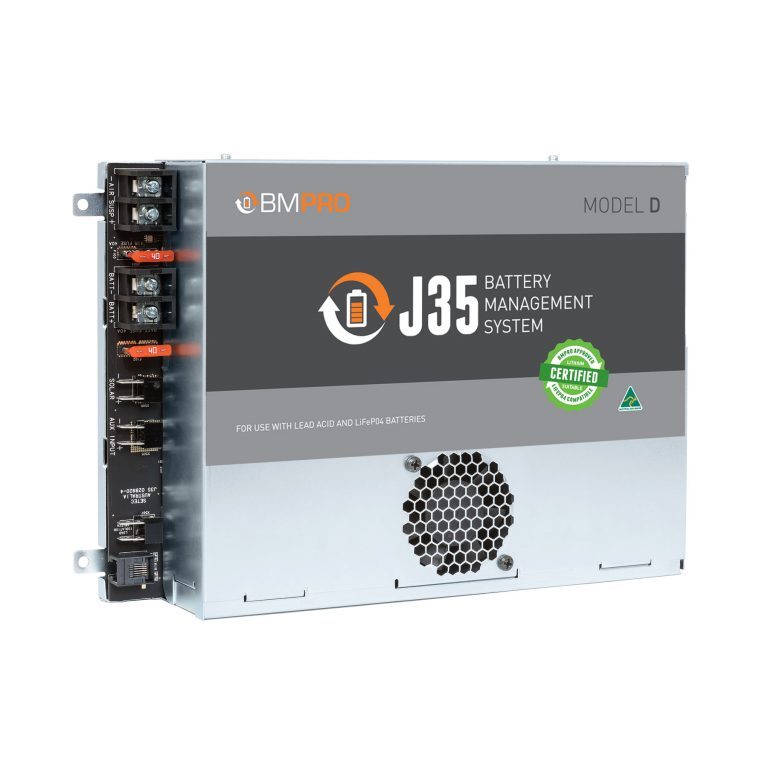

BMPRO J35D Lithium Compatible Battery Management System
SKU: BMPJ35D Learn More»Product Description
BMPRO J35D Lithium Compatible Battery Management System, 2 Year Warranty. J35 Model D is lithium compatible battery management system specifically designed for Jayco Australia. It features a built-in solar regulator and a multi-stage battery charger to ensure long battery life.
Use J35D to charge all types of lead acid batteries as well as lithium (LiFePO4) batteries. J35 allows charging of battery banks of up to 600Ah in capacity.
J35D allows you to charge the caravan battery to the optimal charge level from 230-240 Volt mains, your solar panel (28 Amp, or three panels 450W total), or from any auxiliary input, such as a power generator or your vehicle.
J35D will increase the life span of your battery thanks to the multiple battery protection features, such as low voltage disconnect, storage mode and multistage charging. There are 14 outputs to connect your DC appliances, including hot water, water pump, lights, and many more. Built in electronic fuses protect the loads.
Offered as an option in a range of Jayco caravan models, the J35D can recover and charge a heavily discharged LiFePO4 battery. The internal Battery Management System (BMS) of a LiFePO4 battery will turn off if it detects that the battery is heavily discharged. The J35D will provide the voltage to restart the LiFePO4 battery’s BMS and then commence charging of the LiFePO4 battery.
Pair J35D with the monitor, such as JControl, or a JHub app, to monitor your caravan power and control its functions.
We recommend using J35D power and battery management system with BMPRO Invicta Lithium batteries.
Features:
- 14 x 12VDC outputs
- 35A maximum output current
- 30A maximum charging current
- Solar 28 Amp
- Lithium (LiFePO4) compatible
The table below illustrates which BMPRO range products are compatible and if any prerequisites will apply to the combination
Please CLICK HERE for more information on these BMPRO combinations and relevant prerequisites
*This combination will have certain prerequisites - please CLICK HERE for more information
Specifications
SKU BMPJ35D
Brand BMPRO
Warranty Period: 2 Years
Product Category Battery Management System
Input Voltage 240 VAC nominal, ± 10%, 50-60 Hz
Ambient Temperature 0-50 °C
Output Current Rating 35A Continuous (load + battery current)
Net Weight (kg) 2
Videos
Power your caravan off grid with solar energy
Free camping with confidence. How to save power off grid?
Product Q&A
-
Hi, does this item include the control node with the management system so that the bluetooth app can be used on a BYOD?
Hi There,
The BMPRO J35D does not come with the control node. It would need to be purchased separately.
You can find it in the list of accessories on the product page for $295 inc GST.
