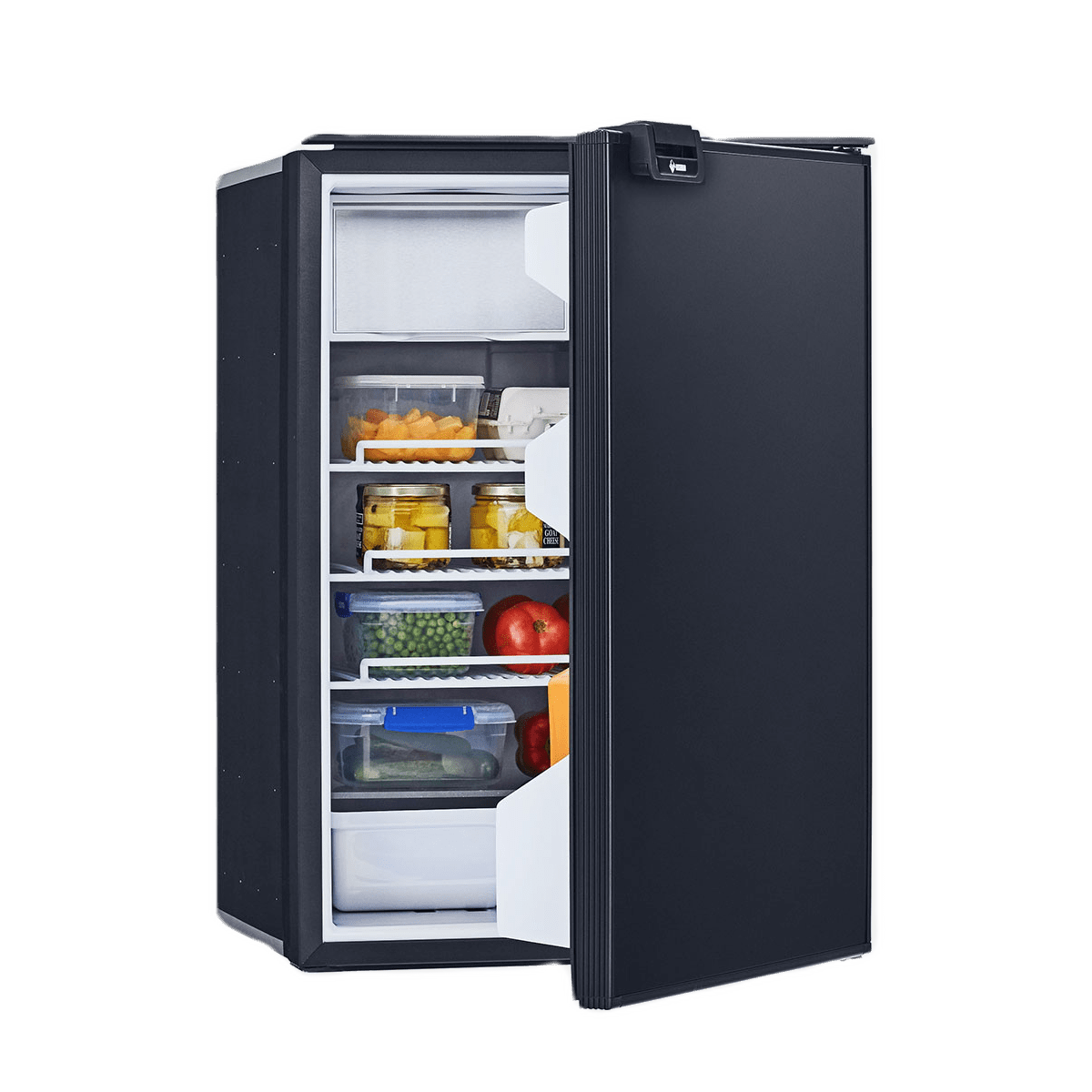

Bushman DC130X 12/24v Upright Fridge/Freezer 130L
SKU: DC130X Learn More»Product Description
Bushman DC130X 12/24v Upright Fridge/Freezer 130L, 5 Year Warranty. Our DC-X range of mobile fridges are specially designed for Caravans, Boats and Recreational Vehicles.
Recent advances in 12V battery systems and smart battery chargers mean you no longer need a fridge with 240V AC built in. Our DC only fridges are safer, run cooler and are far less complicated - giving you years and years of peaceful enjoyment.
Features:
- 12V / 24V DC Operation
- 6L Freezer
- Interior LED light
- Adjustable shelves
- Reversible door
Design:
- Extra low-power design
- A deeper freezer gives more storage space
- Large door shelves with rails
- Stainless steel freezer door
Compressor:
- Secop Danfoss BD35
- German designed and owned for over 50 years
- Powerful and Reliable
- Variable speed drive (2A - 4.5A)
- Average 1.4 Amp/hr over 24hrs (25º ambient 4º fridge)
Finish:
- Black / Black
- Interchangeable front panel
User Tips:
- This fridge is designed to run from a 12V DC power source such as your Caravan/Camping battery bank. Running the fridge from a 12V power source will help with the longevity and performance of this fridge. Bushman recommends that when 240V power is available, use a smart battery charger to charge your battery bank and keep your fridge running direct from the batteries. You can see a suitable range of AC to DC smart battery chargers HERE if needed.
- A small number of customers may want to use this fridge in an 'offgrid living' setup and run the fridge from 240V AC power all of the time - in which case you will need a Power Adaptor to convert AC Power to DC in order to run the fridge. You can see this optional Bushman Adaptor HERE.
Specifications
SKU DC130X
Brand Bushman
GTIN 797776962525
Warranty Period: 5 Years
Product Category Upright RV Compressor Fridges
Fridge Voltage 12 / 24 V
Product Type DC Compressor fridge for 12/24 volts
Total Capacity (Litres) 130
Freezer Compartment (Litres) 6 Litres
Fridge Depth (mm) 550
Fridge Width (mm) 525
Fridge Height (mm) 750
Popular Product Applications Caravan fridge, 12V compressor fridge, RV fridge, 2 way caravan fridge, Bushman fridge
Colour Black
Weight (kg) 30.8
Power consumption (DC 12V) Average 1.4 Amp/hr over 24hrs (25º ambient 4º fridge)
Installation Refer to the Product Manual / Installation Guide for installation instructions from the manufacturer. For optimal performance of RV compressor fridges
Compressor Secop Danfoss BD35
Cut Out Required 530 (W) x 755 (H) x 550 (D) mm
Videos
Bushman Fridge Review: The DC130X 12/24V 130L Fridge/Freezer
Bushman DC130-X | Caravan Fridge Review | @vanlifestraya
Product Q&A
-
I'm looking at the Bushman Fridges, are they manufactured in Australia?
Great question, all the Bushman fridges are manufactured overseas, however, Bushman is an Australian owned and operated business.
-
Can you get an adaptor for 240v and how easily can you switch power modes ?
Hi Bran, you certainly can. One of our more popular adaptors is this Dometic Waeco Cool Power 240 Volt Adaptor, 150W - this can be used when 240 Volt AC mains power is available and you want to run 12 / 24 Volt DC applainces. Simply connect this adaptor between the mains power outlet and your DC appliance (in this case a fridge) - this allows you to use mains power when its available instead of using your DC battery power. Thanks
-
Do these need to be wrapped in insuwool like the 3 way it will be replacing, do we need a fan to suck out the heat from the compressor through the top ventthanks mateBrian
Hi Brian,
No insulation is required.
You will need to have some form of escape path for the heat created by the compressor. This could be an external vent, or an internal vent depending on your cabinet setup.
-
Is this suitable to go in the back of a canopy for camping and if so how would I mount it to my canopy?
Hi Harrison,
Thank you for your inquiry.
The answer is yes and no!
You can put a DC-X fridge on a canopy, however it needs to be packed more carefully than a chest fridge, ideally using plastic tubs, so everything doesn’t slide around inside the fridge. This is pretty normal for RV’s anyway.
The fridge can be mounted in many different ways. It is important to keep the soft rubber feet attached to the fridge as these absorb shock.
The fridge sheetmetal can be screwed in to using short (<8mm) Sheetmetal screws to affix the fridge to the canopy.
-
Hello My Generator,Question regarding mounting the 130 Bushman. The <8mm screws you mention for attaching direct to the outside of the fridge metal skin, can these only be screwed in certain areas? Ie I am using the mounting kit but also want to fix the
Hi Jason,
Thank you for your inquiry.
Screw should only be inserted where the installation frame connects to the fridge.
There are no other locations on the fridge that we are aware of that can accept screws without potentially causing damage.
For further installation assistance we would recommend calling Bushman on 03 9437 0737
-
Does A Caravan Fridge Need 240V?
Hi John,
Thanks for your question.
Essentially no you do not always need a caravan fridge with 240V. In fact, some brands, such as Bushman, recommend a 12V fridge only. This is because of the follow reasons:
- The fridge will last longer - caravan fridges with 240V built in have a 240 transformer attached to the compressor. This transformer generates excess heat, which in turn reduces the life of the compressor.
- The fridge will cool down faster - by removing the 240V transformer from the compressor, the cooling system will produce less heat. This therefore makes it easier and faster for the fridge to cool down.
- A 12V fridge costs less - a 12V and 240V fridge requires a qualified electrician to install and service the fridge. Whereas a 12V only fridge is generally cheaper to buy, install and service.
However, having a 240V fridge allows you to connect to AC mains power when available and run 12/24 Volt DC appliances. Usually a customer who intends to use their Bushman fridge in an 'off-grid' living set up will want to run the fridge from a 240V power source the whole time and therefore use an adaptor.The better option for Caravan/Camping use is to run their 12V Fridge from their batteries. Bushman recommends that when 240V power is available, use a smart battery charger to charge your battery bank and keep your fridge running direct from the batteries. You can see a suitable range of AC to DC smart battery chargers HERE if needed.Thanks. -
Is this fridge T rated ?
Hi There,
Bushman do rate this unit as T rated. Thanks
-
When not using DC-X Bushmans van fridge it is recommended to leave door ajar when not turned on. How do I turn off interior light
Hi There,
If the fridge is turned off, the internal light should not be illuminated at all.
-
Has the fridge an interior fan
Hi There,
No sorry, there is no internal fan in this fridge.
-
Hi,will 2 litre milk bottles fit into the lower door pocket of this fridge?
Hi There,
Unfortunately a 2L milk bottle would not fit in the door compartment.
We would recommend 1L bottles be put in the door.
-
Hi,Would 1.25L bottles fit in the door? I noted your reply about the 2L milk bottles not fitting so wondering if a 1.25L soft drink bottle would fit?Thanks
HI There,
We would expect a 1.25L bottle to fit just fine in the door.
-
Does the fridge door lock
Hi There,
Yes the door does have a locking latch.
The door latch prevents unexpected openings of the door when the vehicle is in motion.
-
I have noticed that for another brand of fridge you quote the power consumption [aA/h] for 240V use, without actually noting this, but confirmed from manufacturer's website.Is the A/h consumption rate for this fridge also for 240V use. It is very low fo
Hi There
The information supplied for this fridge is on 12V DC.
We would not have AC power ratings for the Bushman as it is stricly a 12/24V fridge only.
-
Are these manufactured in Australia?
No, Bushman is an Australian company, however their products are not manufactured here.
Customer Reviews
Excellent Fridge Review by Steve RichardsonFridge works wonderfully. Good size freezer and crisper.(Posted on 8 June 2023)
Love how much space for a small fridge Review by KarenWorked very well even when it was raining and overcast.(Posted on 13 October 2021)
Top Product Review by david williamsonTop Fridge, does everything I Require from This type of Compact Fridge.(Posted on 11 July 2021)
Great light weight alternative to a chest fridge Review by ScottThe fridge is designed to go inside a cabinetry cavity so it's strange to see the workings of the fridge exposed, purchased a bunnings flat pack 600mm over cavity unit and fits perfectly and added some vents, fridge works as it should and isn't as power hungry as people said it would be, very comparable to the engel 60l I had.(Posted on 23 June 2021)
