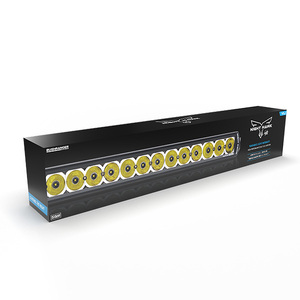

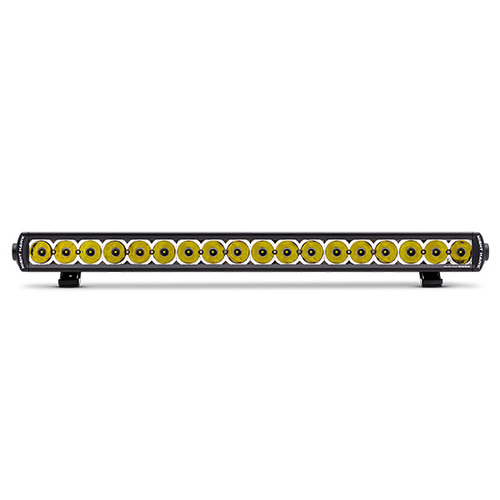

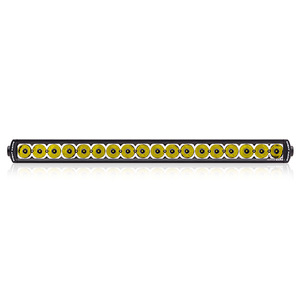

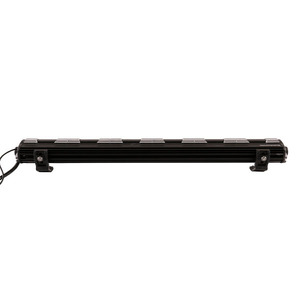

Bushranger Night Hawk 24.5" VLI Series SR LED Light Bar

Bushranger Night Hawk VLI Series Wiring System, 1 Year Warranty. The Bushranger Night Hawk VLI Series Wiring System has been pushed to the edge by developing the first dedicated auxiliary light wiring system; incorporating relay free switching and brightness control functionality. What does this mean? Simpler wiring, easier installation, more user control and greater reliability over the traditional plug and play wiring loom. The commonly used automotive 12V relay is removed entirely and replaced with modern transistor switching, which is built into the light and the control module. Each light is powered directly from the battery, rather than through a relay, meaning there are no power restrictions for the wiring system, which is a common limitation with traditional relay-based wiring looms. Up to 4 x Bushranger Night Hawk VLI Series LED lights can be controlled by 1 wiring system and any combination of models/sizes can be used.

Product Features

• Modern electronically switched wiring system offers a simpler, more reliable and smarter alternative to regular relay-based wiring harnesses.
• ‘Plug & Play’ modular design provides versatility to suit any vehicle and reduces installation time compared to traditional wiring harness installs.
• Works with all Bushranger Night Hawk VLI Series Lights with no limitation on the power rating of each light.
• The wiring system, as supplied, controls up to 2 x lights. Capacity to control up to 4 x VLI Series lights simultaneously with the use of additional control leads (sold separately).
• PWM brightness control offers 7 x brightness settings at the turn of a dial.
• Soft Start Programming reduces eye fatigue by ramping up the brightness within the first second of operation.
• Automatic Polarity Detection simplifies connection into the high beam circuit and works on positive and negatively switched vehicles.
• Plug & Play headlight adaptors, fuse taps and additional control leads are available separately.

Bushranger Night Hawk 1.5m Control Lead, 1 Year Warranty. Available in 1.5m and 3m lengths.

Bushranger Night Hawk 3m Control Lead, 1 Year Warranty. Available in 1.5m and 3m lengths.

Bushranger Night Hawk VLI Mini Fuse Tap, 1 Year Warranty.

Bushranger Night Hawk VLI Standard Fuse Tap, 1 Year Warranty.

Bushranger NHD Extended Tube Clamp Bracket Pair, 44.5-48mm (1.75"), 3 Year Warranty.

Available in four sizes, covering from 44.5mm [1.75″] to 77mm [3″] bars.

Bushranger NHD Extended Tube Clamp Bracket Pair, 49-51mm (2"), 3 Year Warranty.

Available in four sizes, covering from 44.5mm [1.75″] to 77mm [3″] bars.

Bushranger NHD Extended Tube Clamp Bracket Pair, 60-63.5mm (2.5"), 3 Year Warranty.

Available in four sizes, covering from 44.5mm [1.75″] to 77mm [3″] bars.

Bushranger NHD Extended Tube Clamp Bracket Pair, 75-77mm (3"), 3 Year Warranty.

Available in four sizes, covering from 44.5mm [1.75″] to 77mm [3″] bars.

Bushranger NHS Standard Tube Clamp Bracket Pair, 44.5-48mm (1.75"), 3 Year Warranty.

Available in four sizes, covering from 44.5mm [1.75″] to 77mm [3″] bars.

Bushranger NHS Standard Tube Clamp Bracket Pair, 49-51mm (2"), 3 Year Warranty.

Available in four sizes, covering from 44.5mm [1.75″] to 77mm [3″] bars.

Bushranger NHS Standard Tube Clamp Bracket Pair, 60-63.5mm (2.5"), 3 Year Warranty.

Available in four sizes, covering from 44.5mm [1.75″] to 77mm [3″] bars.

Bushranger NHS Standard Tube Clamp Bracket Pair, 75-77mm (3"), 3 Year Warranty.

Available in four sizes, covering from 44.5mm [1.75″] to 77mm [3″] bars.

Bushranger Mounting Foot Kit to suit NHT Light Bars, 1 Year Warranty.

Bushranger X-Bar Universal Number Plate Driving Light Mounting Bar, Chrome, 5 Year Warranty. Bushranger® X-Bar, Number Plate Light Mounting Bar suitable for 4×4, SUV, passenger vehicles as a universal light installation solution. Fixes to the vehicle by using the existing licence plate mounting holes to fit, for a sturdy mounting platform. Quality manufactured and frontal airbag compliant (ADR69). Available in black or chrome.

NOTE: Bar only, lights not included.

Bushranger X-Bar Universal Number Plate Driving Light Mounting Bar, Black, 5 Year Warranty. Bushranger® X-Bar, Number Plate Light Mounting Bar suitable for 4×4, SUV, passenger vehicles as a universal light installation solution. Fixes to the vehicle by using the existing licence plate mounting holes to fit, for a sturdy mounting platform. Quality manufactured and frontal airbag compliant (ADR69). Available in black or chrome.

NOTE: Bar only, lights not included.

Bushranger 260W Wiring Loom with Bullet Connectors, 1 Year Warranty.

Bushranger 300W Night Hawk Driving Light Wiring Loom, 1 Year Warranty. The Bushranger Night Hawk Driving Lights Wiring Looms feature high current automotive grade 105°C rated wiring, quality relays, weatherproof fuse holders and twin waterproof Deutsch plugs. Ensuring long term protection against wear and tear, they have been pre-fitted with professional grade corrugated split tubing and have been designed and assembled with premium components as standard.

Featuring universal fitment, our Wiring Looms can be fitted to any 12v vehicle where auxiliary driving lights or lights bars are required to be activated from the vehicles high beam circuit. Quick and easy to install, the plug and play design of the Wiring Looms simplifies installation on a large range of vehicles when combined with our vehicle specific High Beam adaptors and OEM Style Switches (sold separately).

Specifications:

• Single 12VDC 40A relay with interlocking style base for simple and neat installation of additional looms
• Weatherproof fuse holders with 40A fuse for load circuit and 3A fuse for switching circuit
• Twin waterproof Deutsch DT06-2S connectors
• 26A total current capacity (13A max each plug)
• High current, 105°C rated wiring, protected with corrugated split tubing for long term reliability and a professional, OEM look
• ON/OFF illuminated mouse style switch which can be mounted discretely in the vehicle
• Plug and play compatibility with our extensive range of vehicle specific OEM style switches and High Beam adaptors
• RoHS compliant
• Suitable for use with a pair of 7” Night Hawk Driving lights or any two Night Hawk Light Bars from 5.5” to 39.5” size. Also compatible with many other lights on the market

Wire Lengths:

• Battery to Relay/s: 0.5m
• Relay to Switch: 4.0m
• Relay to High Beam Plug: 1.1m
• Relay to Driving Light Plug 1: 1.6m
• Relay to Driving Light Plug 2: 2.6m
