Dometic Waeco CoolMatic 30 Litre Compressor Drawer Fridge
SKU: CD-30 Learn More»Product Description

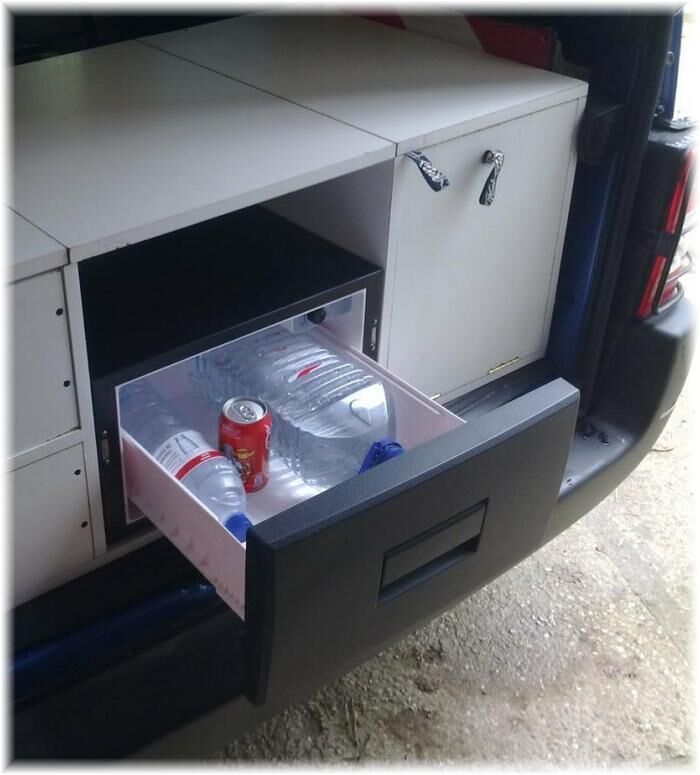

Dometic Waeco CD-30 CoolMatic 30 Litre Compressor 12/24 Volt Drawer Fridge. This smart Drawer Fridge turns unused nooks and crannies into a practical cold store with a capacity of 30 litres. Even though space is limited in your holiday home, boat or truck, you will certainly find a suitable place for your new CD-30 drawer fridge. In some trucks and caravans, the practical compressor cooler can even be fitted from the outside.
Smoothly running on roller bearing slides, it perfectly matches the interior design of most vehicles with its black front panel. A single movement of your hand, and the drawer unlocks to deliver cool snacks and drinks in abundance.
Key benefits
- Sturdy metal housing with injection moulded parts
- Secop (formerly Danfoss) BD35 compressor
- Metal slide system. Metal latches
- Unlocking and opening with a single movement
- Secure closing mechanism
- Suitable for solar operation. Continuously variable thermostat
- Convenient access to cool snack and drinks with easy-pull drawers running on roller bearing
- Warranty: 3 years
Specifications
SKU CD-30
Brand Dometic
GTIN 4015704153873
Warranty Period: 3 Years
Product Category Drawer Fridges
Fridge Voltage 12 / 24 V
Product Type Drawer compressor refrigerator
Total Capacity (Litres) 30
Temperature range +12 °C to -2 °C (fridge only)
Fridge Depth (mm) 730
Fridge Width (mm) 440
Fridge Height (mm) 250
Installation Refer to the Product Manual / Installation Guide for installation instructions from the manufacturer
Defrosting Type Manual
System Secop (formerly Danfoss) BD-35F compressor
Net Weight (kg) 18
Videos
2 Way Fridges vs. 3 Way Fridges for Recreational Vehicles
Customer Review On The 30 Litre Dometic Drawer Fridge
The Best 4WD Fridge: Customer Review of the Dometic CRX110 and CD-30
Dometic Drawer Fridge Review, CoolMatic 30 Litre Compressor Drawer Fridge
WAECO Coolmatic CD-30
Dometic Waeco CoolMatic 30 Litre Compressor Drawer Fridge Product Review
Product Q&A
-
What is the current draw in Watts running flat out?
Hi - the average rated consumption is approx. 40 watts. The official manufacturer's power consumption rating is:
1.4 Ah / h at +25 °C ambient temperature 1.7 Ah / h at +32 °C ambient temperature both at +4/5 °C interior temperature.
Many thanks
-
How can I run this drawer fridge on 240V?
Hi George, the fridge comes with positive and negative cables which can be connected to an adaptor such as the Dometic Waeco MPS-50A - This adaptor is popular for when 240 Volt AC mains power is available and you want to run 12 / 24 Volt DC appliances. Simply connect this adaptor between the mains power outlet and your DC appliance (in this case your Drawer Fridge) - this allows you to use mains power when its available instead of using your DC battery power. Thanks.
-
Does the fridge auto select between 12v/24v?
Hi - Yes it does!
Thank you :)
-
Is the compressor and pipe work movable to the side of the unit?
Hi - if you are talking about moving the configuration of the internal workings of the fridge, then we would not recommend doing this is at would likely void the warranty. Thanks
-
What are the internal dimensions of the drawer
Hi Greg,
The internal dimension for the Dometic Waeco CoolMatic 30 Litre Compressor Drawer Fridge can be found on page 2 of the Product manual here
regards
The team @ My Generator
-
Hi. Does this fridge have a low voltage protection? Cheers
Hi Susan, the compressor will not run if the battery voltage is too low and therfore will not draw on the battery. Thank you
-
Is it harmful to keep a cd30 running 24/7 or are you better off turning it off every so often ?
Hi There,
Provided the fridge has suitable ventilation there shouldn't be an issue running in continuously.
-
how is it connected
Hi There,
These fridges are generally hardwired to the vehicles 12V system.
This could be via Anderson plug for example.
-
Can i buy 2, and set 1 as a freezer.Thanks...
Hi There,
Unfortunately the Dometic CD-30 does not have the temperature range to be set as a freezer.
Currently we only have one drawer model that can function as a freezer, and that is the Evakool 40L DC40-DRW-S.
https://www.mygenerator.com.au/evakool-40-litre-drawer-fridge-freezer.html
-
Hi,Is this suitable for charging from solar panels?Thanks,
Hi There,
You would need to make sure the fridge is connected to a battery that was being charged by solar.
The fridge will not operate on solar alone.
-
Hi there I wanting to know some information about the fridge I want to run two fridges but back to back. Meaning the the rear of each fridge are facing one another. Would this be an issue if both are running at the same time and being in close proximity
Hi There
The only issue that could present itself would be the build up of heat from the compressors.
To avoid this you would need to make sure there is significant venting for the hot air away from the compressors.
If too much heat is present the compressors will have to work a lot harder, and cooling efficiency will drop.
-
Can you stack drawers on top of each other?
Hi, if you have the space the yes you can. For the most energy efficent operation; choose a well ventilated installation location which is protected against direct sunlight. Thanks.
-
Does the total depth 730mm include the workings at the back?
Hi, yes the 730mm depth measurement includes the componentry at the rear of the fridge. Thanks
-
Hi, I'm thinking of installing one of these under my bed in my camper, just wondering is is noisy ?
This fridge is very popular in under bunk storage in campervans. It has a very small compressor that is mounted at the back of the fridge within the recess, it is very quiet.
Customer Reviews
Excellent Fridge Review by Jan TrewFantastic efficient fridge drawer. Takes up minimal space but holds a decent amount.Only uses 1 amp per hr so perfect to stay on 12volt with our solar panel.Would highly recommend this little winner.(Posted on 5 June 2021)
Excellent Customer Service & Product Review by Adrienne BellWe love the draw fridge for accessibility and fits in the space in the Canopy perfectly.(Posted on 20 September 2020)
Excellent Fridge! Review by Shaun FalzaranoHighly recommend this fridge. Extremely small and a great use of space. Work great and is extremely quiet.(Posted on 21 September 2019)
Just perfect Review by JanetteTop little fridge keeps the beverages.(Posted on 21 September 2019)
