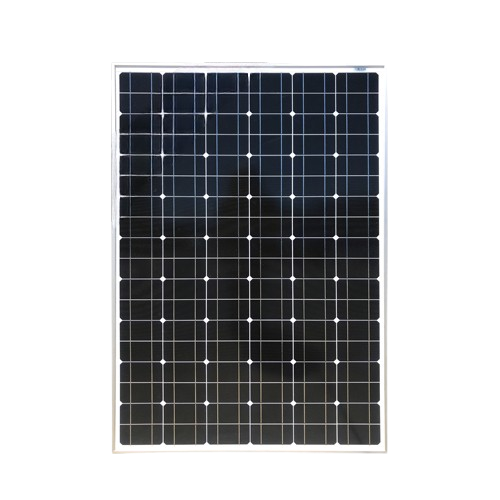

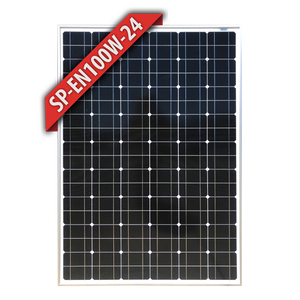

Enerdrive 100W 24V Fixed Solar Panel
SKU: SP-EN100W-24V Learn More»Product Description
Enerdrive 100W 24V Fixed Solar Panel, 5 Year Warranty. Enerdrives 100W Fixed Solar Panels are 43+VDC open circuit and are well suited to 12/24v installations (or 48v by series connections of panels).
PLEASE NOTE: SP-EN100W-24V are suitable for Charging 24V Battery System when using a PWM Solar Controller. For Charging a 12V Battery System a MPPT Solar Controller MUST be used.
A fly lead cable is provided for easy connection of the 10 & 20w panels while the larger panels have MC4 compatible solar cable connectors included.
Enerdrive stocks a full range of spare cables. With a mass of factories developing solar panels around the world, the biggest choice is ‘Where to buy” & even more importantly “What quality and support am I getting”. Enerdrive can become your single point contact for all things relating to solar products, warranty and importantly that same level of support that we have provided
for many years with all Enerdrive products.
Features:
- 20+vdc open circuit
- Suited to 12v installations (or 24v by series connections of panels)
- A fly lead cable is provided for easy connection of the 10 & 20w panels
- The larger panels have MC4 compatible solar cable connectors included
To choose a Solar Charge Controller for your Enerdrive Solar Panel, click here.
*Note: The SP-EN100W-24 is suitable for Charging 24V Battery System when using a PWM Controller. For Charging a 12V Battery System a MPPT Solar Controller MUST be used.
Specifications
SKU SP-EN100W-24V
Brand Enerdrive
GTIN 9342616026113
Warranty Period: 5 Years
Product Category Solar Panels
Solar Panel Type Fixed Solar Panels
Solar Panel Cell Type Monocrystalline
Watts (W) 100
Dimensions 1010 x 676 x 35
Short Circuit Current Isc(A) 3.26
Popular Product Applications Caravan solar panels, 12V solar panel, RV solar panels, campervan solar panel kit, 4WD solar panels, 100 watt solar panel
Open Circuit Voltage Voc(V) 40.5
Max System Voltage (VDC) 1000
Test Conditions Cell Temperature: 25 Deg | C,Irradiance: 1kW/㎡ | Air Mass: 1.5
Voltage DC (V) 24V
Net Weight (kg) 8.9
