Enerdrive 200Ah Off-Grid "Trip In A Van" Bundle with 760W Solar Panels
SKU: TIAV-200 Learn More»
FREE SHIPPING
This item is sent via Express Courier. All freight is fully insured.
Accessories
Product Description
Enerdrive 200Ah Off-Grid "Trip In A Van" Bundle, 5 Year Warranty. The Enerdrive 200Ah lithium battery, when used in combination with a 40A DC-to-DC charger, is typically part of a setup commonly used in various applications, including off-grid power systems, recreational vehicles (RVs), boats, and other mobile power needs.
The AC charger becomes relevant when you are connected to an AC power source, such as a campsite with electricity hookups or a marina with shore power. It provides a convenient means to recharge the battery when AC power is available.

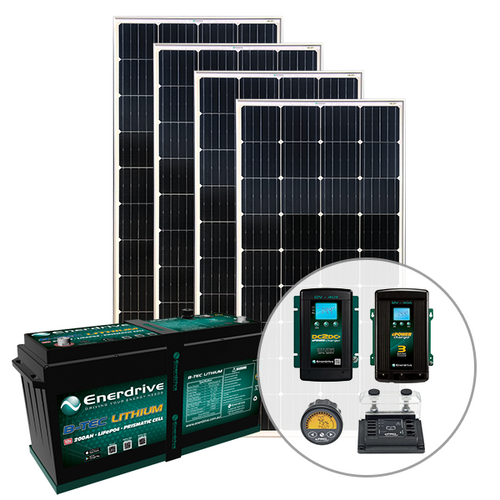

Bundle Includes:

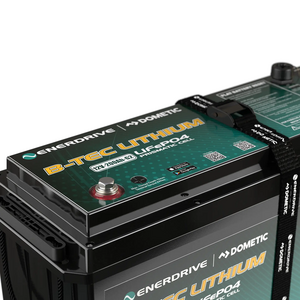

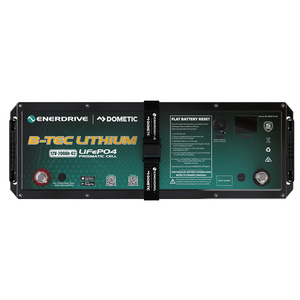

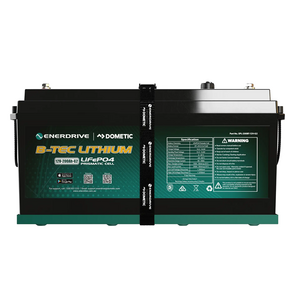

- EPL-200BT-12V-G2 - Enerdrive B-TEC 200Ah Lithium Battery

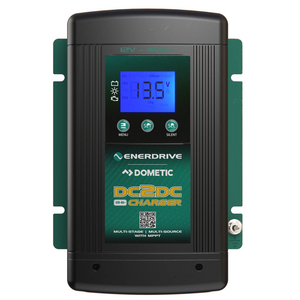

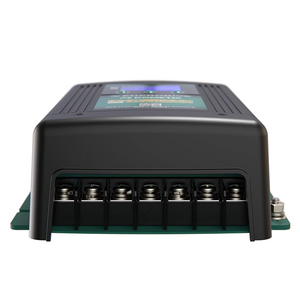

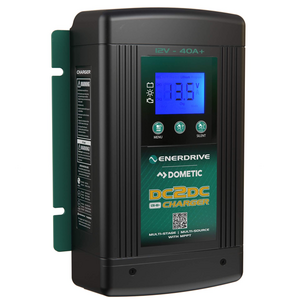

- EN3DC40+ - Enerdrive 40A DC to DC Battery Charger
- EN31240 - Enerdrive 40A AC Battery Charger
- EN55050 - Enerdrive ePRO Plus Battery Monitor
- 4 x SP-EN190W - Enerdrive 190W Monocrystalline Fixed Solar Panel
Optional Inverter:
- EN1120S-X - Enerdrive 2000W Pure Sine Wave Inverter with RCD & AC Transfer Switch
- EN1226S-X - Enerdrive 2600W Pure Sine Wave Inverter with RCD & AC Transfer Switch
Here's how these components work together:
- B-TEC 200Ah Lithium Battery: This serves as the cornerstone of your energy storage system, with a 200 ampere-hour capacity. It is the source of electrical energy for powering your appliances and devices, regardless of whether your application is an RV, boat, or another off-grid setup.
- 40A DC2DC Charger: The DC-to-DC charger plays an important role in your setup. It regulates and transforms incoming DC power from various sources, such as your vehicle's alternator or solar panels, ensuring it's efficiently channeled to recharge the battery. With a capability of delivering a maximum charging current of 40A ~ 50A amps when sourcing power from DC sources, it guarantees the optimal charging performance.

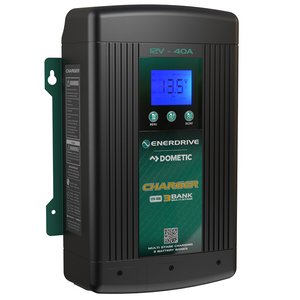

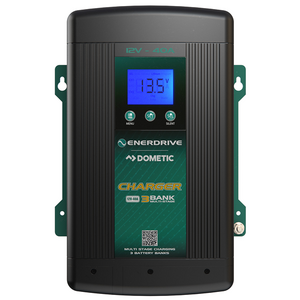

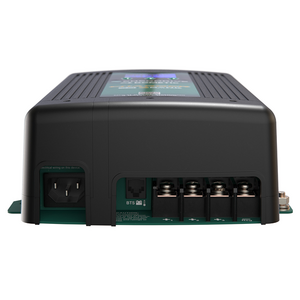

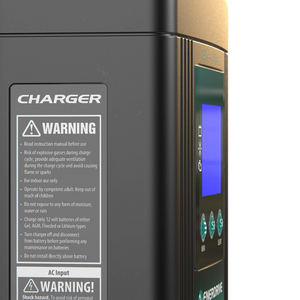

- 40A AC Charger: The AC charger recharges the battery when you have access to an AC power source, such as when your vehicle or setup is connected to shore power or an external generator. This charger converts AC power into DC power and delivers up to 40/100 amps to recharge the battery.
- Inverter: The Enerdrive pure sine wave inverter plays a vital role in your setup. It ensures that the power delivered to your appliances and devices is of the highest quality. The pure sine wave output guarantees clean, stable power, making it suitable for sensitive electronics, ensuring they operate without interference or damage. This inverter enables you to use standard AC-powered devices with confidence, enhancing the versatility of your energy system.

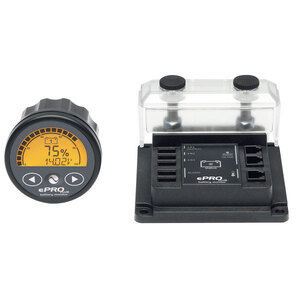

- Battery Monitor: The Battery Monitor is a critical component that keeps you informed about the state of your battery. It provides real-time data on your battery's voltage, current, state of charge, and more. This monitoring system enables you to keep a close eye on your battery's health, ensuring you have a clear understanding of its performance and capacity. With this information, you can make informed decisions about your energy usage and recharging strategy.
- 190W Mono Crystalline Fixed Solar Panels: these panels provide a reliable and sustainable energy source for recharging the B-TEC 300Ah Lithium Battery. With a combined capacity of 760 watts, they enhance overall energy efficiency, reducing reliance on conventional power sources.
The combination of both DC and AC charging options offers versatility in recharging your battery, catering to various scenarios. The DC charger is apt for charging on the move, while the AC charger proves valuable when you're stationary and connected to the grid.
This setup offers flexibility in recharging your battery, considering both your mobility and access to AC power sources. It's important to consult the manufacturer's recommendations and user manuals for each component to ensure proper installation and operation in your specific application.
| Bundles | K-200-17 | K-200-18 | K-200-19 |
| EPL-200BT-12V-G2 | * | * | * |
| EN3DC40+ | * | * | * |
| EN31240 | * | * | * |
| EN55050 | * | * | * |
| 4 x SP-EN190W | * | * | * |
| EN1120S-X | * | ||
| EN1226S-X | * |
Battery Manual:
DC Charger Information:
AC Charger Information:
Inverter Information:
ePro Monitor Information:
Specifications
SKU TIAV-200
Brand Enerdrive
GTIN 9342616001240
Warranty Period: 5 Years
Product Category Battery Bundle
Battery Voltage 12V
Amp Hours (Ah) 200
Battery Length (mm) 505
Battery Width (mm) 172.5
Battery Height (mm) 265
Battery Weight (kg) 25
Solar Panel Type Fixed Solar Panels
Solar Panel Cell Type Monocrystalline
Watts (W) 760
DC Charger Output Current Rating (Amps) 40
AC Charger Output Current Rating (Amps) 40
Model EPL-200BT-12V
Nominal Voltage 12.8V
Nominal Capacity 200Ah
Wattage (W) 2600
Wattage (W) 2000
Cycle Life (DOD – 80% under controlled conditions) ≥ 2000 Cycles
Battery Charge Temperature 0 ̴ 45°C
Normal Charge Voltage CV/CC* 14.20 ̴ 14.60V
Standby (Float) Voltage 13.50 ̴ 13.80V
Maximum Charge Current 150A @ 25°C for 30mins
Recommended Charge Current for Maximum Life 40~100A
Battery Discharge Temperature -20 ̴ 60°C
Battery Output Voltage Range 11.00 ̴ 14.60V
Maximum Discharge Current 200A @ 25°C ± 5°C for 30mins
Pulse Discharge Current 450A for 1.0s
Discharge Cut-off Voltage ≤ 11.20V
Over-Charge Protection Per Cell 3.90V ± 0.03V
Over-Charge Release Per Cell 3.60V ± 0.05V
Over-Charge Release Method Discharge below release voltage
Over-discharge Protection Per Cell 2.80V ± 0.05V
Over-discharge Release Per Cell 3.20V ± 0.05V
Over-discharge Release Method Apply Charge/Voltage ≥12.8V
Battery Manual Reset Button Yes
Discharge Over Current 220A for 30s – 450A for 1s
Protection Reset Time Approx 10s Auto Release
Over Current Release Method Disconnect Load
Battery Charge Over Temperature Protection to 55°C ± 5°C, Release at 45°C ± 5°C
Battery Discharge Over Temperature Protection to 65°C ± 5°C, Release at 50°C ± 5°C
Short Circuit Protection Auto release after 5s
Case Construction Hi Impact ABS Plastic
Temperature & Humidity Range ≤ 30 days -20°C ̴ 60°C, 5 ̴ 75% RH, ≥ 90 days -10°C ̴ 45°C, 5 ̴ 75% RH
Voltage 12V
