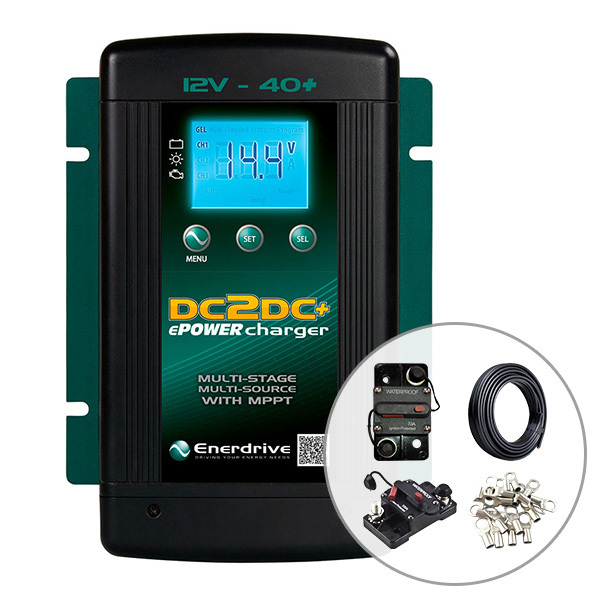

Enerdrive 40A DC to DC Battery Charger with Installation Kit
SKU: MYG-DC2DC40-KIT Learn More»Product Description
Enerdrive 40A DC to DC Battery Charging Installation Kit, includes Circuit Breakers, Lugs and Heavy Duty 16mm ² Twin Core Cable, 5 Year warranty.
This kit has been designed for in-vehicle installation.
Kit includes:
- 12V 40A ePOWER DC2DC Battery Charger - 12V 40A, EN3DC40+
- 16mm ² Twin Core Cable 6 Meters
- 16MM – 8mm Diameter Cable Lugs x12 Pieces
-
70 Amp Manual Reset Circuit Breaker x1 Piece
- 60 Amp Manual Reset Circuit Breaker x1 Piece

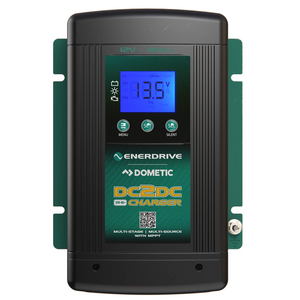

ePOWER 12V 40A DC2DC Battery Charger:
designed to meet the rugged demands of Australian conditions and delivering multiple source charging for DC systems.
The Enerdrive ePOWER DC2DC Battery Charger is a fully automatic multistage, multi input battery charger with the ability to charge from either an alternator linked to a battery; or via solar power with the in built Maximum Power Point Tracking (MPPT) Solar Controller.
Features:
- Two totally independent DC Inputs for both engine and solar regulation charging one house battery bank output
- DC M6 screw terminals that will allow for large battery cable connection between all sources
- A dedicated Maximum Power Point (MPPT) solar regulator
- The same battery algorithms as included in our AC mains ePOWER battery charger including a specific lithium charging profile
- 40A output up to 40+°C with thermo controlled fan cooling
- Fully programmable LCD display to show which source is charging the battery along with charger status, voltage and amperage
- Temperature sensor included in charger for more accurate battery charging
For In Vehicle & Marine Wiring Diagram, click below:
For Towed Vehicle Wiring Diagram, click below:

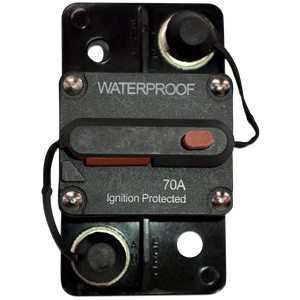

70 Amp Manual Reset Circuit Breaker:
Hi-Amp Circuit Breaker. 1/4"" Stainless Steel Studs 25-70amp. Typically used in auxiliary and accessory circuits in truck, bus RV's and marine applications. Others include battery charge and DC audio System.
Features:
- Rated Current: 70Amp
- Dimensions: 86 x 48.4 x 44.2mm
- Interrupt Capacity: 5KA @ 16Vdc | 3KA @ 32Vdc | 2KA @ 72 Dvc
- Voltage: Up to 48Vdc
- Calibration @ 25°C: 100% Hold 135% Trip (percentage of rating)
- Endurance: 400% A 14Vdc, 5000 cycles
Hi-Amp Circuit Breaker. 1/4"" Stainless Steel Studs 25-70amp. Typically used in auxiliary and accessory circuits in truck, bus RV's and marine applications. Others include battery charge and DC audio System.
Features:
- Rated Current: 60Amp
- Dimensions: 86 x 48.4 x 44.2mm
- Interrupt Capacity: 5KA @ 16Vdc | 3KA @ 32Vdc | 2KA @ 72 Dvc
- Voltage: Up to 48Vdc
- Calibration @ 25°C: 100% Hold 135% Trip (percentage of rating)
- Endurance: 400% A 14Vdc, 5000 cycles
Specifications
SKU MYG-DC2DC40-KIT
Brand Enerdrive
GTIN 9342616028704
Warranty Period: 5 Years
Product Category Battery Chargers
Output Current Rating (Amps) 40
Model EN3DC40+ (Battery Charger)
Product Type Enerdrive 40A DC to DC Battery Charging Installation Kit, includes Circuit Breakers, Lugs and Heavy Duty 16mm ² Twin Core Cable
Charger Mode Output Voltage 13.8V - 15.5V (Battery Charger)
Charger Voltage 12V
Net Weight (kg) 1.85
Temperature Setting Low/ Normal/ High (Battery Temperature Sensor Standard) (Battery Charger)
Selectable Battery Type Gel, AGM, Flooded, Lithium, Program (Battery Charger)
Equalize 15.5V (Battery Charger)
DC Output Single (Battery Charger)
Charger Efficiency 95% (Battery Charger)
Charging Control Three Stages (Battery Charger)
Float 13.0V - 13.8V (Battery Charger)
Output System Voltage 12V
Dimensions 242 x 172 x 74mm (L x W x H) (DC Battery Charger)
Videos
Enerdrive ePOWER 12V 40A DC to DC Battery Charger Product Review
Enerdrive Discusses Why Battery Cable Size Matters!
Introducing The Enerdrive Battery Charger Range
EN3DC40+ Enerdrive Battery Charger Run Through
Product Q&A
-
if I have an auto electrician connect the ignition wire to a source do I still need to have the smart alternator sense module connected
Hi There,
According to the wiriing diagram the smart altenrator sense module still needs to be connected to ground.
Enerdrive specifically state:
Vehicles with a Smart alternator, the Negative cable must be connected to the vehicle side of the Battery Sense Module.
Customer Reviews
Great product and quick delivery Review by Mark HancockThis charger is exactly what I need to charge the lithium battery in the canopy on my ute.(Posted on 23 April 2021)
