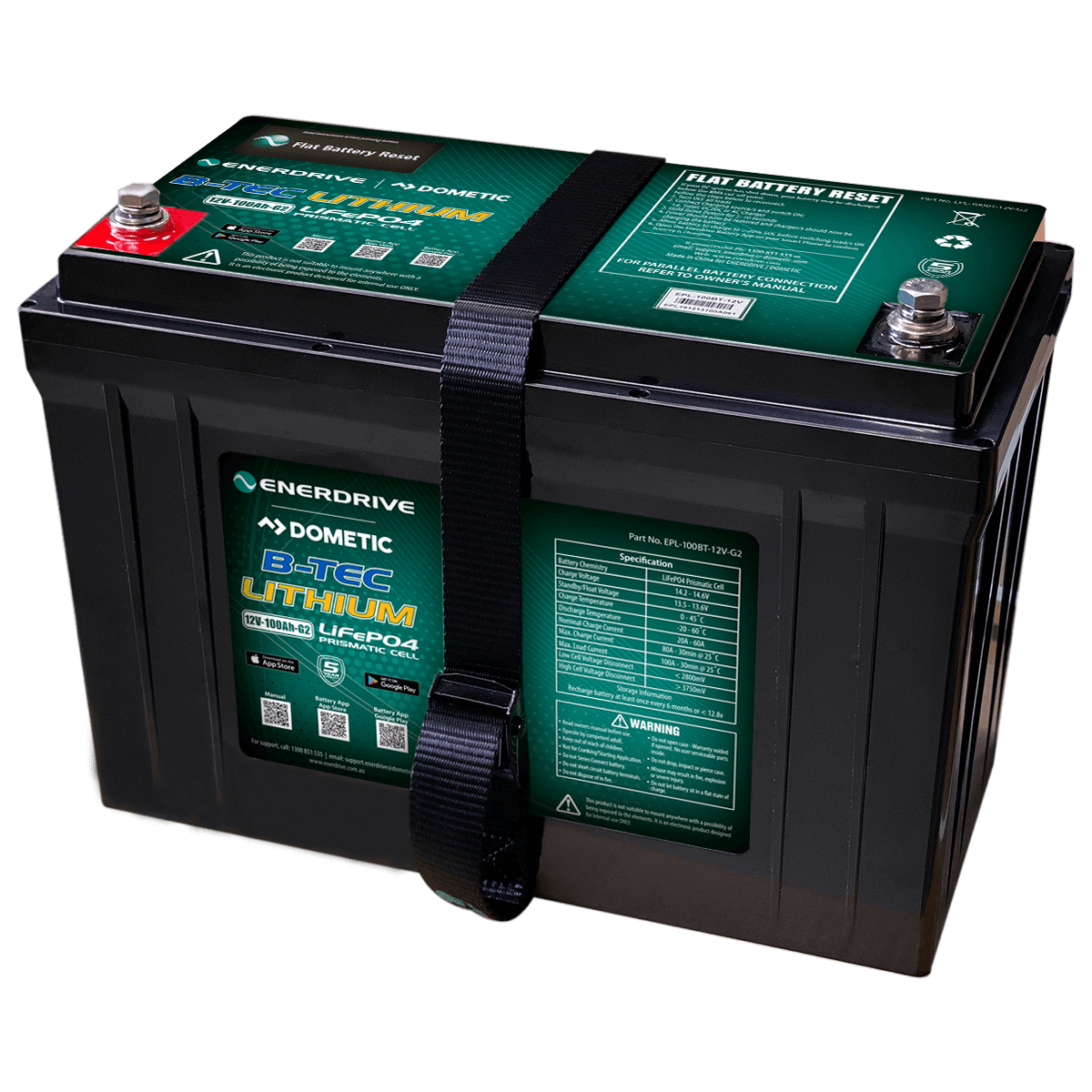

Enerdrive B-TEC 100Ah Lithium Battery
SKU: EPL-100BT-12V-G2 Learn More»Product Description
Enerdrive B-TEC 100Ah Lithium Battery, 5 Year Warranty. Replacing the Enerdrive eLITE 100Ah is the new B-TEC 100Ah Lithium Battery!
Smart Phone Monitoring System; The Enerdrive Enerdrive B-TEC G2 battery incorporates wireless Battery Monitoring Technology. By downloading the Android™ or Apple® app to your smartphone or tablet device, you can monitor the following information;
Battery Capacity | Battery Status |
Battery Voltage | Individual Cell Voltage |
Battery Current (Amps) | Battery Temperature |
Battery State of Charge (SOC) | Battery Cycles |
Battery State of Health (SOH) | Battery Alarms |
Battery Event Information |
Battery Management System: The battery is also equipped with an internal Battery Management System that can monitor and optimise each Prismatic cell within the battery during normal operation. It will protect the battery pack from over charge, over discharge, over temperature & short circuit. The BMS helps to ensure safe and accurate operation of the battery.
Size & Weight Savings
Lithium v AGM Capacities;
- 100Ah Lithium = 160Ah AGM
- 125Ah Lithium = 200Ah AGM
- 200Ah Lithium = 320Ah AGM
- 300Ah Lithium = 480Ah AGM
(Based on standard depth of discharge for both Lithium (80%) and AGM (50%).
The Enerdrive B-TEC battery provides 60% more usable power than its equivalent lead acid cousin and being nearly 50% lighter and 30% smaller makes for a superior alternative.
The G2 now incorporates a “Built-In Reset Button” making re-starting a flat battery a breeze. No longer do you need to apply a voltage to the battery terminals to wake up the battery. Press the button and within seconds, the battery will come back to life ready to accept a charge source to rejuvenate the battery.
The Enerdrive B-TEC battery is perfect for camper trailers, 4WD’s (AUX battery), caravans, small water craft, low power communication sites or any other application that requires the use of a single deep cycle battery that meets the amp hour capacity.
With over 7 years of researching, designing and testing lithium batteries and the associated charging systems, Enerdrive are at the forefront of lithium battery systems in Australia. Enerdrive are the only Australian company that can supply a fully integrated self-branded energy system to suit your setup.
With over 3000 complete systems in operation Australia wide, Enerdrive is regarded as the leader in the field of lithium batteries and energy systems for Mobile, Marine and Remote applications.
Please Note; The B-TEC battery is capable to be paralleled to a second B-TEC battery of the same size. For maximum performance and lifespan of your B-TEC battery, no more than 4 batteries should be connected together to increase your overall capacity. Overall loads when paralleled should not exceed the current limits of a single battery’s BMS.
The 100Ah G2 battery is able to accept a maximum inverter capacity of 1000W only. Exceeding the maximum inverter capacity can damage the BMS Management within the battery.
If you are requiring a battery system larger than Enerdrive B-TEC battery, please look at the Enerdrive Pro Series Power Pack Systems which can offer multiple parallel and series connections with Active Cell Balancing Protection across the entire pack.
Please note B-TEC batteries must not be installed –
- In vehicle engine bays or in high heat environments, refer to Section 10 – Battery Specifications of the manual.
- In wet areas such as caravan chassis mounts, open ute trays or boat deck areas.
- Inside compartments dedicated to carrying gas.
This product is not suitable to mount anywhere with a possibility of being exposed to the elements. It is an electronic product designed for internal use ONLY.
Specifications
SKU EPL-100BT-12V-G2
Brand Enerdrive
GTIN 9342616019207
Warranty Period: 5 Years
Product Category Batteries
Battery Voltage 12V
Amp Hours (Ah) 100
Battery Length (mm) 318
Battery Width (mm) 165
Battery Height (mm) 232
Battery Weight (kg) 12.6
Model EPL-100BT-12V-G2
Nominal Voltage 12.8V
Nominal Capacity 100Ah
Cycle Life (DOD – 80% under controlled conditions) ≥ 2000 Cycles
Battery Charge Temperature 0 ̴ 45°C
Normal Charge Voltage CV/CC* 14.20 ̴ 14.60V
Standby (Float) Voltage 13.50 ̴ 13.60V
Maximum Charge Current 60A @ 25°C for 30mins
Recommended Charge Current for Maximum Life 20~60A
Battery Discharge Temperature -20 ̴ 60°C
Battery Output Voltage Range 11.00 ̴ 14.60V
Maximum Discharge Current 100A @ 25°C ± 5°C for 30mins
Pulse Discharge Current 450A for 1.0s
Discharge Cut-off Voltage ≤ 11.20V
Temperature range ≤ 30 days -20°C ̴ 60°C, 5 ̴ 75% RH
Videos
The Best Caravan Battery?
What Will My Camping Battery Run?
Caravan Battery Review, Enerdrive 100Ah Lithium Battery
How To: Resetting A Flat Enerdrive BTEC or eLITE Battery
Connecting Your Enerdrive Lithium Battery to a Simarine Monitor
Exploring The Enerdrive BMS Found Internally In Their Lithium Batteries
Lithium Batteries Australia - Are they Safe
Cheap Lithium Battery Review: The Enerdrive 100Ah LITE Lithium Battery
Customer Review Of The Enerdrive Elite 100Ah Lithium Battery & ePRO Plus Battery Monitor
Product Q&A
-
the specs state that one battery should not exceed a 1000w inverter, if I buy two and connect them together can I use a 2000w inverter.
Hi Darran,
Unfortunately with the way the Enerdrive battery management system in the batteries work, you would still only be limited to a 1000W inverter even when two are in parallel.
You would require a 200Ah battery to run a 2000W inverter.
-
Do you need a special charge system? Or is it just put in and go with the old charge system?Thanks Don
Hi Don,
Lithium batteries require chargers with lithium charging profiles.
If your existing chargers do not have these profiles they will need to be replaced.
-
if i have a lithium battery in my car with a dc to dc charger and a AGM in my van will it charge the van battery when on the road
Hi There, generally you would require a second Dc to Dc charger for a second battery to work the best. Feel free to call us on 1300 400 122 for more information. Cheers
-
Does my enerdrive 100amp lithium battery need charging when I receive it
Hi There,
The battery will have charge, but it is always best to charge it to 100% before use.
-
I have a revolution power 60ah slim already in my Ute running off a red arc bms 30. Can I run this enerdrive in parallel?
Hi There
You would not be able to parallel thiis Enerdrive battery with your Revolution Power model sorry.
You would only want to parrallel the same type of batteries together.
Customer Reviews
100 amp Enerdrive battery Review by Geoff KingsleyInstalled in back of ute to run fridge and other appliances. Very happy with product(Posted on 11 March 2024)
Quality and price Review by Geoff BurgessQuality battery that has everything but the Bluetooth coms which I didn’t need as our Redarc BMS tells me everything. Lots of cheaper options but “you only get what you pay for” as they say(Posted on 8 June 2023)
Excellent product Review by Dave TILBURYExcellent product, competitive price(Posted on 8 June 2023)
Great Product Review by Gary BruceThe Enerdrive battery is a great product and a a good price at My Generator.(Posted on 8 June 2023)
