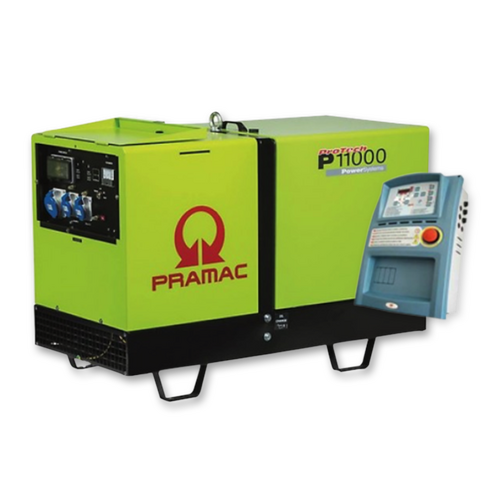

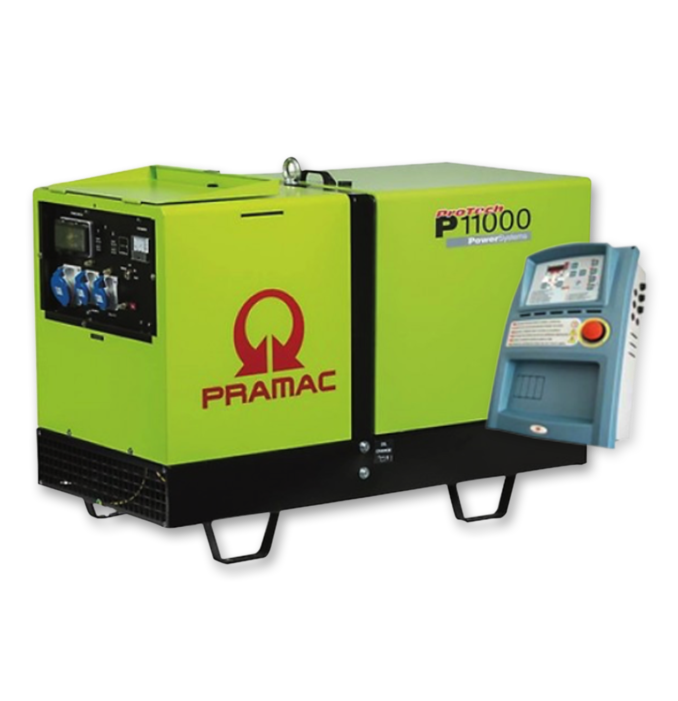

Pramac 10.8kVA Silenced Auto Start Diesel Generator, P11000-AMF

Specifications

SKU PF113SY4002

Brand Pramac

GTIN 8018539052393

Warranty Period: 3 Years

Product Category Portable Generators

kVA 10.8

Max Output (kW) 9.7

Continuous Output (kW) 9

Max Output (Watts) 9700

Continuous Output (Watts) 9000

Model P11000-AMF 1ph

Phase Single

Fuel Diesel

Fuel Tank Capacity 24 Litres

Starting Method Electric

Voltage 230

Net Weight (kg) 325

Noise @ 7m 68 dB(A)

Running Time (Rated Output) @75 PRP : 7.87 hrs | @100% PRP : 6.05 hrs

Engine Type Water cooled

Voltage Regulation Capacitor

Frequency 50Hz

Outlets Hard Wired with Automatic Mains Transfer Panel included

NOTE Product specifications provided by Manufacturer. This is a portable Water Cooled diesel generator designed for short term/standby applications. For pr

Engine Yanmar 3TNV70-HGE

Fuel Consumption @ 75% PRP : 3.05 l/h ; @ 100% PRP : 3.97 l/h

Engine Speed 3000rpm

Oil Capacity 3.8 Litres

Displacement 854cm³

Product Q&A

• I can see that with an auto-start generator, an “AMF Panel” is required for mains power backup, and for solar back up a “2 wire auto start controller” is needed. But if I'm on solar and mains, do I need both to go with my auto-start generator?

  Hi, firstly you are completely correct; to use your auto-start generator for automatic power backup, you need either:

  • An AMF panel for automatic backup to mains power, or
  • A Two-wire auto start controller for automatic backup to off-grid solar systems

  For homes on solar and on mains power:
  In this case, the solar charge is either used within the household consumption or fed back into the grid, meaning there are no storage batteries like there is for an off-grid solar system. So,if you require an auto-start generator to automatically start up to restore power to your home (which is on solar and mains power), you would need an accompanying AMF panel - an electrician would undertake the connection. When a blackout occurs, the AMF panel would signal for the generator to start and restore power to your home.

  For homes with an off-grid solar system:
  The Two-Wire auto start controller is only for off-grid solar systems, whereby the controller is connected to generator and the solar battery system. When the batteries run low on power, the controller signals to the generator to start up and restore power to the batteries.

• What engine oil should I use with this Generator?

  Hi - the generator requires standard engine oil;  either 10W-30 or 10W-40.

  This is available from any local service station. Many thanks

• Can I use this generator to charge my power tool batteries?

  Hi there,

  Charging battery packs is fine from a conventional generator, we'd recommend having a steady load on the generator and don't connect appliances that will cause the load to jump around during charging.

  Thanks.

• What are the dimension of this generator?

  Hi There,

  Measurements are as follows:



  Length (L) mm 1400
  Width (W) mm 650
  Height (H) mm 975
  Dry weight Kg 325
  Fuel tank capacity l 24
