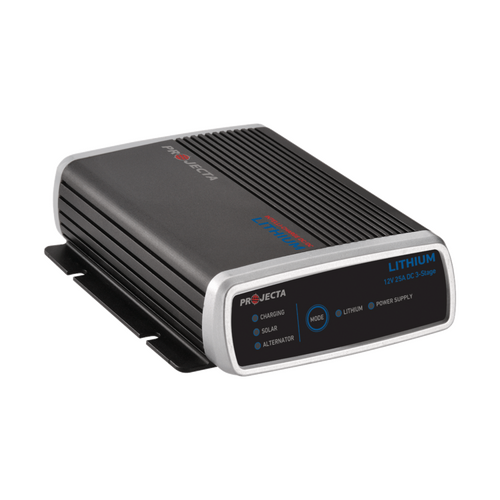

Projecta 25A 5 Stage Intelli-Charge 9-32V Lithium Dual Battery Charger

SKU: IDC25L Learn More»

CALCULATE SHIPPING:

Quantity

Postcode

Suburb

Customer Reviews

"Brilliant!!!"

Neale Graham

Ordered a Projecta DC-DC to replace a much more expensive product. This thing was easy to install and has kept the 130AH AGM battery at 13.7 volts day in day out. Will replace camper with same unit when I upgrade battery.

(Posted on 28 October 2020)

Go to: Product Details

Go to: Specifications

Product Description

Projecta 25A 5 Stage Intelli-Charge 9-32V Lithium Dual Battery Charger, 2 Year Warranty. An advanced DC/solar battery charger engineered for todays sophisticated lithium iron phosphate batteries.

Features:

Lithium charging technology:
Engineered for use with todays advanced lithium battery technology
Engine bay installation: Sealed to IP67, the IDC is dust, splash and shock proof and can safely operate in extreme temperatures up to 80°C
Dual charging modes: Engineered to work with both smart and conventional alternators
Dual input operation: Simultaneous dual battery charging from both solar and alternator inputs
Total safeguard protection: Over temperature, reverse connection, over/under and spark free protection

Dual input operation:

Simultaneous dual battery charging from both solar and alternator inputs (9–32V) with no manual switching required. The unit prioritises solar charging as its default and automatically adjusts to the alternator if sunlight is insufficient, reducing the power usage placed on the vehicle’s electrical system.

Dual charging modes:

Engineered to work with both smart and conventional alternators. The introduction of smart alternators has resulted in many conventional dual battery systems being ineffective. The advanced switch-mode technology of the IDC range enables greater efficiency, exceeding 94% at typical full load conditions, converting your vehicles alternator power to a more complete charge.

25A solar MPPT:

Using sophisticated Maximum Power Point Tracking (MPPT) solar regulator technology, the IDC range of chargers operate as advanced solar controllers, maximising the power generated from the panels to provide a comprehensive and total charge to your auxiliary battery.

Multi-chemistry charging:

The IDC range of chargers suit todays different battery technologies, including everyday automotive batteries and the newer Lithium battery technology. For automotive batteries, multi-chemistry technology enables the user to tailor the charging profile to suit the battery type: Lithium Iron Phosphate batteries only.

Multi-stage charging:

Utilising sophisticated electronics, the IDC range of DC/SOLAR chargers provide an advanced multi-stage charging process to produce a safe and comprehensive charge, a must for deep cycle and lithium batteries.

Go to: Product Details

Go to: Videos

Specifications

SKU IDC25L

Brand Projecta

GTIN 9315219252548

Warranty Period: 2 Years

Product Category Battery Chargers

Output Current Rating (Amps) 25

Temperature range -10°C to +80°C

NOTE Supported: Lithium Iron Phosphate (LiFePO4)

Dimensions 149 x 122 x 42 mm (L x W x H)

Input Voltage 9-32Vdc

Battery Capacity 75-300Ah

Output System Voltage 9-32V

Maximum Solar Watt Input 23Vdc, 360W

Charger Type 5 Stage

Back Current Drain 9.5-10.5mA (on AUX Battery)

Output Current Rating Input 9-11Vdc 20A | Input 11-32Vdc 25A

Net Weight (kg) 0.8

Charger Voltage 12V

Go to: Specifications

Go to: Q & A

Videos

Projecta's Lithium Dual Battery Charger Overview

Projecta DC-DC Dual Battery Charger Range!

Projecta - Some Things You May Not Know About Us!

Go to: Videos

Go to: Reviews

Product Q&A

Ask Us a Question

Will this charger work on all battery types or is it lithium specific?

Hi There,

The Projecta IDC25L is designed for charging lithium batteries only.

The Projecta IDC25 is the model for non lithium batteries.

You can find it on our site here: https://www.mygenerator.com.au/projecta-25a-5stage-intelli-charge-9-32v-lithium-dua-battery-charger.html

Go to: Q & A

Go to: Warranty

Customer Reviews

Write a product review

Brilliant!!! Review by Neale Graham

Ordered a Projecta DC-DC to replace a much more expensive product. This thing was easy to install and has kept the 130AH AGM battery at 13.7 volts day in day out. Will replace camper with same unit when I upgrade battery.
(Posted on 28 October 2020)
