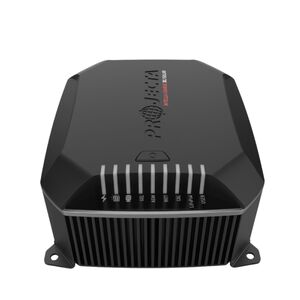

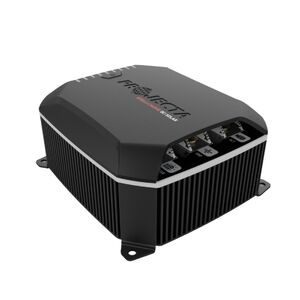

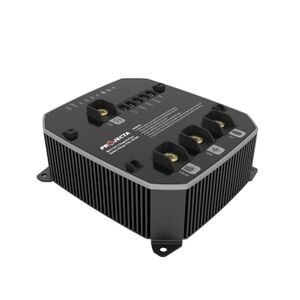

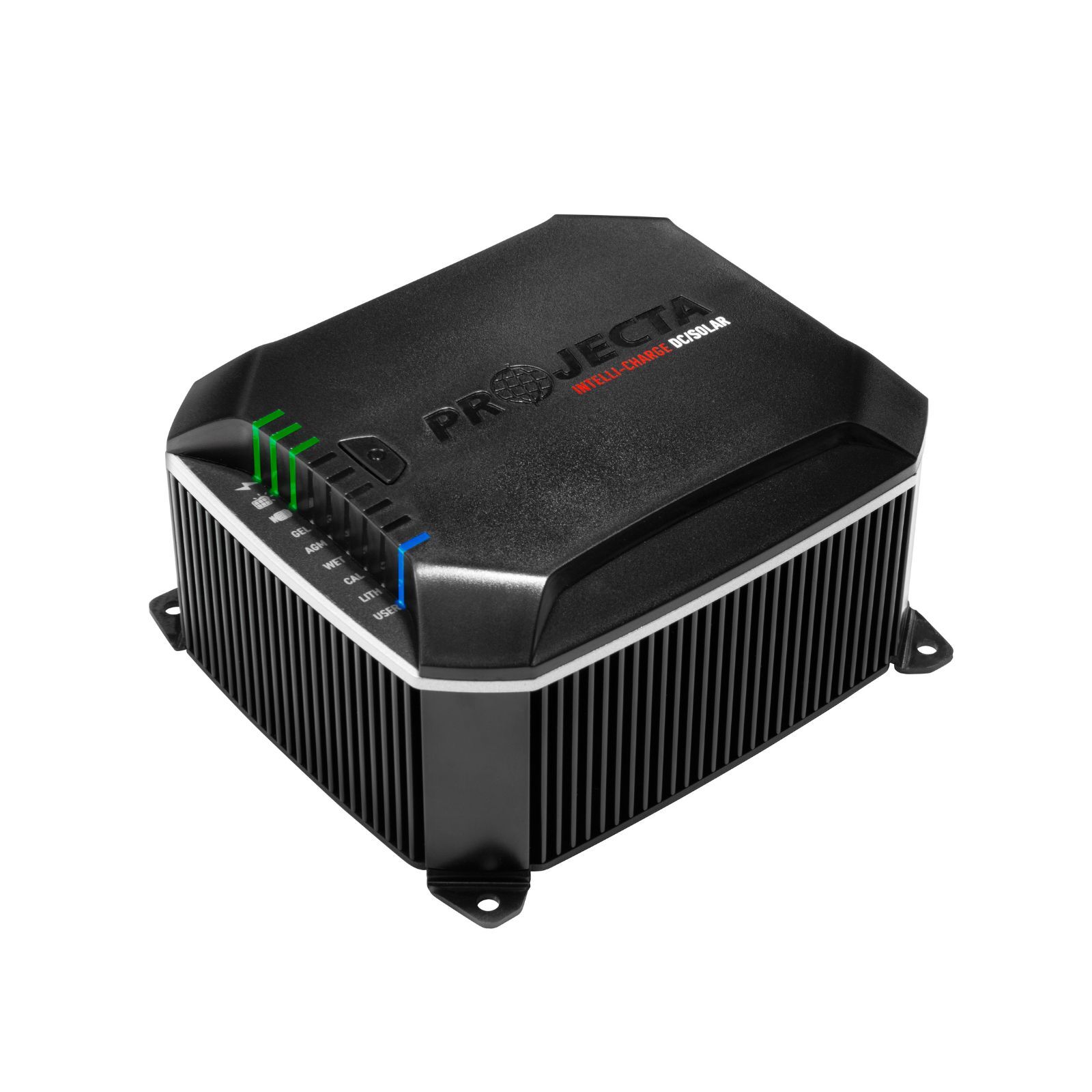

Projecta IDC50X 50A Intelli-Charge DC-DC Charger

SKU: IDC50X Learn More»

Free Shipping

FREE SHIPPING

This item is sent via Express Courier. All freight is fully insured.

Customer Reviews

Go to: Product Details

Go to: Specifications

Product Description

Projecta IDC50X 50A Intelli-Charge DC-DC Charger, 5 Year Warranty. The IDC50X offers next-level performance and supports nearly any system with ease. Thousands of hours of in-house engineering have made it more than just a dual battery charger with solar compatibility—it’s an innovative, customisable solution built for current and future needs.

Engineered for robustness and efficiency, the IDC50X offers forward-thinking technology that ensures peace of mind in any off-grid setup. Whether it’s for an extensive adventure or backup power, it delivers comprehensive, high-quality features.

Features:

Works Harder in Tougher Conditions: It offers the highest level of protection against dust, water, and pressure washing (IP68 & IP69K). Fully potted with thermal epoxy resin.
Will Not Let You Down in Remote Locations: It utilizes top-notch electronic components for an extended lifespan. Its ultra-efficient power conversion maximizes battery charging while reducing strain on the charger, ensuring longevity. Engineered to meet heavy vehicle standards, it is resistant to vibration and shock. Backed by a 5-year warranty.
Provides the Best Possible Care for Your Battery: Utilizes 3 and 5 stage charging for fast and effective charging. It adjusts the charge with automatic temperature compensation, optimizes performance in different climates. Voltage drop compensation ensures accurate charge voltage. It supports simultaneous charging with solar and alternator inputs. The charger employs efficient MPPT solar charging for optimal performance, even in shaded areas. It also includes a convenient lithium wake-up mode for one-button charging activation, even if the battery's BMS is off.
Most Conneccted DC/DC Charger: The Projecta Intelli-IQ is a compatible companion for this product. It enables users to conveniently set up, monitor, and control the device remotely. Accessible through a smartphone or the Intelli-IQ interface, it offers a user-friendly experience.

Go to: Product Details

Go to: Reviews

Specifications

SKU IDC50X

Brand Projecta

GTIN 9315219006028

Warranty Period: 5 Years

Product Category Battery Chargers

Output Current Rating (Amps) 50

Battery Types GEL, AGM, WET, CALCIUM, LITHIUM

Input Voltage 9-32Vdc

Standby Current 8mA

Charger Type 5 Stage (Battery Charger)

Operating Temperature -10℃ to 80℃

Output Current INPUT:9-11Vdc 37A INPUT:11-32Vdc 50A

Charger Voltage 12/24V

Maximum Solar Input Power 32Vdc, 800W

Solar Controller Type MPPT

Smart Alternator Turn on 12.2-20V(12V), 24.4-32V(24V)

Smart Alternator Turn off <11.9V(12V), <24V (24V)

Conventional Alternator Turn On 13.4-20V(12V), 26.8-32V(24V)

Conventional Alternator Turn Off <12.8V(12V), <25.6V(24V)

Go to: Specifications

Go to: Reviews

Product Q&A

Ask Us a Question

Is The IDCX Waterproof?

The IDCX was designed and engineered to the stringent ingress protection rating of IP68 & IP69K. This allows the IDCX to meet the toughest of challenges whether that be river crossings, engine bay washing or direct high pressure washing of the unit.
Is The IDCX Safe to Use With Modern ‘Electronic’ Vehicles?

The IDCX has been designed to work with all vehicles, including new vehicles with EFI and computer management systems. The charger utilises sophisticated electronics that ensures complete safety for you and your vehicle.
Why is LED Flashing Amber Although My Battery is Connected?

While IDCX is in the process of recognizing (about 2minutes) the battery, LED is in amber state. It is also in the same color if battery is not present or battery voltage is very low. To regain charging a battery that is very deeply depleted, press and hold the IDCX button for about 10 seconds
Why do the Positive Cables from the Batteries need to be Fused?

High-Capacity batteries can produce large amounts of power and are capable of melting cable insulation and catching fire in the case of a short circuit. Each positive (+) cable connected to the battery must be protected by a fuse located in close proximity to the battery.
How Do I Know if the Battery is Charged?

Refer to diagram “LED BATTERY CHARGE STATUS INDICATORS” on page 13 to identify when the IDCX is indicating battery charging is complete.
Why is Battery not Getting Charged Though Solar Input Voltage is Within Range?

Solar input voltage is not an indicator of the Solar panel capability. Weather may be cloudy or solar panel is under the shade and the input current is not enough to commence charging
Why Does the IDCX Indicate the Battery is Fully Charged Straight Away?

There are three possible reasons why the IDCX indicated the battery is fully charged. 1. The battery is fully charged. 2. The battery has taken a surface charge. 3. The battery has a faulty cell.
What is a “Surface Charge”?

Batteries unused or left discharged for some time build up a resistance to being recharged. When the charger is first connected, these batteries will take a surface charge, and the IDCX LED’s will indicate the auxiliary battery is fully charged within a short period of time. The battery however is not fully charged. The charger is voltage sensitive and cannot differentiate between a surface charge and a fully charged battery. After a few hours, the battery may start to accept some charge but most batteries with this condition may not recover.
What is a “Faulty Cell”?

12 Volt batteries contain 6 cells, and one faulty cell is enough to ruin your battery. If after twelve hours of charging your battery is still accepting charge, you should test the cells using a hydrometer. If one reading is lower than the rest, it indicates a faulty cell. It is pointless to continue charging; the battery needs replacing.
