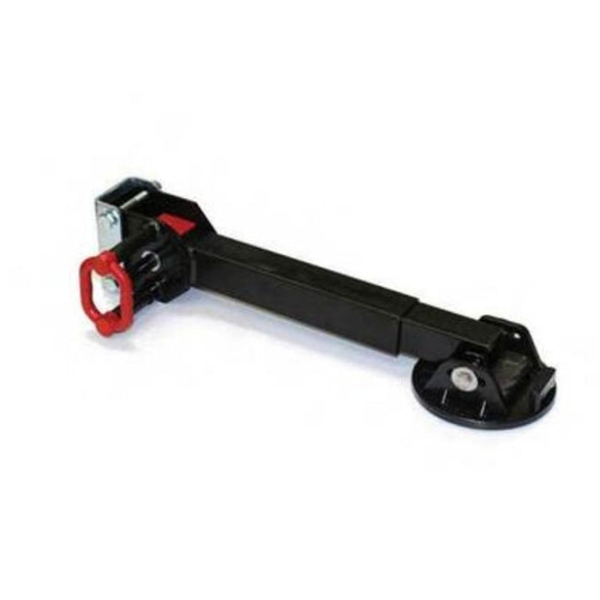

Alko Black Drop Down Adjustable Leg - 840mm

Product Description

Alko Black Drop Down Adjustable Leg - 840mm, 1 Year Warranty.  ALKO Hex Drive Drop Down Style Steady Zinc Plated Max length 840mm. These stabilisers can also provide vertical support, and are therefore more rigid than the traditional angled legs.
Price is for one corner stabiliser and Mounting bracket, the HEX winder handle is NOT included.

The mounting bracket for welding is 110mm x 75mm. If bolting to the frame the bracket is 100 x 65mm with 80mm hole centres.

Minimum height when set vertically: 610mm (reduce by setting at an angle)

Maximum extension when set vertical: 840mm (increase with spacer chocks)

Features:

• Each stabiliser comes with a mounting bracket that is usually welded to the chassis and the stabilisers are then bolted to this with the included bolts.
• These corner stabiliser drop down to any angle and are then locked in place with the quick release red handle. The winder (not included, but a socket will also do the job) is then used for the last section.
• The legs rotate through the full 180 degrees so they can be mounted on the left or right sides.
