Ampfibian MINI 15A Power Adapter
SKU: 500-04503 Learn More»
Product Description

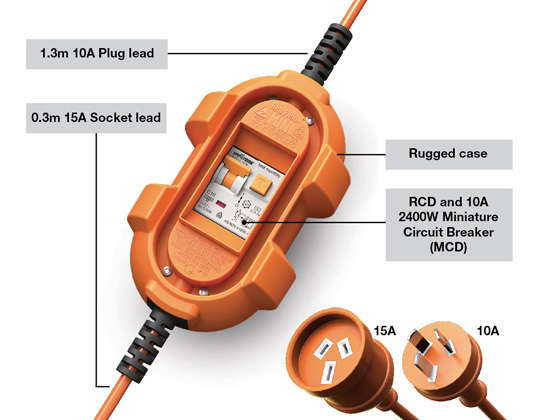

Ampfibian MINI 15A Power Adapter, 2 Year Warranty. The Ampfibian MINI 15A power adaptor is certified to comply with Australian electrical standards, allowing safe and legal connection between 10A and 15A. The Ampfibian MINI achieves this by cutting the current if it exceeds 10A / 2400W.

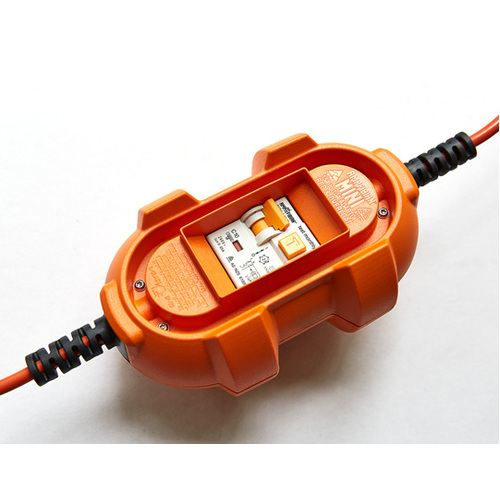

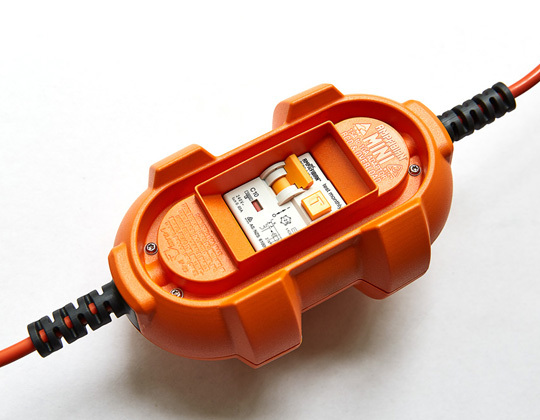

The MINI also offers personal protection from electric shocks using a residual current device (RCD), which can be caused by faulty wiring or appliances.
The MINI is great for light-duty DIY, indoor/undercover use. Use it for low power 15A welding and power tools. For commercial/outdoor/industrial use, we recommend the RV02-MAX.Â
Features:Â
- Complies with Australian Standards
- Recommended for indoor use (rated to IP33)
- L-Class rated for light / non-commercial duty
- Impact rated to IK08
- Safely connect to 10A domestic outlets
- 2 year warranty
- Designed and made in Australia
Please note that the Ampfibian MINI will not convert 15A to 10A. You may be limited with the functionality of your connected device if intending to use it to its full capacity.
Specifications
SKU 500-04503
Brand Ampfibian
Warranty Period: 1 Year
Product Category Power Adaptors
Voltage 220-240VAC 50-60Hz
Dimensions 180 x 105 x 90mm
Net Weight (kg) 0.8
Videos
The Ampfibian MINI - D.I.Y. Power Adaptor
Product Q&A
-
What is an RCD?
A Residual Current Device is an extremely fast acting switch that cuts the power when it detects a difference in the power going into the circuit against the power coming back out. If a difference is detected then the RCD trips almost instantly as the power must have found a way to go somewhere else other then back to the supply.
-
Whats the difference between an ampfibian mini, rv plus and a max?
MINI - an indoor, undercover adaptor for the D.I.Y home handyman and workshop. (Popular with welders.
RV-PLUS - exclusively designed and made for travellers to connect their caravan/RV/camper-trailers to normal 10A outlets. It is completely weatherproof and meets all applicable Australian Standards.
MAX - the extra-tough, weatherproof adaptor for trades and construction. It has a H-Class (heavy-duty) rating making it suitable for commercial use.
All of the above come with an overload protection breaker plus RCD and adapt devices from 15A to 10A.
-
Do the ampfibians meet electrical standards?
Yes, all Ampfibians comply to Australian Standards!
The Ampfibian RV-02MAX and the Industrial Range are approved under AS/NZS 3190:2011 “Approval and test specification – Residual current devices (current-operated earth-leakage devices)” which includes portable RCDs, and their use complies with AS/NZS 3001:2008/Amdt 1:2012 “Electrical Installations – Portable structures and vehicles including their site supplies” which covers caravans, campers and motor homes. The MAX is also approved for member use by the “Campervan & Motorhome Club of Australia Ltd” (CMCA).
The Ampfibian MINI is approved under AS/NZS 3190:2011, but its use does not comply with the recommendations of AS/NZS3001:2008, making the MAX the safest, most compliant and flexible option for outdoor RV and caravan use.
There is a lot of mis-information about how various Australian Standards apply to caravans/RVs, extension lead lengths and capacities, portable RCDs, weatherproofing, impact resistance. After years of close consultation with standards experts and approval authorities, we can categorically state that the RV02-MAX is the safest, most compliant way to connect your 15A RV/caravan to a 10A power supply in Australia in any situation.
The MAX and the Industrial Range carry a H-Class rating, allowing them to be used commercially on work sites in construction, mining and other industries.
