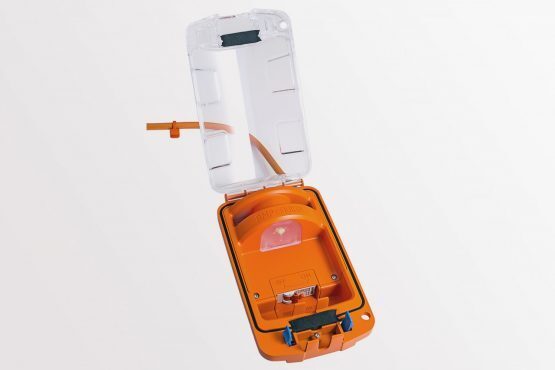

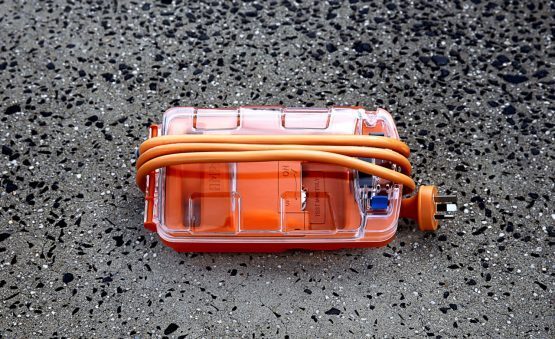

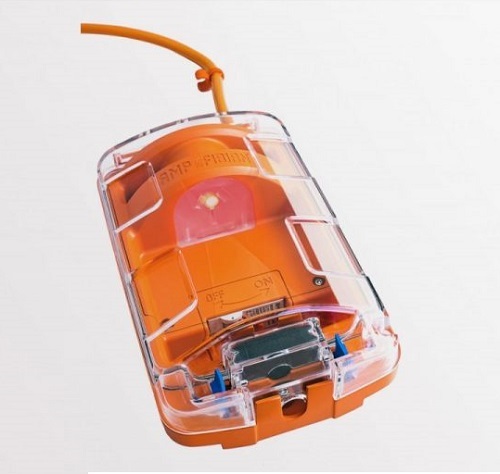

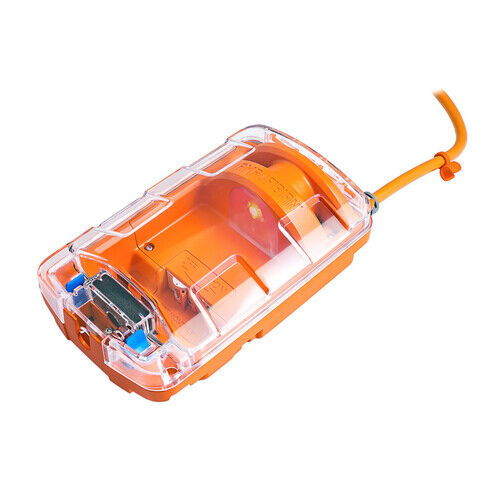

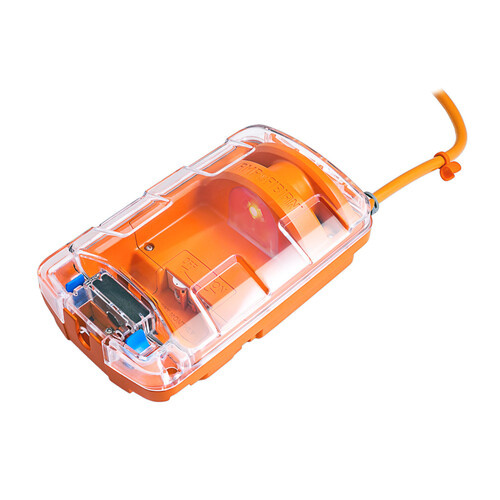

Ampfibian RV-PLUS 15A Caravan Adapter

Specifications

SKU 500-04506

Brand Ampfibian

Warranty Period: 1 Year

Product Category Power Adaptors

Voltage 240VAC 50Hz

Dimensions 130 x 230 x 78mm

Net Weight (kg) 0.9

Videos

The RV-PLUS - Caravan Power Adaptor

Product Q&A

• What is an RCD?

  A Residual Current Device is an extremely fast acting switch that cuts the power when it detects a difference in the power going into the circuit against the power coming back out. If a difference is detected then the RCD trips almost instantly as the power must have found a way to go somewhere else other then back to the supply.

• Whats the difference between an ampfibian mini, rv plus and a max?

  MINI - an indoor, undercover adaptor for the D.I.Y home handyman and workshop. (Popular with welders.

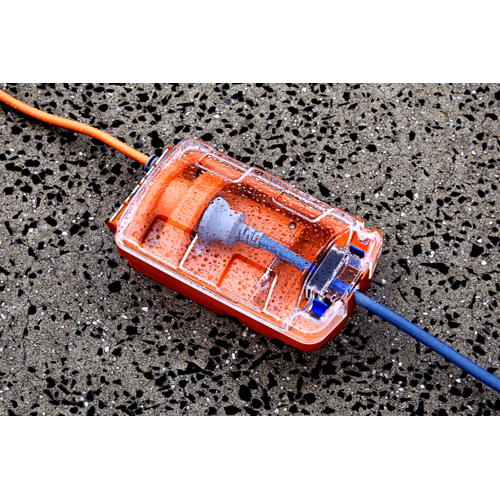

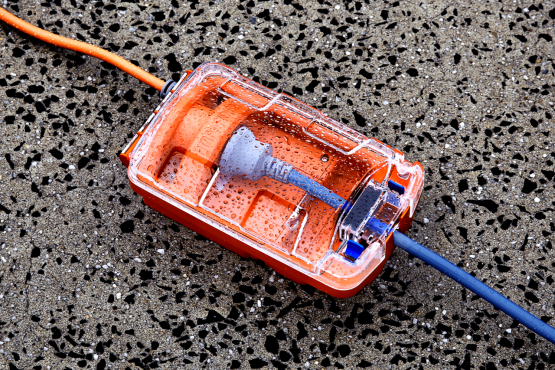

  RV-PLUS - exclusively designed and made for travellers to connect their caravan/RV/camper-trailers to normal 10A outlets. It is completely weatherproof and meets all applicable Australian Standards.

  MAX - the extra-tough, weatherproof adaptor for trades and construction. It has a H-Class (heavy-duty) rating making it suitable for commercial use.

  All of the above come with an overload protection breaker plus RCD and adapt devices from 15A to 10A.

• Do the ampfibians meet electrical standards?

  Yes, all Ampfibians comply to Australian Standards!

  The Ampfibian RV-02MAX and the Industrial Range are approved under AS/NZS 3190:2011 “Approval and test specification – Residual current devices (current-operated earth-leakage devices)” which includes portable RCDs, and their use complies with AS/NZS 3001:2008/Amdt 1:2012 “Electrical Installations – Portable structures and vehicles including their site supplies” which covers caravans, campers and motor homes. The MAX is also approved for member use by the “Campervan & Motorhome Club of Australia Ltd” (CMCA).

  The Ampfibian MINI is approved under AS/NZS 3190:2011, but its use does not comply with the recommendations of AS/NZS3001:2008, making the MAX the safest, most compliant and flexible option for outdoor RV and caravan use.

  There is a lot of mis-information about how various Australian Standards apply to caravans/RVs, extension lead lengths and capacities, portable RCDs, weatherproofing, impact resistance. After years of close consultation with standards experts and approval authorities, we can categorically state that the RV02-MAX is the safest, most compliant way to connect your 15A RV/caravan to a 10A power supply in Australia in any situation.

  The MAX and the Industrial Range carry a H-Class rating, allowing them to be used commercially on work sites in construction, mining and other industries.
