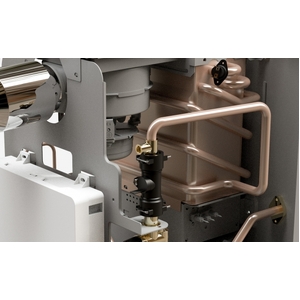

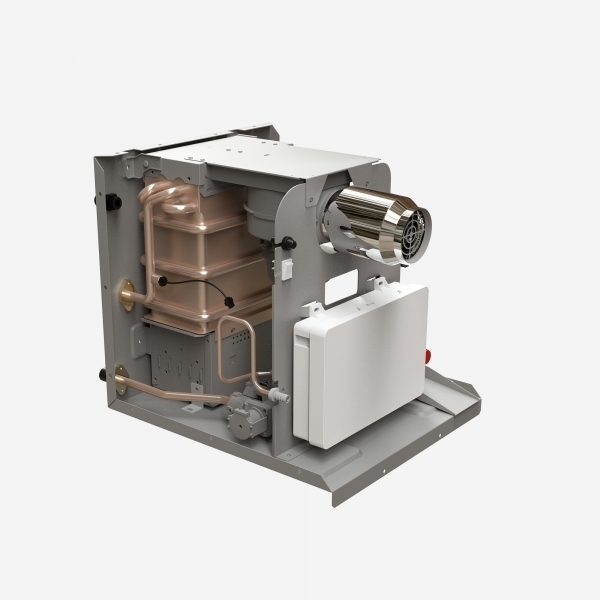

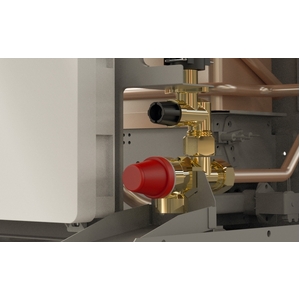

Arana Instantaneous Hot Water System with Black Door by Aussie Traveller
SKU: AT_HWS Learn More»Product Description
Arana Instantaneous Hot Water System with Door by Aussie Traveller, 1 Year Warranty.
Pack Included:

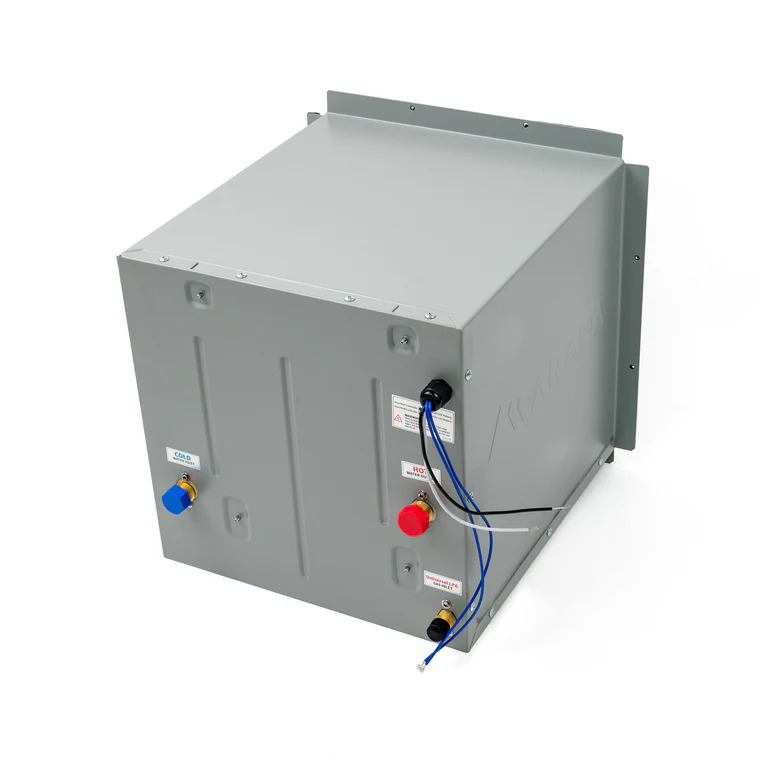

- Arana Instantaneous Hot Water System by Aussie Traveller, 266220002
Optional Door Colour:

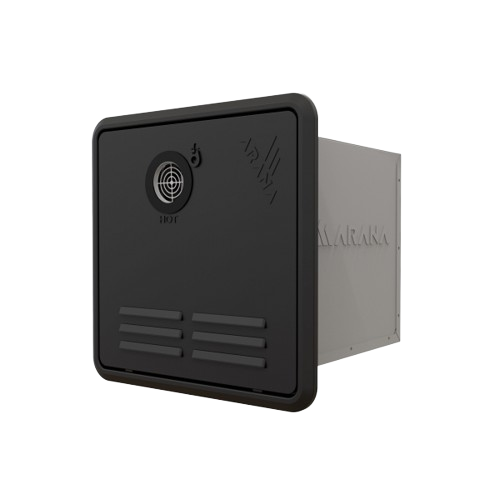

- Black Door to suit Arana Hot Water System, 266220000

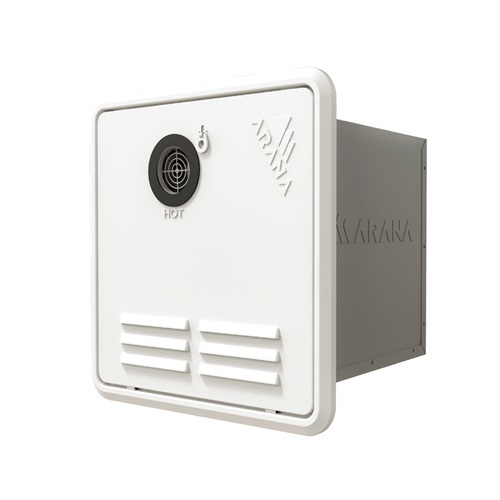

- White Door to suit Arana HWS Hot Water System, 266220001
Arana Hot Water System is designed specially for RV hot water system, and the whole operating process is controlled by its microcomputer intelligent control system, to ensure continuous supply of comfortable and constant temperature water. The multi-safety devices such as overheating, anti-freezing, flame out, dry burning, water overpressure protection, are monitored by the microcomputer intelligent control system so that the heater will be shut down immediately in case of any malfunction to ensure the safety.
Features:
- New smart technology, no preheating needed, always enjoy a steady hot water at any time.
- Automatic pulse ignition, segmented burners, precise temperature control, improve bathing comfort, and meet water needs in different seasons.
- Strong wind resistance, the design of the anti wind-back device could prevent cold air from entering the heat exchanger, and prevent the water tank from freezing and cracking during low temperature operation;
- Frost protection function: When the temperature of the water pipe in the water heater is lower than 6+/-1°C, the machine will start ignition and run with a certain load and automatically shut down after running for 5 seconds; When the water temperature reaches 32±1 °C in 2 seconds, it will shut down automatically.
- Fault auto-diagnosis and fault code display function.
- ETL / SAI / Watermark / SAA Certified
Note: This is a gas powered product and needs to be installed and certified by a qualified and licensed gas-fitter, as improperly or illegally installed products will void the manufacturer’s warranty, and could pose a safety risk.
Specifications
SKU AT_HWS
Brand Arana
GTIN 9358048009235
Warranty Period: 1 Year
Product Category RV Heaters and Hot Water
Certified By AS/NZS
Gas Certification Number SAI-4000417
Nozzle Quantity 5
Voltage 12 V
Freeze Protection Yes
Maximum Heating Temperature 51°C
Water Heating Capacity 9L/min
Minimum Working Load Pressure 0.1MPs
Maximum Working Load Pressure 0.4MPa
Ignition Method Automatic
Nozzle Diameter 1.1mm
Fuel Type Universal LPG
Type RH09G
Model Number WMK26738
Power Supply 12V DC 3Amp
Weight (kg) 13.5
Dimensions 371 × 320 × 317mm
Product Q&A
-
Will I need to get this professionally installed?
You will need to get a Certified Gas Fitter to install the gas components and sign off on it. The installation and 12v you can DIY.
-
How long would a 9kg gas bottle work with this HWS?
The unit consumes 63.3MJ/h, roughly about 1.3kg/h. You would see roughly 7 hours from a 9kg gas bottle. Please note hot water is generally only ran for a few minutes at a time.
-
Will this operate on 12V?

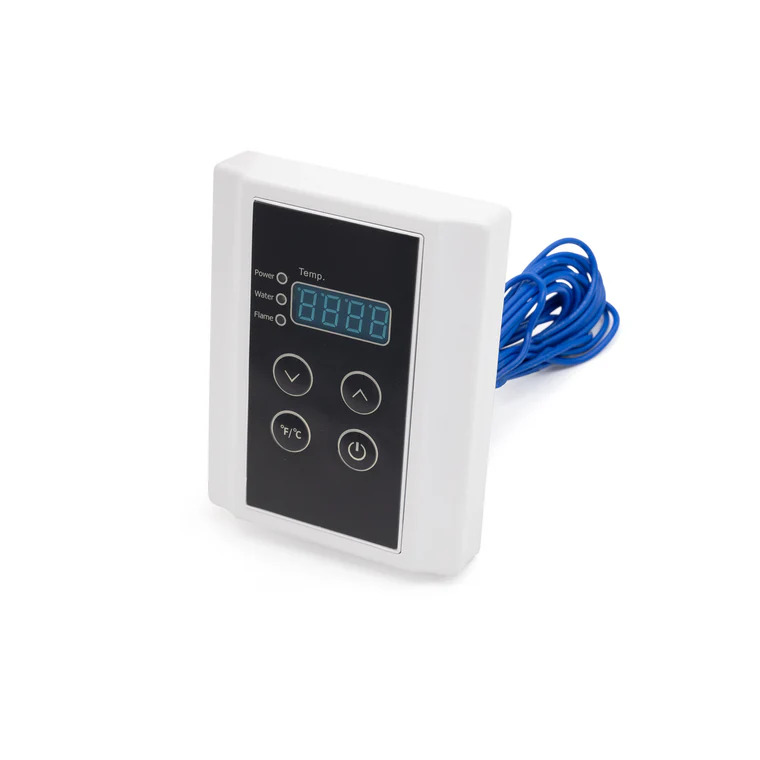

12V power is required for the control panel and the ignitor, but it requires gas to operate.
-
Can I use a battery charger to power this?
No, do not use a battery charger to power or test the water heater.
-
Can I use a Thule awning in the rain
Yes, you can use the awning in the rain. It is recommend to either put one support leg lower so that the water can drain off or purchase a curved roof rafter to prevent water pooling in the middle and prevent damage to your awning
