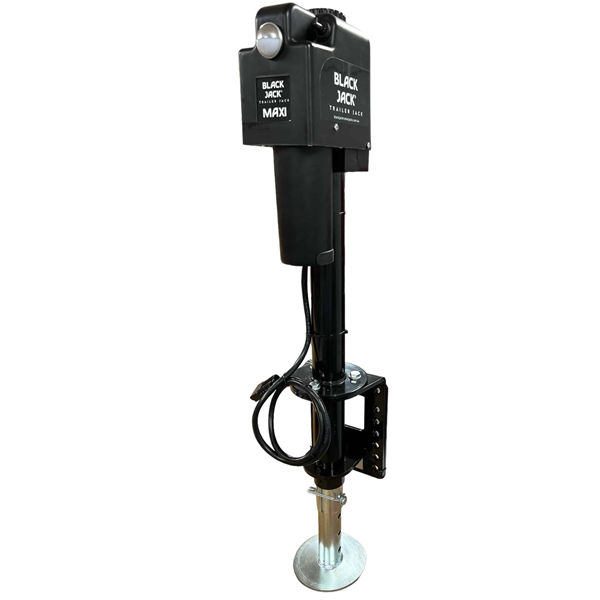

Black Jack MAXI Electric Trailer Jack with Clamp
SKU: BJTJ-Maxi-1000 Learn More»
FREE SHIPPING
This item is sent via Express Courier. All freight is fully insured.

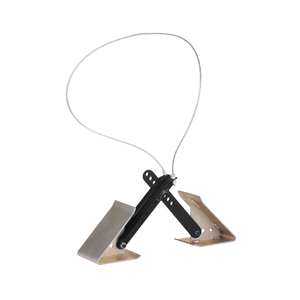

Accessories
Product Description
Black Jack MAXI Electric Trailer Jack with Clamp, 3 Year Warranty. The new generation of electric trailer jack technology. The Black Jack Maxi is a quantum leap in technology and represents the new generation of Black Jacks. Incorporating an Intelli-Brake motor that automatically cuts power to the jack at either fully retracted or fully extended. Remote control operation allows for easier hitching and unhitching and makes levelling your caravan a breeze. The new Black Jack Maxi boasts a ball bearing worm drive that is twice as efficient, faster and quieter, and generates a massive lift capacity of 2,000kg. All Black Jack Maxi’s come with a Pre-installed Anderson plug for easy “Plug and Play” connection. The kit includes-
- The new Black Jack Maxi
- Patented Black Jack Clamp with full bolt kit
- Folding Foot and Adjustable Foot
- All Weather Cover
- Black Jack Soft Ground Foot Pad
- Manual Handle
- An installation wiring harness is also included with BJTJ-Maxi-1001. This harness includes a pre-wired Andersen plug at one end, a 30amp inline fuse, and battery terminals at the other end. The 5 meters of positive and negative B&S # 8 wires are encased in a protective cover.
Features:
- 2,000 kg lifting capacity, more than enough muscle
- Auto power cut-off at full extension and full retraction
- Optional remote-control operation
- Robust 58 mm outer post built for the toughest conditions (normal jockey wheels are only 48mm)

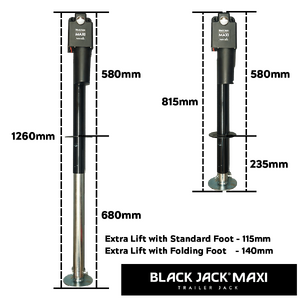

- Massive 450 mm stroke that will lift the caravan clear of the tow vehicle hitch in any conditions
- Built in level indicator to easily adjust the caravan level after you unhitch
- Tough powder coated finish
- Pre-wired to an Andersen plug – length of cable is 1.4m
- Emergency crank handle included as an emergency back up
- Built in night light for operating after hours
- 12 volt 28 amp DC power plugs directly to 12 volt battery
- Free installation kit included, easy DIY Installation (with BJTJ-Maxi-1001)
- Free all-weather cover to keep the rain out
- Total weight including Black Jack Clamp 17 kg

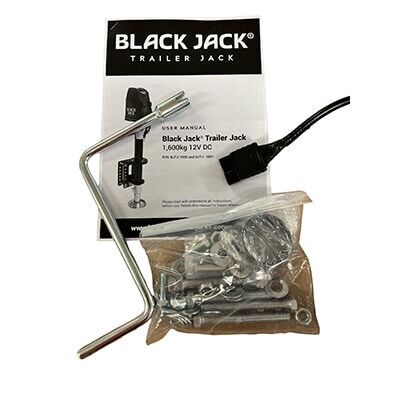

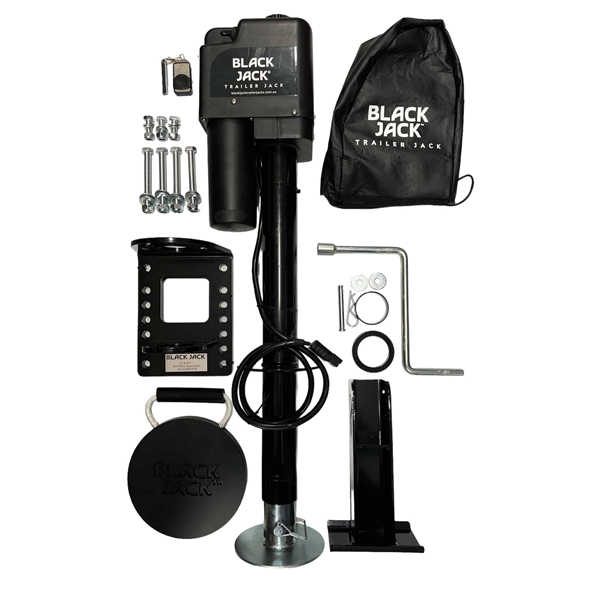

Kit Includes:
- 1x Black Jack Maxi Electric Trailer Jack

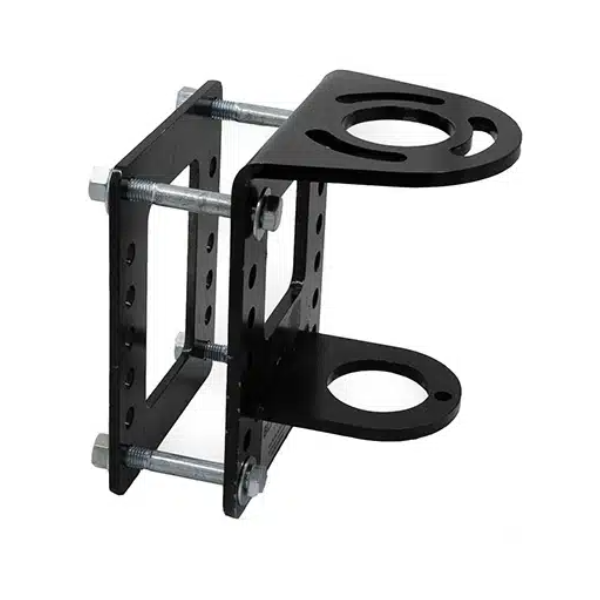

- 1x Black Jack Clamp Patented (Part No. BJTJ-BKT)

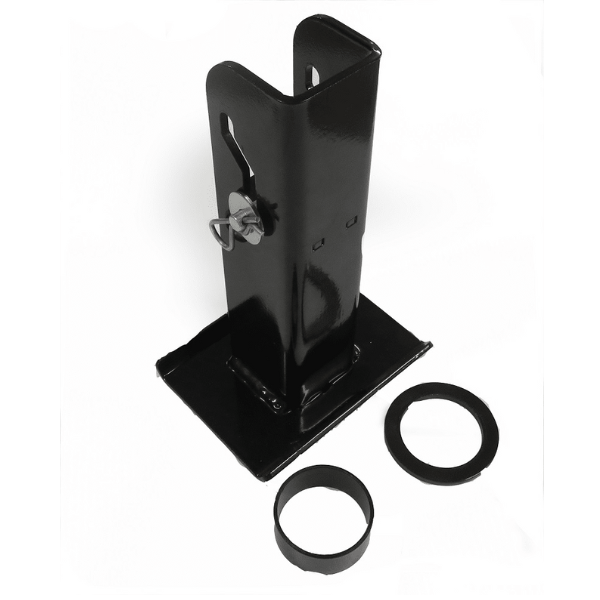

- 1x Black Jack Folding Foot (Part No. BJTJ-FF)

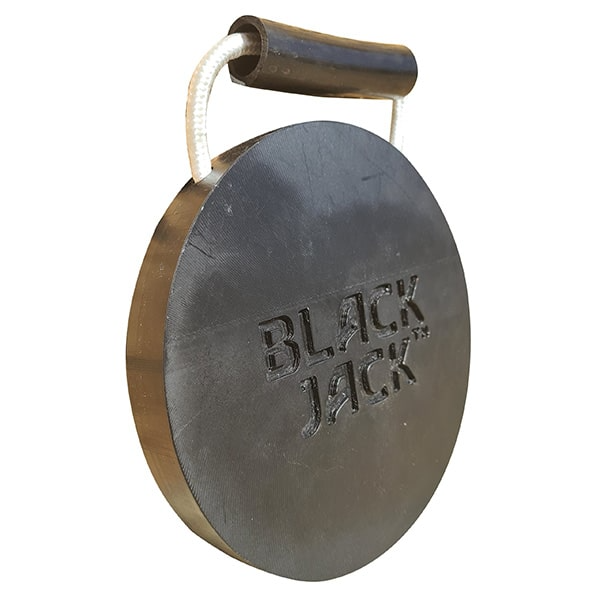

- 1x Black Jack Foot Pad (Part No. BJTJ-FP)

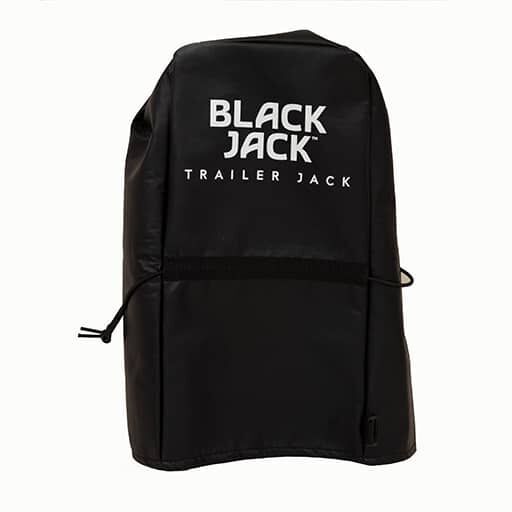

- 1x Black Jack All Weather Cover (Part No. BJTJ-Cover)
- Note: Does NOT include 5.0m wiring harness to connect the Black Jack to house battery
Specifications
SKU BJTJ-Maxi-1000
Brand Black Jack
GTIN 0726436304030
Warranty Period: 3 Years
Product Category Jockey Wheels and Jacks
Engine Type Intelli-Brake Motor

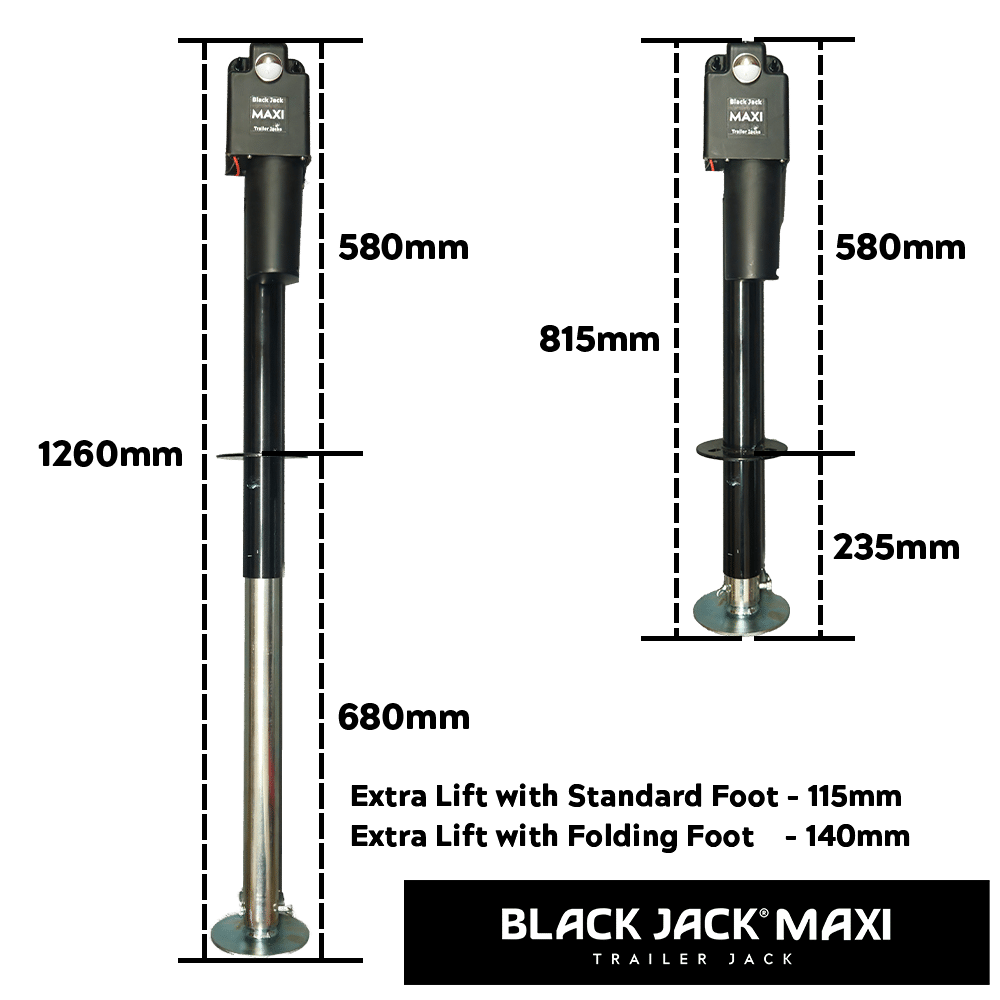

Dimensions 1260mm Length, 115mm extra lift with standard foot, 140mm extra lift with folding foot
Weight (kg) 17
Lifting Capacity 2000 kg
Product Q&A
-
Will the Black Jack Maxi fit my existing Jockey Wheel Clamp?
A standard jockey wheel's diameter is 50mm, the Back Jack Maxi is more robust at 60mm. So, the Black Jack will not fit in a standard jockey wheel clamp.
-
Is the Black Jack Maxi gas compliant?
Yes the Black Jack Maxi has been tested and is fully compliant with the Australian gas standard AS/NZS 5601.2:2020 + A1:2021.
-
How is the Black Jack Maxi powered?
All Black Jacks come pre-wired to a 50A Anderson plug, and require constant 12V power to operate. If your car or caravan does not have a suitable Anderson plug, consider our wiring harness.
-
How much power does the Black Jack Maxi draw during operation?
The Black Jack will pull 6A with no load, and a maximum of 28A under the maximal load of 2000kg.
-
How much lift can the Black Jack Maxi give me?
The Black Jack Maxi can give a max lift of up to 590mm.
-
I noticed the maxi won't work with an existing jockey wheel bracket, does it include a bracket?

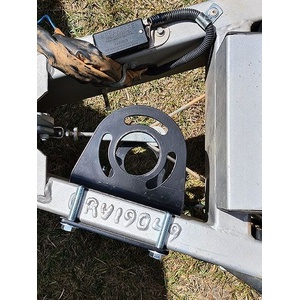

Yes, it will include a bracket to mount to your drawbar.
-
Can I use my existing Black Jack bracket?

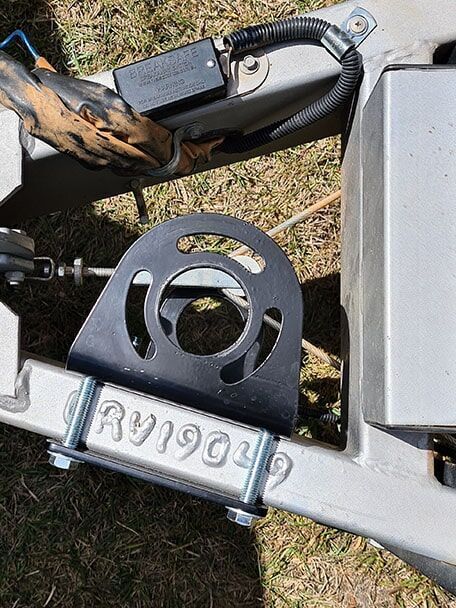

The Black Jack Maxi Bracket is the same patented bracket as the original.
-
Do I need to hold down the button to raise and lower the jack?
Yes, you will have to. However one upgrade on the new Maxi compared to the original Blackjack, is it now has a cut off when the jack is fully retracted.
