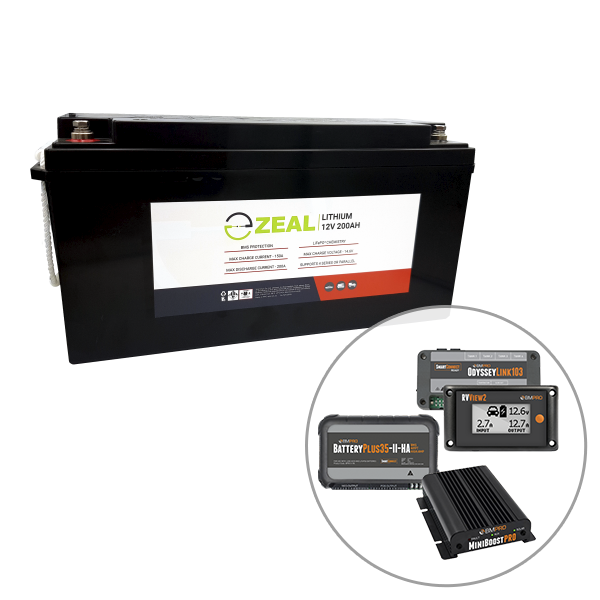

BMPRO Full Lithium Updgrade Bundle with Zeal 200Ah Lithium Battery

Product Description

BMPRO Full Lithium Updgrade Bundle with Zeal 200Ah Lithium Battery, 2 Year Warranty.

Pack Includes:

• Zeal 12V 200Ah LiFePO4 Lithium Battery, SLZ12V200S
• BMPRO BatteryPlus35-II-HA 35A High Amp Battery Management System, BMPBP35IIGAUHA
• BMPRO MiniBoostPro 12V 30A DC-DC Battery Charger with Solar Input, BMPMB1230
• BMPRO RV View 2 Battery Monitor with OdysseyLink103, BMPRVVIEW2OD

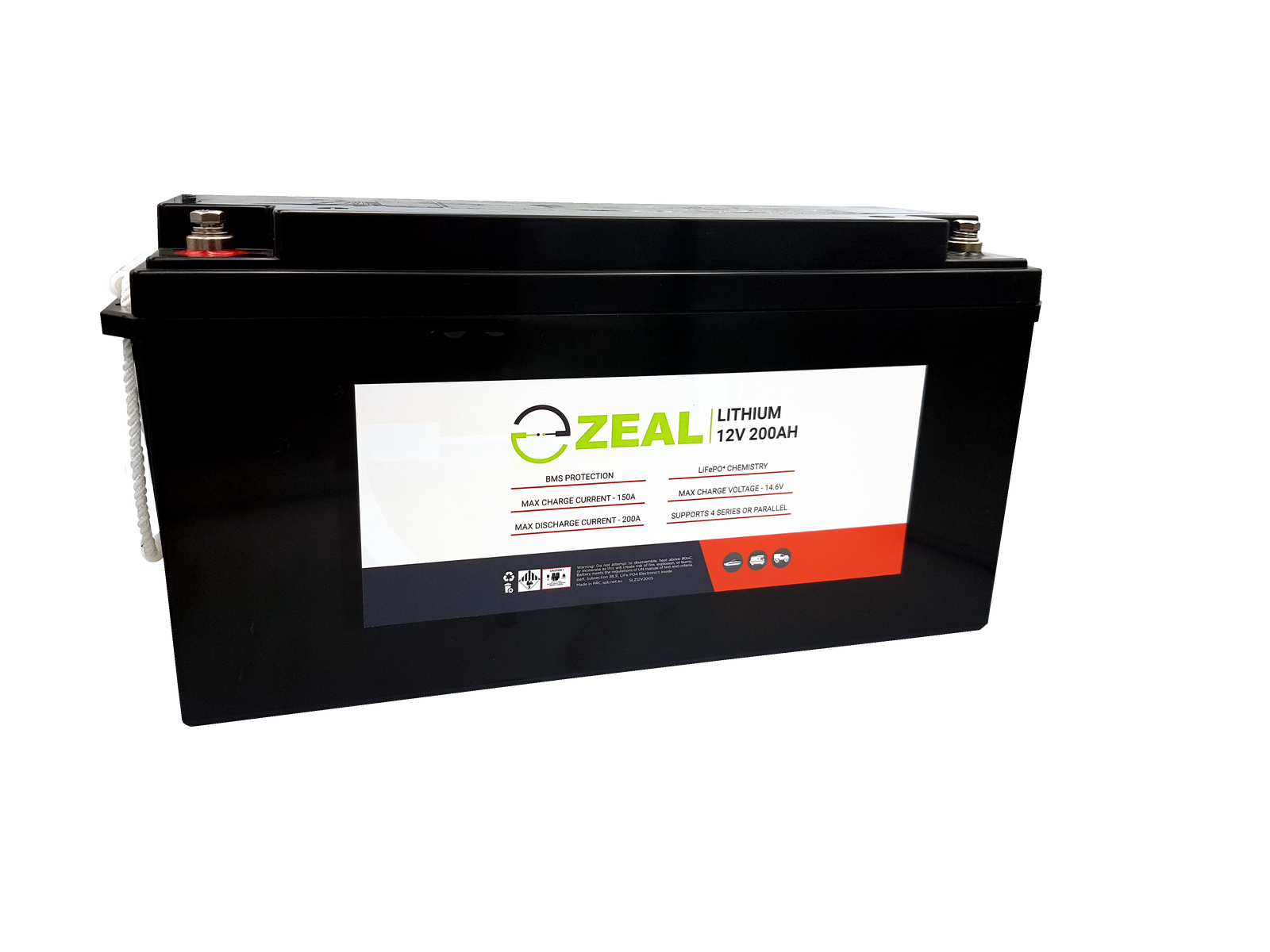

Zeal 12V 200Ah LiFePO4 Lihtium Battery

Zeal lithium is an economical 12V Lithium Iron Phosphate (LiFePO4) solution by Sealed Performance Batteries (SPB) which provides the core performance and safety advantages of a modern lithium battery in a sturdy design.

Backed by SPB, a company with over 25 years of experience in the energy storage industry, and designed to the best possible specifications, you can be confident that Zeal lithium has had every detail thoroughly examined in delivering a high-value solution.

Safe And Stable
Zeal provides a high degree of safety by utilising light-weight aluminium encased LiFePO4 prismatic cells, which are among the safest and most stable lithium cells available. It is also supported by an integrated BMS that protects against overcharge/discharge, temperature and short circuit events for complete confidence when in operation.

Core Lithium Advantages
A perfect AGM replacement, Zeal comes complete with a 3-year warranty and all the features you would expect from a LiFePO4 product including fast recharge capabilities, low self-discharge rate, long runtime and more usable capacity for power when you need it most.

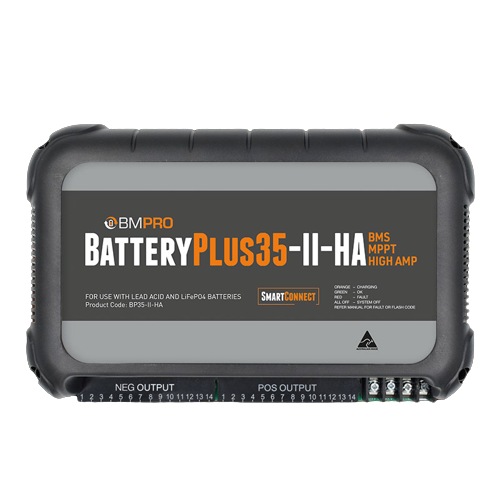

BMPRO BatteryPlus35-II-HA 35A High Amp Battery Management System

BatteryPlus35-II-HA is a complete high amp battery management system designed to support transition of caravans to lithium batteries. This all in one power solution combines a 35A power supply for 12V loads, 30A multi-stage AC charging and 30A Solar MPPT regulation as well as a host of battery protection features.

Connect the unit via CAN bus to the Trek battery monitor or to Odyssey touch screen via the OdysseyLink to monitor the status of your battery and to control your caravan features and functions or use it to connect to the BC300 to monitor high currents via CommLink.

BatteryPlus35-II-HA is pre-cabled with a permanent mains power supply cord for use with 240V or 110V input power – great for powered sites.

The unit also features a 40A rated uncontrolled +BRK battery output. This output is specifically designed for loads which do not need to be isolated or have a current rating of higher than the inbuilt circuit protection of the individual outputs and have a current rating less than 40 A.

Use it to connect, for example:

• Proactive Electronic Stability Control SwayControl
• Emergency Trailer Break-Away Safety System TrailSafe
• Heaters
• Stereo memory

Designed and manufactured in Australia, the slim and sturdy BatteryPlus35-II-HA is fully equipped to charge the current generation of deep cycle batteries. Connect solar panels to the battery management system and power your adventures with renewable energy. Swap your caravan battery to the LiFePO4 deep cycle and harness the benefits of lithium. This high amp battery management system is specially designed to ensure the best performance and longevity of lithium batteries.

Features:

• Total output current 35A
• 30A multistage battery charger
• Inbuilt solar MPPT regulator (420W, 30A, 25V max input)
• Distribution board with 12 at 10A and 2 at I5A DC outputs for load connection
• Electronic resettable fuses
• CAN bus connection for BMPRO accessories
• In-built battery management system
• Solar and Aux Blending
• Auxiliary DC input
• Load current limit
• Low voltage disconnect
• Compatible with lead acid and lithium (LiFePO4) deep cycle batteries

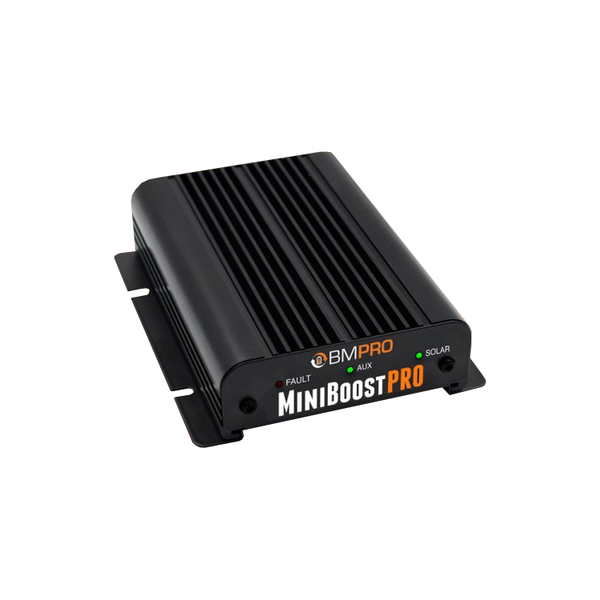

BMPRO MiniBoostPro 30A 12V DC to DC Battery Charger with Solar Input

BMPRO’s MiniBoostPRO is a compact DC-DC charger with solar input, specially designed for the RV market. The MiniBoostPRO offers effective charging of your caravan, 4WD or camper trailer’s house battery from the towing vehicle’s electrical system.

Blending both solar and auxiliary inputs, the MiniBoostPRO provides a combined charging current of up to a maximum of 30A, with a preference to solar. It features proprietary technology designed to charge from modern car alternators.

The MiniBoostPRO provides a multi stage charging profile.
It functions when wired directly to 12V batteries and enhances BMPRO’s BatteryPlus35 and J35 battery management systems.
A range of protective features built into the MiniBoostPRO will guard your caravan or camper trailer’s charging capacity.

Features:

• 30A multi-stage DC-DC charger
• Dual input solar/aux up to 30A
• Multi battery chemistry selector
• Suitable for modern smart alternators
• BMPRO BP35 and J35 compatible
• BMPRO signature durability and ease of use
• 2 year warranty

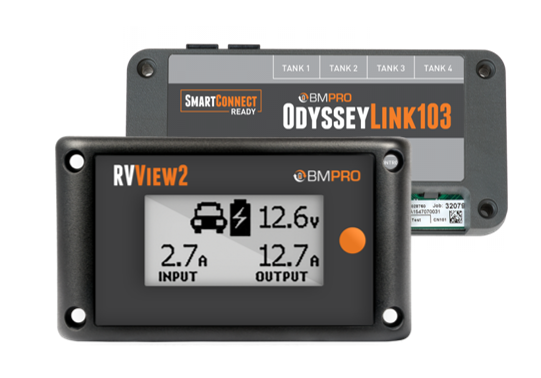

BMPRO RV View 2 Battery Monitor with OdysseyLink103

MONITOR YOUR RV BATTERY WITH A WALL MOUNTED 12V BATTERY MONITOR

The RVView2 is a wall-mounted battery monitor designed specifically to operate with BMPRO’s BatteryPlus35. The RVView2 connects to the BatteryPlus35 via the data cable. The monitor gives you vital up-to-the-minute data about your caravan’s current status using a clear back-lit display. The display shows volts and amps, battery charge and discharge status, as well as the source input for the vehicle’s 12V system.

Input Amps shows the total current going through the BatteryPlus35, while Output Amps shows the current provided to appliances. Input source indicator displays mains, solar, auxiliary, or two simultaneously present power sources, if available.

System voltage displays the voltage across the battery terminals, while the battery symbol indicates whether the battery is charging, discharging, fully loaded or not fully loaded. As a power saving feature, the display will turn off automatically 30 sec after its activation.

In addition to battery monitoring, the RVView2 enables monitoring of water levels of up to four water tanks from a sleek, wall mounted display.

The RVView2 can be connected to the OdysseyLink103 to become a part of the Odyssey system. OdysseyLink103 enables SmartConnect Bluetooth sensors and the use of a free Odyssey App to remotely monitor the battery and control caravan’s water pumps from the mobile phone.

RVView2 is designed and manufactured in Australia.

Features:

• Monitor:
  • battery voltage and charge status,
  • battery charging & discharging currents,
  • Auxiliary and solar charging currents,
  • Level indication of up to 4 water tanks
  • Battery on/off status
• Separate water tank screen
• Function to disconnect the battery from the load
• Includes OdysseyLink103 to enable SmartConnect and free Odyssey app

The table below illustrates which BMPRO range products are compatible and if any prerequisites will apply to the combination

Please CLICK HERE for more information on these BMPRO combinations and relevant prerequisites

*This combination will have certain prerequisites - please CLICK HERE for more information
