BMPRO Trek3 RV Battery Monitor

Product Description

BMPRO Trek3 RV Battery Monitor, 2 Year Warranty. RV battery monitor Trek3 is a smart battery monitor able to learn the actual battery capacity with time and provide more accurate feedback to the user. It combines comprehensive battery data together with water tank level measurement on one screen in a sleek design.

Trek3 is designed to work with BatteryPlus35 battery management system. Connected to the BatteryPlus35 via CAN bus, it continuously monitors information providing vital data at a glance.

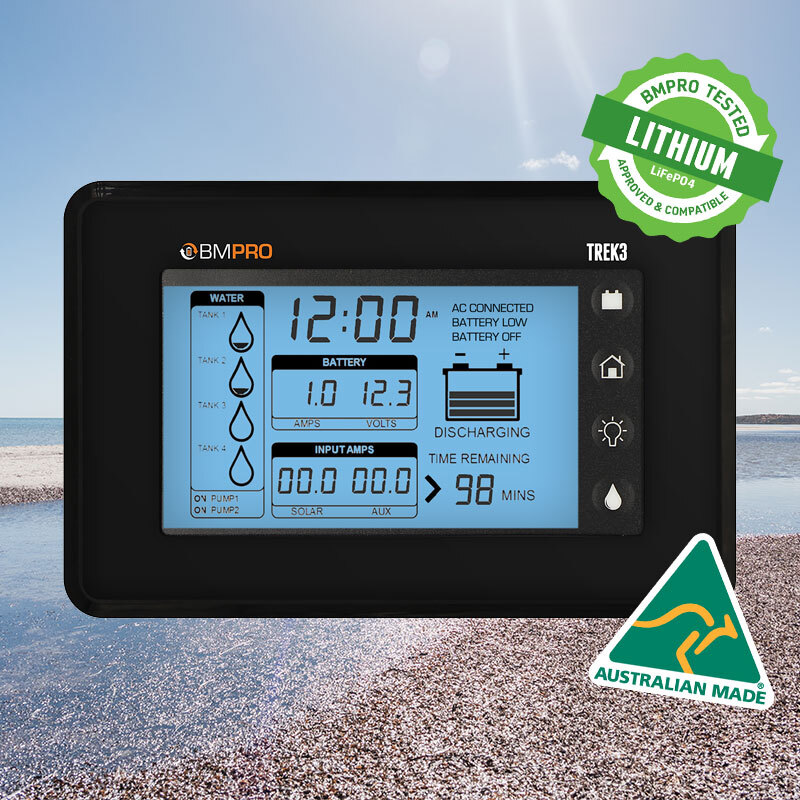

Trek3 monitors and displays vital battery information such as volts and amps, charge and discharge status, auxiliary and solar currents, as well as remaining battery capacity. It displays information on water tank levels and controls two water pumps with an on/off switch. The user can also quickly and easily isolate the battery from loads with the battery isolate button. Backlit LCD display of the RV battery monitor looks stylish and is easy to read. One can also use the back light as a night light.

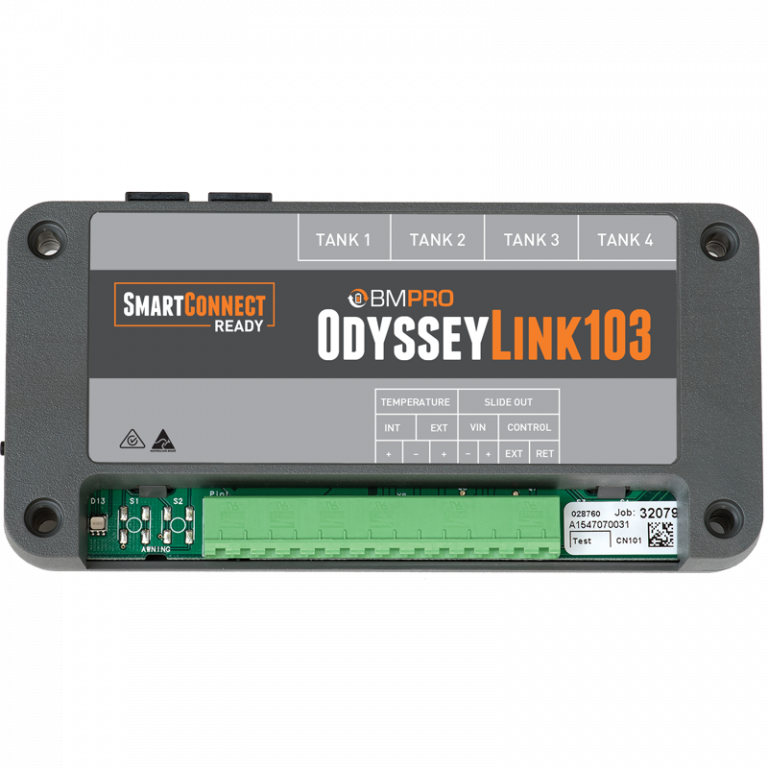

The Trek3 can be connected to the OdysseyLink103 (included in the retail package) to become a part of the Odyssey system. OdysseyLink103 enables SmartConnect Bluetooth sensors and the use of a free Odyssey App to remotely monitor the battery and control caravan’s water pumps from the mobile phone.

Trek3 has two mounting options (flush / half recessed). We offer caravan manufacturers multiple front fascia colour options to suit the design of your van.

Features:

• Monitor:
  • Battery voltage and charge status
  • Battery charging and discharging currents
  • Auxiliary and solar charging currents
  • Time remaining to discharge
  • Level indication of up to 4 water tanks
  • Time am/pm
  • Water pump status
  • Battery on/off status
• Backlight can be set as a night light
• Control 2 water pumps through BatteryPlus35
• Function to disconnect the battery from the load
• Includes OdysseyLink103 to enable SmartConnect and free Odyssey app

System Diagram

Trek replacement template

The table below illustrates which BMPRO range products are compatible and if any prerequisites will apply to the combination

Please CLICK HERE for more information on these BMPRO combinations and relevant prerequisites

*This combination will have certain prerequisites - please CLICK HERE for more information
