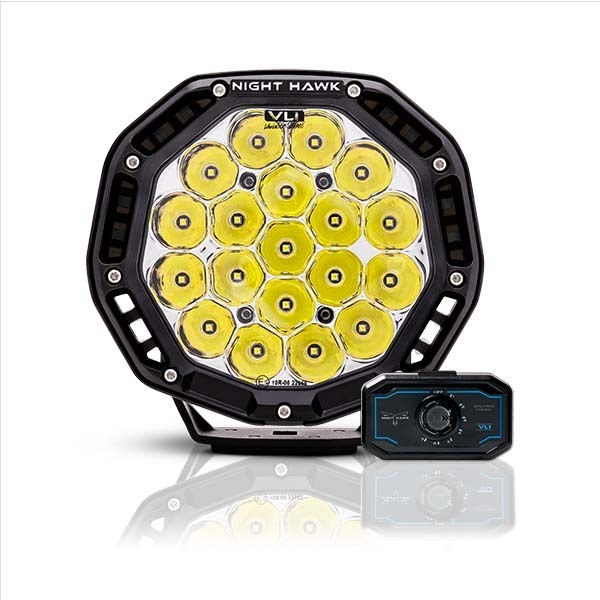

Bushranger Night Hawk 7" VLI Series LED Driving Light

SKU: NHX180VLI Learn More»

Free Item

CALCULATE SHIPPING:

Quantity

Postcode

Suburb

Accessories

Bushranger Night Hawk VLI Series Wiring System

$105

SKU: NHW20VLI

Bushranger Night Hawk VLI Series Wiring System, 1 Year Warranty. The Bushranger Night Hawk VLI Series Wiring System has been pushed to the edge by developing the first dedicated auxiliary light wiring system; incorporating relay free switching and brightness control functionality. What does this mean? Simpler wiring, easier installation, more user control and greater reliability over the traditional plug and play wiring loom. The commonly used automotive 12V relay is removed entirely and replaced with modern transistor switching, which is built into the light and the control module. Each light is powered directly from the battery, rather than through a relay, meaning there are no power restrictions for the wiring system, which is a common limitation with traditional relay-based wiring looms. Up to 4 x Bushranger Night Hawk VLI Series LED lights can be controlled by 1 wiring system and any combination of models/sizes can be used.

Product Features

Modern electronically switched wiring system offers a simpler, more reliable and smarter alternative to regular relay-based wiring harnesses.
‘Plug & Play’ modular design provides versatility to suit any vehicle and reduces installation time compared to traditional wiring harness installs.
Works with all Bushranger Night Hawk VLI Series Lights with no limitation on the power rating of each light.
The wiring system, as supplied, controls up to 2 x lights. Capacity to control up to 4 x VLI Series lights simultaneously with the use of additional control leads (sold separately).

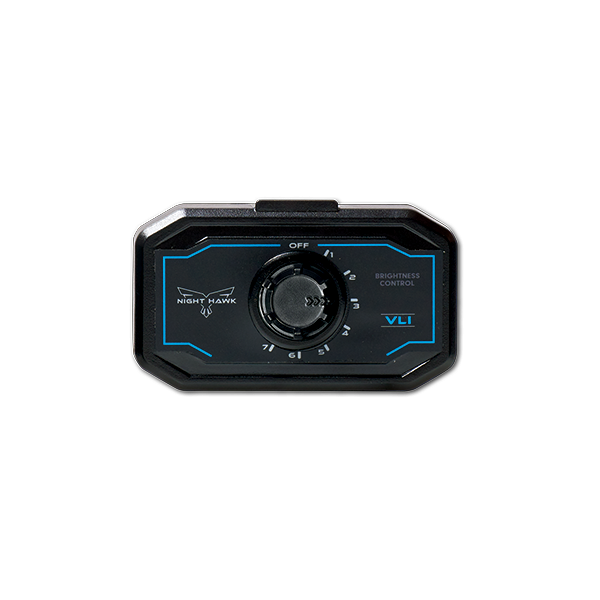

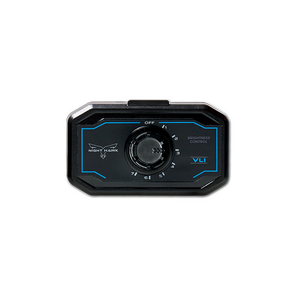

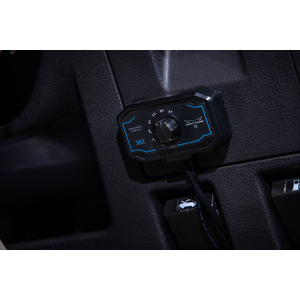

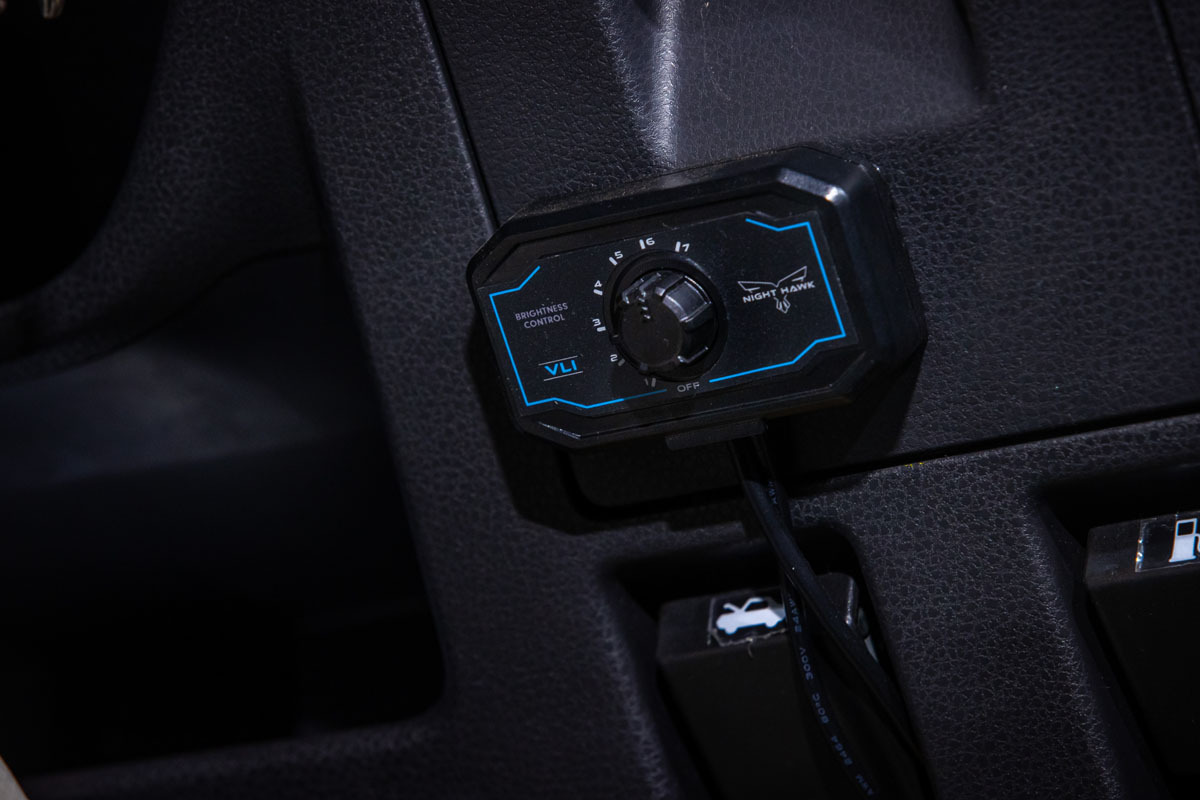

PWM brightness control offers 7 x brightness settings at the turn of a dial.
Soft Start Programming reduces eye fatigue by ramping up the brightness within the first second of operation.
Automatic Polarity Detection simplifies connection into the high beam circuit and works on positive and negatively switched vehicles.
Plug & Play headlight adaptors, fuse taps and additional control leads are available separately.

Bushranger Night Hawk 1.5m Control Lead

$15

Bushranger Night Hawk 3m Control Lead

$14

Bushranger Night Hawk VLI Mini Fuse Tap

$10

Bushranger Night Hawk VLI Standard Fuse Tap

$10

Bushranger X-Bar Universal Number Plate Driving Light Mounting Bar, Chrome

$92

Bushranger X-Bar Universal Number Plate Driving Light Mounting Bar, Black

$92

Bushranger 260W Wiring Loom with Bullet Connectors

$60

Bushranger 300W Night Hawk Driving Light Wiring Loom

Sold Out

SKU: NHW300DT

Bushranger 300W Night Hawk Driving Light Wiring Loom, 1 Year Warranty. The Bushranger Night Hawk Driving Lights Wiring Looms feature high current automotive grade 105°C rated wiring, quality relays, weatherproof fuse holders and twin waterproof Deutsch plugs. Ensuring long term protection against wear and tear, they have been pre-fitted with professional grade corrugated split tubing and have been designed and assembled with premium components as standard.

Featuring universal fitment, our Wiring Looms can be fitted to any 12v vehicle where auxiliary driving lights or lights bars are required to be activated from the vehicles high beam circuit. Quick and easy to install, the plug and play design of the Wiring Looms simplifies installation on a large range of vehicles when combined with our vehicle specific High Beam adaptors and OEM Style Switches (sold separately).

Specifications:

Single 12VDC 40A relay with interlocking style base for simple and neat installation of additional looms
Weatherproof fuse holders with 40A fuse for load circuit and 3A fuse for switching circuit
Twin waterproof Deutsch DT06-2S connectors
26A total current capacity (13A max each plug)
High current, 105°C rated wiring, protected with corrugated split tubing for long term reliability and a professional, OEM look
ON/OFF illuminated mouse style switch which can be mounted discretely in the vehicle
Plug and play compatibility with our extensive range of vehicle specific OEM style switches and High Beam adaptors
RoHS compliant
Suitable for use with a pair of 7” Night Hawk Driving lights or any two Night Hawk Light Bars from 5.5” to 39.5” size. Also compatible with many other lights on the market

Wire Lengths:

Battery to Relay/s: 0.5m
Relay to Switch: 4.0m
Relay to High Beam Plug: 1.1m
Relay to Driving Light Plug 1: 1.6m
Relay to Driving Light Plug 2: 2.6m

Click '+' to show more accessories

Call 1300 400 122

Add To Wishlist

Customer Reviews

Go to: Product Details

Go to: Specifications

Product Description

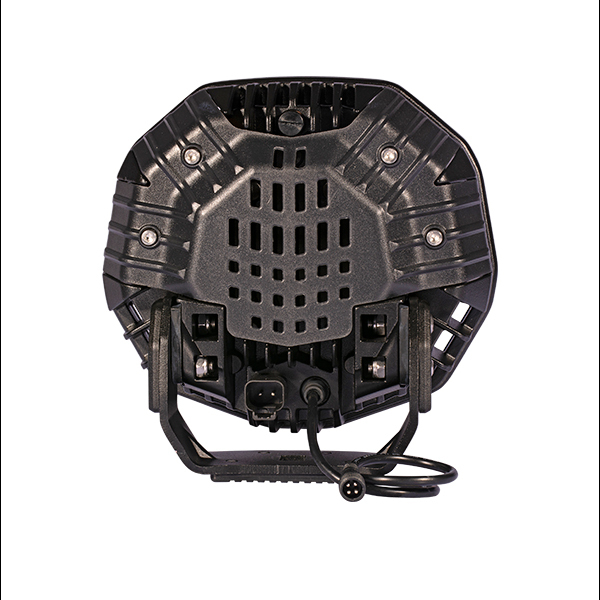

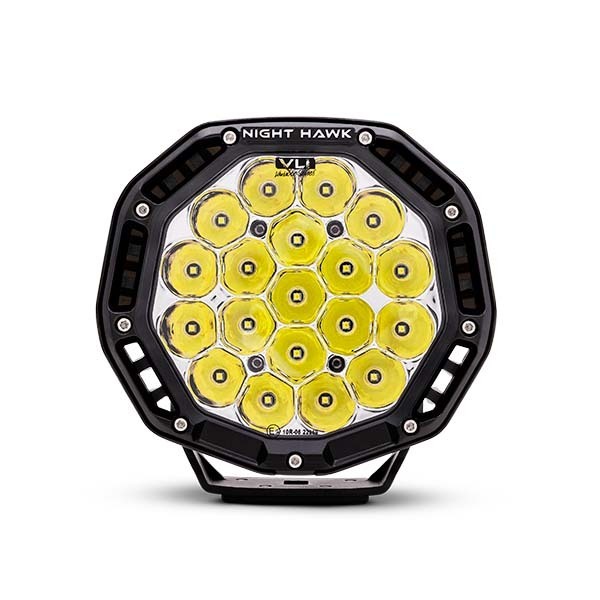

Bushranger Night Hawk 7" VLI Series LED Driving Light, 5 Year Warranty. Bushranger® Night Hawk 7” VLI Series LED Driving Lights have been developed from the ground up by our team of engineers to offer a truly unique design which takes performance, looks and usability to a whole new level.

The bold, modern aesthetic incorporates clever cooling ducts which channel cool air directly over the heatsink to greatly increase the heat dissipation of the LED’s. The Advanced Temperature Control System takes advantage of the superior cooling design to run the LED’s at their maximum potential by monitoring and adjusting the output according to the environment.

These lights are so bright, we’ve also incorporated a brightness control function, which allows complete control of the light intensity in conditions where too much light can be detrimental to clear vision. The brightness is controlled by our pioneering, relay-free VLI Series Wiring System, which is the first of its kind, and leads the way with simpler wiring, easier installation, more user control and greater reliability over traditional systems.

Each light is supplied with two protective covers which allow the user to change the beam pattern quickly and easily. With the spot protective cover fitted, the light projects a clean, focused spot beam pattern which reaches extreme distance [967m @ 1 lux]; great for highway driving. Clip on the flood protective cover and the light changes significantly to a wide, flood beam pattern [153m width @ 1 lux]; which illuminates all the surroundings for excellent short to medium distance vision.

Bushranger® Night Hawk lights are engineered tough to withstand the rugged outdoor terrain and harsh climate experienced down under. They are backed by a 5-year warranty and our 40+ year history of supplying quality engineered 4×4 products to the Australian market.

Features:

DURABLE EXTERIOR Hard coated polycarbonate lens offers long term scratch resistance ensuring maximum optical efficiency for years to come. UV stable AkzoNobel powder coat, polycarbonate lens and covers ensure long term durability.

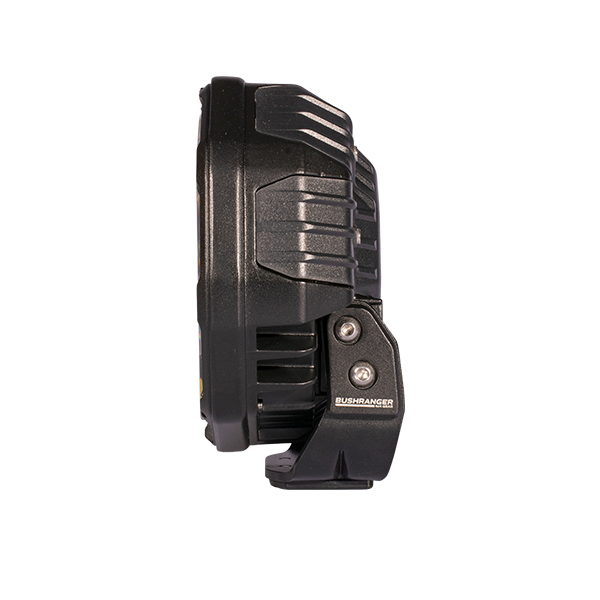

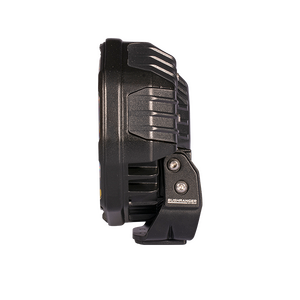

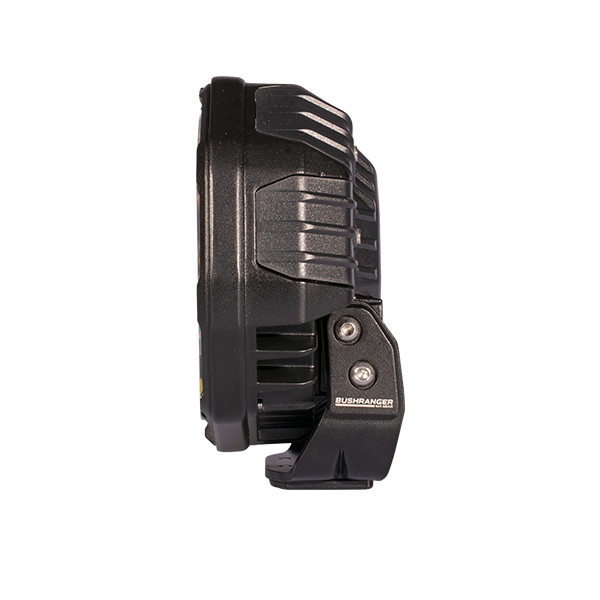

BUILT TOUGH Pressure die-cast aluminium housing and strong, 4mm thick steel bracket will handle even the toughest tracks.

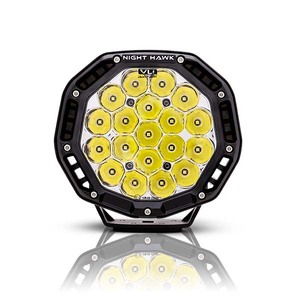

HIGH OUTPUT OSRAM LED’S 19 genuine, high output OSRAM LED’s for unmatched performance. 85W and 6,450 effective lumens per light.
MODERN ELECTRONICS DESIGN Built in Transistor switching simplifies wiring installation by removing the need for traditional 12V relays. PWM dimming capability for brightness control at the turn of a dial. (Wiring system sold separately)
SEALED TIGHT Waterproof and submersible, IP67 & IP69K rated with Genuine GORE breather, to manage the internal air pressure of the light.
ACTIVE TEMPERATURE CONTROL SYSTEM Intelligent onboard monitoring of the LED temperatures, combined with the superior cooling design allows for maximum output in all conditions.
SUPERIOR COOLING DESIGN Large air intakes channel cool air over the heatsink for unmatched cooling efficiency, allowing for the use of higher-powered LED’s.
LIGHTWEIGHT DESIGN Compact in size, weighing just 1.7kg. Perfectly suited to nudge bar, and alternative installations where size and weight restrictions apply.
CHANGEABLE BEAM PATTERN Clip on/clip off protective covers allow for quick changes between beam patterns. 1 x Spot, 1 x Flood included.
