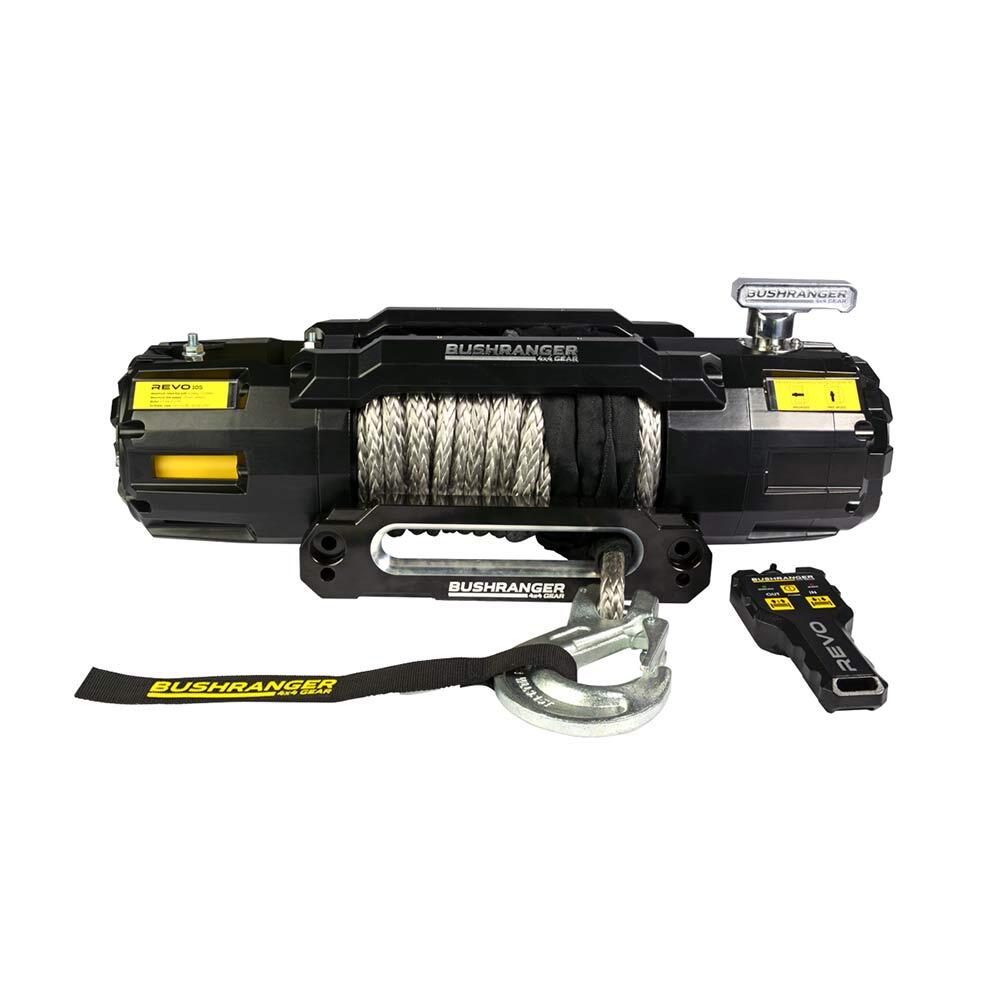

Bushranger Revo 10,000LB / 4,536kg Synthetic Winch

Product Description

Bushranger Revo 10,000LB / 4,536kg Synthetic Winch, 7 Year Warranty. Bushranger REVO Winch is packed with many features. Including high-quality construction, low current draw, 4 stage oversized gearing with fast line speeds and an advanced proportional friction braking system that will reliably hold 100% of the rated load with no slippage. The zero drag braking system allows for fast no load line speeds, making unspooling the rope a breeze. No more pulling against the friction of traditional winch braking systems uses the power of the winch to do the unspooling for you with no concern of brake drag causing unnecessary wear and heat build-up. A fully sealed motor and gearbox (IP67 rated) gives maximum protection from water, dust and debris. Meaning the winch is ready for anything you can throw at it. Winch weight fitted 33kg.

The versatile design of the Bushranger REVO Winch maximises the ease of installation with 16 Gearbox clocking positions (resulting in 22.5-degree increments) and a multi-mount Control Box. The wire version is supplied with a robust roller fairlead setup incorporating durable stainless steel rollers, while the synthetic version comes standard with the legendary two position aluminium Hawse Fairlead, which was an innovation first introduced by Bushranger. A wireless hand controller rounds out the premium synthetic version, allowing for reliable, no delay, the cord-free operation of the winch, giving you the freedom to maneuver around the vehicle without the limitations and tangles. The Bushranger REVO Winch has a limited lifetime mechanical warranty and seven-year electrical warranty.

Features:

• Gearbox mounted braking system | 100% load holding, proportional friction braking system located inside the gearbox, away from the drum – eliminating heat transfer to synthetic rope.
• Zero brake drag | Zero drag braking system allows for the winch to be powered out under no load without heat build-up, making unspooling a breeze.
• Premium Motor design | Series wound, 12V, 5.2HP motor made with high grade materials resulting in low current draw and longer life at extreme load.
• 4 stage oversized gearbox | designed for maximum strength and durability. Extra wide gears improve load distribution resulting in less wear and increased long term reliability. Externally adjustable, 16 position gearbox clocking for ease of fitment and use.
• Clockable motor housing | 3 position motor clocking for versatility during fitting
• Control box | Multiple mounting orientations to suit every installation. Supplied with additional mounting bracket for hassle free installation.

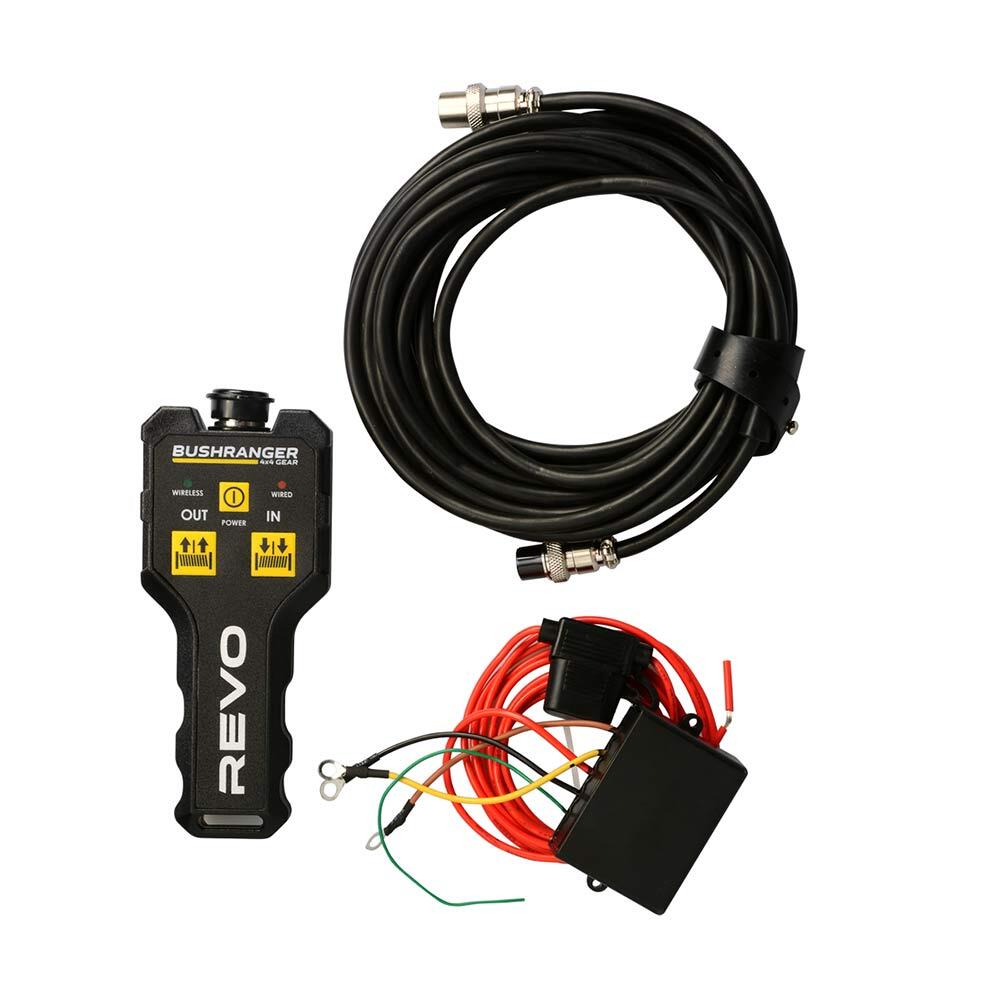

• Wireless Hand Controller | Full sealed, IP67 rated, ergonomic hand controller with long range. Sealed 433MHz wireless receiver mounted internally to control box.
• In-Line/Off-set Hawse Fairlead | Innovative two position, aircraft grade aluminium design to suit in-line and off-set mounting requirements.
• Synthetic Rope | Premium, 10mm synthetic rope paired with a ½” removable clevis hook
• 500A Contactor | Heavy duty sealed contractor reliably distributes power with minimal voltage drops.
• Waterproof | Fully sealed motor, gearbox and drum for maximum protection from water, dust and debris.
• No-lift clutch | easy to use spring loaded cam style clutch mechanism
• Tough Design | strong and lightweight aluminum alloy housings with durable black powder coat finish
