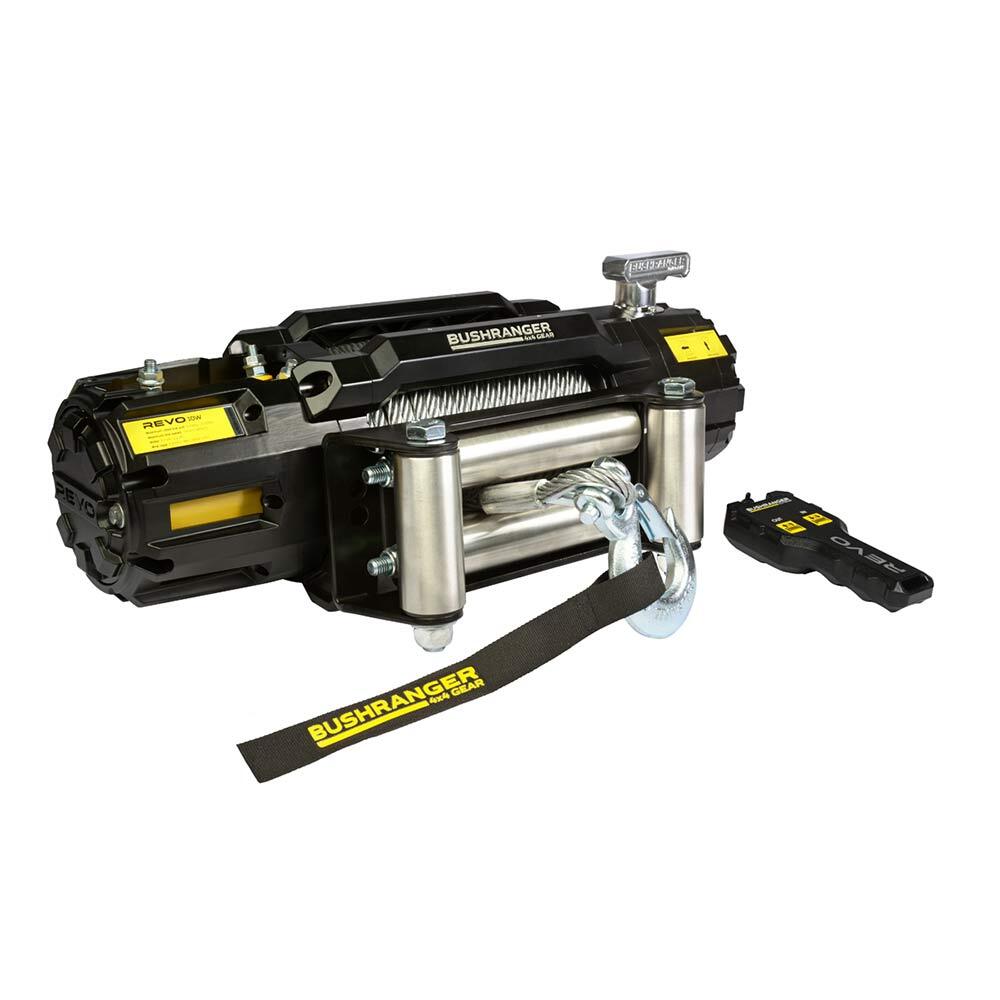

Bushranger Revo 10,000LB / 4,536kg Wire Winch

Product Description

Bushranger Revo 10,000LB / 4,536kg Wire Winch, Lifetime Warranty Warranty. Bushranger REVO Winch is packed with many features. Including: high quality construction, low current draw, 4 stage oversized gearing with fast line speeds and an advanced proportional friction braking system that will reliably hold of the rated load with no slippage. The zero drag braking system allows for fast no load line speeds, making unspooling the rope a breeze. No more pulling against the friction of traditional winch braking systems. Use the power of the winch to do the unspooling for you with no concern of brake drag causing unnecessary wear and heat build-up. A fully sealed motor and gearbox (IP67 rated) gives maximum protection from water, dust and debris. meaning the winch is ready for anything you can throw at it.

The versatile design of the Bushranger REVO Winch maximizes the ease of installation with 16 Gearbox clocking positions (resulting in 22.5 degree increments) and a multi-mount Control Box. The wire version is supplied with a strong roller fairlead setup incorporating durable stainless steel rollers, whilst the synthetic version comes standard with the legendary two position aluminium hawse fairlead, which was an innovation first introduced by Bushranger. A wireless hand controller rounds out the premium synthetic version, allowing for reliable, no delay, cord free operation of the winch, giving you the freedom to manoeuvre around the vehicle without the limitations and tangles. The Bushranger REVO Winch has a limited lifetime mechanical warranty, and seven year electrical warranty.

Features:

• Gearbox Mounted Braking System | load holding, proportional friction braking system located inside the gearbox for zero heat transfer to the synthetic rope.
• Zero Drag Brake | Power out under no load without heat build-up, making unspooling a breeze.
• Premium Motor Design | Series wound, motor made with high-grade materials resulting in low current draw and longer life at extreme load. 10,000lb – 12V 5.2HP. 12,000lb – 12V 6.2HP
• 4 Stage, Oversized Gearbox | Designed for maximum strength and durability, with extra wide gears improving load distribution resulting in less wear and increased long term
• reliability.
• External Clocking | Motor and Gearbox can be rotated without complete disassembly of the winch, with 3 motor positions and 16 gearbox positions offering versatility for any vehicle install.

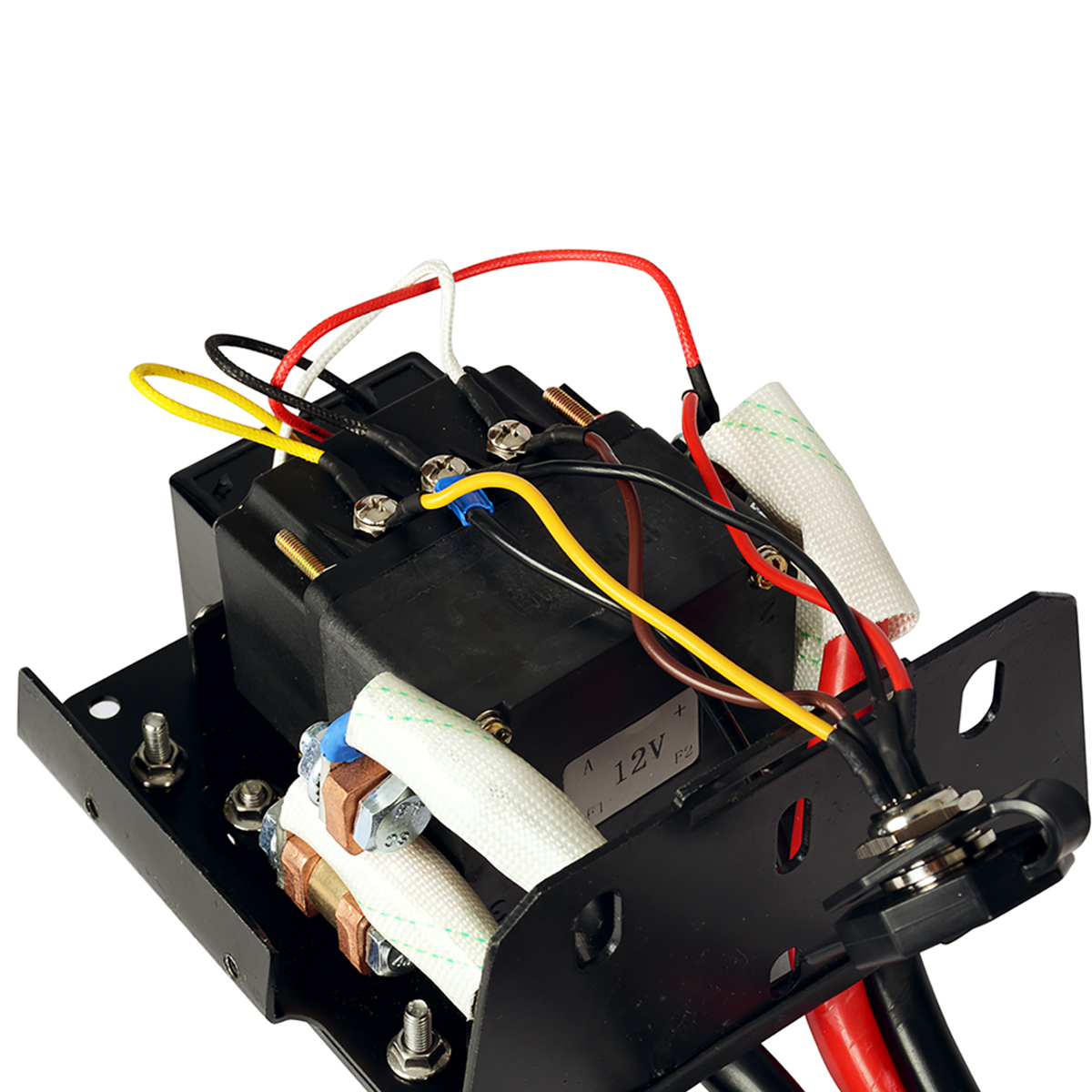

• Multi-Mount Control Box | Mount horizontally, vertically or on a separate mounting bracket (included) to suit all installation requirements.
• 500A Contactor | Heavy-duty sealed contractor reliably distributes power with minimal voltage drops.
• Waterproof | Fully sealed motor, gearbox and drum for maximum protection from water, dust and debris.
• No-lift Clutch | Easy to use spring loaded cam style clutch mechanism engages with a reliable, rotating ring gear designREVO 10W | Wire.

REVO 10W | Wire

• Tough Design | Strong and lightweight alloy housing with durable black powder coat finish and fully sealed to IP67 rating.
• In-Line/Off-set Roller Fairlead | Unique stainless steel rollers will not rust or peel. Tough, powder coated steel frame for maximum durability.
• Wire Rope | Tough 9.2mm steel cable paired with a 3/8” removable clevis hook
• Wired Hand Controller | Full sealed, IP67 rated, ergonomic hand controller with 5m of cable for plenty of reach
