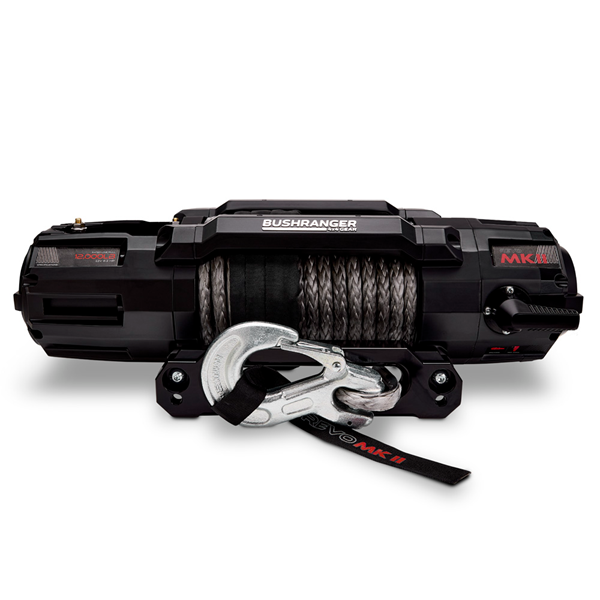

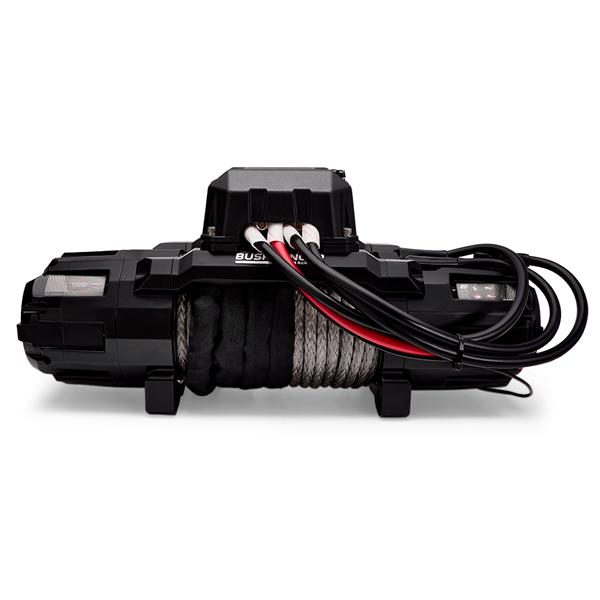

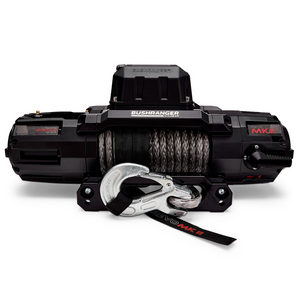

Bushranger Revo 12,000LB / 5,443kg Synthetic MKII Winch

Product Description

Bushranger Revo 12,000LB / 5,443kg Synthetic MKII Winch, Limited Lifetime and 7 Years Electrical Components. The Bushranger REVO MKII vehicle recovery winch has been engineered to meet the demands of serious off-road enthusiasts who require dependable performance, even in the most challenging environments.

Boasting a wide range of upgrades stemming from years of real-world testing and feedback, the result is an overall lighter weight, easier to fit, safer and more compact winch with increased durability over its predecessor.

Features and Benefits:

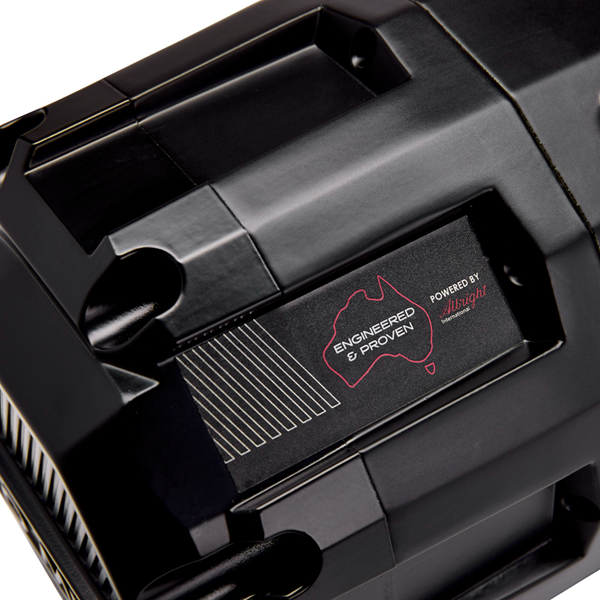

• Engineered and Proven in Australia. The highest quality components and rigorous test methods ensure reliability and longevity even within the harshest environments.

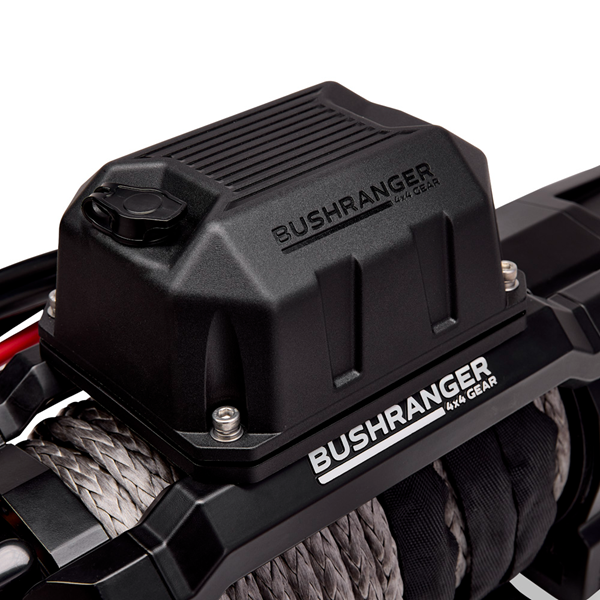

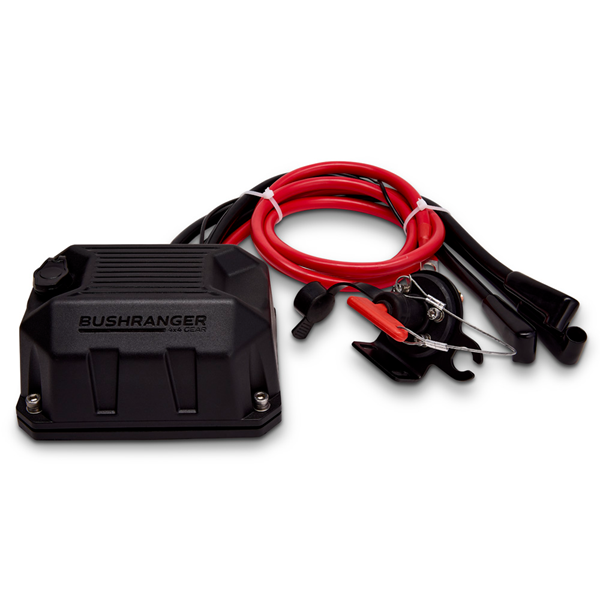

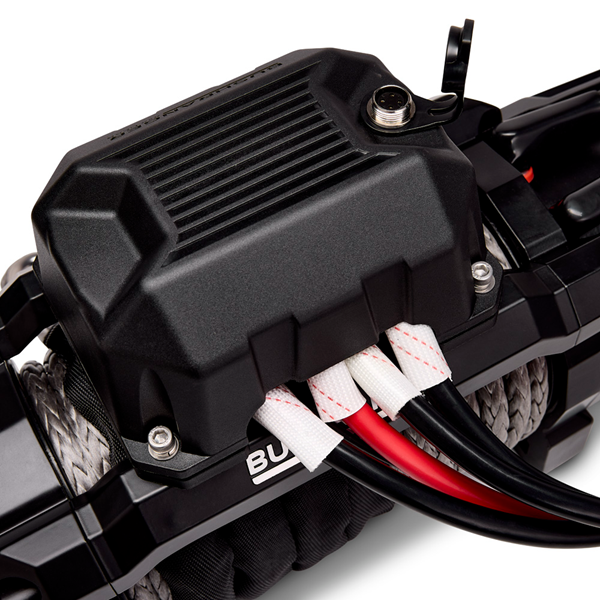

• Compact Multi-fit Control Box. The compact, lightweight control box provides easier installation in confined areas, reduces interference, and incorporates numerous threaded insert locations for immediate fitting in most bull bars.

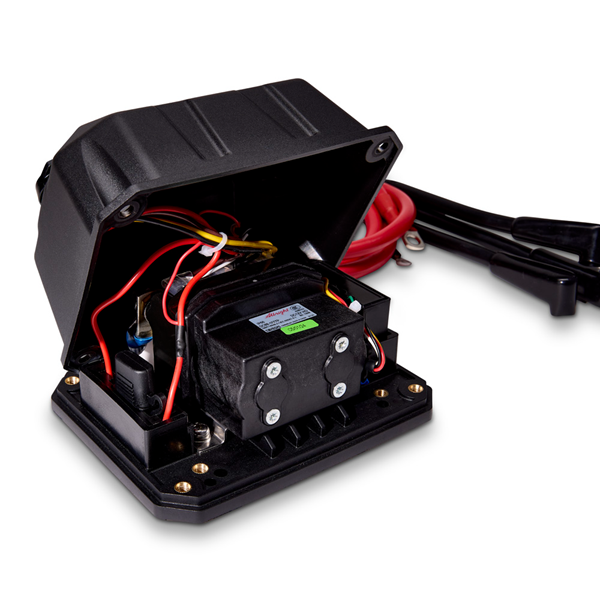

• Albright Contractor. The Albright DC contactor stands out in the market with its top-of-the-line quality. Sealed with an IP67 rating, it manages the winch motor function with unmatched durability and longevity, ensuring reliable operation time after time.
• Preimium Motor Design. The 12V, 6.2HP series wound motor is constructed using high-grade materials to reduce current draw and increase line speeds, providing a prolonged motor lifespan under full load conditions.
• Zero Drag Braking System. The gearbox-mounted brake provides 100% load holding and the capacity for fast-powered unspooling, under no load, without any damage to the winch.
• 4 Stage Gearbox. Features hardened steel gearing for improved load distribution, maximum strength and durability, and is externally adjustable in 16 clocking positions for perfect clutch handle orientation in any vehicle.
• Robust Construction. Uncompromised strength and rigidity are at the core of the tough aluminium alloy body, finished with a durable satin black powder coat.

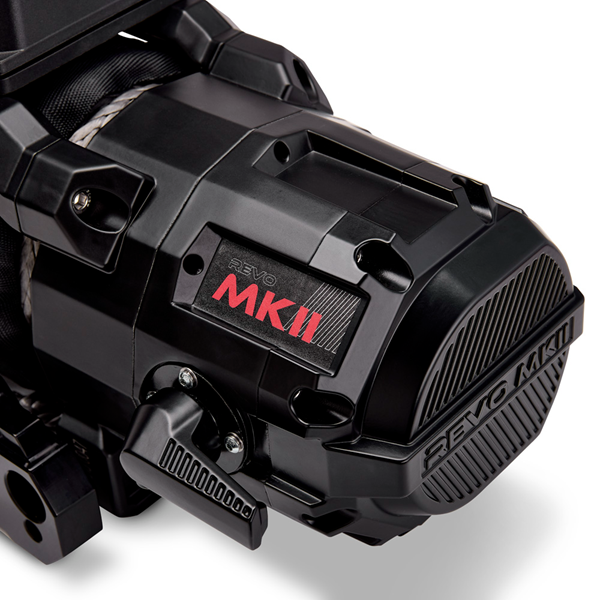

• Effortless Cluth Operation.  The astute no-lift clutch handle reduces fitment interference and presents simple operation even within those hard-to-reach locations. Factory positioned for 90% of bull bar fitments.
• Power Isolation Switch. The highest level of safety comes standard with the inclusion of a 500amp winch isolation switch, providing complete separation of the winch from the vehicle battery when the winch is not in use.
• Water & Dustproof. The completely sealed motor & gearbox is rated to IP68 standard for maximum water, dust and debris protection.

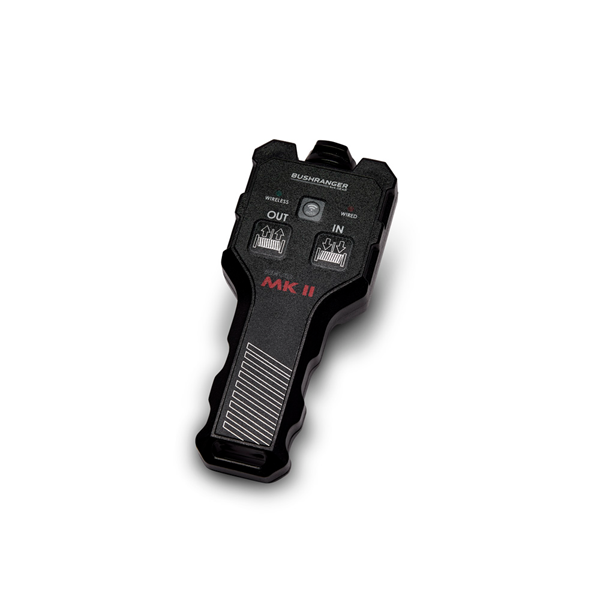

• Wireless & Wired Remote. The compact wireless-enabled hand controller contains a lacquered PCB allowing function within a 30m wireless range or by the direct connection 5m lead.
• Fitted Weight. 33.9kg

Kit Includes:

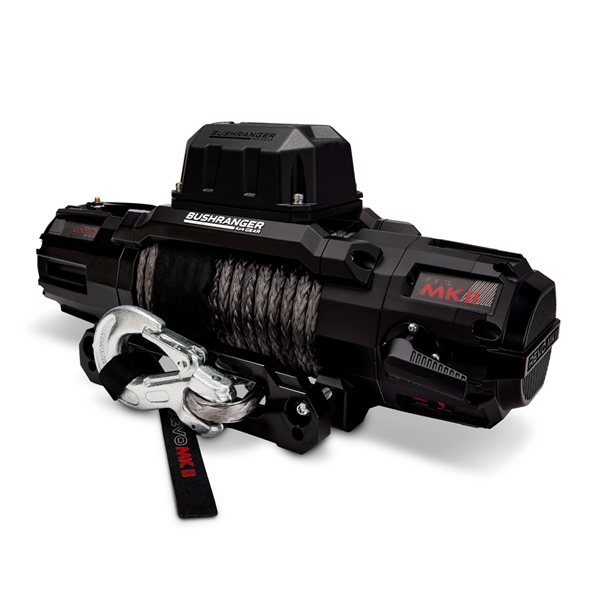

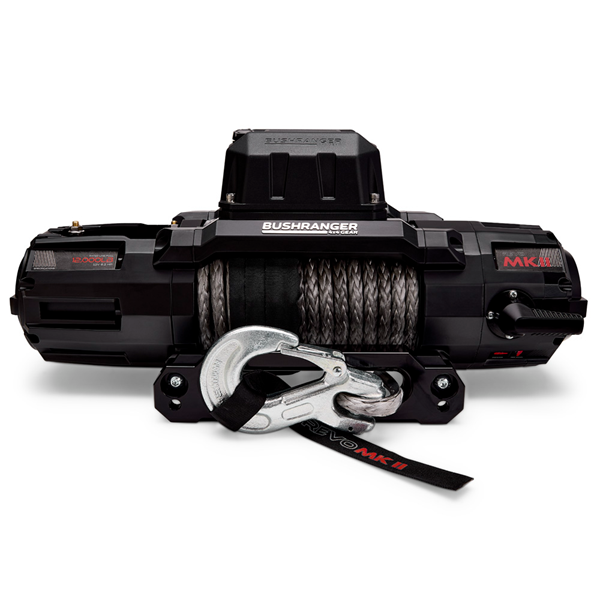

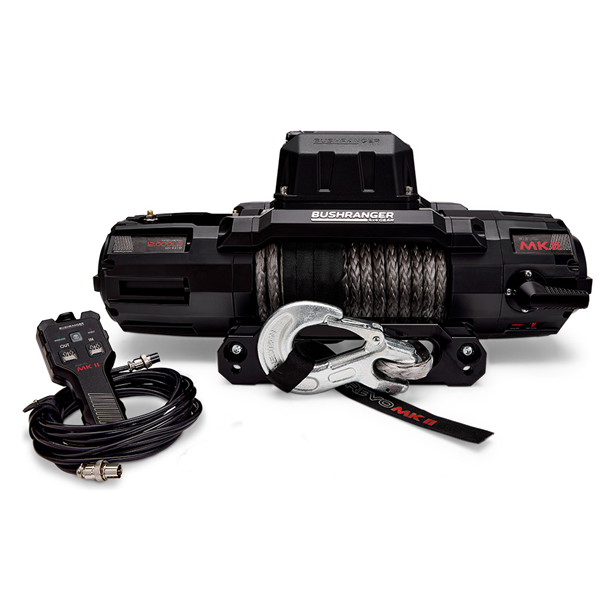

• REVO MKII winch

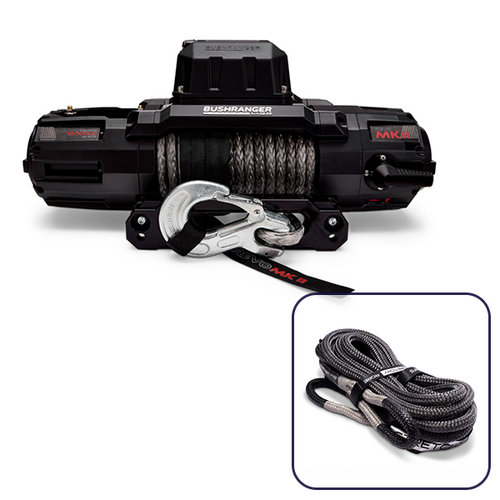

• Synthetic rope (24m x 11mm) with protective sleeve
• Prewired control box
• Dual connection remote control
• Forged steel hook with pull tag
• Aircraft grade aluminium hawse fairlead
• Main power isolation switch
• Heavy gauge wiring
• Hi-tensile mounting hardware.
