Cool-J HB9000 PLUS Underbunk Reverse Cycle Air Conditioner

SKU: HB9000PLUS Learn More»

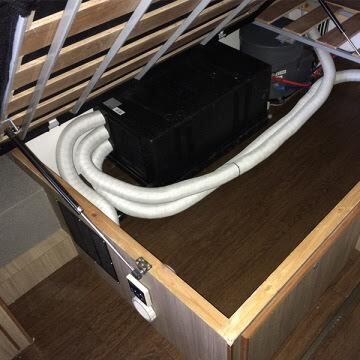

Reverse Cycle Under Bunk Air Conditioner

$1,218
$1,899
EXTRA $40 OFF! Add to cart to get an instant discount
SALE ENDS:

CALCULATE SHIPPING:

Accessories

$195

$195

$125

$125

$30

$30

Click '+' to show more accessories
Learn More»
In stock, dispatch 1 - 2 days Express Shipping Price Match Guarantee Customer Reviews

"Aircon."

Read more
Now fitted the HB 9000 plus is a great little under bunk aircon with reverse cycle mode incorporated. Great machine, greater service from Scott.
(Posted on 26 August 2023)

"Very pleased with efficiency"

Read more
Warms the room very quickly.
(Posted on 8 June 2023)

Product Description

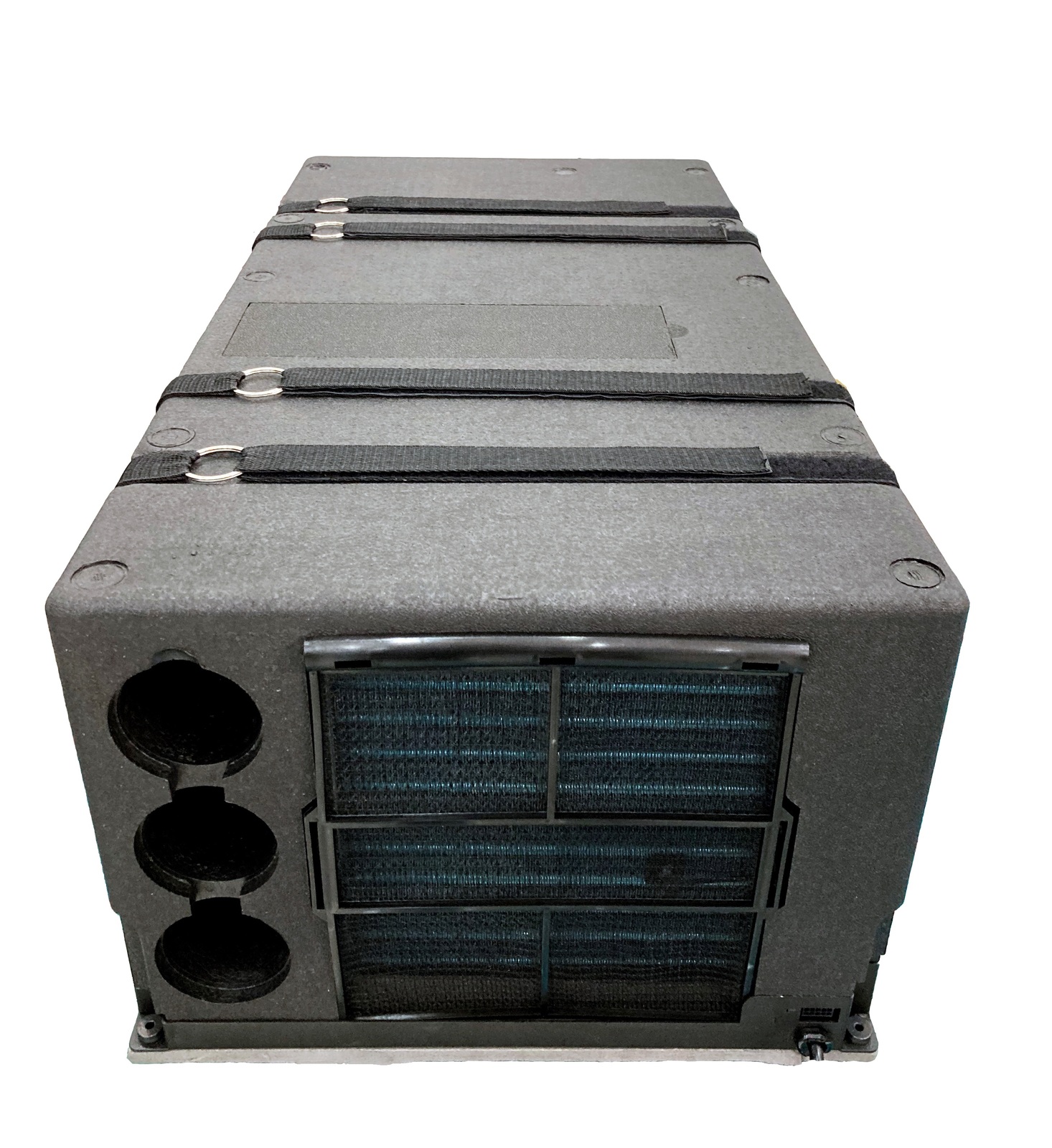

Cool-J HB9000 PLUS Underbunk Reverse Cycle Air Conditioner, 2 Years Warranty. Cool-J HB9000 PLUS Underbunk Reverse Cycle Air Conditioner
Underbunk Reverse Cycle Air Conditioner, designed for Caravans, Motorhomes / RV's. This latest model, the 'HB9000 PLUS' is an upgrade from the original HB9000 model. The improvements have focussed on:

  • higher efficiency (updated GMCC compressor) via enhanced power consumption (see specifications data)

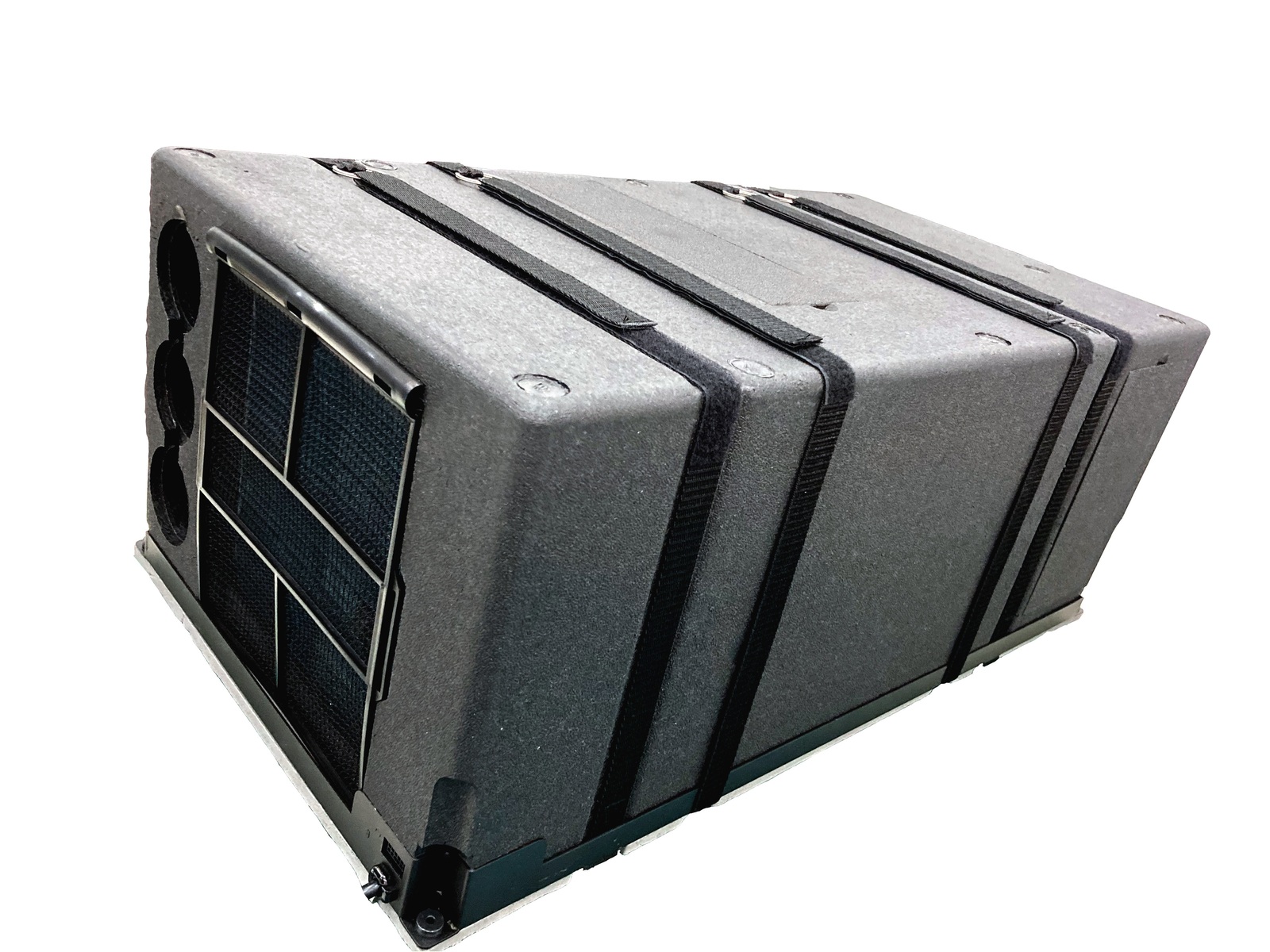

  • a new one piece EEP frame which further reduces noise levels and vibration

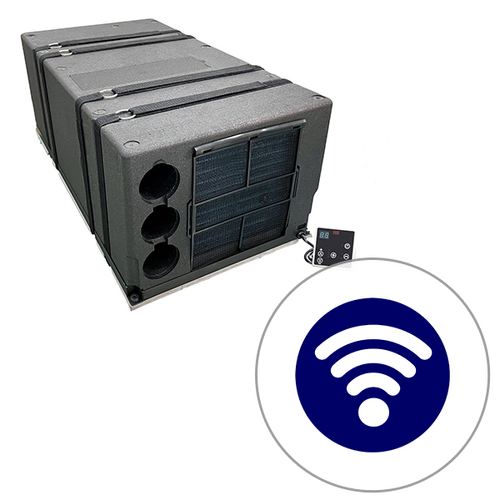

  • WiFi control via your smartphone

The new model is the same dimensions and weight as the existing model.

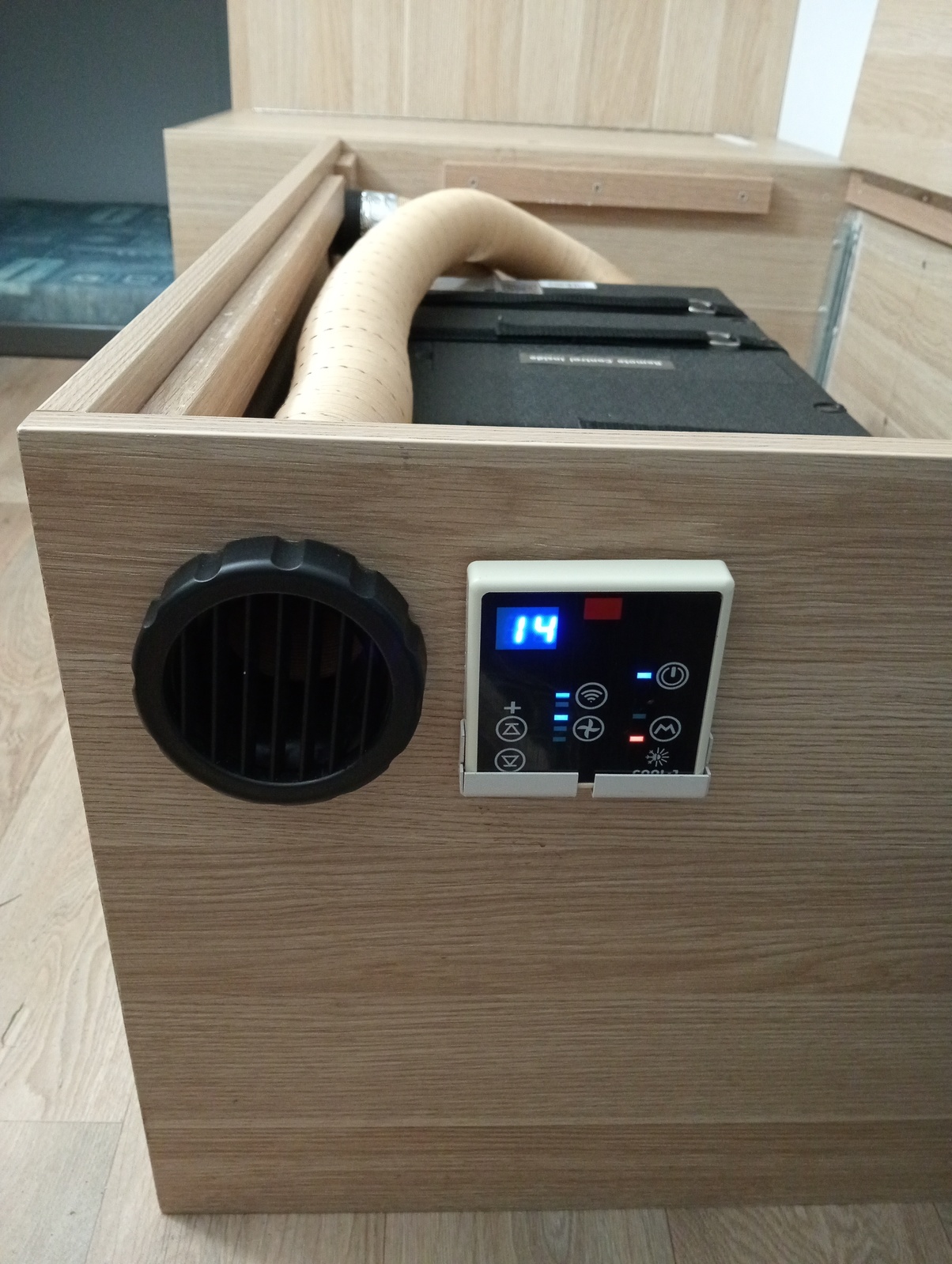

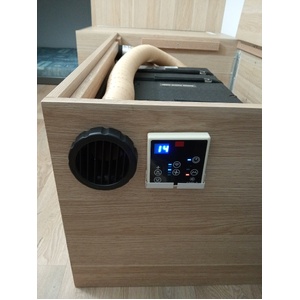

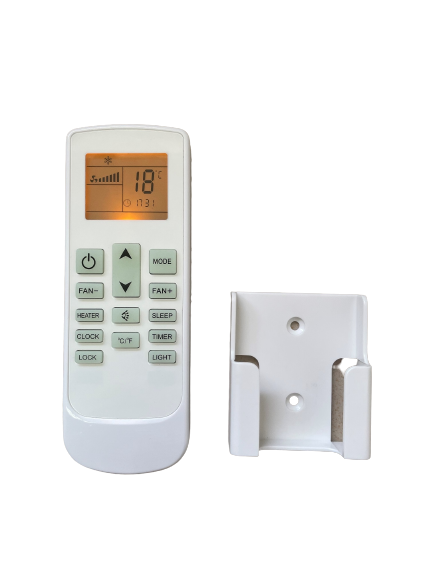

The Cool-J HB models have long been a popular no-fuss underbunk option for RV's up to 6.5 metres in length. 2.6KW (9000 BTU) of cooling capacity and 2.7KW (9000 BTU + 500W element) of heating capacity, this unit is simple to control via the wall panel, remote or now the Wifi option also.

Standard features also include:

  • additional heating element allowing performance of the heat pump at low temperatures
  • heating, cooling, dehumidification with night mode and timer settings

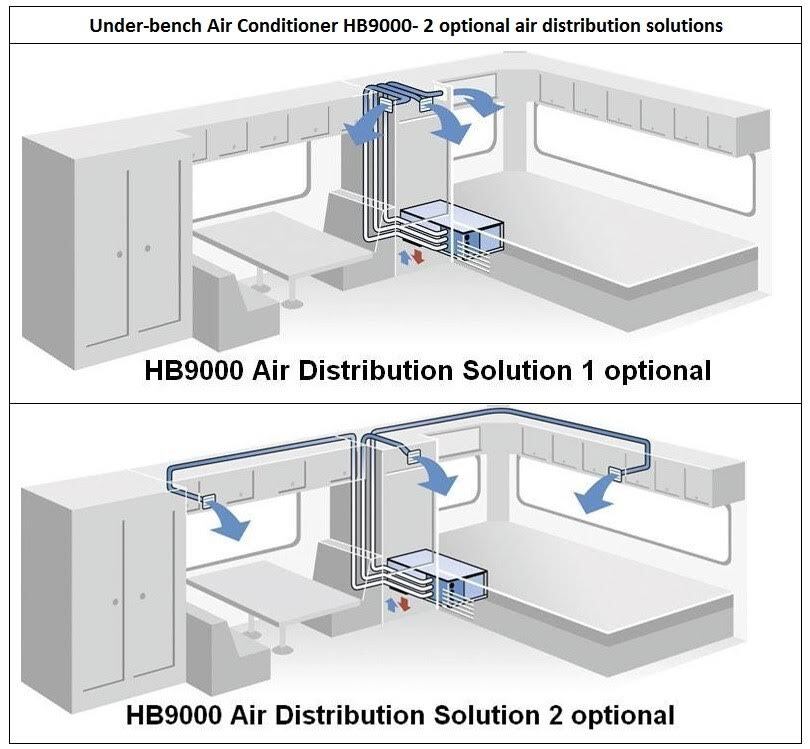

  • three Air Vents with equal distribution
  • 2 year warranty for compressor and 1 year for other parts; for any non-human defective (see warranty tab for further warranty details)

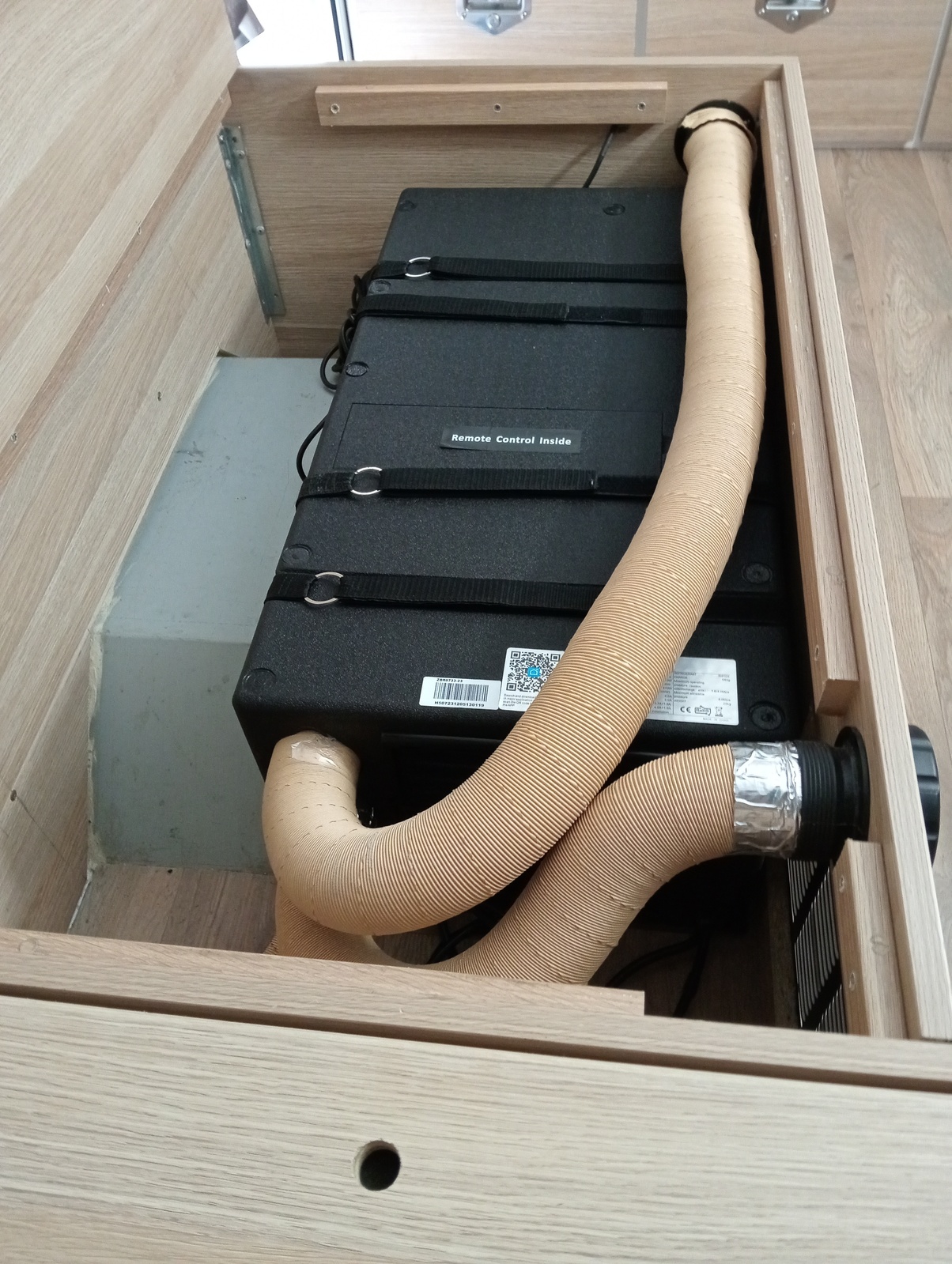

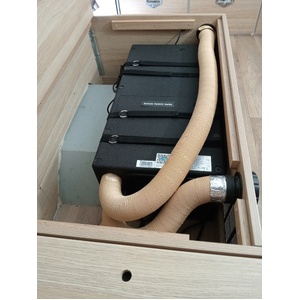

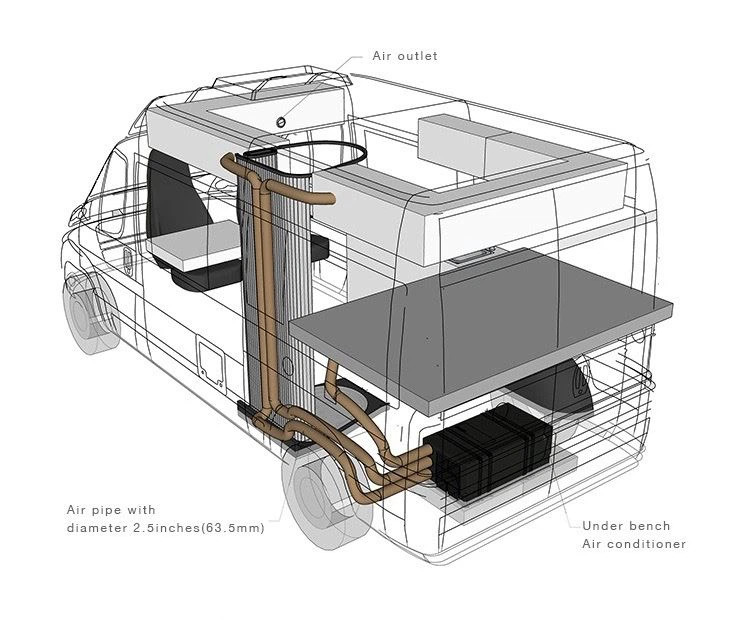

The unit does not come with ducting included. If you require new ducting with the unit, see the ACCESSORIES LIST above to add your preferred ducting length (5m or 10m) and your preferred colour of outlets (white or black).

Fitting and Install instructions come with the unit, but connection is required by a licenced electrician and must be connected to Australian standards AS/NZS3000 & AS/NZS3001.

Product Card

Product Manual


Specifications

SKU HB9000PLUS

Brand Cool-J

GTIN 660111711884

Warranty Period: 2 Years

Product Category RV Air Conditioners

Best for Vehicle Length (m) 6.5

Cooling Capacity (ISO5151) (kW) 2.6

Fan Speeds Grade Auto/H/M/L

EER/COP 3.0/3.9

Rated Heating Capacity 11000BTU

Voltage 220-240V~/50Hz/1Ph

Compressor Type and brand vertical rotary/GMCC

Temperature Range set 18oC to 30oC

Air Flow (Hight Speed) 350 m³/h

Current(Cooling/Heating) 4.0A/3.1A+1.9A

Rated Cooling Capacity 9000BTU

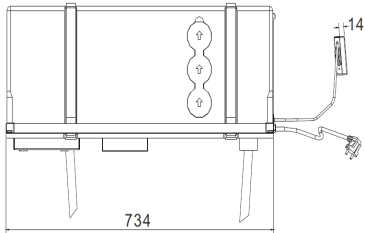

Dimensions (L x W x H) 734 x 398 x 296 mm

Total Frame Material One-piece EPP Injected

Refrigerant Type and charge R410a/540g

Max volume(recommended with insulated walls) 30 m³

Compressor Locked Rotor Current 18.4A

Consumption Power (Cooling/Heating) 870W/690W(HP)+500W (Heater

Weight 28.3 kg

Air Flue design One motor + 2 fans system

Ambient Temperature Suggested -7oC to 43oC


Product Q&A

Ask Us a Question
  • Can I install this AC myself?

    Being a 240v appliance, it will need to have the electrical work completed and signed off by a Qualified Electrician.

  • Can I run this AC off a battery system?

    Short answer yes. However 240v appliances draw a lot of current and you will need quite a large battery bank and means to charge the next day. You will be best purchasing a small generator to run, which will be a much cheaper alternative. You can find our recommended generators in the description of the AC.

  • Do I need to get the AC gassed upon delivery?

    No, the AC will come pre gassed ready to be fitted.

Customer Reviews

Write a product review

Aircon. Review by
Now fitted the HB 9000 plus is a great little under bunk aircon with reverse cycle mode incorporated. Great machine, greater service from Scott.
(Posted on 26 August 2023)
Very pleased with efficiency Review by
Warms the room very quickly.
(Posted on 8 June 2023)

Warranty

For details relating to this product's warranty CLICK HERE

Delivery

    For details relating to our delivery process CLICK HERE
