Cowfish VanTenna Premium Model A, White with Bottom Connecter
SKU: VTP-02 Learn More»
Product Description
Cowfish VanTenna Premium Antenna Package with 12V TV Wall Plate and 10m Cable, 2 Year Warranty.
Colour Options:
- White
- Bottom
Connector Options:
- Model A - Bottom
- Model B - Side
The Cowfish VanTenna is the Caravan Antenna that you are looking for. The VanTenna is the next generation of Caravan TV Antennas. This antenna provides you with TV reception, regardless of the orientation your Caravan or Motorhome is parked in. With the VanTenna there is no need to wind up an antenna and attempt to point it in the direction of the nearest Television Broadcasting Tower. There is no need to wind the antenna down in bad weather or storms. There is no wind noise coming from the antenna as you sit inside trying to watch TV. There is also no chance of breaking the antenna when travelling over corrugated roads as there are no hinges or moving parts. You simply turn the Caravan TV Antenna on and scan for TV channels on your television. The VanTenna does all the work for you!!
Your VanTenna will receive signals equally from all directions. This means that you can pick up TV channels from multiple Television broadcasting towers at the same time. As a result, you will be able to watch all available channels in your area, regardless of which TV tower is sending out the channel signal.
The VanTenna is 298mm high. We have designed the VanTenna specifically with this height in mind, as most caravan air-conditioning units are approximately 300mm in height. The result is that the VanTenna does not protrude any higher than what is already installed on your caravan roof, but also gives you the best design to receive Digital Television signal.

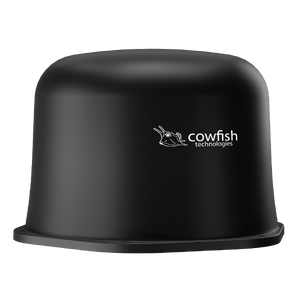

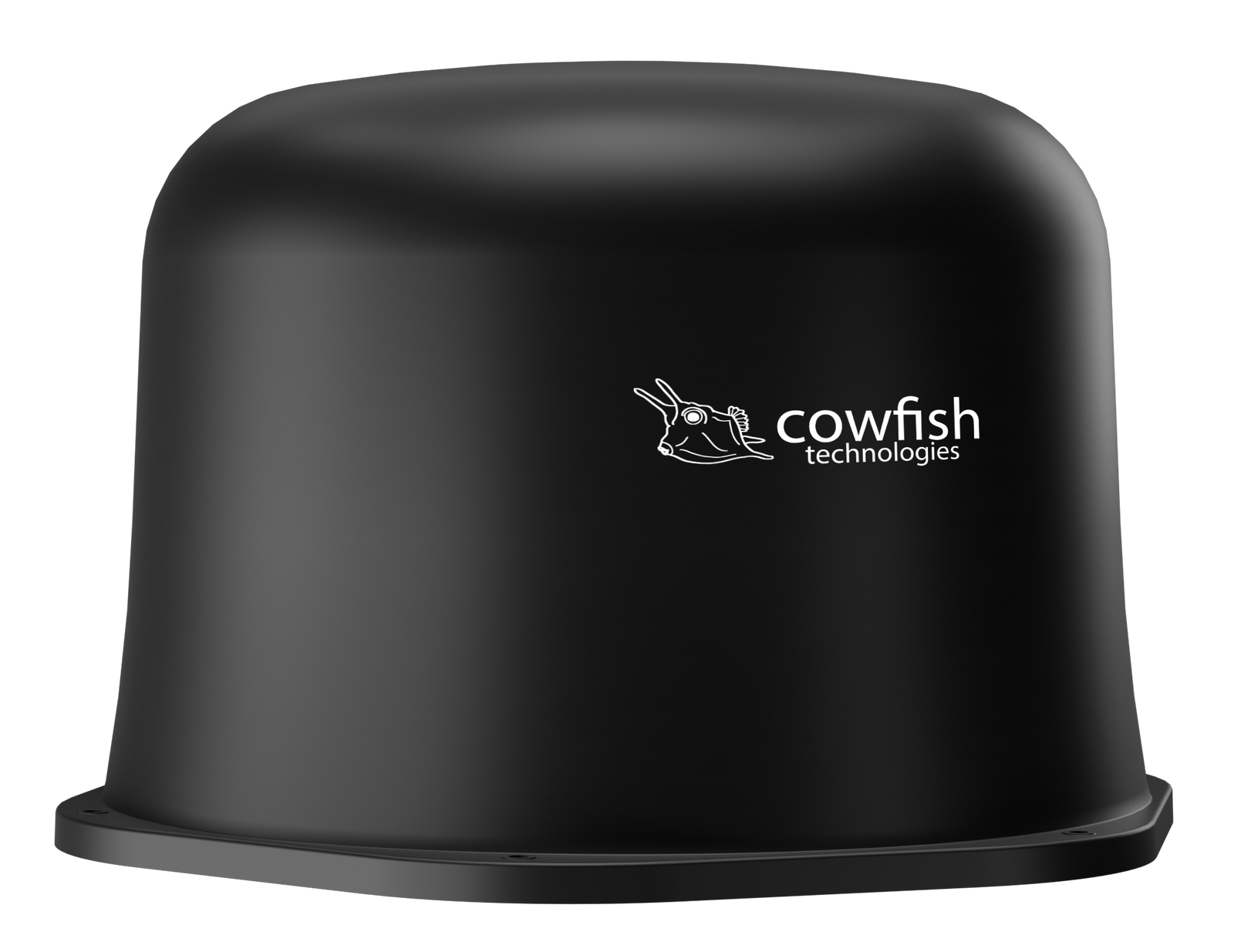

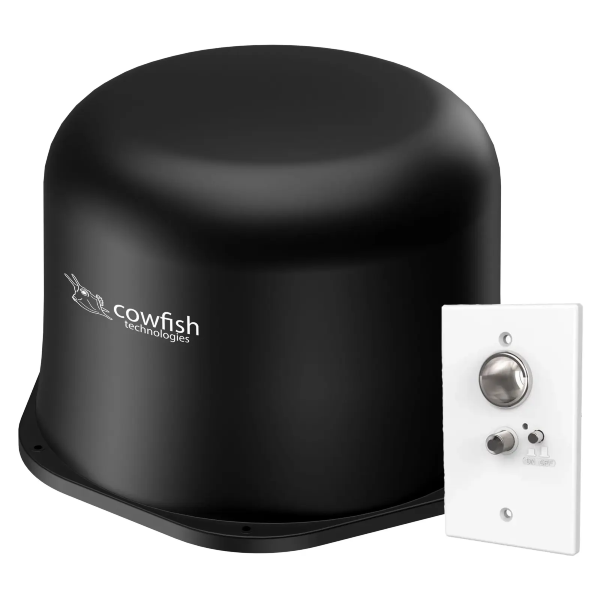

The VanTenna is available in glossy white or black, is UV stable and designed with the Australian sun in mind.

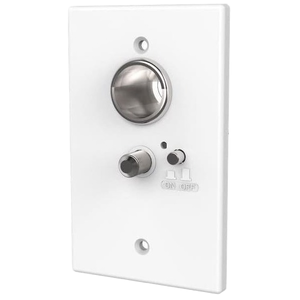

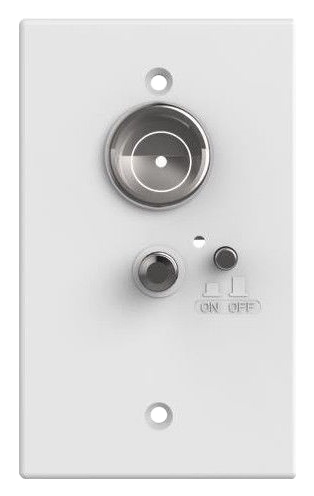

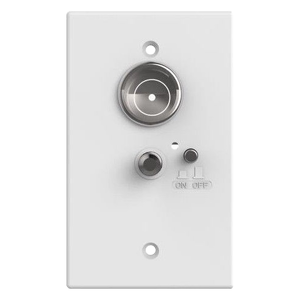

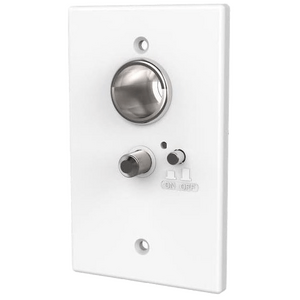

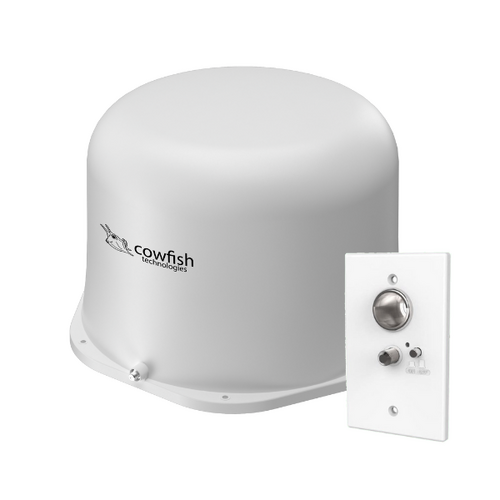

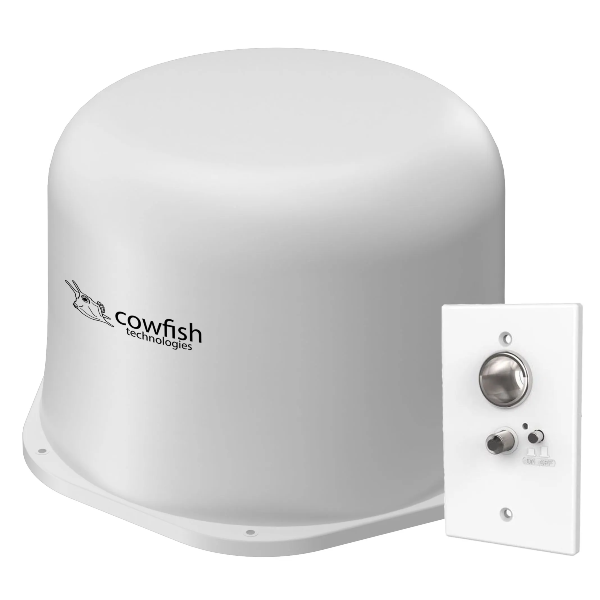

The Premium package include the VanTenna, the wall plate / power injector and a 10 metre COAX cable.
Why buy the VanTenna?
The Cowfish VanTenna incorporates a unique design and utilizing additional antenna elements compared to a standard omni-directional antenna. The VanTenna is one of a kind and a true dual polarised antenna, receiving both vertical and horizontal television signal. Other television antennas can only receive a horizontally polarised TV signal. Approximately 60% of Australian television broadcasting is horizontally polarised and 40% is vertically polarised.
Specifically designed for HDTV signal in Australia
The VanTenna is a highly advanced Television Antenna and comes with a built-in high gain and low noise amplifier. This amplifier has a cutting edge 3G/4G/5G filter to provide super clear High Definition Television picture and sound quality. The VanTenna enables you to receive more free local TV channels with an enhanced reception range and provides better quality over conventional Caravan TV antennas.
The VanTenna unit comes in two distinct models

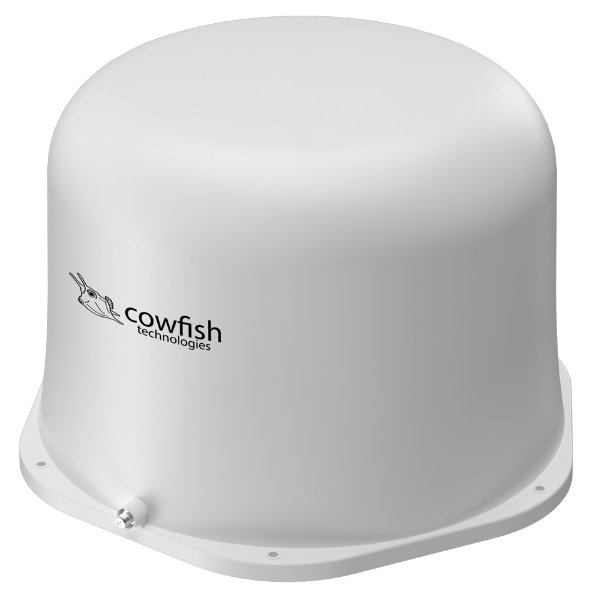

Model A This model comes with a TV connector (F type) on the bottom of the unit. This version is ideal for new antenna installations on a caravan where a coax cable has not yet been installed, or when replacing on older TV antenna that had an internal coax cable, for instance a King Jack TV antenna. This version also includes an integrated AM/FM antenna with a dedicated radio coax cable.​Model B This model comes with a TV connector (F type) on the side of the unit. This version is ideal for customers that already have a TV coax cable coming through their roof, that connects to an older antenna on the outside, for instance a Winegard or AntennaTek.

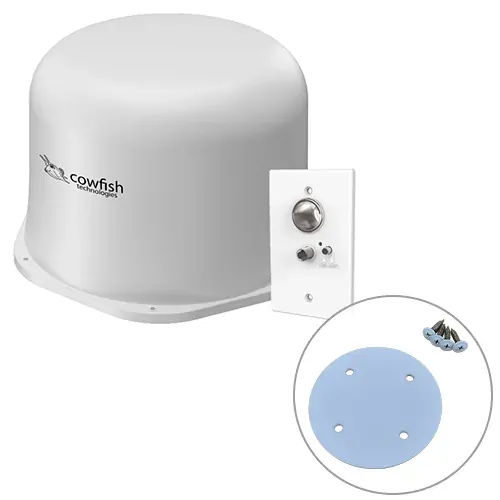

What’s in the box
- VanTenna

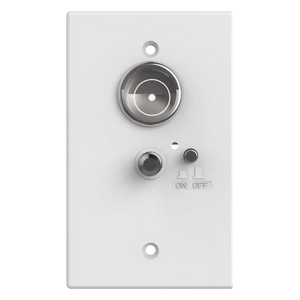

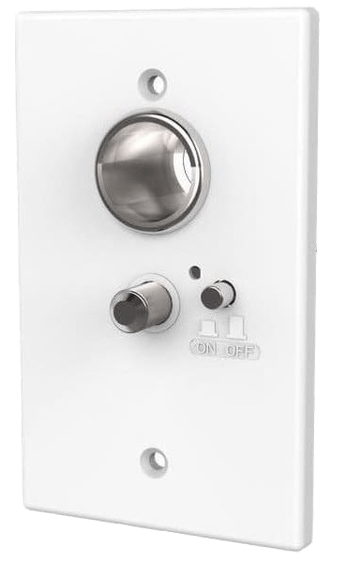

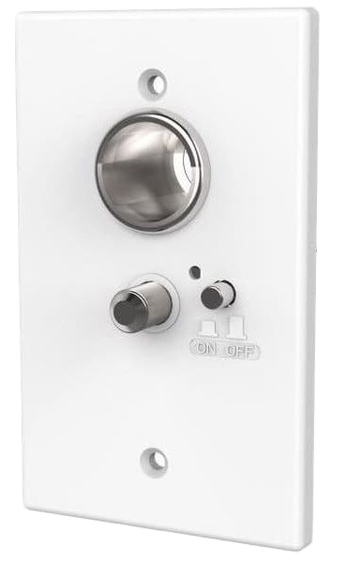

- Wall Socket

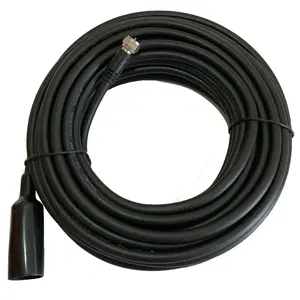

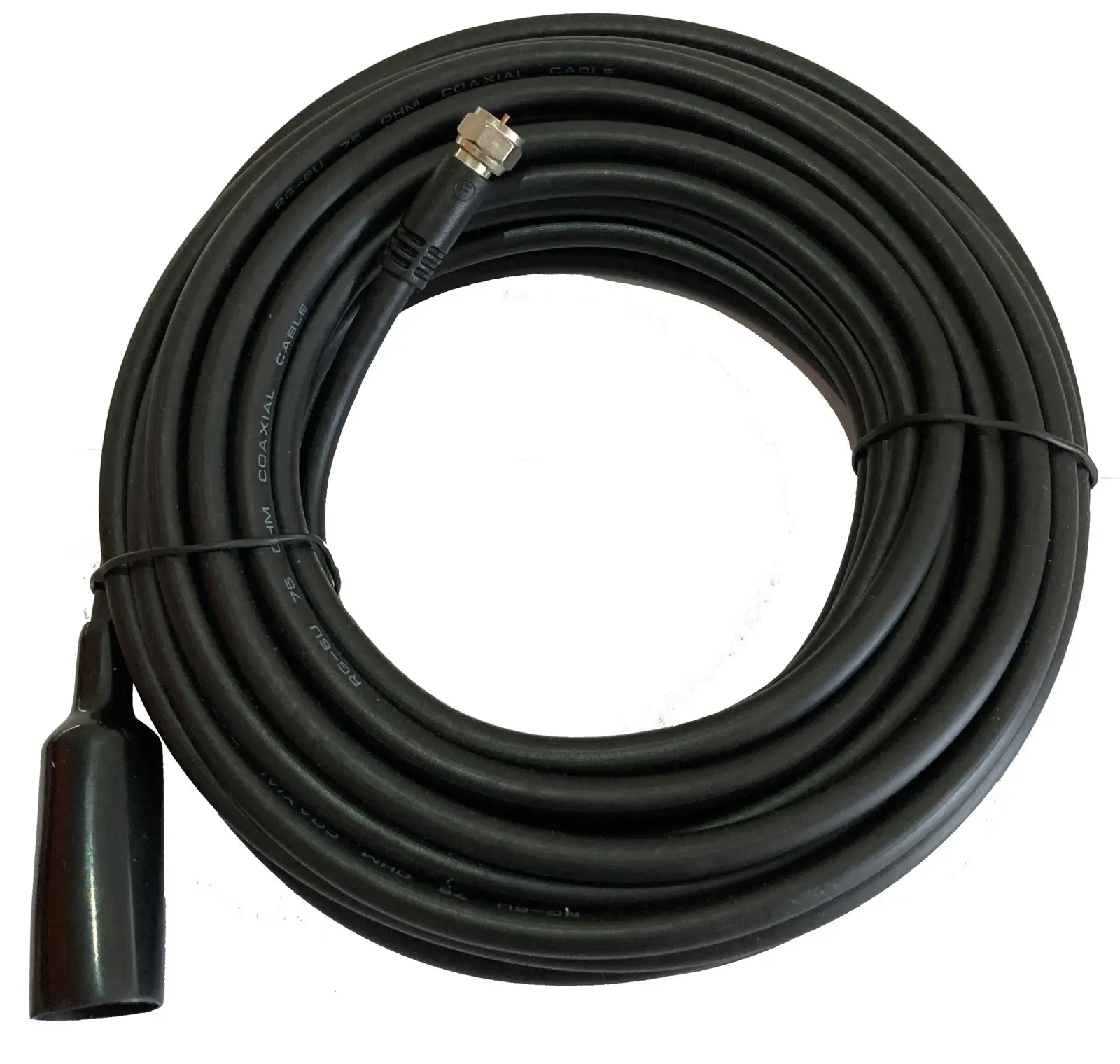

- 10m COAX cable
Specifications
SKU VTP-02
Brand Cowfish
Warranty Period: 2 Years
Product Category Wifi and Antennas
Dimensions 447 x 447 x 296mm
Frequency Range VHF:174-230MHz
Frequency Range UHF:470-694MHz
Frequency Range FM:87.5-108MHz
Frequency Range AM:520-1719KHz
Noise Level <5dB
Power DC 12V 150mA
Signal Gain 30dB
Max Output Level 105dBμV
Brands Cowfish
Polarisation Horizontal and Vertical
Impedence 75Ω
Videos
VanTenna by Cowfish Technologies
Product Q&A
-
How does the VanTenna improve TV reception?
The VanTenna comes with a built-in high-gain, low-noise amplifier and a 3G/4G/5G filter. This enhances the signal quality, providing clearer HD picture and sound. It also enables you to receive more local TV channels with an extended reception range compared to conventional antennas.
-
Do I need to manually adjust the antenna for optimal reception?
No, you don't need to manually adjust the VanTenna. It automatically receives signals from all directions, so there's no need to wind it up or point it at broadcasting towers. You simply turn it on and scan for channels on your TV.
-
What are the size and design specifications of the VanTenna?
The VanTenna is 298mm high and 445mm wide. Its height is designed to be similar to most caravan air-conditioning units (around 300mm), meaning it won't protrude much higher than existing roof
-
Can I use the VanTenna in all weather conditions?
Yes, the VanTenna is designed to withstand various weather conditions. It does not require winding down during bad weather or storms, and because there are no moving parts, there is no risk of damage while traveling on rough roads.
-
What color options are available for the VanTenna?
The VanTenna is available in two color options: glossy white and glossy black, so you can choose the one that best suits your caravan's design.
-
How does the VanTenna handle signal reception in rural or remote areas?
Thanks to its dual-polarised design and built-in amplifier, the VanTenna can receive signals from a variety of TV broadcasting towers, ensuring you get strong reception even in remote or rural locations where signal strength may be weaker.
-
Is the VanTenna easy to install?
Yes, the VanTenna is designed for easy installation. Depending on your setup, you can choose between Model A for new installations or Model B if you're replacing an existing antenna with a side-mounted coax cable.
-
How large is the VanTenna unit?
The VanTenna is 302 x 302 x 302mm. This is a lower profile then most roof mounted air-conditioning units.
-
Do I have to set up my antenna each time I set up the caravan?
No, that is the beauty of this antenna. After the antenna is permanently mounted on the roof, there is no more setup required. All you need to do is power up the device and you will receive TV signal.
-
Does the VanTenna receive analog and digital TV signal?
The VanTenna receives all your Free To Air television signal at superb HD quality. Analog TV signal has been turned off in Australia in 2013 and the VanTenna has been specifically designed with the Australian FreeView DVB-T standard in mind.
-
Can the VanTenna receive vertically and horizontally polarised signal?
Yes, the Cowfish VanTenna incorporates a unique design and utilizing additional antenna elements compared to a standard omni-directional antenna. The VanTenna is one of a kind and a true dual polarised antenna, receiving both vertical and horizontal signal.
-
How do I install the VanTenna if I already have another TV antenna on the caravan?
Simply install the existing antenna cable to the VanTenna and mount the unit to the roof. More detail is available in the online installation manual. We recommend having this completed by a certified caravan manufacturer or caravan repairer.
-
Does the VanTenna receive radio signal?
Yes, the VanTenna model A can receive AM and FM radio signal on top of digital TV and radio signal. The model B receives digital TV and radio signal, but does not include a built in AM/FM antenna.
-
How much power does the VanTenna use?
The VanTenna operates on 12V supplied by the caravan and requires up to 0.5A.
-
What warranty is supplied with the product?
The VanTenna comes with a 12 month warranty.
