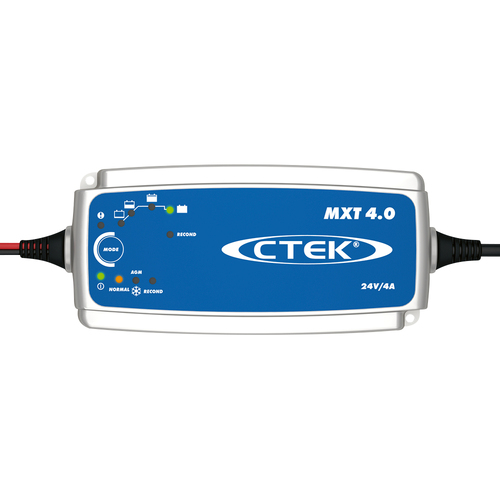

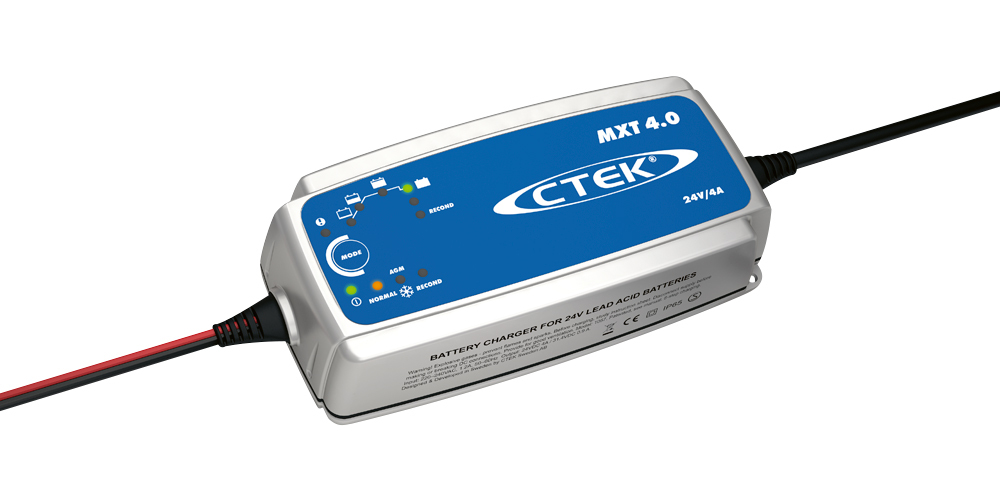

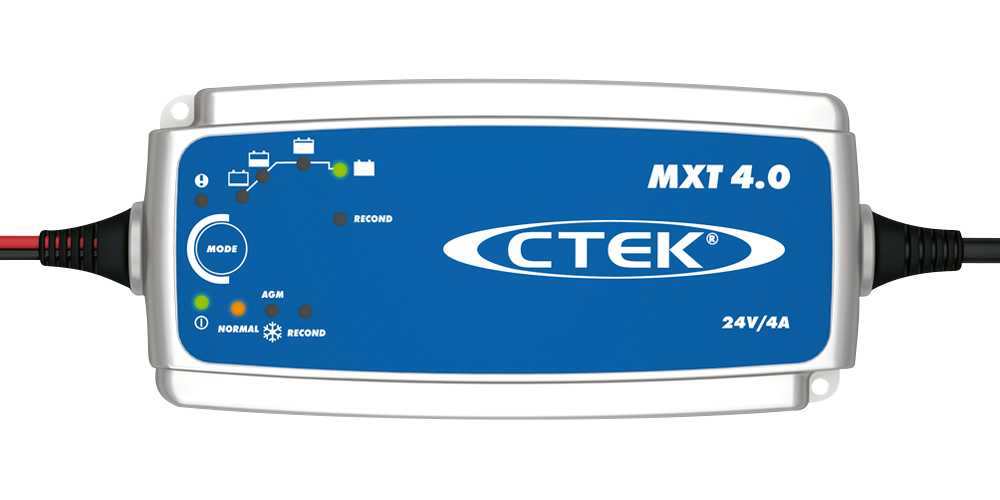

CTEK MXT4.0 24V 4A Battery Charger
SKU: MXT4.0 Learn More»
CALCULATE SHIPPING:
Accessories
Product Description
CTEK MXT4.0 24V 4A Battery Charger, 2 year warranty
The flexible solution for vehicles and machinery
Easy charging for 24V batteries
The 8 step charger that’s ideal for smaller 24V batteries and maintenance charging for fleets with 24V vehicles.
The MXT 4.0 is a cost effective 8 step charger that delivers 4A to 24V batteries from 8-100Ah and is suitable for maintenance charging up to 250Ah. It can also be used in applications such as back-up systems, piste machinery, industrial cleaning machinery and wheelchairs. The MXT 4.0 features battery diagnosis to establish whether your battery can receive and retain a charge, a Recond mode for restoring and reconditioning stratified and deeply discharged batteries, an optimised cold charging mode and an AGM battery charging mode. The charger also has a ‘Supply’ mode so it can be used as a power source.
- Charges 24V batteries from 8-100Ah
- Patented maintenance charge for longer battery life
- Recond program

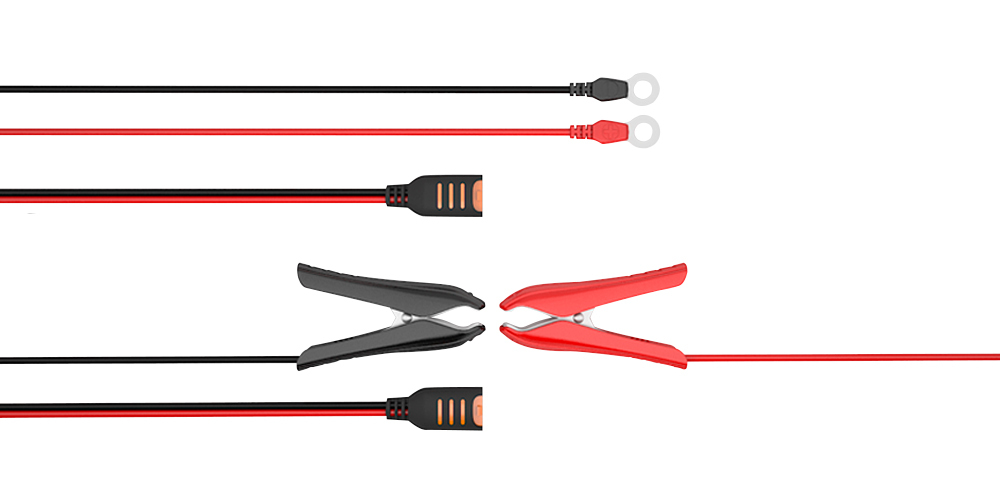

- Comes with Connect – Eyelet and Connect – Clamp connectors
- Splash and dust proof (IP65)
- Fully automatic ‘connect and forget’ 8 step charging
- Can be used as a power source

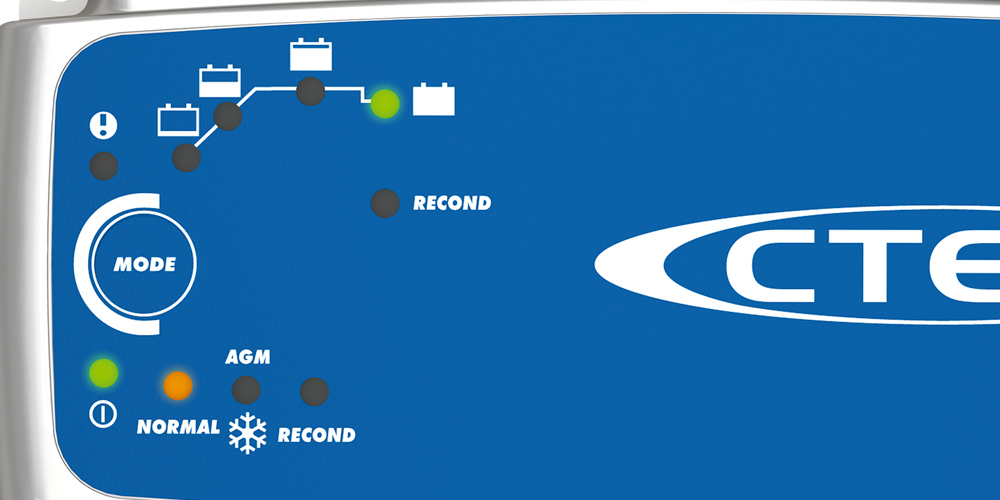

- Easy to read LED display
- Safe spark free operation
- Reverse polarity protected
- Short circuit proof
- 2-year warranty
Technical information
- Input 220–240VAC, 50–60Hz, 1.2A max
- Output 28.8V/29.4V/31.4V, 4.0A max
- Start voltage 2.0V
- Back current drain* Corresponding to less than 1Ah/month
- Ambient temperature -20ËšC to +50ËšC
- Battery types All types of lead-acid batteries, 24V, WET, MF, Ca/Ca, AGM, GEL
- Battery capacity 8–250Ah
- Warranty 2 years
- Net weight (unit with cables) 0.8 kg
- Insulation class IP65
- Ripple** Less than 5%
Specifications
SKU MXT4.0
Brand CTEK
GTIN 7350009567770
Warranty Period: 2 Years
Product Category Battery Chargers
Output Current Rating (Amps) 4
Model MXT4.0
Ambient Temperature -20ËšC to +50ËšC
Charger Voltage 24V
Net Weight (kg) 0.8
Ripple* Less than 5%
Insulation Class IP65
Start Voltage 2.0V
Dimensions 191 x 89 x 48 mm (L x W x H)
Back Current Drain Corresponding to less than 1Ah/month
Output System Voltage 24V
Battery Capacity 8–250Ah
Input 220–240VAC, 50–60Hz, 1.2A max
Output 28.8V/29.4V/31.4V, 4.0A max
Battery Types All types of lead-acid batteries, 24V, WET, MF, Ca/Ca, AGM, GEL
Videos
CTEK 8 Step Charging
Product Q&A
-
What size battery charger do I need for my lead acid battery I have in my camper?
A good battery charger rule of thumb for charging a lead acid battery, is using a charger with output current (amps) of 10-20% of the battery total stored capacity (Ah).
So, for example if the battery is 12V 100Ah, the charger need to be minimum of 10A and maximum of 20A. Often splitting the difference at 15% (so a 12V ~15A charger) is a good option. Happy charging!
