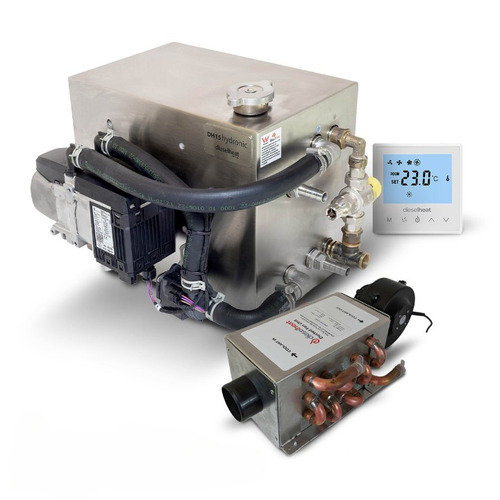

Dieselheat DH15 Hydronic Diesel Hot Water System with Eberspacher D5E Furnace & 1.8kW Ducted Fan

Product Description

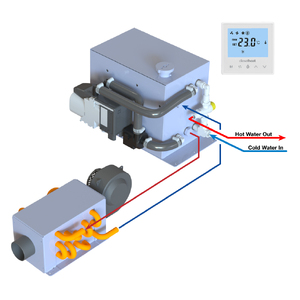

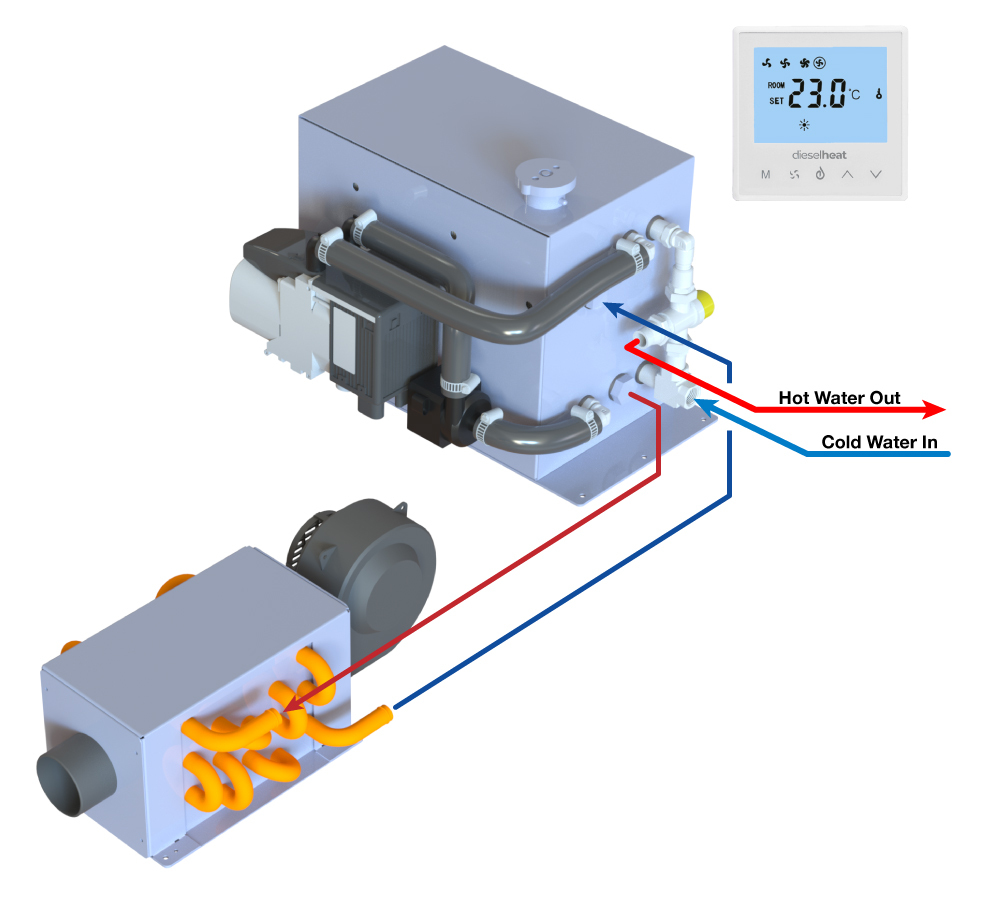

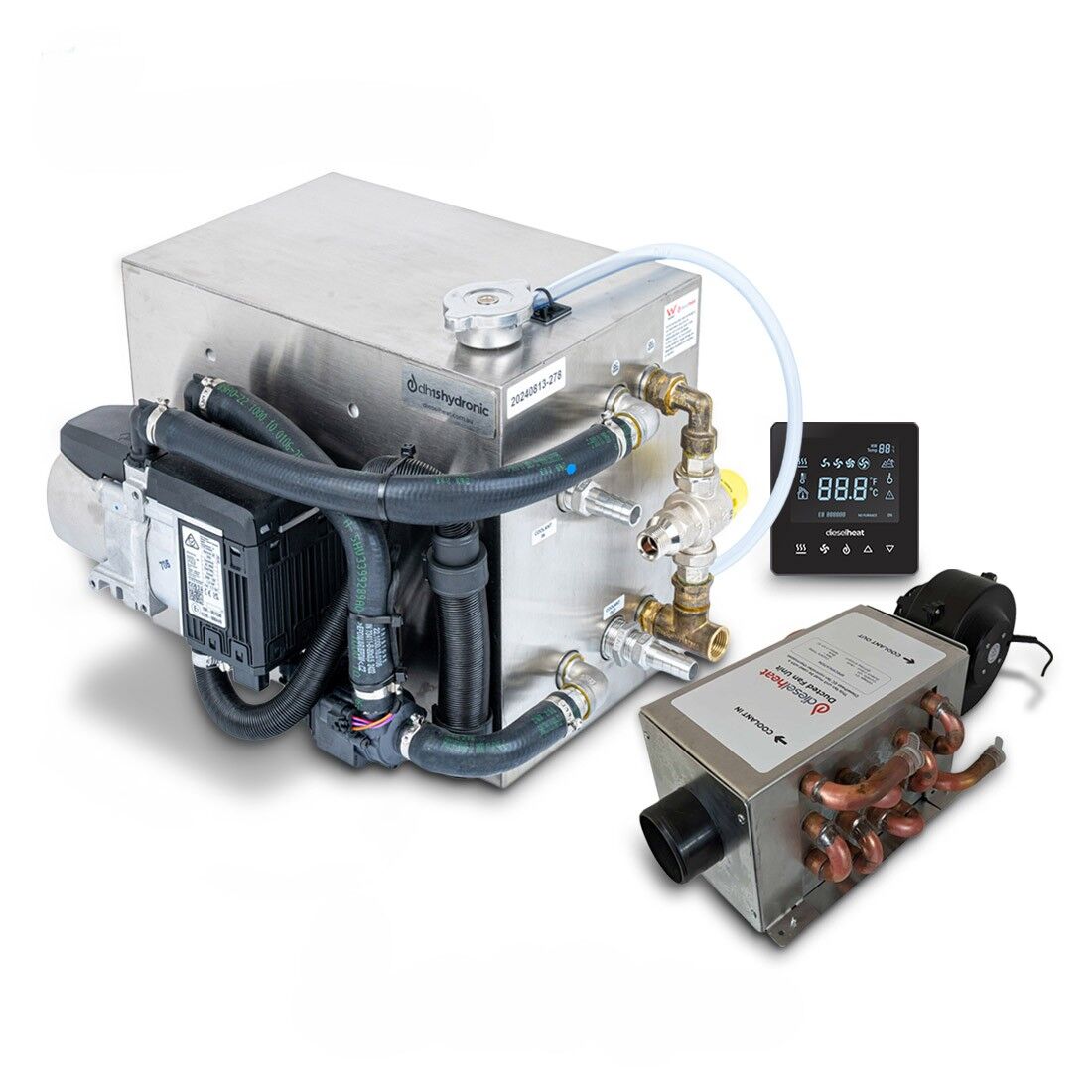

Dieselheat DH15 Hydronic Diesel Hot Water System with Eberspacher D5E Furnace & 1.8kW Ducted Fan. The DH15Duo combines Dieselheat’s DH15 hot water system with our own 1.8kW ducted fan and thermostat to provide a compact hot water and air heating package.

Key System Features

• Quite, reliable German Eberspacher furance 1.3kW to 5kW output in 32 power levels
• Easy to use thermostat to control air heating and turn hot water on/off
• Compact, with separate air heating and hot water components allows flexible install arrangements
• Automatic coolant shutoff to air heating when not in use (to minimise unwanted heat)
• Fast heat and re-heat times – suits family use
• Quiet and powerful (1.8kW) air heater

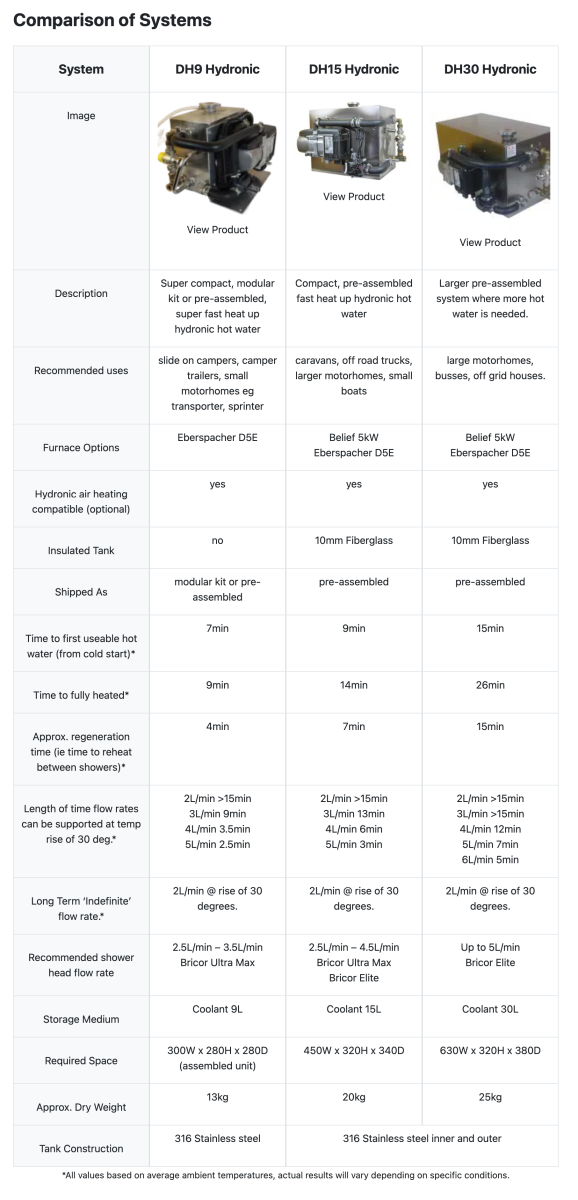

See here to compare size, weights and available hot water between different DH Hydronic systems.

The DH15Duo is sold mostly pre assembled and tested for easy installation.

DH15Duo kit suits installations where the fan heater is within 1m of the hot water system and no more than 0.5m above it. For setups where the fan head is further away speak to Dieselheat about a custom kit.

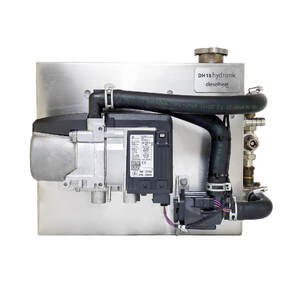

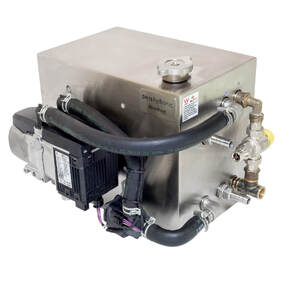

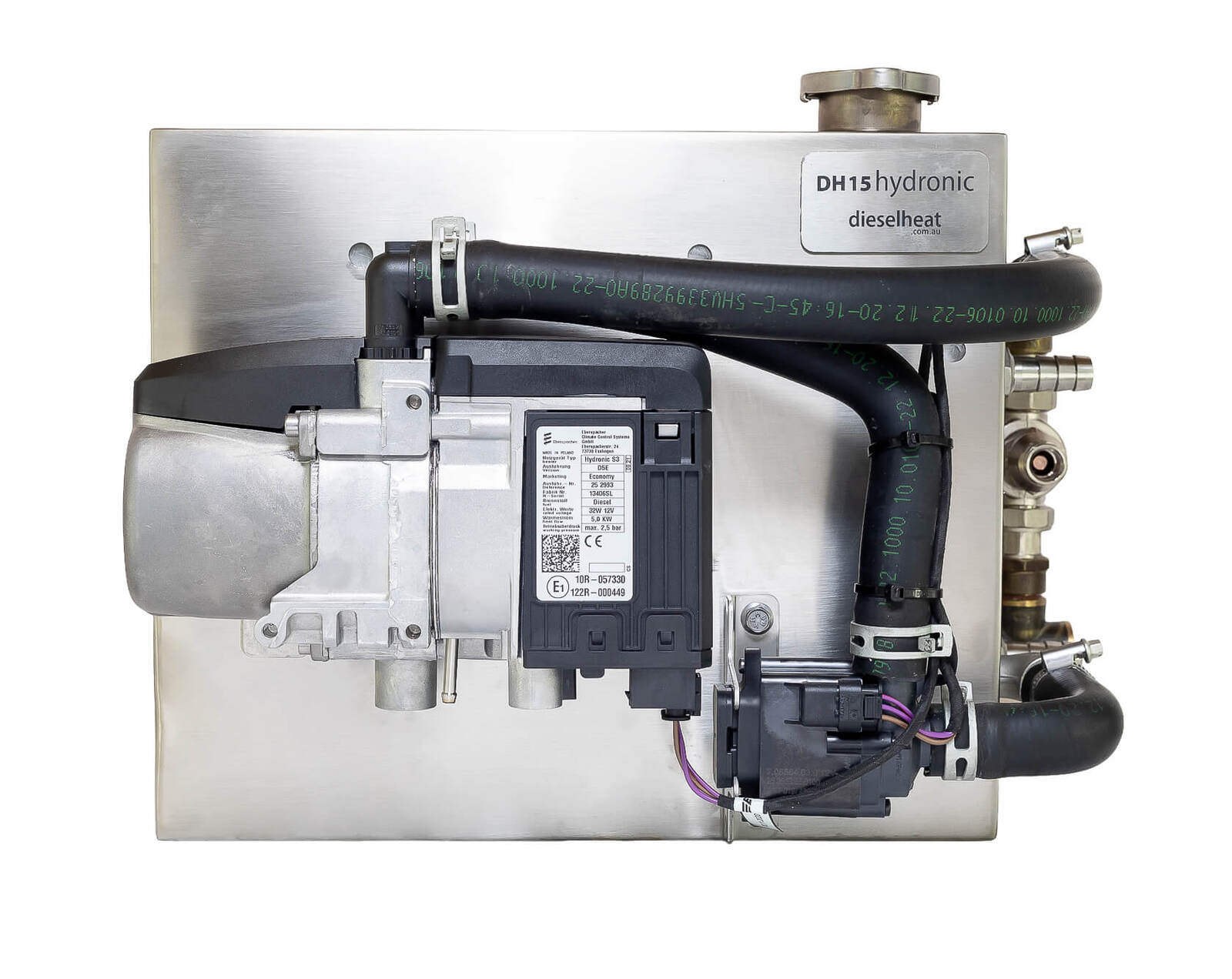

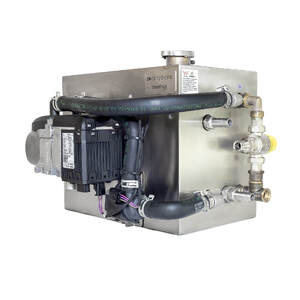

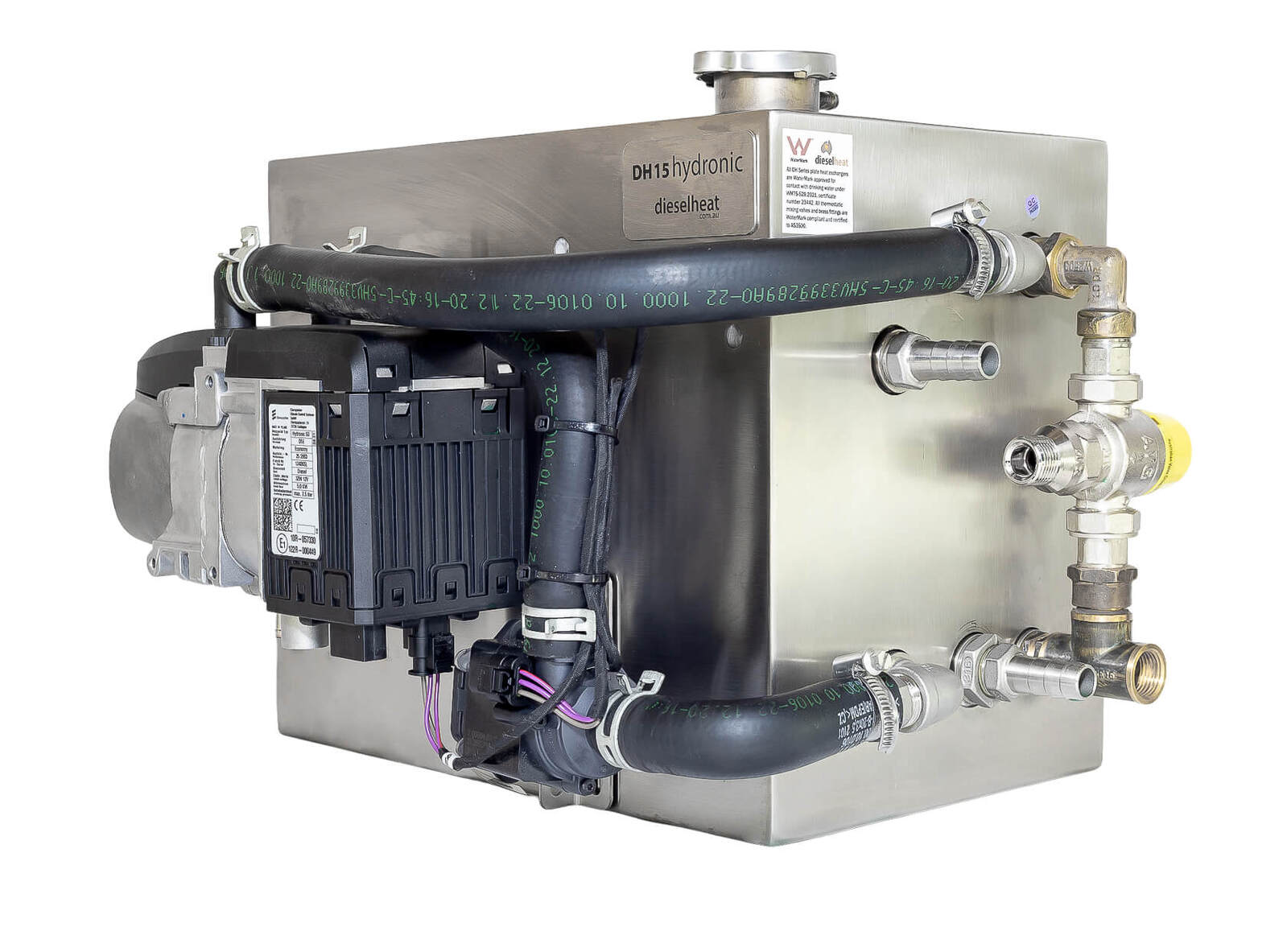

The DH15 Features

• Reliable, quiet Eberspacher furnace is best in class with silent fuel pump and 3000h service life.
• Stepless power output from 1.3 to 5kW
• All 316 stainless steel, suitable for caravans and boats
• Insulated dual skin tank retains heat for efficient operation
• DH15 is Pre assembled and tested for easy installation

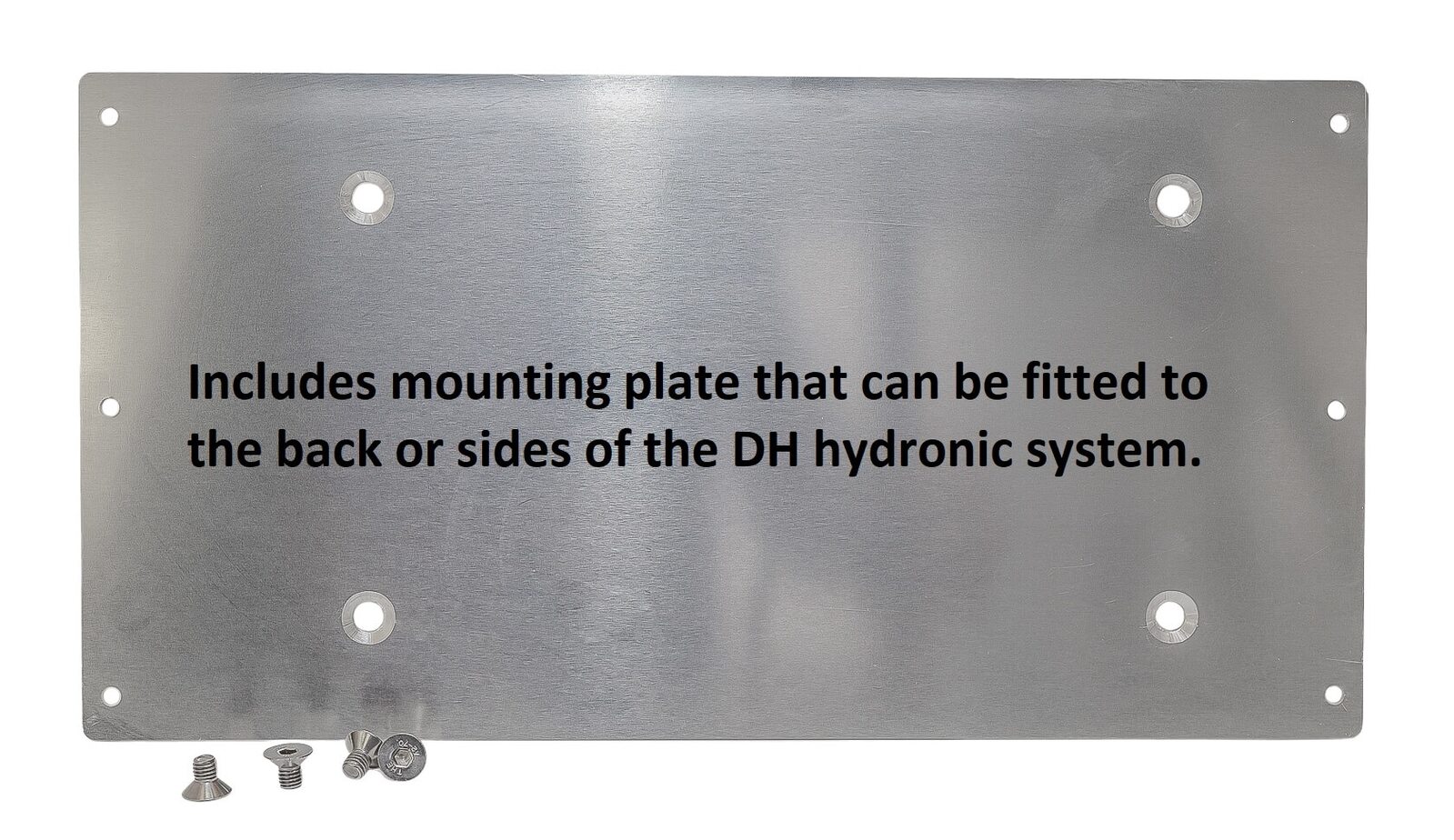

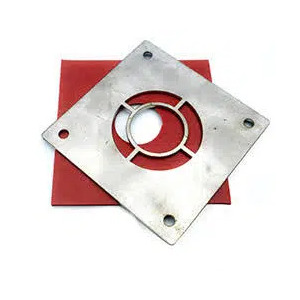

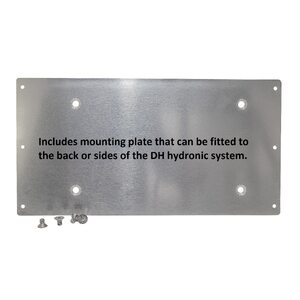

• Includes mounting plate and silicon floor plate to seal exhaust through the floor
• Fast heat up time, around 9-10min from cold
• Includes Watermark approved tempering valve and plate heat exchanger to ensure hot water is always delivered at safe temperatures

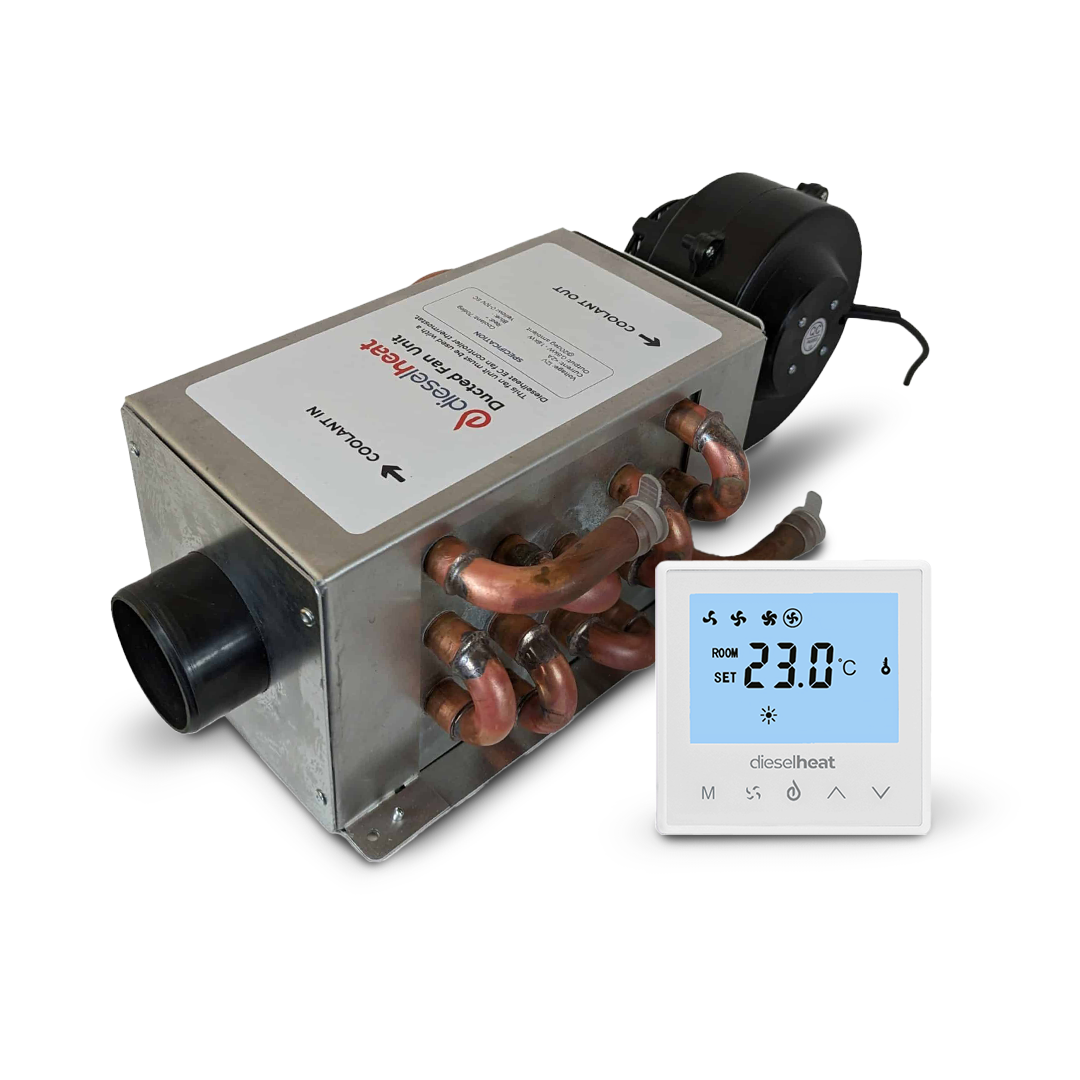

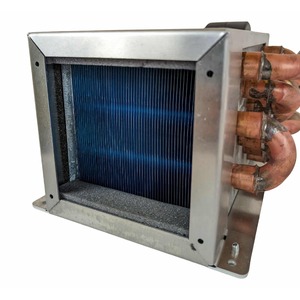

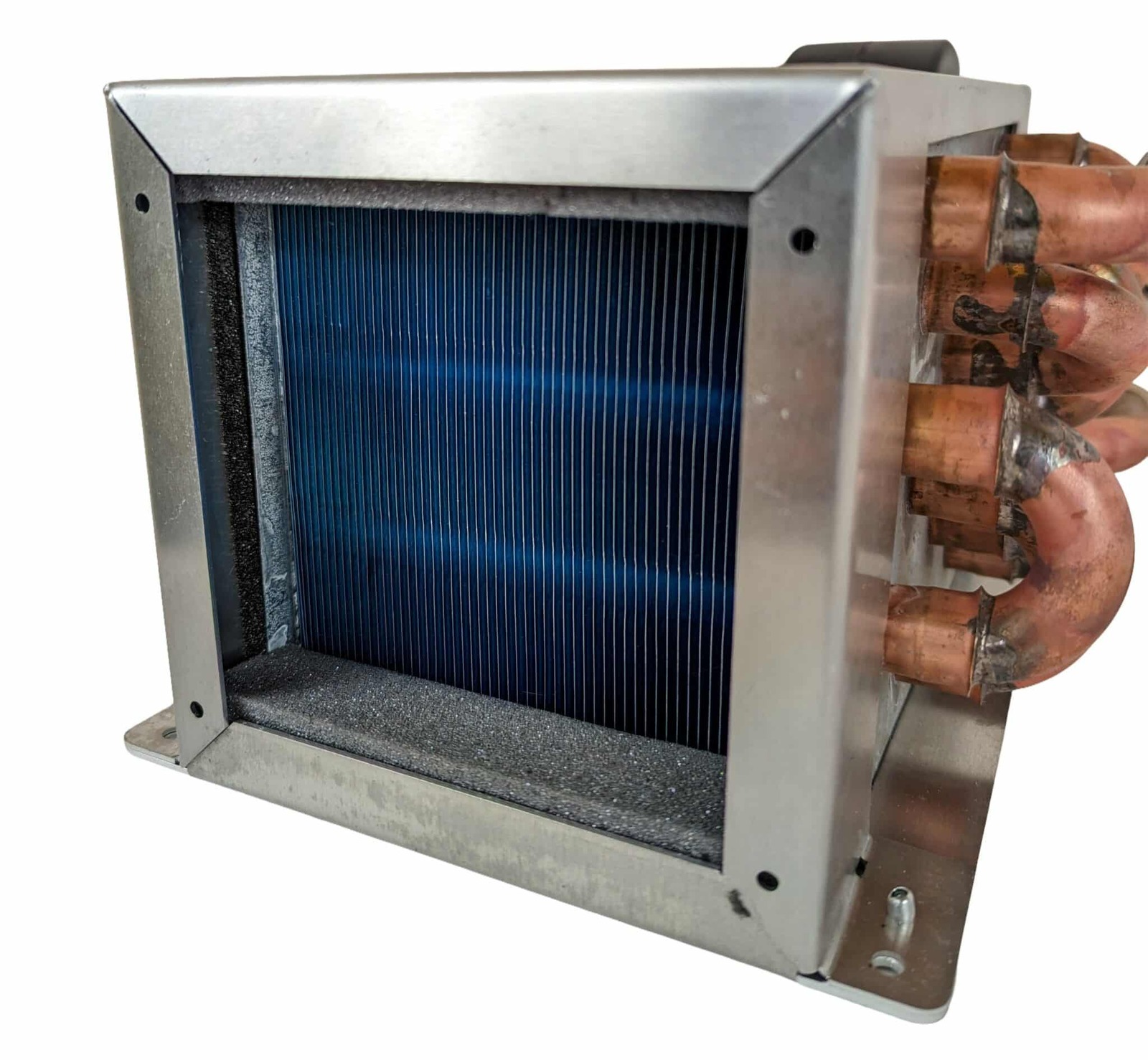

The 1.8kW Ducted Fan Features

• High quality copper coolant pipes optimised for maximum heat output
• Quiet electrically controlled brushless AC drum fan
• Aluminum case lined with specialised sound absorbing foam/vinyl
• Fan orientation can be changed for installation in tight spaces.
• 1 x 60mm outlet
• optional 90mm inlet duct

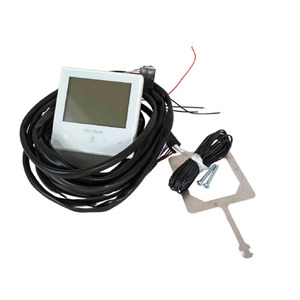

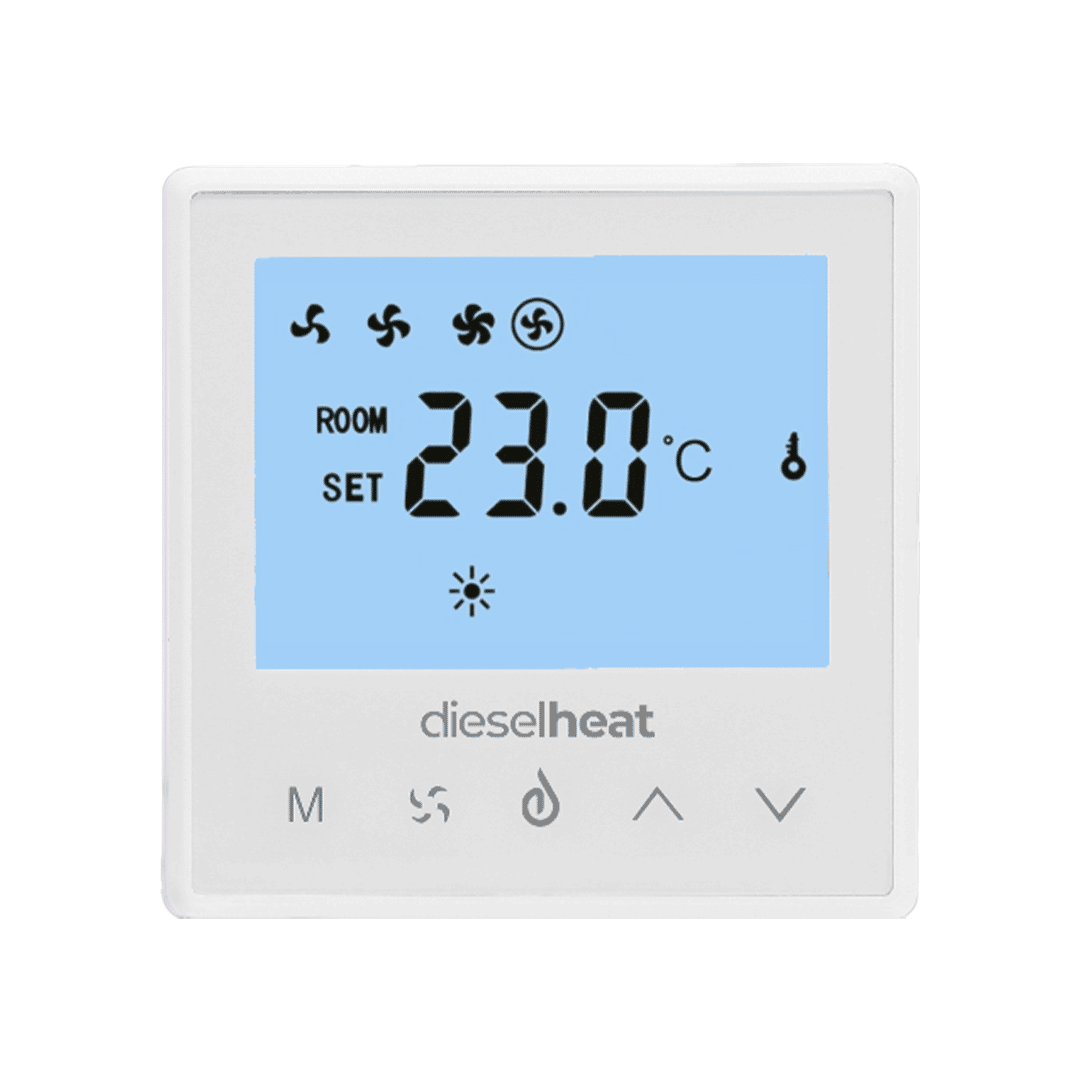

Touch Screen Thermostat Features

• Simple operation via touch screen with backlit buttons
• 3 manual fan speeds and automatic mode with infinitely variable fan speed
• Optional remote temperature probe (supplied in kit)
• Operate in either hot water only or hot water and air heating modes.
• Diesel hot water system on/off
• Air heating electric coolant control valve open/close
• Programmable parameters include manual fan speeds, min and max fan speeds on auto mode, sensitivity on auto mode.

This controller does not provide any error codes or diagnostics for diesel hydronic furnaces. This function must be provided by the manufacturer’s controller. The Eberspacher Easystart Pro controller can be purchase separately.

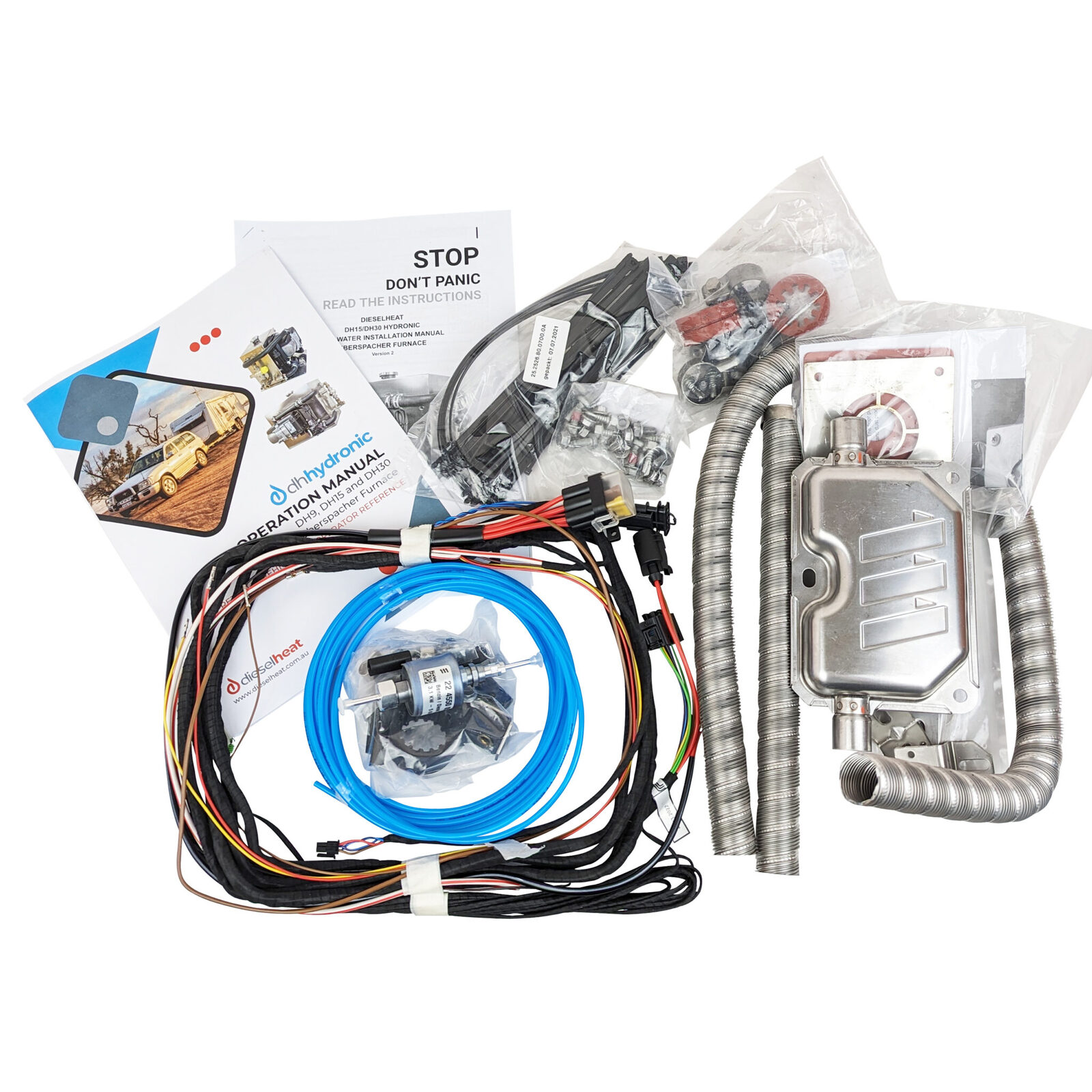

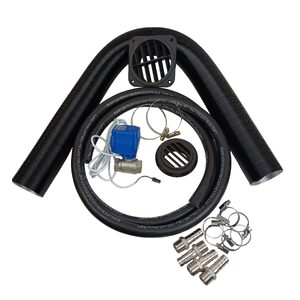

Comprehensive Installation Kit

This kit includes all mounting brackets, plug and play wiring looms, coolant pipe (for fan head up to 1m from hot water system), fuel line, exhaust system, coolant fittings etc. needed to install the system and get it up and running. All Dieselheat system also include comprehensive printed installation instructions written by the system creators in simple to understand English to assist first time installers.

Pair the DH15Duo with our range of water efficient shower heads or digital temperture mixing valves

Dieselheat 1.8kW Ducted Fan Head Dimensions:

Eberspacher D5E HS3 Technical Manual, click here:
