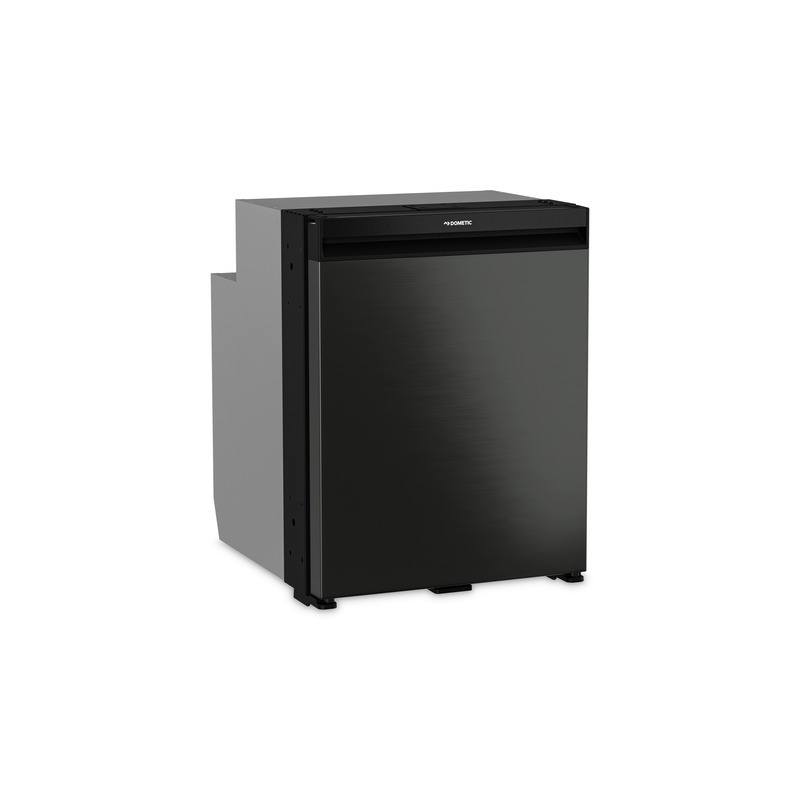

Dometic NRX 80C 75 Litre Compressor Fridge & Freezer

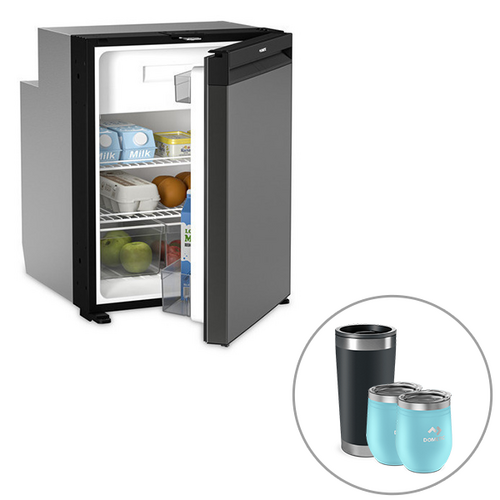

SKU: 9620001868 Learn More»Currently FREE with the Dometic NRX 80C 75 Litre Compressor Fridge & Freezer is:
Product Description

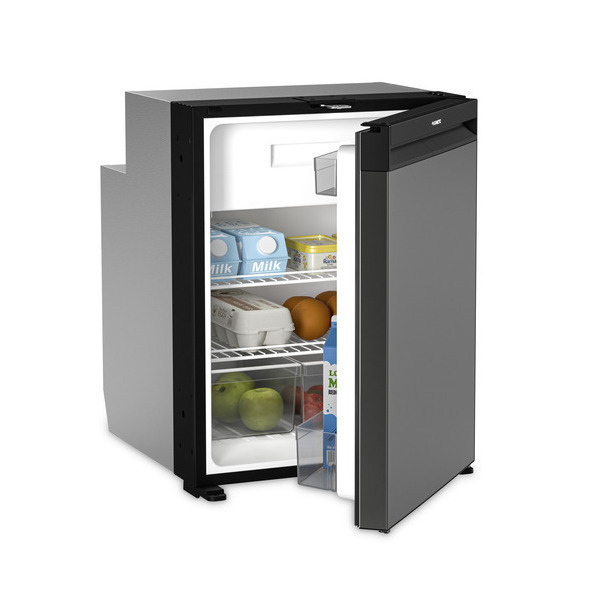

Dometic NRX 80C 75 Litre Compressor Fridge & Freezer, 3 Year Warranty. This NRX 80C model from Dometic is an upgraded version of the Dometic Waeco CRX80 fridge.
Looking for a cooling solution that’s as versatile as it is efficient? The Dometic NRX refrigerator range offers exceptional flexibility, functioning as a fridge, freezer, or both simultaneously. Powered by a high-end compressor, it features three customizable operating modes accessible via an intuitive illuminated touch panel: Eco for energy-saving performance, Performance for rapid cooling, and Quiet for undisturbed rest.
Designed with elegance in mind, the refrigerator boasts a frameless dark grey door with a sleek full-width handle. Inside, you’ll find a thoughtfully organized space including a removable freezer compartment, adjustable shelves, twin crispers, a bottle holder, and spacious door storage for maximum convenience.The NRX refrigerators deliver stylish, smart cooling with superior energy efficiency. Whether you’re refrigerating or maximizing storage by removing the freezer section, these models adapt effortlessly to your lifestyle.
The Dometic NRX 80C is a refined upgrade to the popular Dometic Waeco CRX80, offering enhanced features for modern living.
Benefits with NRX Compressor Refrigerator:
- 3-in-1 cooling solution: fridge, freezer or both at the same time

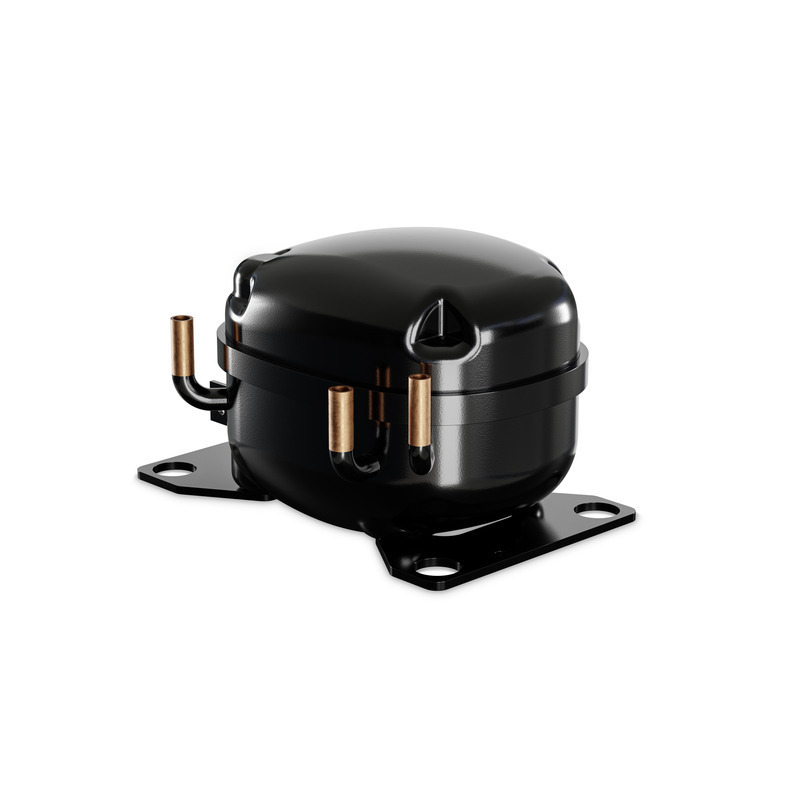

- Energy-efficient high-end compressor with 3 operating modes (Eco/Boost/Silent)
- Frameless door with dark silver front panel and full-width handle
- Beveled rear side for maximal utilization of space on board
- Reversible door hinge – can be fitted left or right as required

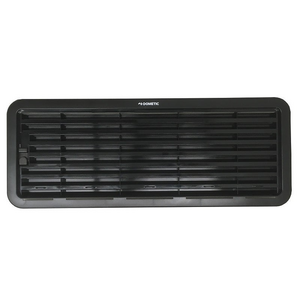

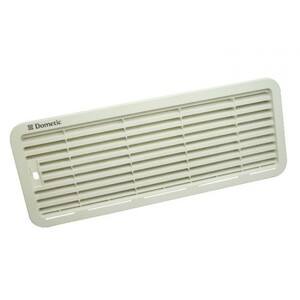

- Dual function locks can also act as vents for your fridge

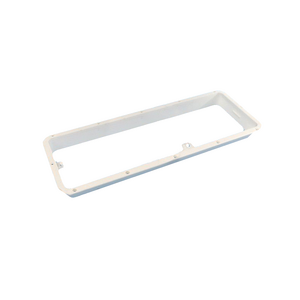

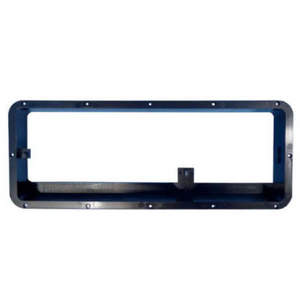

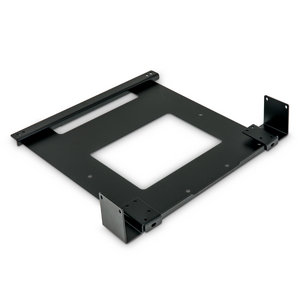

- Standard or flush-mount installation frame available as accessory
Features:

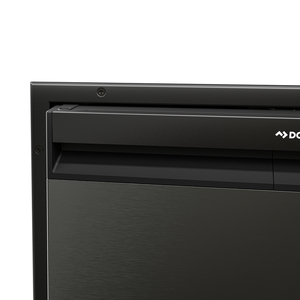

- Full-width door handle. Neatly integrated for easy access from every angle

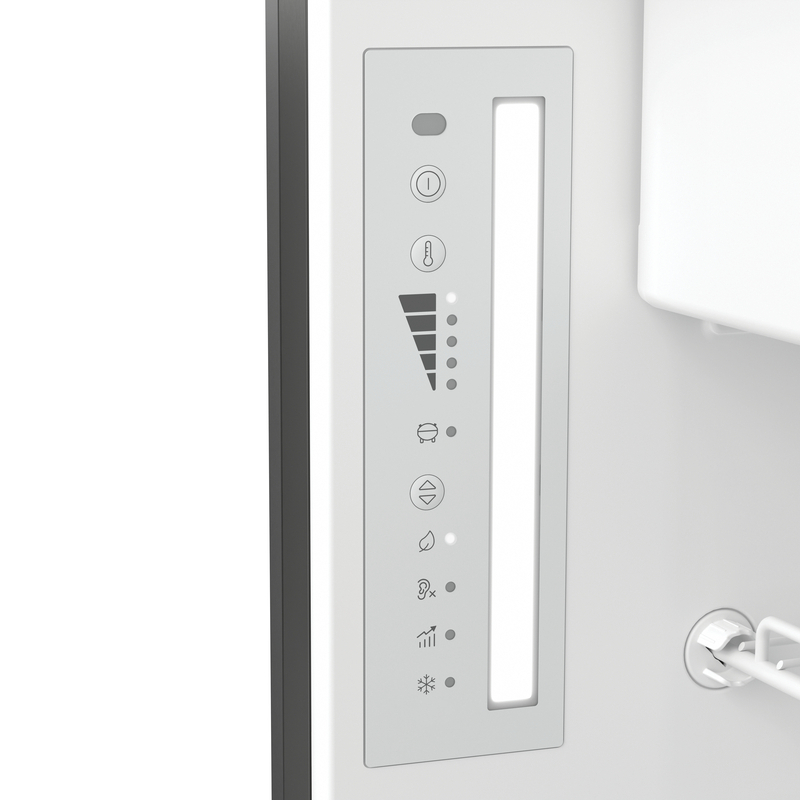

- Touch control panel. Flush-mounted inside the cabinet, with nicely integrated LED light bar

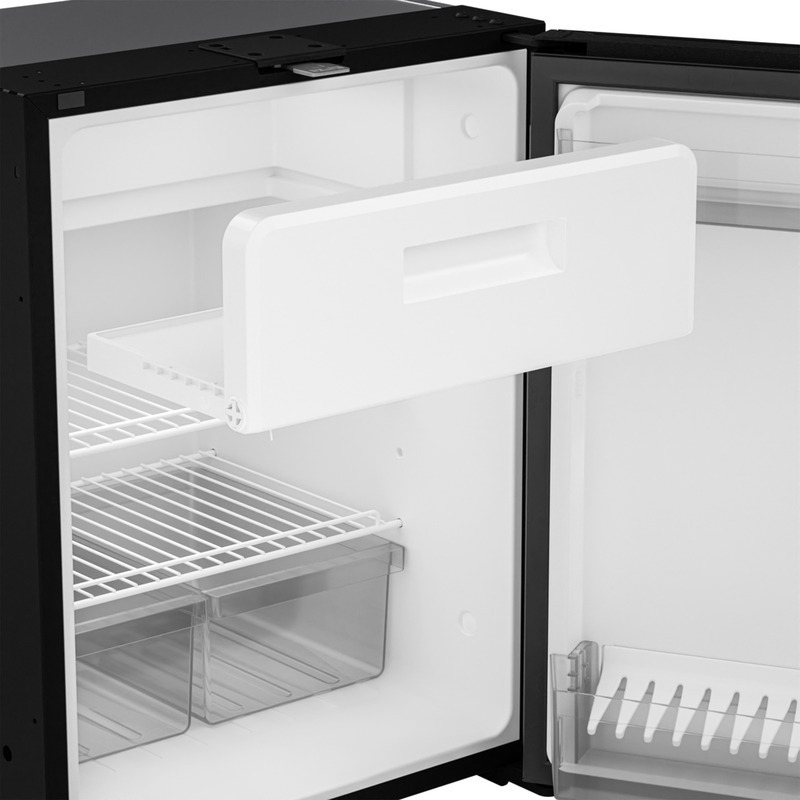

- Removable freezer. The freezer compartment can be easily removed to make room for more fridge storage

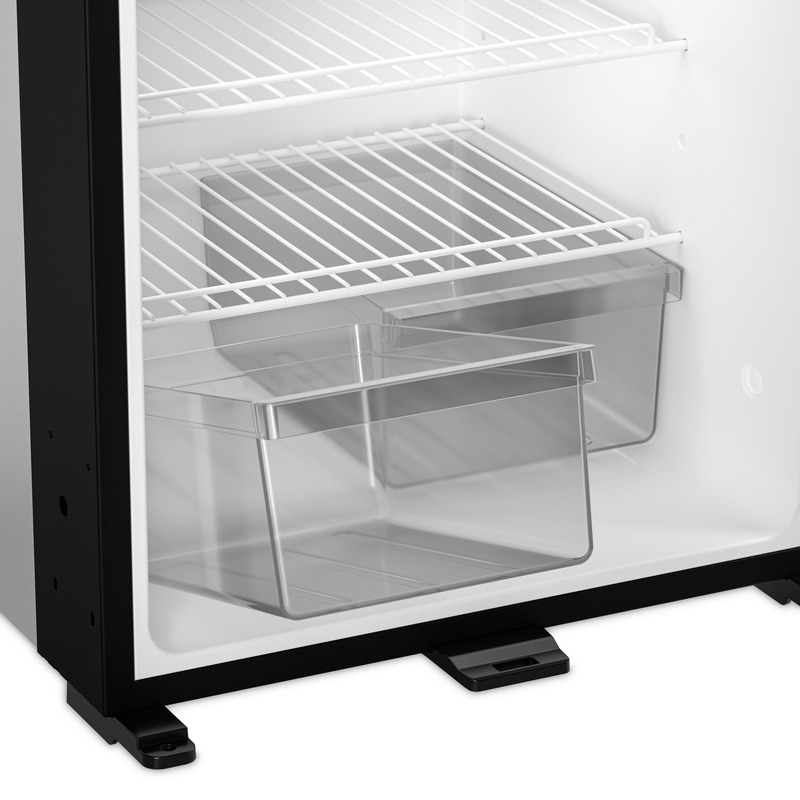

- Two crispers. For storing fruits and vegetables for optimal freshness

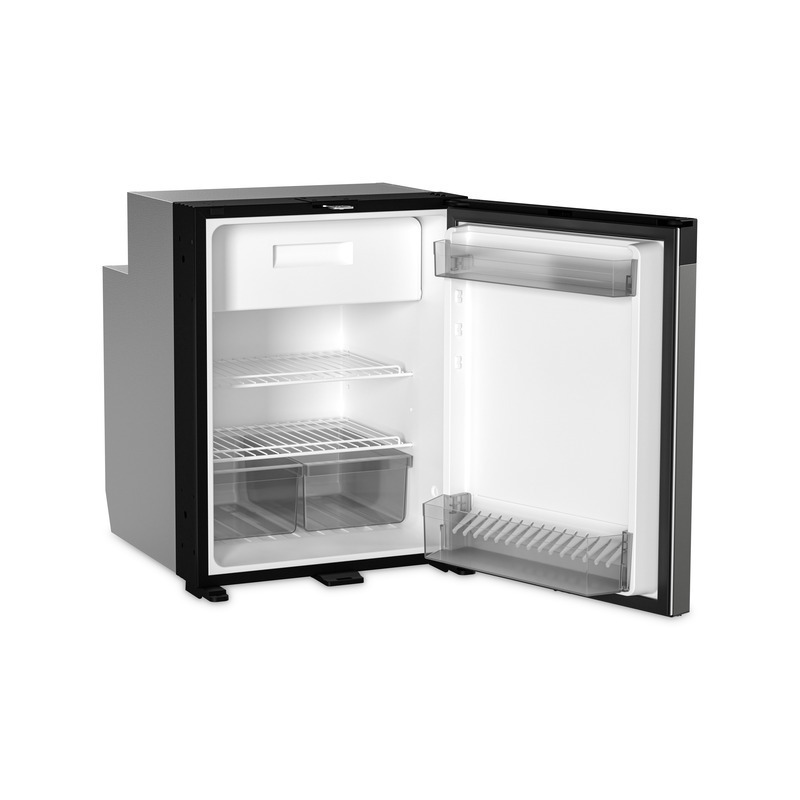

- Well equipped interior. Freezer, shelves, bottle holder, door tray, crispers – it’s all there
- Bonus Item(s) list above. Note: bonus item size and colour may vary depending on stock
Specifications
SKU 9620001868
Brand Dometic
GTIN 9331391010370
Warranty Period: 3 Years
Product Category Upright RV Compressor Fridges
Fridge Voltage 12 / 24 / 240 V
Total Capacity (Litres) 75
Freezer Compartment (Litres) 6.6
Temperature range Refrigerator: 0 ~12°C | Freezer Compartment: -15°C ~ -5°C
Fridge Depth (mm) 537
Fridge Width (mm) 475
Fridge Height (mm) 625
Colour Grey
Weight (kg) 20
Cut Out Required 577 x 635 x 485mm (D x H x W)
Climate Class (EN62552) T
Refrigerant Type R134a
Power Consumption ~1.05Amp/hr over 24hrs (25°C ambient, 5°C fridge)
Videos
Can This Camping Power Station Keep Your Beers Cold?
Customer Review of the Dometic CRX80 78L Upright Fridge Freezer (NOW REPLACED BY THE DOMETIC NRX RANGE):
Dometic CRX80 12V Upright Fridge Freezer Product Review (NOW REPLACED BY THE DOMETIC NRX RANGE):
Quick Review on the Dometic CRX80 12 Volt Refrigerator (NOW REPLACED BY THE DOMETIC NRX RANGE):
4x4 Fridge Review: Dometic CRX80 78L Fridge Freezer (NOW REPLACED BY THE DOMETIC NRX RANGE):
Caravan Fridge Review, Dometic Waeco CRX80 78L Fridge (NOW REPLACED BY THE DOMETIC NRX RANGE):
12/240V Caravan Fridge Review, Dometic Waeco CRX80 78L Fridge (NOW REPLACED BY THE DOMETIC NRX RANGE):
Caravan Fridge Freezer Review, Dometic Waeco CRX80 (NOW REPLACED BY THE DOMETIC NRX RANGE):
Product Q&A
-
Can this fridge be used as a freezer?
Yes, on the NRX80, you can remove the freezer compartment and set the fridge to freezer mode. With this compartment removed in this mode, the entire fridge can cool to -6C.
For other appliances, such as refrigerators and air conditioners, to ensure the appliances to work efficiently and last longer it is recommended to clean the condenser.
-
With regards to the Dometic Waeco Upright fridge models. Can I choose which side of the door the hinge goes on?
Yes. Some models require the customer to choose a hinge position prior to delivery. You will notice a Left Or Right Hand hinge option on the product page.
With all the other models you will be supplied with a hinge conversion kit. The door will come with the hinge on the right hand side as standard. You can easily change it over using the kit. Feel free to view the Installation instructions on the product page for each model.
-
Does the fridge auto select between 12v/24v?
Hi - Yes it does!
Thank you :)
-
Is there a FULL 3 year warranty Cheers
Hi Al,
The Dometic NRX range come with a 3 year manufacturers warranty.
All Dometic warranty information can be found by clicking here.
-
Hi there,Can the fridge be mounted through the base? Ie fixings on the bottom on a 4wd canopy rather than through the side walls?
Hi Chris,
There are no mounting holes in the base of the fridge,
The fridges require mounting through the side walls.
-
Hi, I have just tried to connect my fridge through the A.C. power and power button inside doesn't seem to work / isn't showing power / no lights / not working. We have testing the power in the cables and it shows 12v running from the battery. Can you ple
Hi Hilary,
The only powerbutton is on the inside left of the fridge, which should simply require pressing to turn on.
If this does not work, we would recommend testing the fridge on mains power to determine if it is just a 12V issue.
If it is, we would recommend contacting Dometic on 1800 21 21 21 for service.
-
Hi, I purchased this fridge from you, just have a quick question I'm regards to the temperature settings, I can't find in the manual what temperature the different settings actually correlate to. Could you enlighten me?Thanks.
Hi There,
Dometic advise the following:
Four temperature ranges from +3 °C (37 °F) to +12 °C (54 °F), and a fast-cooling function, are available for selection
-
I am interested in placing this in my camper trailer. Can this be mounted on a fridge slide and does it come with an anderson plug.thanks
Hi There,
Securing the fridge on a slide may be very challenging. They are designed to be installed in a cabinet.
The connections this fridge comes with are a standard 10A 240V mains plug, and a red and black 12V connection.
-
Hi, what is the height of the door itself? My canopy door opening is 623mm high so wondering if this model will fit
Hi There,
The total height of the fridge is 640mm.
We unfortunately do not have the exact door measurment sorry.
-
How many decibels does the fridge put out for the 80l noise wise and is it suitable to put in rear of prado
Hi There
Dometic do not provide decibel ratings for any of their fridges sorry.
With that said, their fridges are designed to be very quiet.
It could be installed in a Prado provided it is mounted securely.
-
Can you please advise the depth or cut out requirement without the door? I only want the door protruding so require this information before making a final decision. Regards Timothy
Hi Timothy, the depth without the door for this model is 475mm. Thank you
-
Will this fridge tolerate operating in a semi-closed space? E.g. Mounted to the side wall of the cockipit on a boat.
Hi, it is advised that there is sufficient ventilation around the refrigerator, especially behind it near the cooling unit.
The fridge does not come with mounting brackets. However, there are four screw holes inside the base of the fridge that allows you to fix the fridge to the floor.
Hope that helps - cheers, Steve
-
At what voltage will the fridge shut down?
Hi, The refrigerator can be operated with a 12 V or a 24 V DC voltage supply. To protect the battery, the refrigerator switches off automatically if the voltage is insufficient:
12V cut-off voltage: 10.4 Volts
24V cut-off voltage: 22.8 Volts
-
** Dometic Troubleshooting Tip ** - Try the fridge on 240 V AC mains power
If it works normally on 240 v mains power, then the problem is almost certainly with your vehicle wiring, not the fridge.
-
** Dometic Troubleshooting Tip ** - Is the Fuse In the Cable Blown?
There is a fuse in the plug of most Dometic fridge cables. The fuse can be accessed by removing the single screw. Replace the fuse (with the same rating as original fuse) and reassemble. This is not a common problem, but it can happen and should be the firwt thing to check.
-
** Dometic Troubleshooting Tip ** - Have you cut or extended the cable supplied?
Unless you do this correctly you will prevent your fridge from getting enough voltage to operate correctly. The cable provided is the minimum thickness required for that length.
Customer Reviews
Dometic CRX80 Review by R. Wayne IvesHappy with this product, quiet and not to heavy on the battery(Posted on 4 February 2024)
Excellent Fridge Review by DARRYL O’ROURKEGreat compact fridge suits our needs(Posted on 12 May 2022)
Great service and delivery Review by John RobertsReceived the new fridge within a week of purchase. Installed back in original place as the old Cr1080 but the mounting points were a little different but was a easy adjustment. A couple of hours and all done as the wiring was the same. The temperature was great and didn’t differ as much as the older version. Just a few degrees Was in 38 degrees temperature and worked great.(Posted on 16 January 2021)
Great service and delivery Review by John RobertsReceived the new fridge within a week of purchase. Installed back in original place as the old Cr1080 but the mounting points were a little different but was a easy adjustment. A couple of hours and all done as the wiring was the same. The temperature was great and didn’t differ as much as the older version. Just a few degrees Was in 38 degrees temperature and worked great.(Posted on 16 January 2021)
