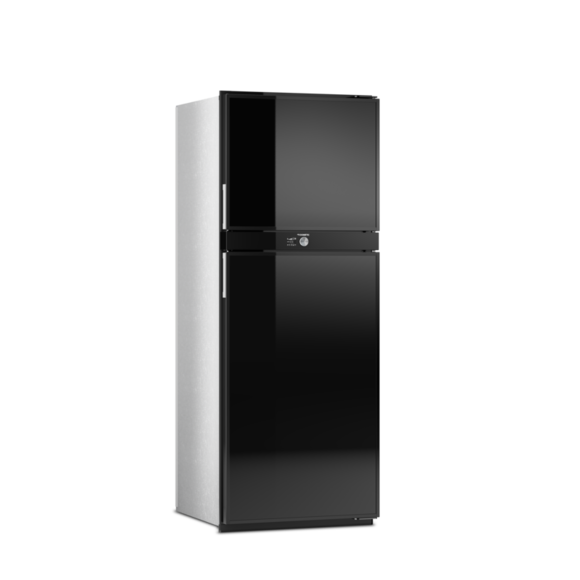

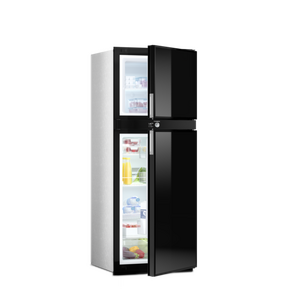

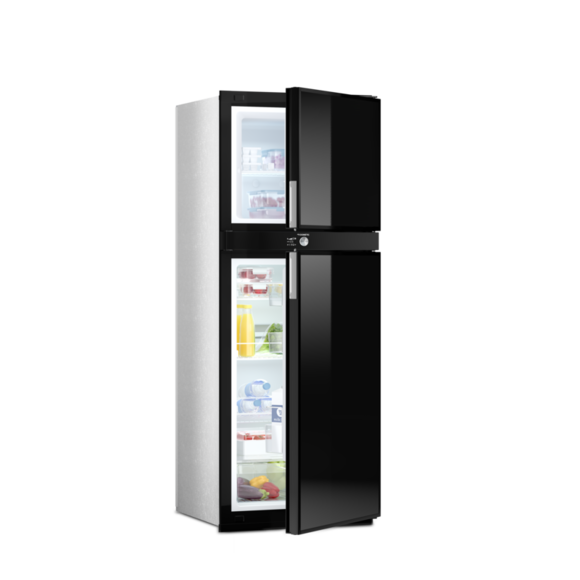

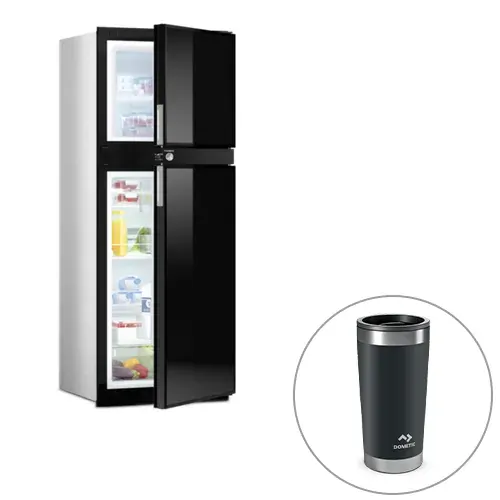

Dometic RUA 6408X 3 Way UES Fridge & Freezer 188L

Specifications

SKU RUA6408X-A2

Brand Dometic

GTIN 6951218427216

Warranty Period: 3 Years

Product Category Upright RV Absorption Fridges

Model RUA6408X

Certified By IAPMO

Gas Certification Number GMK10711

Product Type Dometic RU series absorption driven refrigerator can be powered by Gas (LPG), 230 - 240 V AC and 12 V DC, designed for recreational vehicles

Total Capacity (Litres) 188

Freezer Compartment (Litres) 46

Fridge Depth (mm) 677

Fridge Width (mm) 550

Fridge Height (mm) 1447

Cut Out Required 530 - 535 x 1437-1442mm x min. 621 mm (W x H x D) (the fridge must be installed in a recess so that it stands secure when the vehicle is in motion).

Net Weight (kg) 60

Consumption 5.8 kWh/24 h (240V) | 420 Ah/24 h (12V)

Door Hinge Position Right Hinged

Voltage 12 Volts DC and 230 to 240 Volts AC

NOTE The fridge must be installed in a recess so that it stands secure when the vehicle is in motion. Testing/Certificates: IAPMO

Videos

3 Way Caravan Fridge: Dometic RUA Series Review

2 Way Fridges vs. 3 Way Fridges for Recreational Vehicles

Dometic 3 Way Fridges for Recreational Vehicles

Product Q&A

• How often do I need to service my Dometic RV/Caravan appliances?

  Dometic recommend servicing their gas appliances on a yearly basis, even if the vehicle has not been used. Additionally, bear in mind that insects can built nests in the gas appliances which will cause the appliances to stop working. It can also cause potentially dangerous scenarios.

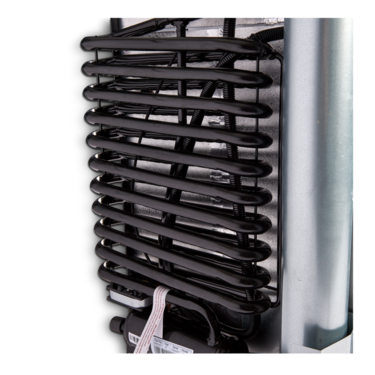

  For other appliances, such as refrigerators and air conditioners, to ensure the appliances to work efficiently and last longer it is recommended to clean the condenser.

• Does the RUA model only work on gas mode?

  The battery save mode available on the RUA models will allow the refrigerator to operate in gas mode only if activated. The exterior fan and frame heater will also be deactivated in this mode. Consideration of the ambient temperature needs to be made if this setting is to be selected.

• How do I deactivate the child-lock in my RUA/RUC model refrigerator?

  These models have a great lock for children to prevent any accidental adjustments. You know that you have activated the child-lock if you are unable to change the temperature or the power source. You can either permanently deactivate or temporarily override the lock - please see below:

  • Temporarily Override the Child-lock:

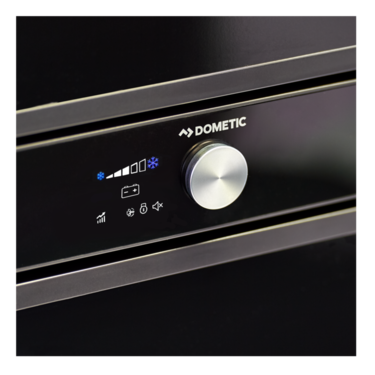

  • Push the control knob 3 times within 1.5 seconds
  • The lock will be reactive again after 10 seconds without touching the control knob
  • Permanently Deactivate the Child-lock:
  • Start with doing a temporarily override, after that simply turn off the child lock in the settings menu
• Do you require a 12v DC power supply to operate fridge on gas or 240v mains power?

  Not all Dometic 3-Way Absorption Fridge models. Models such as the RM2350, RM2453, RM2553, RM4601, RUA6408X and RUA8408X are manually selected to gas and have a push button ignition which means they do not need a 12v electrical connection ie they are manual ignition. They reduce gas flame to a pilot flame when not needing to cool further/cycle off and increase flame when they do.

  On the other hand all MES - Manual Energy Selection , AES - Automatic Energy Selection  & UES (Selectable AES & MES modes) all require a 12v feed to give basic function even on AC power.  One of the things this enables is the engaging of the gas supply and the ignition of the gas.

  The MES/AES/UES models disengage gas supply when cycling. When cycling back on the gas supply is engaged and the ignition automatically & electronically engaged.
