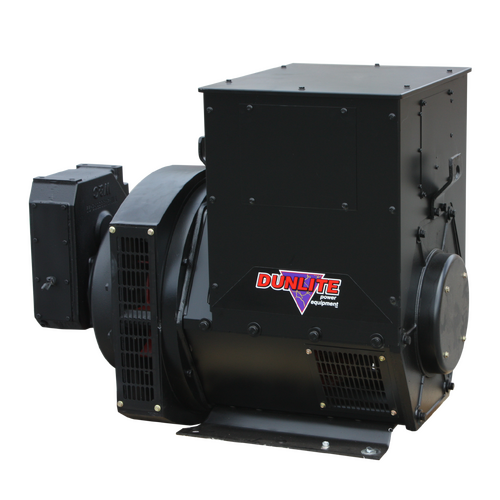

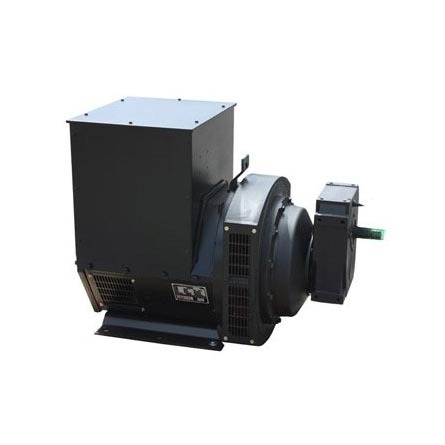

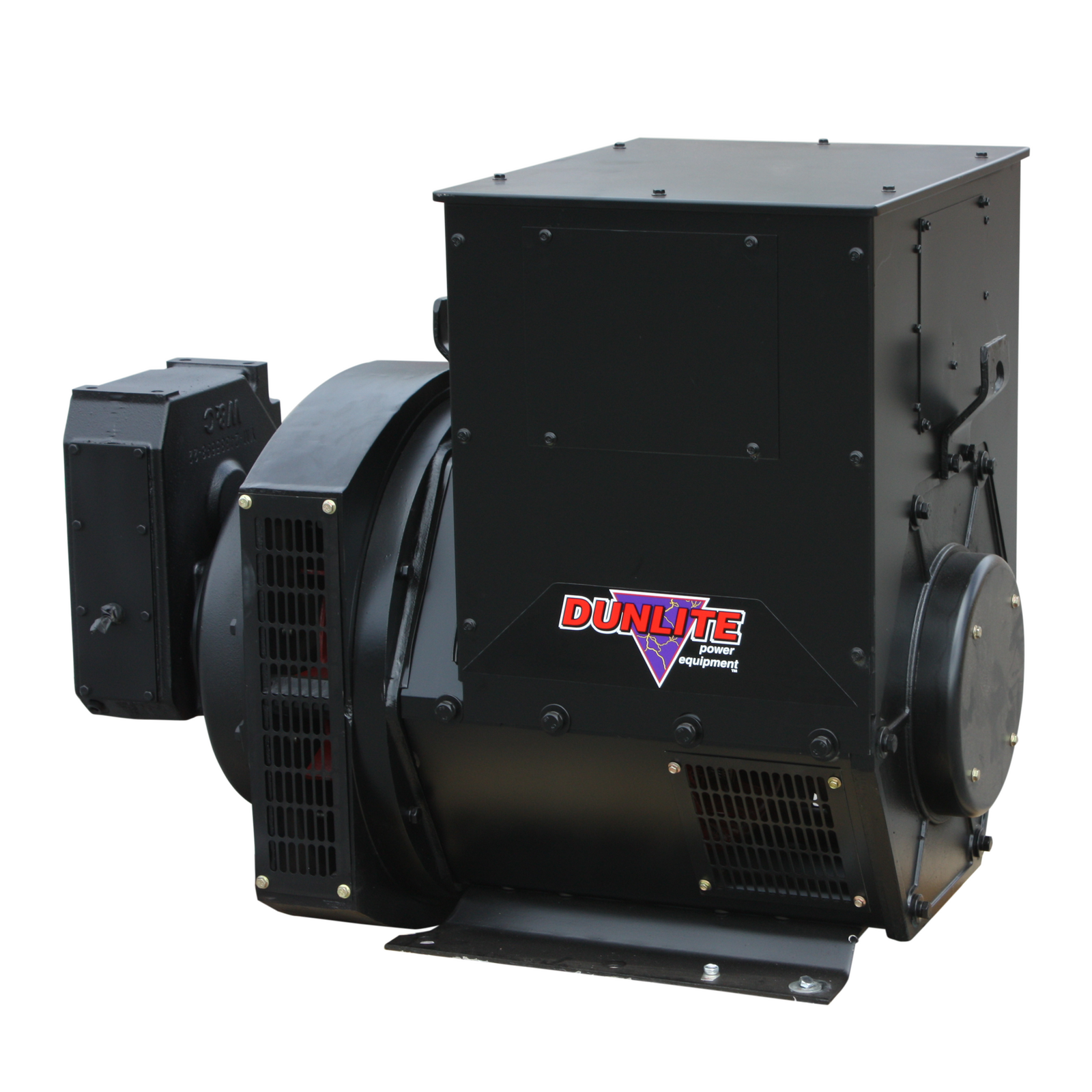

Dunlite 100kVA Tractor Generator
SKU: TRACTORPACK-100 Learn More»
Product Description
Dunlite 100kVA Tractor Generator. Tractor pacs are power-take-off driven alternators that couple to most brands of tractors. They are fitted with a splined shaft for an input speed of approximately 400 rpm.
Dunlite Tractor Pacs are especially designed to run from the back of a tractor to back-up Dairies during down times, making them perfect for rural power applications. Convenient and sturdy, Tractor Pacs are a necessity for farmers wanting to protect their investment and peace-of-mind.
Specifications
SKU TRACTORPACK-100
Brand Dunlite
Warranty Period: 2 Years
Product Category Tractor Generators
Phase Three Phase as standard. Can be configured to be Two Phase or Single Phase.
Alternator Type 4 pole, 1500 rpm
Outlets No outlets fitted. Supplied with circuit breaker. Used as a hard wired connection, or particular outlets to be fitted if required.
Frequency 50 Hz
NOTE The Digital Output Module is a recommended accessory to add. It displays: Amps, Volts, Frequency.
Dimensions (LxWxH mm) 1100 x 450 x 500mm
Prime Output 100 kVA
Gearbox Fitted with splined shaft for an input speed of approximately 500 rpm.
Tractor Size Required 125hp or greater
Net Weight (kg) 450
Three Phase (415 V) Power Output 100 kVA
Two Phase (480 V) Power Output 67 kVA
Single Phase (240 V) Power Output 67 kVA
Product Q&A
-
Hi, how do i calculate what size tractor engine is required to run a specific size of PTO generator?
The general rule is that you multiply the kva by 1.25 to give a minimum engine Horse Power rating to run the generator.
For example: 60kva x 1.25 = 75HP. In this instance you would need a tractor engine that produces a minimum of 75HP to run a 60kva three phase PTO generator.
The generator uses a 3 to 1 gear box and draws 500rpm from the PTO.
