Dunlite 50kVA Tractor Generator
SKU: TRACTORPACK-050 Learn More»
Product Description

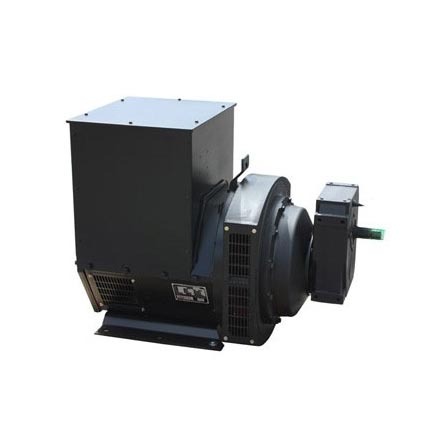

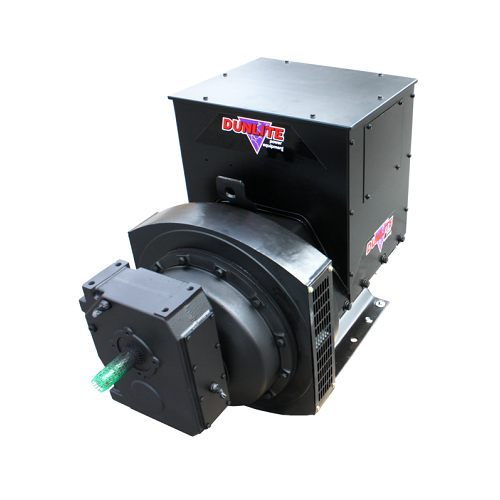

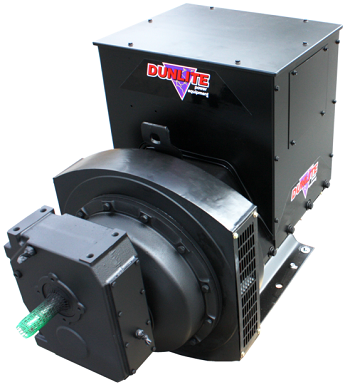

Dunlite 50kVA Tractor Generator. Tractor pacs are power-take-off driven alternators that couple to most brands of tractors. They are fitted with a splined shaft for an input speed of approximately 400 rpm.
Dunlite Tractor Pacs are especially designed to run from the back of a tractor to back-up Dairies during down times, making them perfect for rural power applications. Convenient and sturdy, Tractor Pacs are a necessity for farmers wanting to protect their investment and peace-of-mind.
Specifications
SKU TRACTORPACK-050
Brand Dunlite
Warranty Period: 2 Years
Product Category Tractor Generators
Phase Three Phase as standard. Can be configured to be Two Phase or Single Phase
Alternator Type 4 pole, 1500 rpm
Outlets No outlets fitted. Supplied with circuit breaker. Used as a hard wired connection, or particular outlets to be fitted if required
Frequency 50Hz
NOTE The Digital Output Module is a recommended accessory to add. It displays: Amps, Volts, Frequency
Dimensions 1100 x 450 x 500mm (L x W x H)
Prime Output 50kVA
Gearbox Fitted with splined shaft for an input speed of approximately 500 rpm
Tractor Size Required 65hp or greater
Net Weight (kg) 350.0000
Three Phase (415 V) Power Output 50kVA
Two Phase (480 V) Power Output 30kVA
Single Phase (240 V) Power Output 30kVA
Product Q&A
-
Hi, how do i calculate what size tractor engine is required to run a specific size of PTO generator?
The general rule is that you multiply the kva by 1.25 to give a minimum engine Horse Power rating to run the generator.
For example: 60kva x 1.25 = 75HP. In this instance you would need a tractor engine that produces a minimum of 75HP to run a 60kva three phase PTO generator.
The generator uses a 3 to 1 gear box and draws 500rpm from the PTO.
