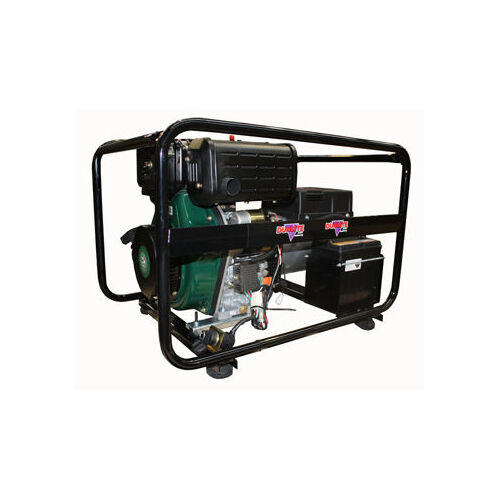

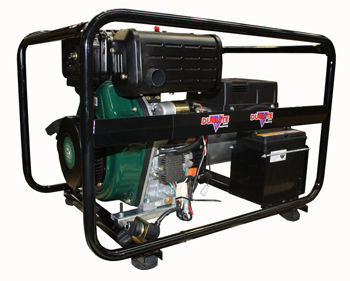

Dunlite 7 kVA 3 Phase Lister Petter Powered Diesel Generator

Specifications

SKU DGULD7E-3S-2

Brand Dunlite

GTIN 9334786004756

Warranty Period: 1 Year

Product Category Portable Generators

kVA 7

Max Output (kW) 5.6

Continuous Output (kW) 5.6

Max Output (Watts) 5600

Continuous Output (Watts) 5600

Model Lister Peter LPDR188

Phase 3-Phase

Fuel Diesel

Fuel Tank Capacity 5L

Starting Method Recoil/Electric

NOTE Product specifications provided by Manufacturer. This is a portable air-cooled diesel generator designed for short term/standby applications - for pri

Engine Speed 3000rpm

Engine Horsepower 10 hp

Outlets 1 x 20 Amp 3PH 5PIN, 2 x 15Amp 1PH

Product Dimensions (mm) LxWxH 810x550x600

Net Weight (kg) 110

Noise @ 7m 80 dBA

Videos

Dunlite Generators: Powered By Honda

Product Q&A

• Is there an option for Earth Leakage Protection (ELP) for this unit? I just need 1 x 3 phase plug and 1 x 15amp plug. Also, do you sell a 30m 5core 4mm2 lead with 20 apm 5 pin plug end? Thanks

  Hi - The standard outlet configuration for this generator is:

  1 x 32A 5PIN 415V three phase outlet

  2 x 15A 3PIN 240V single phase outlets (note that you get one third of the total generator's power capacity out of the single phase outlets).

  If you require RCD Earth Leakage Protection, please refer to the accessory list which shows RCD for both single phase and three phase outlets. These are weatherproof outlets supplied fitted to the generator on order and comply with Australian Standards for work sites.

  Lastly, we do not sell leads - apologies, just the generator and outlets to suit your application. Thanks

• Is this generator Chinese made and if so what service back up is there if problems occur? Thanks Murray

  Hi Murray,

  Thanks for your question.

  The Dunlite Generator is manufactured in China and is backed up with a 2 year manufacturers warranty and a comprehensive national support service network. This warranty and support is provided by Dunlite.

  You can read about the Dunlite Warranty Here

  regards

  The team @ My Generator



• Where can this be serviced in SA?

  Hi there, Dunlite products are acked by a national service agent network. You can visit this page here, type in your post code to see your nearest agents: Dunlite Locations

  Many thanks

• Is this generator suitable for continuous use for a power blackout that lasts say 12 -24 hrs @ 50 % load ?

  Hi there, yes this generator is designed for short term backup power requirements, very popular for residential and small commercial applications up to 7kVA in max power draw.

  The rated continuous running time is around 5.5 hours at full load, meaning at your required power load of 50%, you will get approximately 10-11 hours of run time before needing to refuel.

  Just keep in mind that it is a portable air-cooled generator, meaning it is designed for short term backup use as mentioned. For prime/continuous power for prolonged periods (e.g. days and days on end), a stationary water-cooled diesel generator is recommended.  Many thanks.
