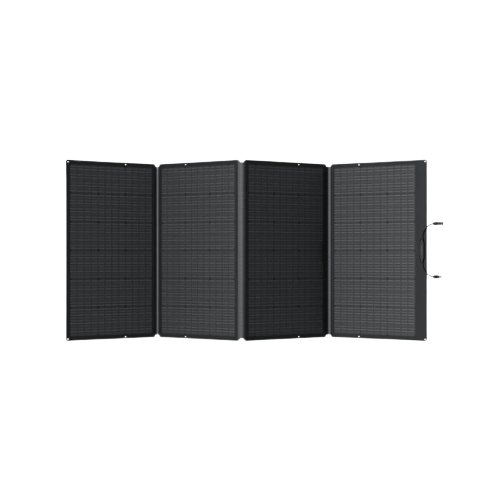

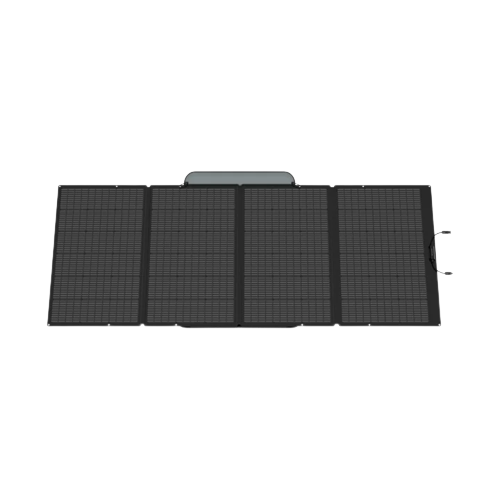

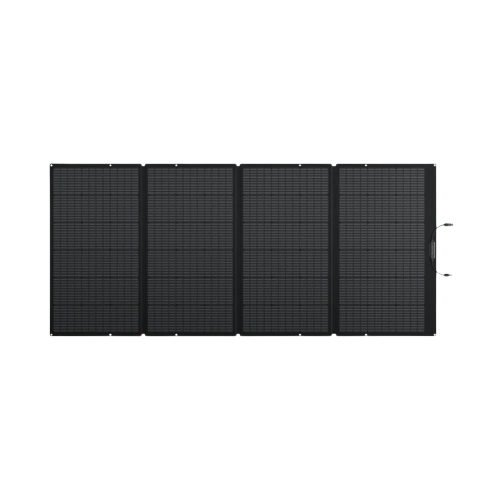

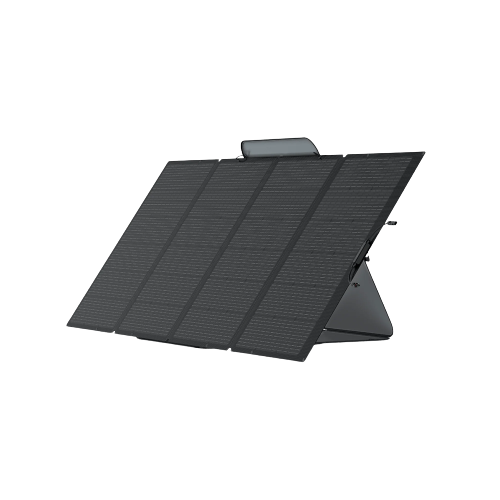

EcoFlow 400W Monocrystalline Folding Solar Blanket
SKU: EFSOLAR400W Learn More»
FREE SHIPPING
This item is sent via Express Courier. All freight is fully insured.
Accessories
Product Description
EcoFlow 400W Monocrystalline Folding Solar Blanket, 1 Year Warranty.
Features:

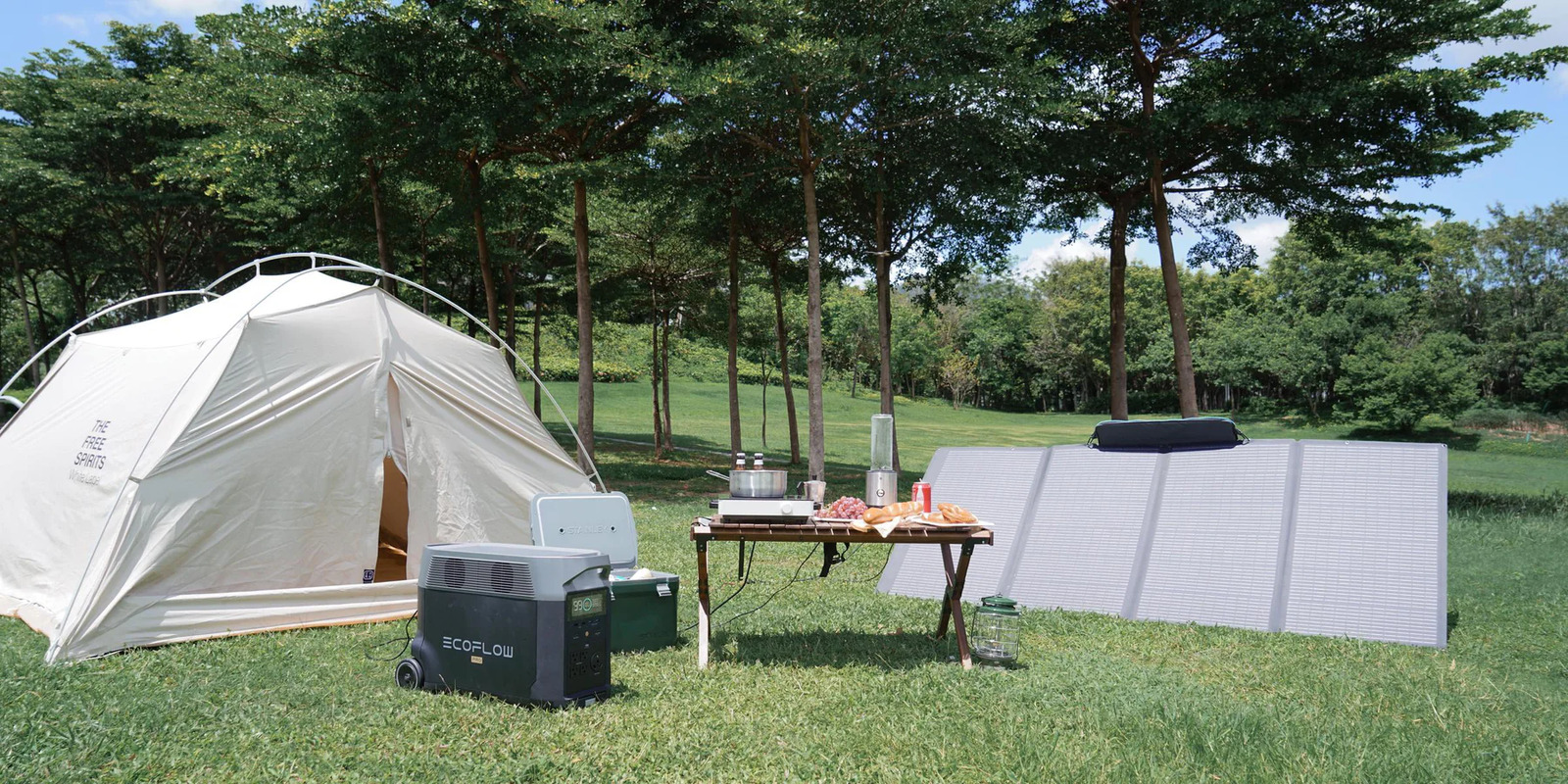

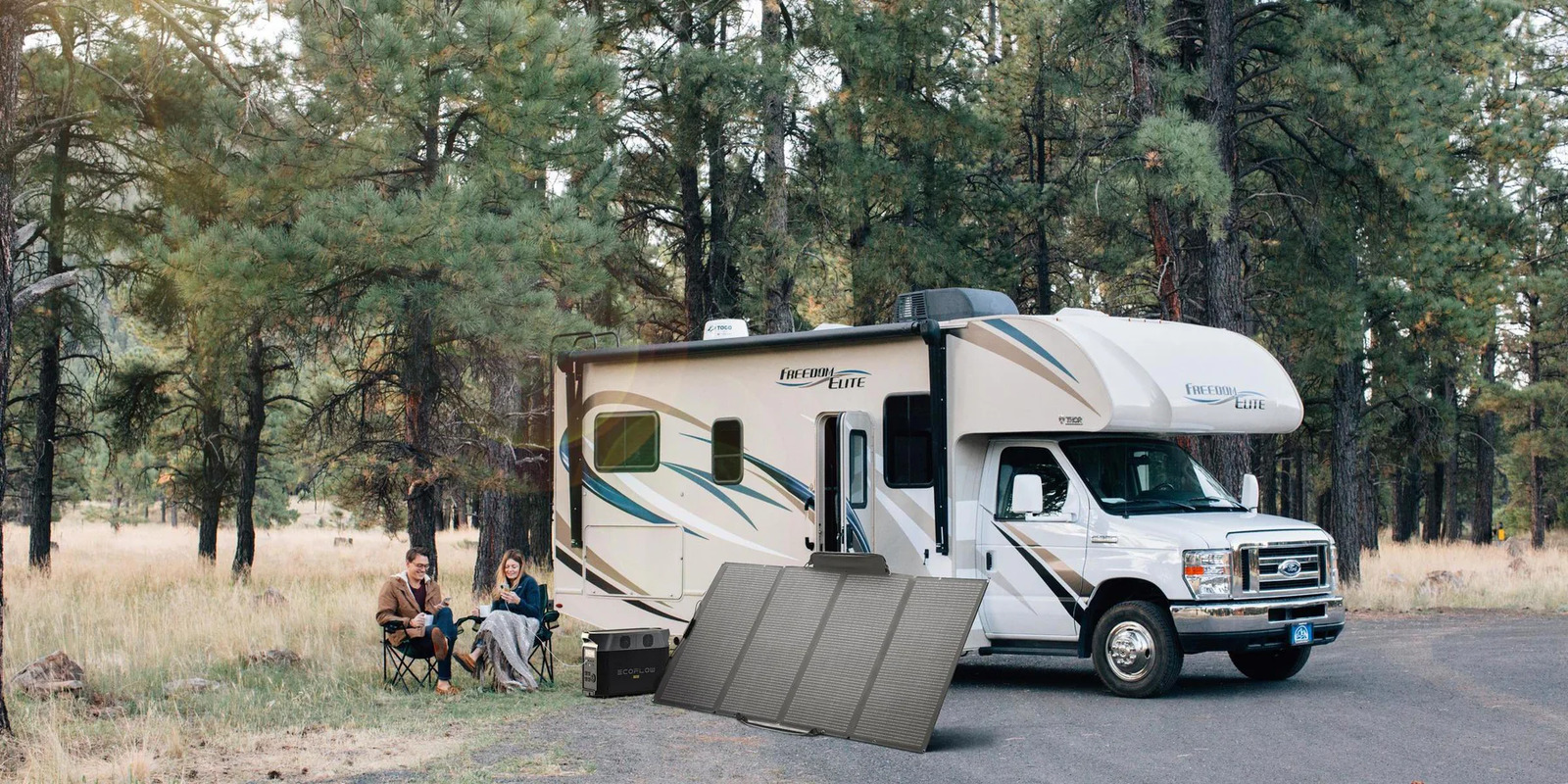

- Travel-friendly. With a compact, folding design and shoulder strap, easily carry a 400W portable solar panel to your campsite or store in your RV while you're on the move.

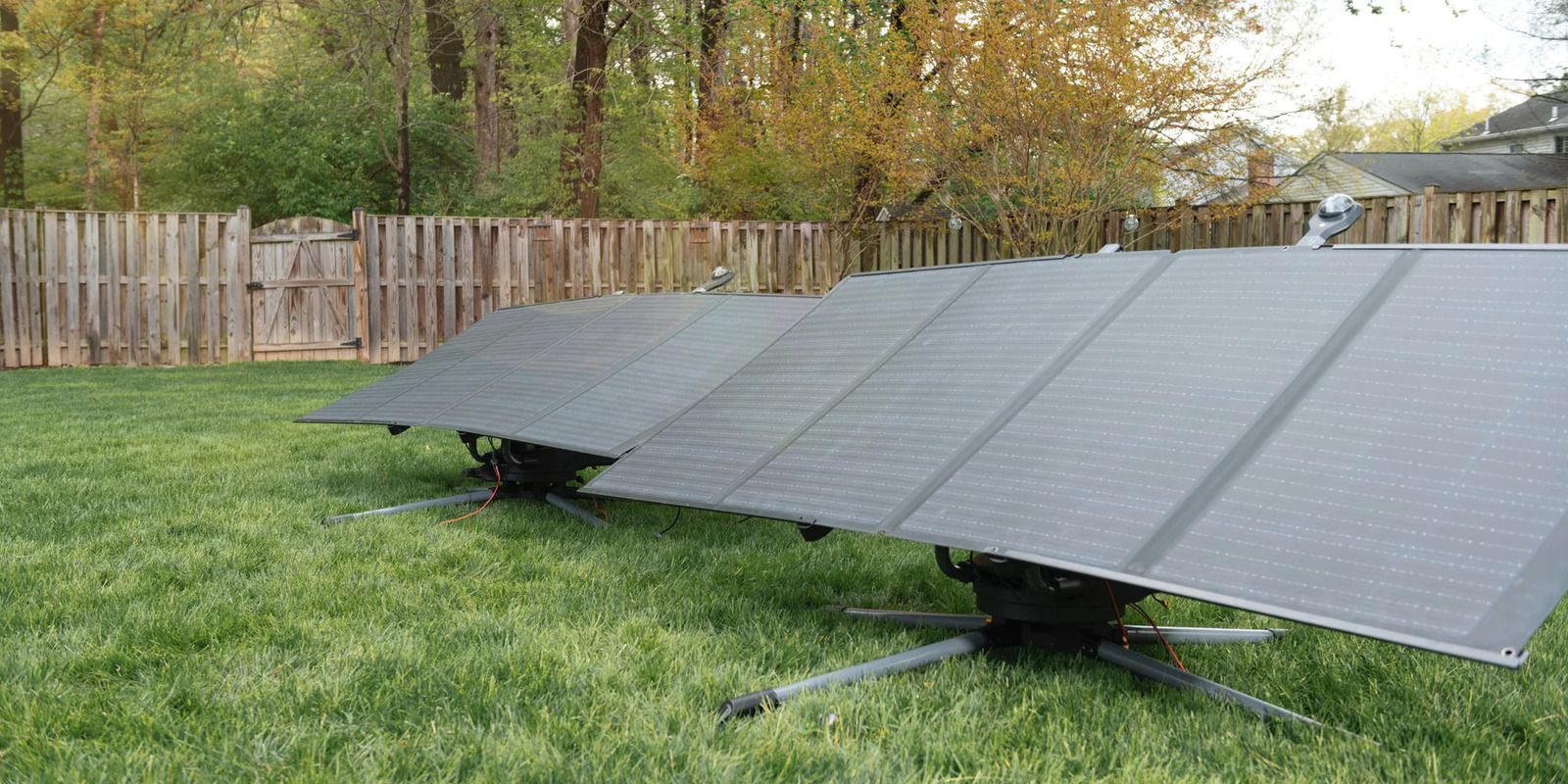

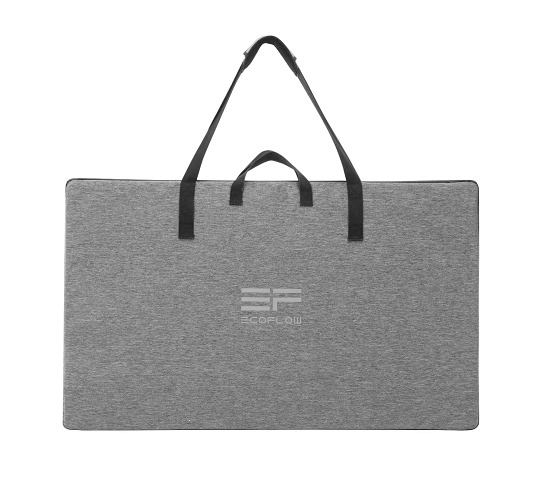

- Stands & Delivers. Protect your panels with a lightweight case that turns into a practical stand. Prop up your solar panels anywhere you go and get just the right angle to capture the sun.
- Durable & Waterproof. Made from layers of robust materials that offer both flexibility and strength, take your portable solar panels into the wildest terrain. An IP68 waterproofed surface protects solar cells from debris, dust, and water.
- Works with all EcoFlow Portable Power Stations. Plug into any EcoFlow solar generators to instantly collect the sun's rays. With the universal MC4 connector, they also work with most third-party generators.

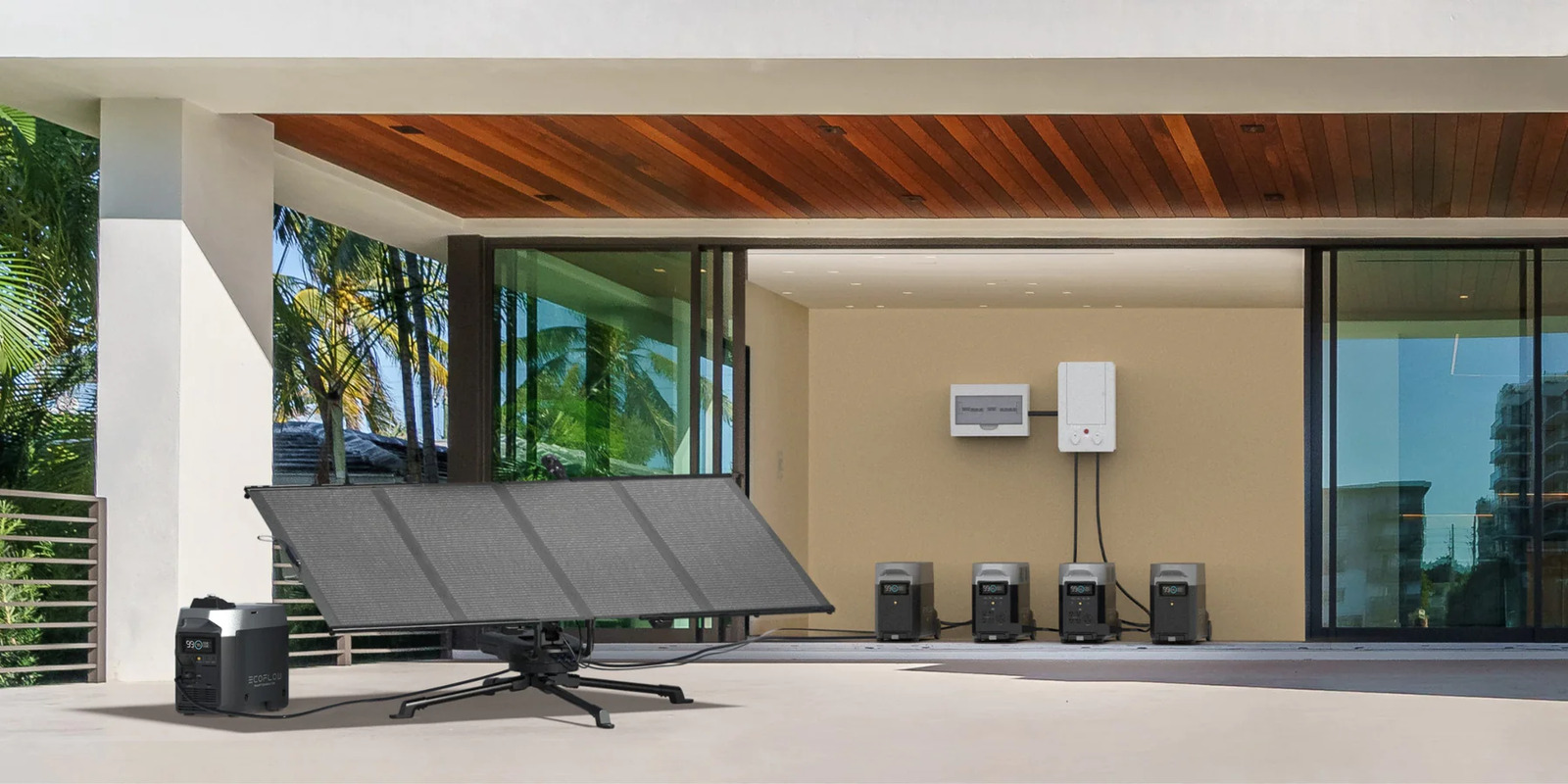

- Stable & Reliable Energy. Pair your 400W portable solar panels with an EcoFlow power station for a reliable power supply. Using MPPT technology, the generator adjusts its efficiency levels to offer a high 22% conversion rate.
This 400W panel is designed to be connected with compatible EcoFlow Power Stations:
- EcoFlow DELTA Portable Power Station (105Ah@12V) - EFDELTA13
- EcoFlow DELTA MAX 2000 Portable Power Station (168Ah@12V) - EFDELTAMAX
Please note that the open circuit voltage (VOC) for this panel is 48V. If you are planning on connecting this solar panel to a standard battery via a regulator, please take the high voltage into consideration.
Specifications
SKU EFSOLAR400W
Brand EcoFlow
GTIN 4897082664871
Warranty Period: 1 Year
Product Category Solar Panels
Solar Panel Type Folding Solar Panels
Solar Panel Cell Type Monocrystalline
Watts (W) 400
Product Type Portable power
NOTE The open circuit voltage (VOC) for this panel is 48V. If you are planning on connecting this solar panel to a standard battery via a regulator, please
Short Circuit Current Isc(A) 11
Dimensions Open (LxWxH) 1068 x 2390 x 24mm
Weight (kg) 21
Included 400W Solar Panel | Kickstand Case | User Manual
Open Circuit Voltage Voc(V) 48 V (Vmp 41 V)
Dimensions Closed (LxWxH) 1068 x 620 x 24mm
Cell Efficiency 22.4% conversion efficiency
Videos
How To Use EcoFlow Portable Solar Panels
How To Connect Portable Solar Panels to an EcoFlow Portable Power Station
The solar panel output is a SCAM? | there's more to the story
3 Ways to Wire Solar Panels | Series vs Parallel vs Hybrid
Product Q&A
-
I would like to know the dimensions of the panels when folded in the carry bag please. Thank you
Hi There,
Folded Dimensions: 106.8cm x 62 x 2.4cm
Cheers
-
Can I use the EcoFlow 400W solar blanket to charge my standard deep cycle battery?
This 400W panel is designed to be connected with compatible EcoFlow Power Stations:
- EcoFlow DELTA
- EcoFlow DELTA Max
- EcoFlow DELTA Pro
Please note that the open circuit voltage (VOC) for this panel is 48V. If you are planning on connecting this solar panel to a standard battery via a regulator, please take the high voltage into consideration. You will need a 48V Solar regulator.
-
What should I do if my solar panel isn't charging my portable power station?
- Please note that portable solar panels must be placed outdoors. They cannot charge a power station if placed indoors without exposure to sunlight.
- Check whether there is a connection issue and then try again.
- Confirm whether the input voltage and amperage match the specification of the portable power station. Also, check whether the positive and negative terminals are connected in reverse.
- Check the display for error prompts and resolve the issue accordingly.
- Third-party cables longer than 3 meters should have a wiring harness with a diameter of 6.5 mm and a wire diameter of 4 mm2, otherwise there will be no input power on the display screen.
- If the portable solar panel still does not work properly after trying the above steps, connect the portable power station to a car outlet using the XT60 port. Contact after-sales for help and send a video of the steps you have carried out.
-
What are the solar panels made from? What is their waterproof rating?
They're made from monocrystalline silicon which is more efficient than polycrystalline. New materials like EVA and ETFE protect against high temperatures, corrosion, sunlight, as well as damage, which ensures that they can be used outdoors for long periods. They have a waterproof rating of IP67 and are also resistant to dust and UV rays.
-
Is it compatible with any portable power station?
It's compatible with all EcoFlow portable power stations, and any other portable power station that can connect with solar cables.
