Enerdrive 100W Fixed Solar Panel, Black
SKU: SP-EN100W-B Learn More»
FREE SHIPPING
This item is sent via Express Courier. All freight is fully insured.
Accessories
Product Description

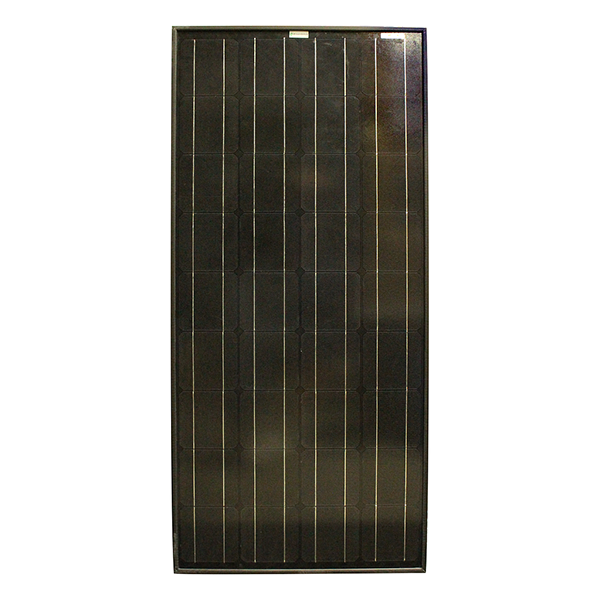

Enerdrive 100W Mono Crystalline Fixed Solar Panel, Black, 5 Year Warranty. Enerdrive solar panels are typically around 20+vdc open circuit and are well suited to 12v installations (or 24v by series connections of panels). A fly lead cable is provided for easy connection of the 10 & 20w panels while the larger panels have MC4 compatible solar cable connectors included. Enerdrive stocks a full range of spare cables.
Features
- High Conversion Efficiency. Module efficiency up to 15.47% achieved through advanced cell technology and manufacturing capabilities
- Positive Tolerance. Positive tolerance of up to -1%+~3% delivers higher output reliability
- High PID Resistant. Advanced cell technology and qualified materials lead to high PID resistant
- Current Sorting Process. System output maximised by reducing mismatch losses up to 2% with modules sorted and packaged by amperage
- Extended Wind and Snow. Load tests Module certified to withstand extreme wind (2400 Pascal) and snow loads (5400 Pascal)
- Withstanding Harsh Environment. Reliable quality leads to a better sustainability even in harsh environments in the outdoors
Specifications
SKU SP-EN100W-B
Brand Enerdrive
Warranty Period: 5 Years
Product Category Solar Panels
Solar Panel Type Fixed Solar Panels
Solar Panel Cell Type Monocrystalline
Watts (W) 100
Dimensions 1195 x 541 x 35
Short Circuit Current Isc(A) 5.69
Weight (kg) 8.1
Open Circuit Voltage Voc(V) 22.6
Max System Voltage (VDC) 1000
Test Conditions Cell Temperature: 25 Deg | C,Irradiance: 1kW/㎡ | Air Mass: 1.5
Voltage DC (V) 12V
Optimum Operating Voltage(Vmp) 18.7V
Optimum Operating Current(Imp) 5.35A
Product Q&A
-
Can I attach an Anderson plug to this?
Hi There,
You certainly can.
You would need to remove the standard connectors that come with the solar panel, and install the Anderson plug in replacement of them.
