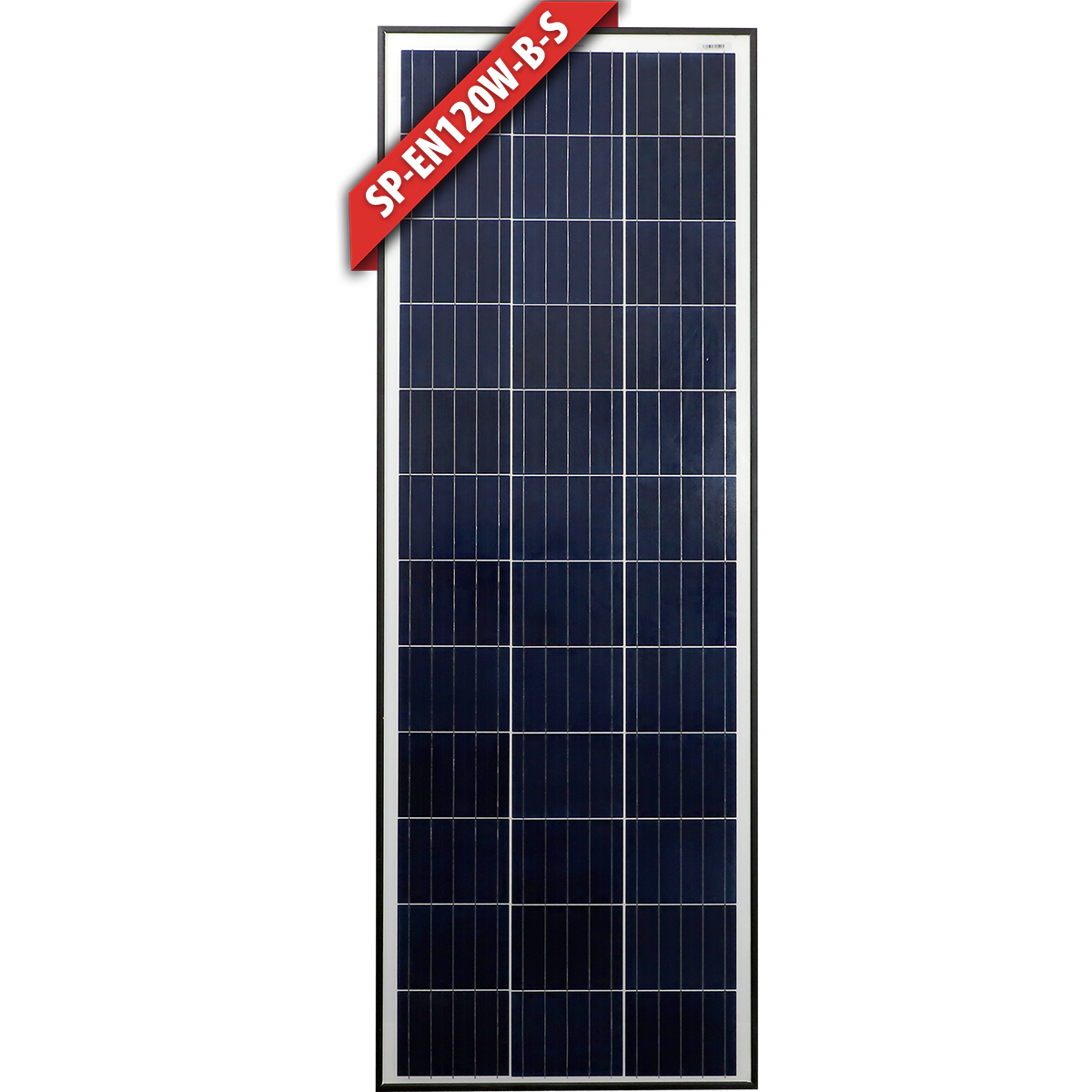

Enerdrive 120W Slim Fixed Solar Panel, Black
SKU: SP-EN120W-B-S Learn More»Product Description
Enerdrive 120W Poly-Crystalline Slim Fixed Solar Panel, Black, 5 Year Warranty. Enerdrive | Dometic solar panels are typically around 20+vdc open circuit and are well suited to 12v installations (or 24v by series connections of panels). Enerdrive has a range of Mono & Poly Crystalline solar panels from 10 to 200watts. Each module is typically around 20+vdc open circuit and are well suited to 12v installations
Features
- High Conversion Efficiency. Module efficiency up to 14.06% achieved through advanced cell technology and manufacturing capabilities
- Positive Tolerance. Positive tolerance of up to -1%+~3% delivers higher output reliability
- High PID Resistant. Advanced cell technology and qualified materials lead to high PID resistant
- Current Sorting Process. System output maximised by reducing mismatch losses up to 2% with modules sorted and packaged by amperage
- Extended Wind and Snow. Load tests Module certified to withstand extreme wind (2400 Pascal) and snow loads (5400 Pascal)
- Withstanding Harsh Environment. Reliable quality leads to a better sustainability even in harsh environments in the outdoors
Specifications
SKU SP-EN120W-B-S
Brand Enerdrive
Warranty Period: 5 Years
Product Category Solar Panels
Solar Panel Type Fixed Solar Panels
Solar Panel Cell Type Polycrystalline
Watts (W) 120
Dimensions 1578 x 541 x 35 mm
Short Circuit Current Isc(A) 7.23
Weight (kg) 11
Max Power Voltage Vm(V) 18.4
Max Power Current Im(A) 6.53
Open Circuit Voltage Voc(V) 22.8
Max System Voltage (VDC) 1000
Test Conditions 1000W/m² , AM1.5 , 25°C
Videos
Powering Your Trip With Caravan or Camping Solar Panels
Product Q&A
-
Hello, Will this solar panel plug in and charge my Dometic Waeco battery? Regards, Morgan
Hi, yes you can use an Enerdrive solar panel to trickle charge a Dometic battery pack.
