Enerdrive 150W Squat Solar Panel with Installation Kit
SKU: K-SOLAR-150SQ-KIT Learn More»
FREE SHIPPING
This item is sent via Express Courier. All freight is fully insured.
Accessories
Product Description

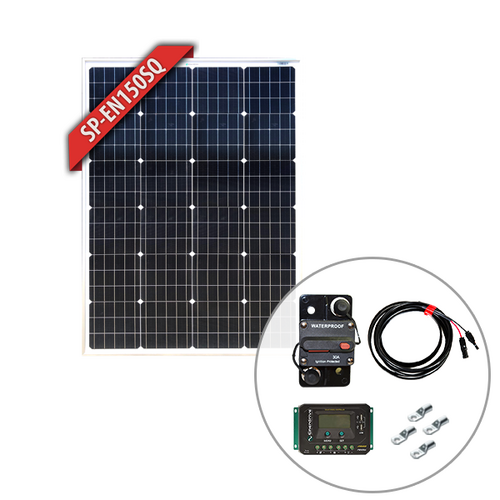

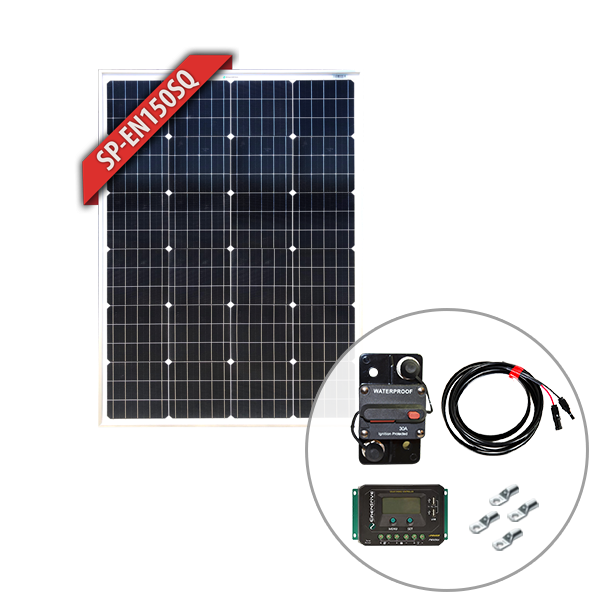

Enerdrive 150W Squat Solar Panel Kit, includes Solar Charge Controller, Circuit Breaker, 10m Solar Cable & Lugs, 5 Year Warranty.
Bundle Includes:
- SP-EN150SQ - Enerdrive 150W Mono Crystalline Squat Fixed Solar Panel
- EN43030 - Enerdrive ePOWER PWM 30A Solar Charge Controller
- EN-RCB30 - Enerdrive EN-RCB30 Surface Mount Resettable Breaker - 30amp
- SP-SC10-6MM - Enerdrive 10m 4mm² Twin Solar Cable with MC4 Plugs
- 4 x EN-LUG-6-8 - Enerdrive 6mm2 x 8mm Cable Lug Bell Mouth

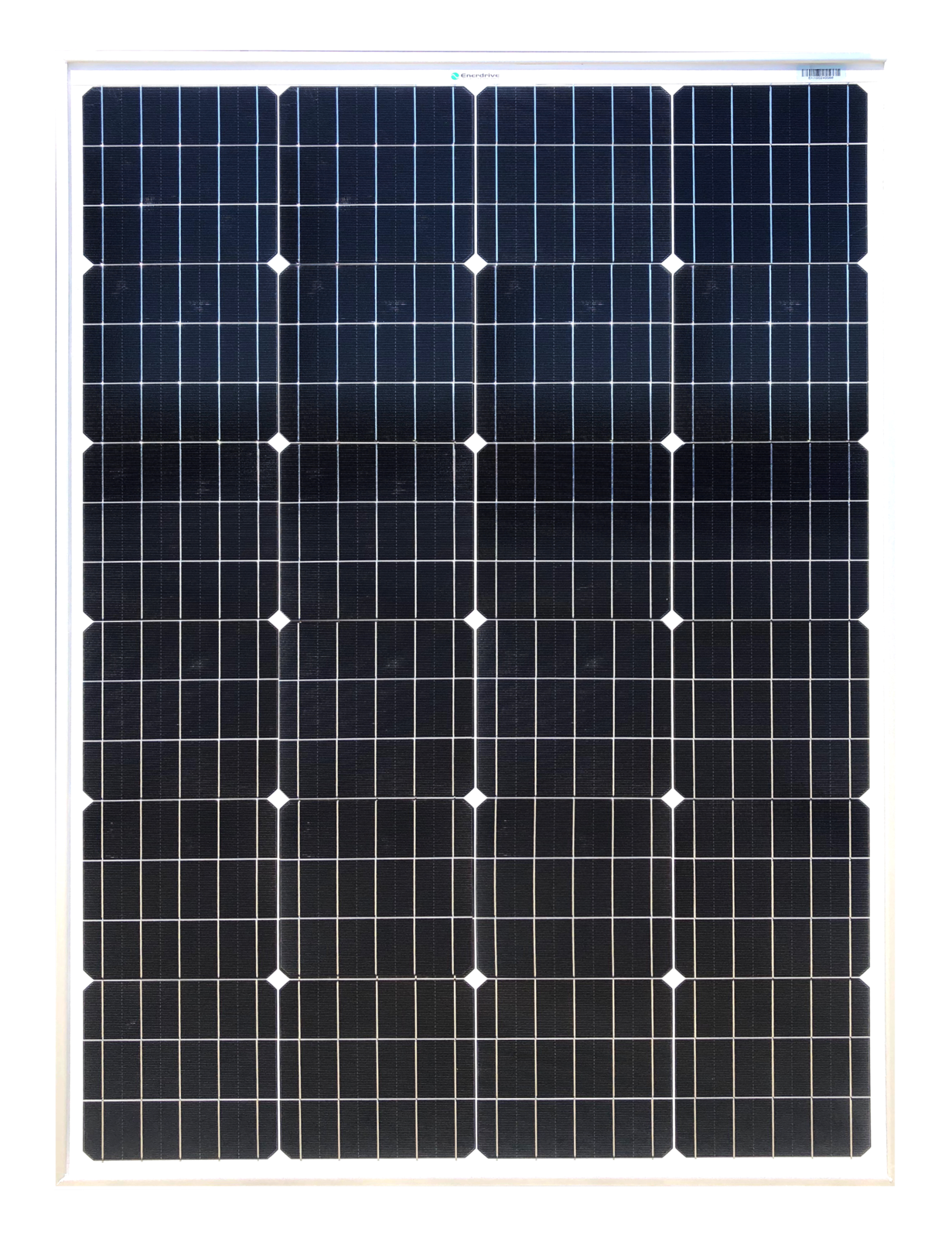

Enerdrive 150W Squat Mono Crystalline Fixed Solar Panel, 5 Year Warranty.
Enerdrive solar panels are typically around 20+vdc open circuit.
- Suited to 12v installations (or 24v by series connections of panels)
- A fly lead cable is provided for easy connection of the 10 & 20w panels
- The larger panels have MC4 compatible solar cable connectors included

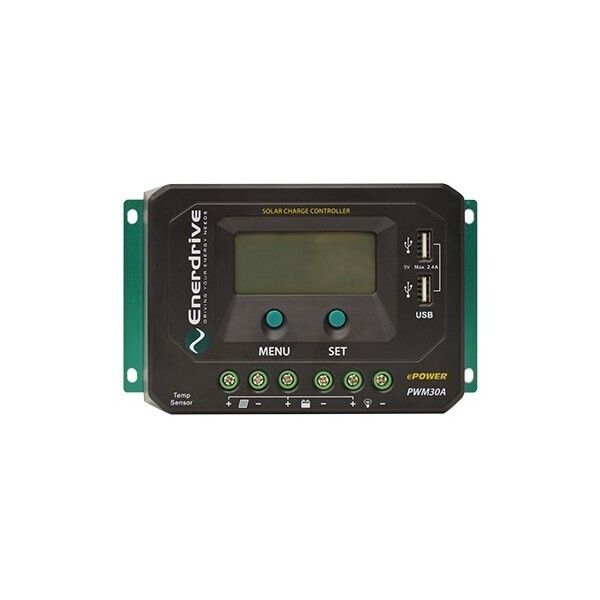

Enerdrive ePOWER PWM 30A Solar Charge Controller, 5 Year Warranty.
For maintenance free protection of your batteries and solar panels the controllers regulated output will prevent batteries overcharging.
Load Disconnect (LD) feature will protect batteries from being over discharged.
Enerdrive PWM 30A Solar Charge Controller benefits include:
- Protects battery from overcharge and discharge
- 12/24V auto detect
- Handles up to 30 Amps of Array Current
- Handles up to 450 Watts of solar power
- Maintenance free protection of your solar panel and batteries
- Maintains battery voltage
- Maintain 12/24V batteries in a fully charged state
Features:
- Informative backlight LCD display indicates solar charge input, charge/load output Volatage/Amps
- Selectable battery type Sealed, Flooded & Gel
- 2 x USB Outputs 2.4A
- Full output operation up to 55oC
- Temperature compensation
- High precision on voltage set point
- Wall mountable

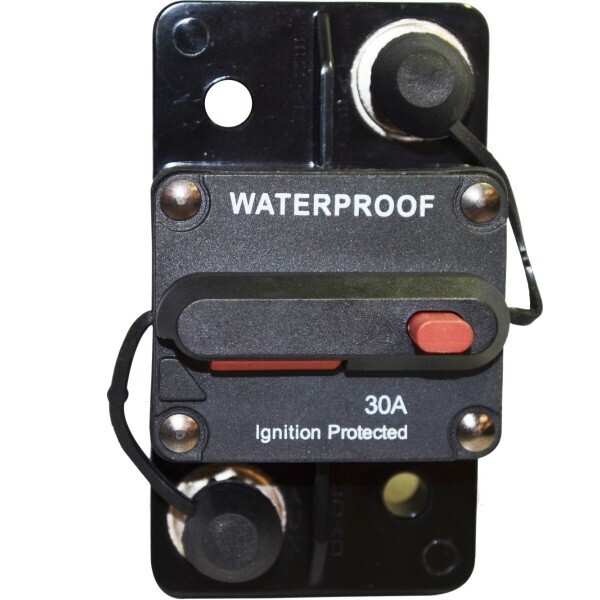

Enerdrive EN-RCB30 Surface Mount Resettable Breaker -30amp.
Enerdrive have just released a affordable range of surface mount circuit breaker while keeping with the high quality that our customers have come to expect.
Units between 25-70amp have 1/4” studs while the larger units 80—150amp have the larger 3/8” studs for Quality DC connections.
Please Note: Check the Enerdrive Charger Manual for recommended Breaker & Cable sizing.

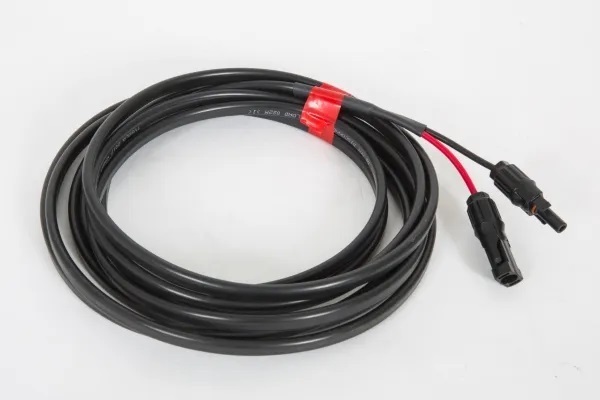

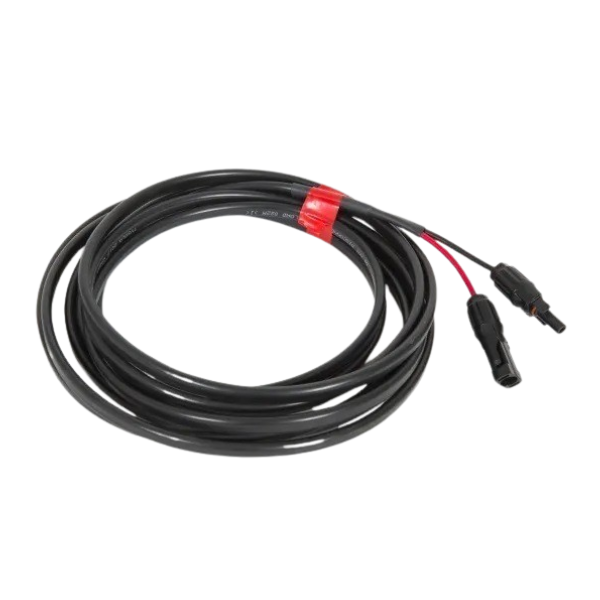

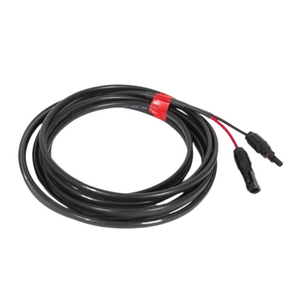

Enerdrive 10m 4mm² Twin Solar Cable with EN4 Plugs, 5 Year Warranty.
Enerdrive 6mm2 x 8mm Cable Lug Bell Mouth x4.
Specifications
SKU K-SOLAR-150SQ-KIT
Brand Enerdrive
GTIN 9342616028131
Warranty Period: 5 Years
Product Category Solar Bundles
Solar Panel Type Fixed Solar Panels
Solar Panel Cell Type Monocrystalline
Watts (W) 150
Dimensions 1210 x 808 x 35mm (Solar Panel)
Short Circuit Current Isc(A) 8.8 (Solar Panel)
Max Power Voltage Vm(V) 18.5 (Solar Panel)
Max Power Current Im(A) 8.11 (Solar Panel)
Open Circuit Voltage Voc(V) 22.5 (Solar Panel); 12V - 25 VOC / 24V - 50 VOC (Charge Controller)
Operating temperature range -25˚C+55˚C | -20˚C+70˚C (LCD) (Charge Controller)
Max System Voltage (VDC) 1000 (Solar Panel)
Output 5VDC/2.4A (USB, Total) (Charge Controller)
Test Conditions 1000W/m² , AM1.5 , 25°C (Solar Panel)
Net Weight (kg) 11.5
Product Q&A
-
I am adding this 2 x 150 watt solar I was wondering that I might need a 50amp fuse controller to control approx 450 watts of solar…
Hi Mal,
Thank you for your inquiry.
Are you able to please confirm what you are connecting the panels to so we can assist further?
