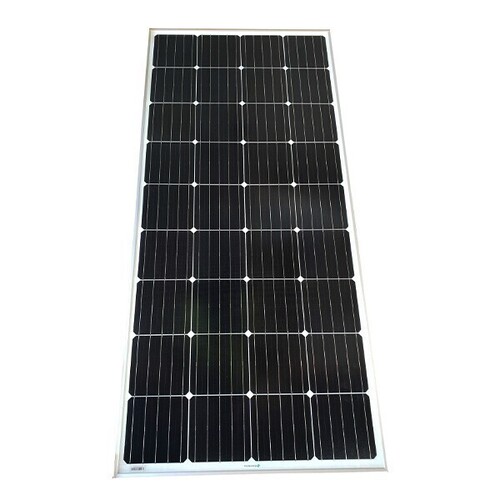

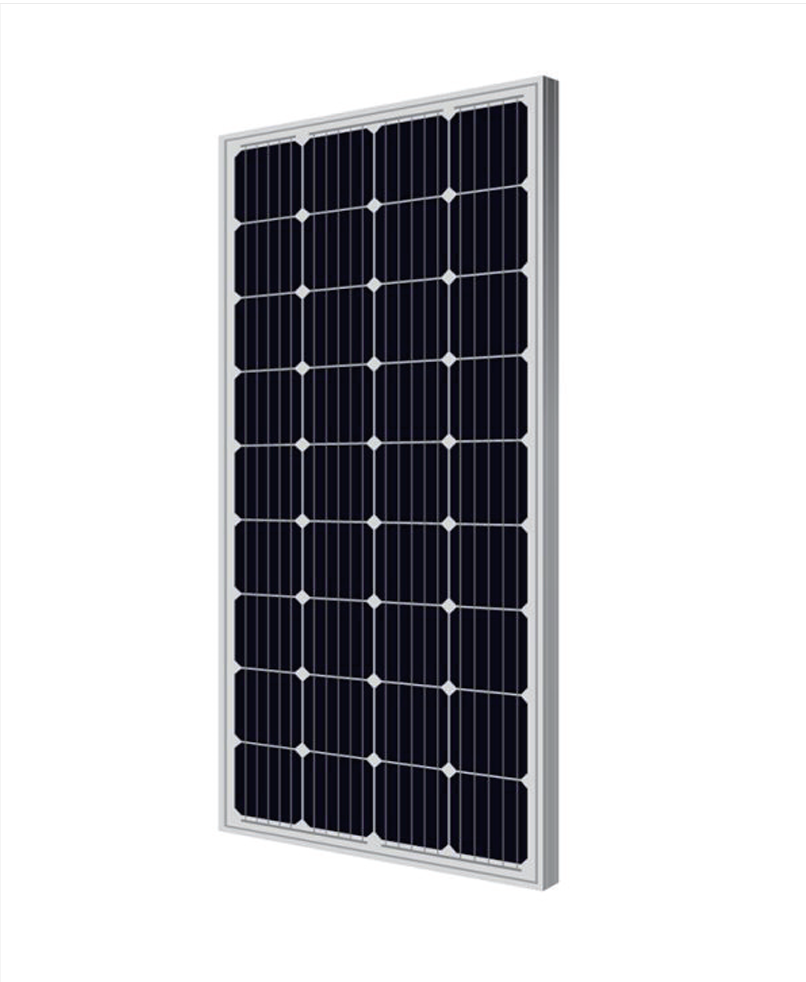

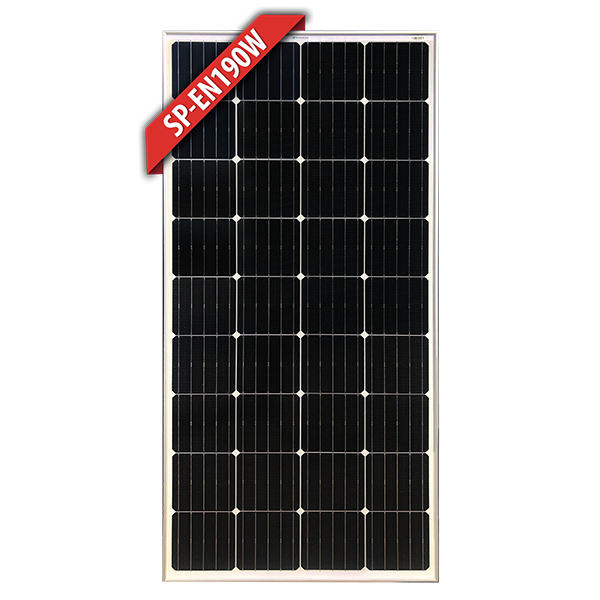

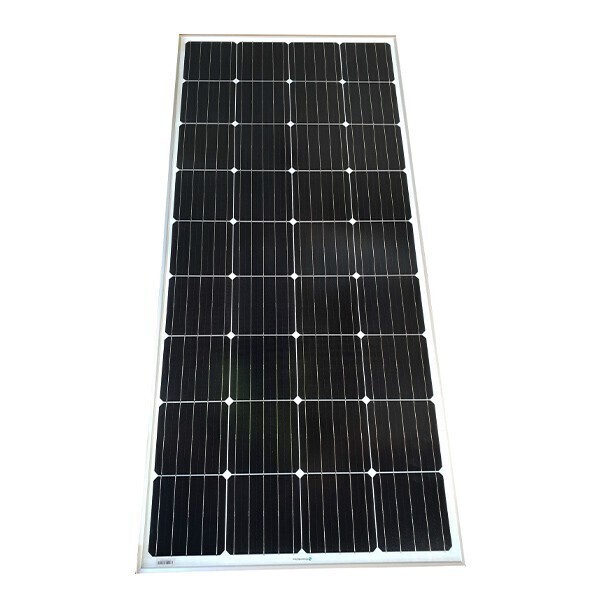

Enerdrive 190W Mono Crystalline Fixed Solar Panel, Silver
SKU: SP-EN190W Learn More»
FREE SHIPPING
This item is sent via Express Courier. All freight is fully insured.
Product Description
Enerdrive 190W Mono Crystalline Fixed Solar Panel, Silver, 5 Year Warranty. Enerdrive solar panels are typically around 20+vdc open circuit and are well suited to 12v installations (or 24v by series connections of panels). A fly lead cable is provided for easy connection of the 10 & 20w panels while the larger panels have MC4 compatible solar cable connectors included.
Features:
- High Conversion Efficiency. Module efficiency up to 17.86% achieved through advanced cell technology and manufacturing capabilities
- Positive Tolerance. Positive tolerance of up to 0~+5W delivers higher output reliability
- High PID Resistant. Advanced cell technology and qualified materials lead to high PID resistant
- Current Sorting Process. System output maximised by reducing mismatch losses up to 2% with modules sorted and packaged by amperage
- Extended Wind and Snow. Load tests Module certified to withstand extreme wind (2400 Pascal) and snow loads (5400 Pascal)
- Withstanding Harsh Environment. Reliable quality leads to a better sustainability even in harsh environments in the outdoors
Specifications
SKU SP-EN190W
Brand Enerdrive
GTIN 9342616027905
Warranty Period: 5 Years
Product Category Solar Panels
Solar Panel Type Fixed Solar Panels
Solar Panel Cell Type Monocrystalline
Watts (W) 190
Maximum System Voltage 1000V DC (IEC)
Short Circuit Current (Isc) 10.07A
Operating Module Temperature -40 to +85 degree celsius
Module Efficiency 17.86%
Optimum Operating Current(Imp) 9.50A
Optimum Operating Voltage(Vmp) 20.00V
Maximum Power(Pmax) 190W
Power Tolerance 0~+5W
Test Conditions Cell Temperature: 25 Deg. | C,Irradiance: 1kW/m2 | Air Mass: 1.5
Popular Product Applications Caravan solar panels, 12V solar panel, caravan solar panel kit, campervan solar panel kit, 4WD solar panels, Enerdrive solar panels
Weight 11.50kg
Dimensions 1500mm x 680mm x 35mm
Videos
Aussie Van Adventures Review Caravan Solar Panels by Enerdrive
Product Q&A
-
What is the frame of the solar panel made of?
Anodized aluminium alloy
-
What are the lengths of the cables coming off the junction box?
These cables are 900mm long.
-
How many of these panels can I run in parallel through my Enerdrive 40a DC2DC?
You can run up to 4x of these panels in parallel.
-
Does this panel have any connectors on the cables?
Yes, it will have MC4 connectors.
