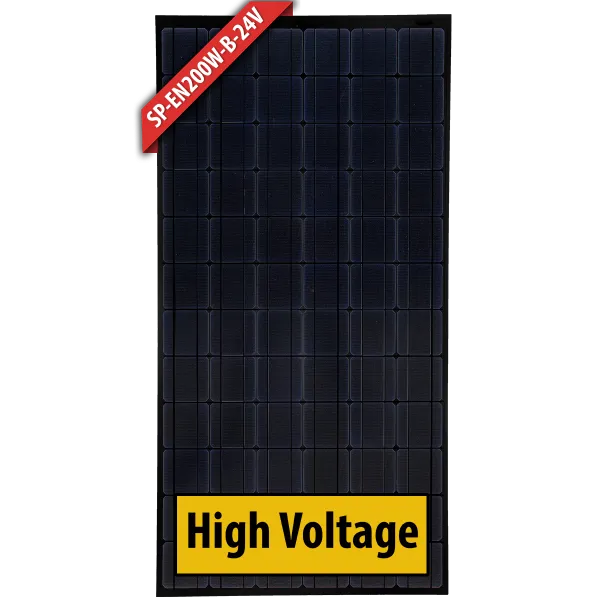

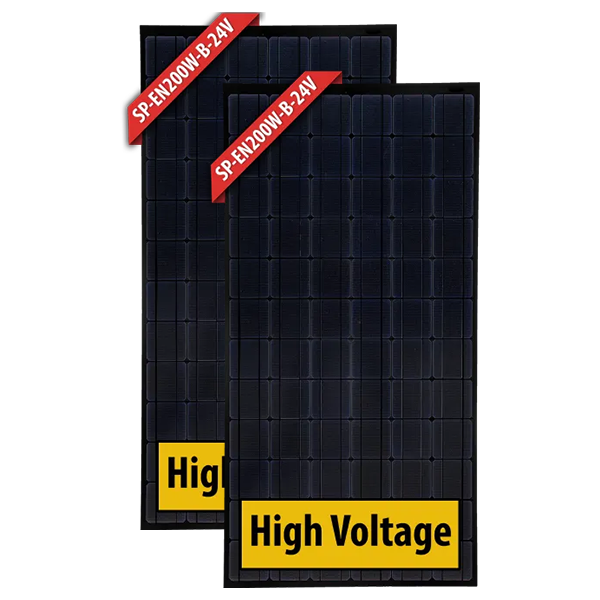

Enerdrive 2 x 200W Fixed Solar Panel - Black, Twin Pack

SKU: SP-EN200W-B-TWIN-PACK Learn More»

Free Shipping

FREE SHIPPING

This item is sent via Express Courier. All freight is fully insured.

Accessories

Enerdrive Set of Quick Connect Solar Panels

$39

Enerdrive 10m 6mm² Twin Solar Cable with EN4 Plugs

$158

Enerdrive 5m 6mm² Twin Solar Cable with EN4 Plugs

$110

Click '+' to show more accessories

Call 1300 400 122

Add To Wishlist

Learn More»

Customer Reviews

Go to: Product Details

Go to: Specifications

Product Description

Enerdrive 2 x 200W Fixed Solar Panel - Black, Twin Pack, 5 Year Warranty. Enerdrive solar panels are typically around 20+vdc open circuit and are well suited to 12v installations (or 24v by series connections of panels). A fly lead cable is provided for easy connection of the 10 & 20w panels while the larger panels have MC4 compatible solar cable connectors included.

Key Features:

High Conversion Efficiency. Module efficiency up to 15.67% achieved through advanced cell technology and manufacturing capabilities.
Positive Tolerance. Positive tolerance of up to -1%+~3% delivers higher output reliability.
High PID Resistant. Advanced cell technology and qualified materials lead to high PID resistant.
Current Sorting Process. System output maximised by reducing mismatch losses up to 2% with modules sorted and packaged by amperage.
Extended Wind and Snow. Load tests Module certified to withstand extreme wind (2400 Pascal) and snow loads (5400 Pascal).
Withstanding Harsh Environment. Reliable quality leads to a better sustainability even in harsh environments in the outdoors.

Note: The SP-EN200W-B are suitable for Charging 24V Battery System when using a PWM Controller.

For Charging a 12V Battery System a MPPT Solar Controller MUST be used.

To choose a Solar Charge Controller for your Enerdrive Solar Panel, click here.

Go to: Product Details

Go to: Videos

Specifications

SKU SP-EN200W-B-TWIN-PACK

Brand Enerdrive

Warranty Period: 5 Years

Product Category Portable Solar Panels

Solar Panel Type Fixed Solar Panels

Solar Panel Cell Type Monocrystalline

Watts (W) 400

Voltage DC (V) 24V

Max System Voltage (VDC) 1000

Max Power Voltage Vm(V) 37.3

NOTE Specification & dimensions are for one solar panel

Test Conditions 1000W/m² , AM1.5 , 25°C

Open Circuit Voltage Voc(V) 43.7

Popular Product Applications Caravan solar panels, 12V solar panels, caravan solar panel kit, campervan solar panel kit, 4WD solar panels, Enerdrive solar panels

Dimensions 1580 x 808 x 40mm

Net Weight (kg) 30

Max Power Current Im(A) 5.37

Short Circuit Current Isc(A) 6.05

Go to: Specifications

Go to: Q & A

Videos

Powering Your Trip With Caravan or Camping Solar Panels

Go to: Videos

Go to: Reviews

Product Q&A

Ask Us a Question

What’s the advantage of the 2 x 24 Volt 200 watt solar panels that can be used with the MPPT controller for my 12 volt battery system as opposed to the 2 x 12v 180 watt solar panels that are cheaper?

The 24V panels have a slight advantage in low light conditions, ie early morning and late arvo (a few amp hours extra charge per day) You will also have 80W more in total (800W vs 720W).
