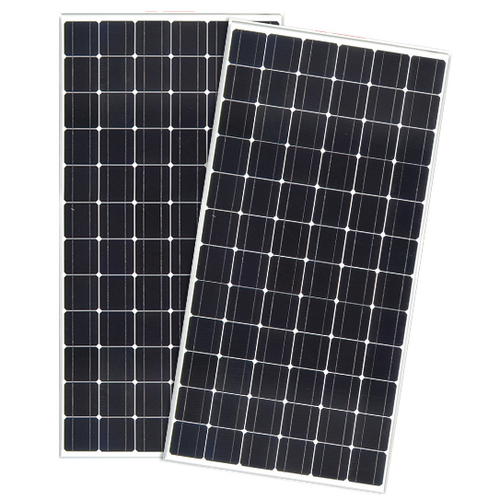

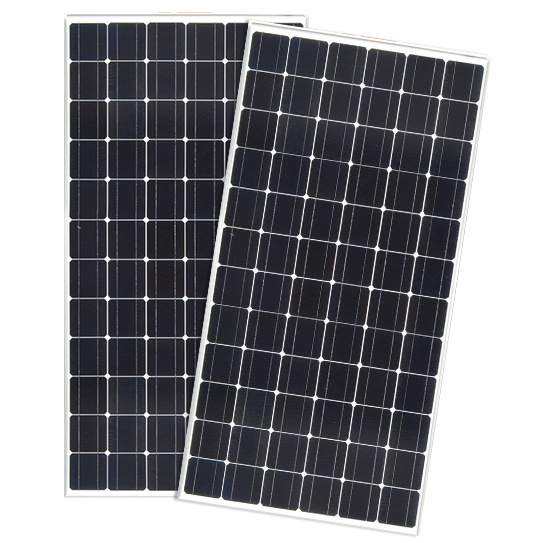

Enerdrive 2 x 200W 24V Fixed Solar Panel, Twin Pack
SKU: SP-EN200W-TWIN-PACK Learn More»
FREE SHIPPING
This item is sent via Express Courier. All freight is fully insured.
Accessories
Product Description
Enerdrive 2 x 200W 24V Fixed Solar Panel, Twin Pack, 5 Year Warranty. Enerdrives 200W Fixed Solar Panels are 43+VDC open circuit and are well suited to 12/24v installations (or 48v by series connections of panels).
PLEASE NOTE: SP-EN200W-24 are suitable for Charging 24V Battery System when using a PWM Solar Controller. For Charging a 12V Battery System a MPPT Solar Controller MUST be used.
A fly lead cable is provided for easy connection of the 10 & 20w panels while the larger panels have MC4 compatible solar cable connectors included.
Key Features:
- High Conversion Efficiency. Module efficiency up to 15.67% achieved through advanced cell technology and manufacturing capabilities.
- Positive Tolerance. Positive tolerance of up to -1%+~3% delivers higher output reliability.
- High PID Resistant. Advanced cell technology and qualified materials lead to high PID resistant.
- Current Sorting Process. System output maximised by reducing mismatch losses up to 2% with modules sorted and packaged by amperage.
- Extended Wind and Snow. Load tests Module certified to withstand extreme wind (2400 Pascal) and snow loads (5400 Pascal).
- Withstanding Harsh Environment. Reliable quality leads to a better sustainability even in harsh environments in the outdoors.
To choose a Solar Charge Controller for your Enerdrive Solar Panel, click here.
.png)
Specifications
SKU SP-EN200W-TWIN-PACK
Brand Enerdrive
Warranty Period: 5 Years
Product Category Solar Panels
Solar Panel Type Fixed Solar Panels
Solar Panel Cell Type Monocrystalline
Watts (W) 400
NOTE Specification & dimensions are for one solar panel
Dimensions 1580 x 808 x 40mm
Short Circuit Current Isc(A) 6.05
Popular Product Applications Caravan solar panels, 12V solar panels, caravan solar panel kit, campervan solar panel kit, 4WD solar panels, Enerdrive solar panels
Max Power Voltage Vm(V) 37.3
Max Power Current Im(A) 5.37
Open Circuit Voltage Voc(V) 43.7
Max System Voltage (VDC) 1000
Test Conditions 1000W/m² , AM1.5 , 25°C
Voltage DC (V) 24V
Net Weight (kg) 30
Videos
Powering Your Trip With Caravan or Camping Solar Panels
Product Q&A
-
Hi there can these slim line panels be used as a fixture to vehicles etc. for battery back-up?
Hi Kerry, yes these Enerdrive fixed solar panels are used for fixing to a recreational vehicle for battery charging.
Note: Most vehicle and camping installations will be at 12V, and so you also need a MPPT solar regulator to for your charging. Many thanks
-
What's the difference between Mono & Polycrystalline solar cells?
There's actually not a whole lot of difference when it comes to Caravan, RV and Camping applications to be honest. They are different cell types and are more relevant for home grid tied roof top.
You will read that poly are better in low light conditions and mono are more efficient. But for roof top caravan's the difference is negligible.
The most important thing is to get a well-constructed roof top panel from a quality brand and get the right sizing for your application.
What’s the advantage of the 2 x 24 Volt 200 watt solar panels that can be used with the MPPT controller for my 12 volt battery system as opposed to the 2 x 12v 180 watt solar panels that are cheaper?The 24V panels have a slight advantage in low light conditions, ie early morning and late arvo (a few amp hours extra charge per day) You will also have 80W more in total (800W vs 720W).
Customer Reviews
Top of the range Review by Jani OwenThese panels are top quality, well built. Why would you want anything else? And at this price you be crazy not to buy them(Posted on 8 June 2023)
