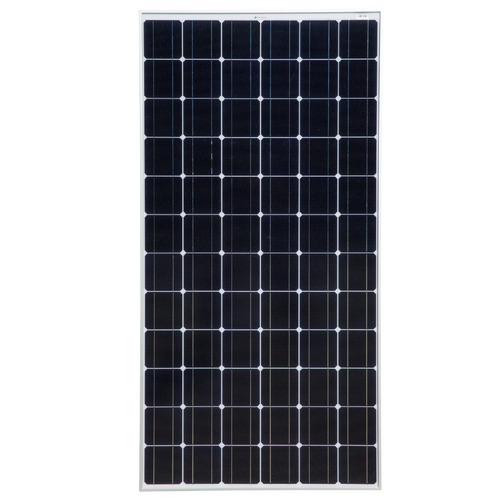

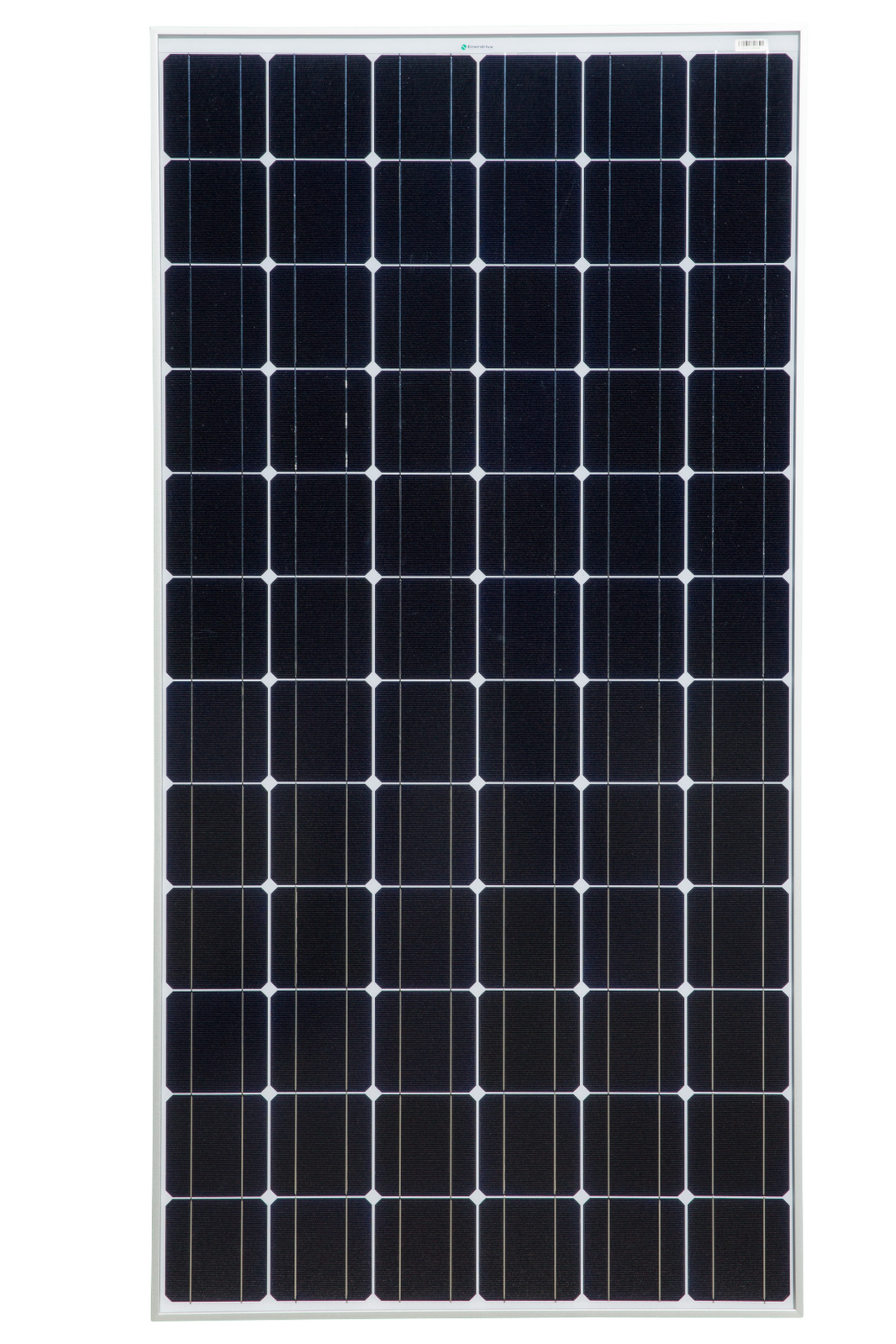

Enerdrive 200W 24V Mono Crystalline Slim Fixed Solar Panel
SKU: SP-EN200W-24V Learn More»
FREE SHIPPING
This item is sent via Express Courier. All freight is fully insured.
Accessories
Learn More»
Product Description
Enerdrive 200W 24V Mono Crystalline Slim Fixed Solar Panel, 5 Year Warranty. Enerdrives 200W Fixed Solar Panels are 43+VDC open circuit and are well suited to 12/24v installations (or 48v by series connections of panels).
PLEASE NOTE: SP-EN200W-24 are suitable for Charging 24V Battery System when using a PWM Solar Controller. For Charging a 12V Battery System a MPPT Solar Controller MUST be used.
A fly lead cable is provided for easy connection of the 10 & 20w panels while the larger panels have MC4 compatible solar cable connectors included.
Key Features:
- High Conversion Efficiency. Module efficiency up to 15.67% achieved through advanced cell technology and manufacturing capabilities.
- Positive Tolerance. Positive tolerance of up to -1%+~3% delivers higher output reliability.
- High PID Resistant. Advanced cell technology and qualified materials lead to high PID resistant.
- Current Sorting Process. System output maximised by reducing mismatch losses up to 2% with modules sorted and packaged by amperage.
- Extended Wind and Snow. Load tests Module certified to withstand extreme wind (2400 Pascal) and snow loads (5400 Pascal).
- Withstanding Harsh Environment. Reliable quality leads to a better sustainability even in harsh environments in the outdoors.
.png)
Specifications
SKU SP-EN200W-24V
Brand Enerdrive
GTIN 9342616026236
Warranty Period: 5 Years
Product Category Portable Solar Panels
Solar Panel Type Fixed Solar Panels
Solar Panel Cell Type Monocrystalline
Watts (W) 200
Test Conditions 1000W/m² , AM1.5 , 25°C
Open Circuit Voltage Voc(V) 43.7
Short Circuit Current Isc(A) 6.05
Net Weight (kg) 15
Max Power Current Im(A) 5.37
Voltage DC (V) 24V
Max System Voltage (VDC) 1000
Max Power Voltage Vm(V) 37.3
Dimensions 1580 x 808 x 40
Videos
Powering Your Trip With Caravan or Camping Solar Panels
Product Q&A
-
Why can't a PWM controller be used for this in a 12V system?
Hi There,
This is due to the way in which PWM controllers transfer power from solar panels.
If using a PWM you need to choose a panel that is just above the voltage required to charge the battery.
In this instance a 24V panel would produce too high a voltage for a 12V system when using a PWM, hence the requirement of an MPPT controller.
What’s the advantage of the 2 x 24 Volt 200 watt solar panels that can be used with the MPPT controller for my 12 volt battery system as opposed to the 2 x 12v 180 watt solar panels that are cheaper?The 24V panels have a slight advantage in low light conditions, ie early morning and late arvo (a few amp hours extra charge per day) You will also have 80W more in total (800W vs 720W).
