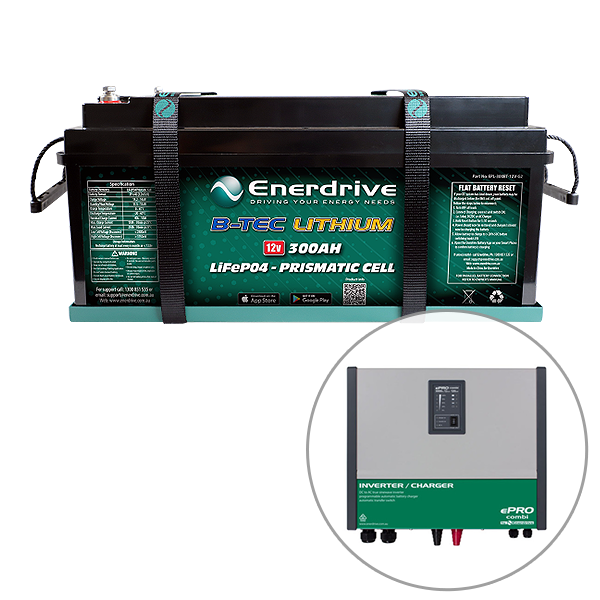

Enerdrive 3000W Inverter Charger & 1 x 300Ah B-TEC Battery
SKU: K-COMBI-3K-300 Learn More»Product Description
Enerdrive 3000W Inverter Charger & 300Ah B-TEC Batteries, 5 Year Warranty. The 300Ah lithium battery serves as the cornerstone of your energy storage system, with a 300 ampere-hour capacity. It is the source of electrical energy for powering your appliances and devices, regardless of whether your application is an RV, boat, or another off-grid setup.
The main task of the ePRO Combi Inverter Charger is to act as an uninterruptible AC power supply (UPS). In case of a grid/generator failure or disconnection, the ePRO Combi immediately stops charging the battery, releases the AC transfer switch and activates the inverter which takes over the supply to the connected loads. All this is achieved so fast, that even very critical loads like computers will continue to operate without any problems. In case the grid/generator is reconnected again and the voltage and frequency are within acceptable limits, the ePRO Combi activates the AC transfer switch and battery charger again, while deactivating the inverter. The connected loads are now supplied again by the grid/generator without any interruption.
Bundle Includes:

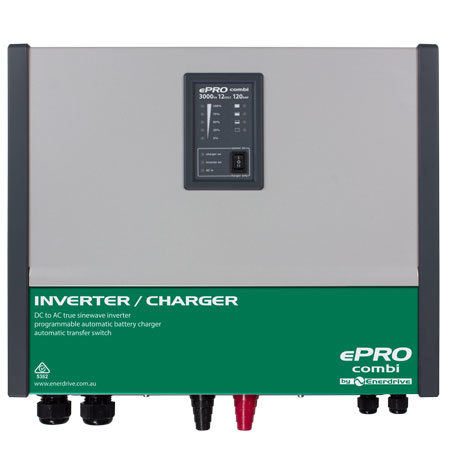

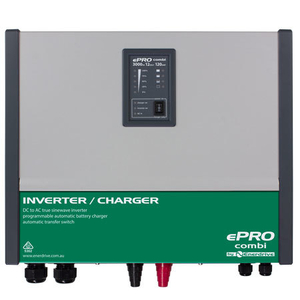

- EPC-3000-12, Enerdrive ePRO Inverter / Charger 3000W
- 5095500, Enerdrive ePRO Combi Universal Remote Control Panel
- EN3000C -Battery Cable Kit 1.0m 95mm for 3000 watt ePRO Combi 400A Class T Fuse

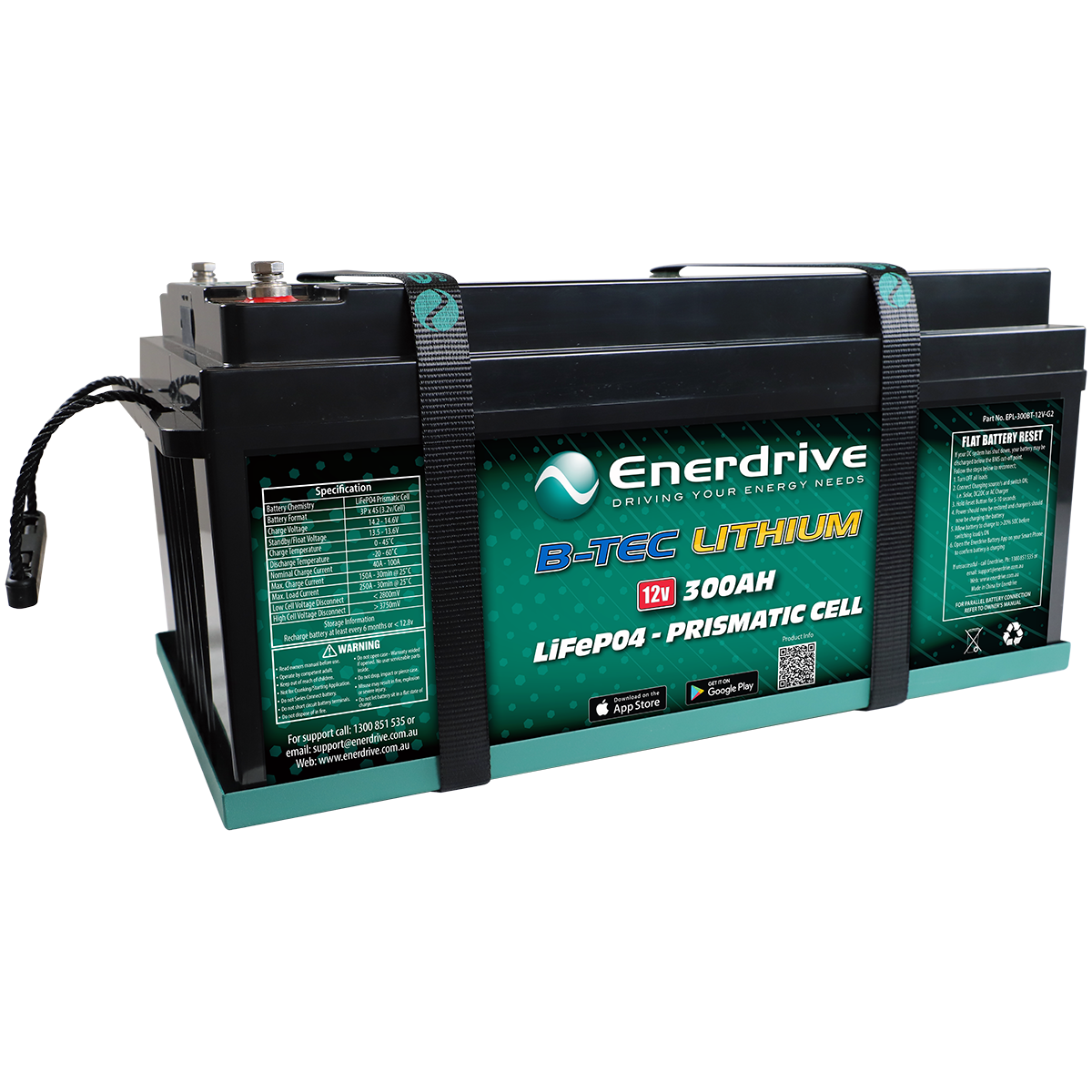

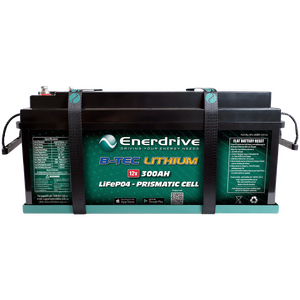

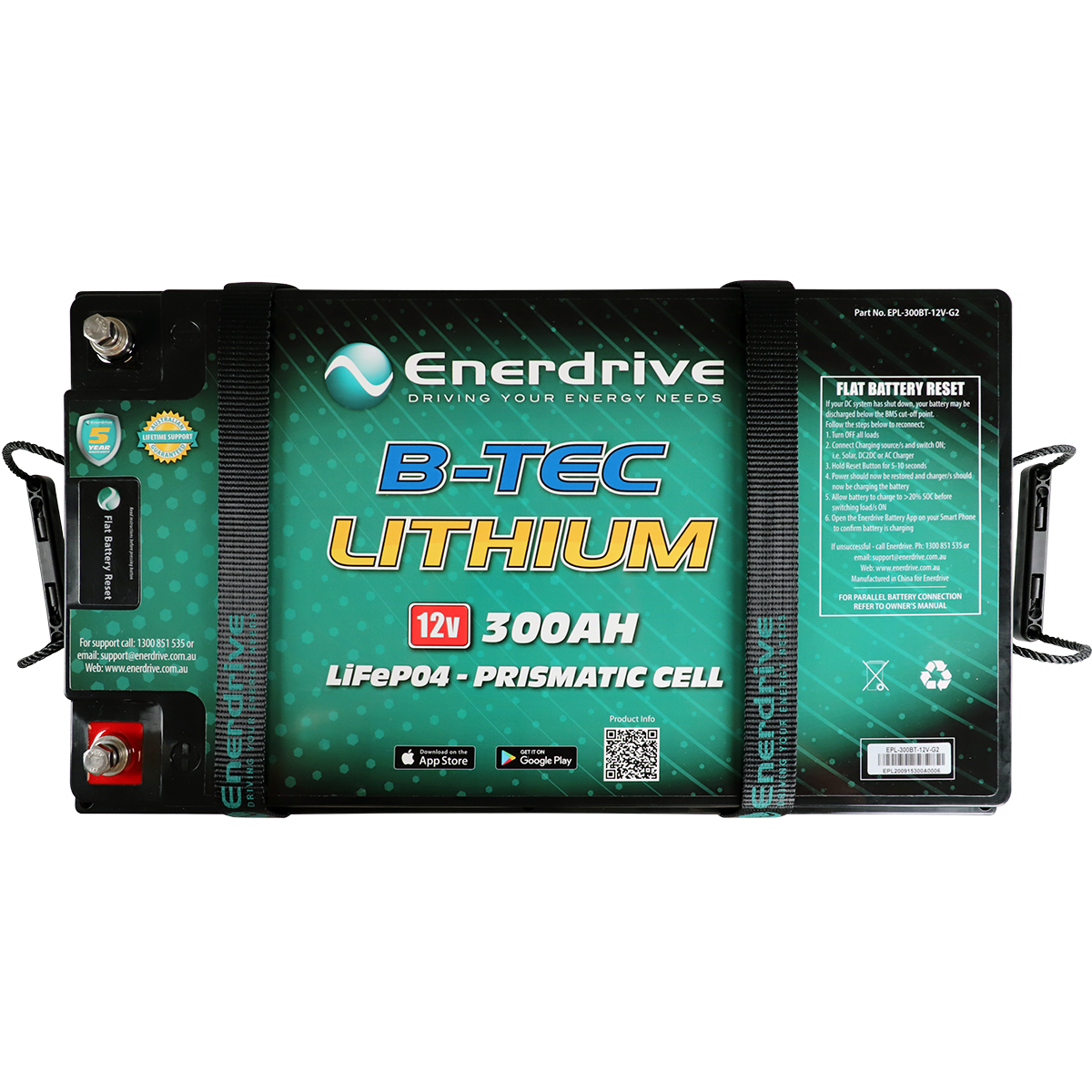

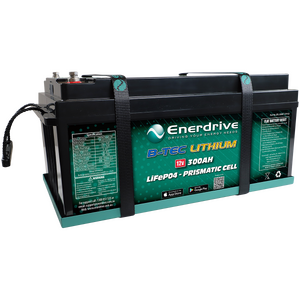

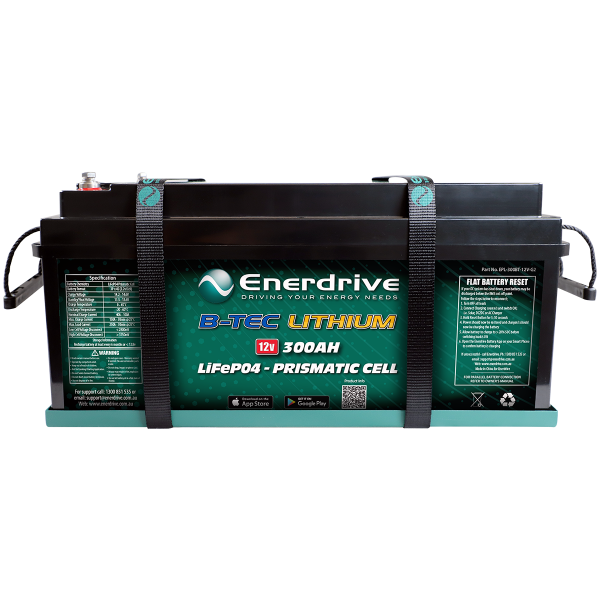

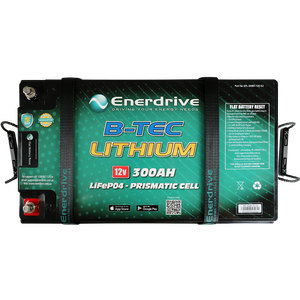

- EPL-300BT-12V-G2 - Enerdrive B-TEC 300Ah Lithium Battery

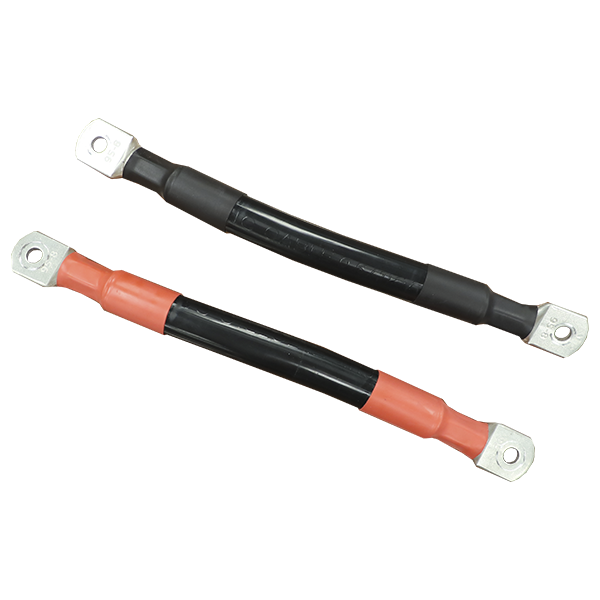

- ENC-KIT-PARALLEL-95-01 - Enerdrive 95mm2 x 200mm Battery Parallel Cable Kit, Positive & Negative
Here's how these components work together:
- When connected to an external AC power source, such as a generator or shore power, the inverter charger can also charge the lithium battery, replenishing its energy storage.
- The combined capacity of the 3000W inverter charger and the 300Ah lithium battery provides a reliable and powerful electrical system capable of meeting the demands of various applications, from powering household appliances to running sensitive electronics.
- It's important to ensure that the inverter charger and the lithium battery are compatible in terms of voltage, current, and charging protocols to ensure safe and efficient operation of the power system.
Bundles | K-COMBI-3K-03 | K-COMBI-3K-04 | K-COMBI-3K-05 |
EPC-3000-12 | * | * | * |
EPL-300BT-12V-G2 | 1 x | 2 x | 3 x |
ENC-KIT-PARALLEL-95-01 | 1 x | 2 x |
Inverter Charger Information:
Battery Information:
Specifications
SKU K-COMBI-3K-300
Brand Enerdrive
Warranty Period: 5 Years
Product Category Battery Bundle
Battery Voltage 12V
Amp Hours (Ah) 300
Battery Length (mm) 521
Battery Width (mm) 280
Battery Height (mm) 238
Battery Weight (kg) 38.2
Nominal Voltage 12.8V
Nominal Capacity 300Ah
Wattage (W) 3000
Cycle Life (DOD – 80% under controlled conditions) ≥ 2000 Cycles
Battery Charge Temperature 0 ̴ 45°C
Normal Charge Voltage CV/CC* 14.20 Ì´ 14.60V
Standby (Float) Voltage 13.50 Ì´ 13.80V
Maximum Charge Current 190A @ 25°C for 30mins
Recommended Charge Current for Maximum Life 60~120A
Battery Discharge Temperature -20 ̴ 60°C
Battery Output Voltage Range 11.00 Ì´ 14.60V
Maximum Discharge Current 250A @ 25˚C ±5˚C for 15 mins
Pulse Discharge Current 450A for 1.0s
Discharge Cut-off Voltage ≤11.20V
Over-Charge Protection Per Cell 3.90V ± 0.03V
Over-Charge Release Per Cell 3.60V ± 0.05V
Over-Charge Release Method Discharge below release voltage
Over-discharge Protection Per Cell 2.80V ± 0.05V
Over-discharge Release Per Cell 3.20V ± 0.05V
Over-discharge Release Method Apply Charge/Voltage ≥12.8V
Battery Manual Reset Button Yes
Discharge Over Current 280A for 25s – 400A for 3.5s
Protection Reset Time Approx 10s Auto Release
Over Current Release Method Disconnect Load
Battery Charge Over Temperature Protection to 55°C ± 5°C, Release at 45°C ± 5°C
Battery Discharge Over Temperature Protection to 65°C ± 5°C, Release at 50°C ± 5°C
Short Circuit Protection Auto release after 5s
Case Construction Hi Impact ABS Plastic
Temperature & Humidity Range ≤ 30 days -20°C ̴ 60°C, 5 ̴ 75% RH, ≥ 90 days -10°C ̴ 45°C, 5 ̴ 75% RH
