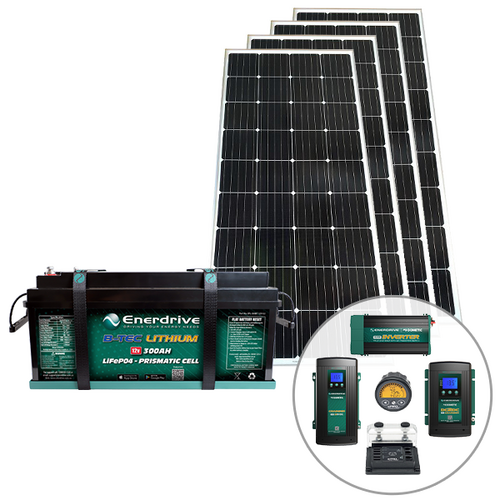

Enerdrive 300Ah Solar Off-Grid 4x4 Bundle with 2000W Inverter
SKU: SOLAR300-KIT Learn More»
Product Description
Enerdrive 300Ah Solar Off-Grid 4x4 Bundle, 5 Year Warranty. Introducing the Enerdrive 300Ah Solar Off-Grid 4x4 Bundle, the ultimate power solution designed to keep you fully equipped and energized during your off-road adventures. This comprehensive bundle includes cutting-edge components meticulously engineered by Enerdrive to ensure reliable performance and seamless integration

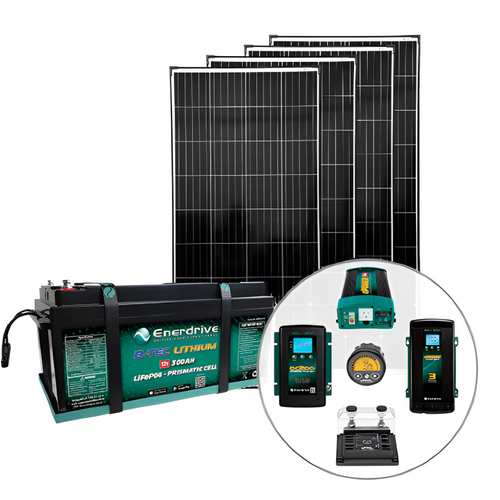

Bundle Includes:
- EPL-300BT-12V-G2 - Enerdrive B-TEC 300Ah Lithium Battery
- EN3DC40+ - Enerdrive 40A DC to DC Battery Charger
- EN31260 - Enerdrive 60A AC Battery Charger
- EN55050 - Enerdrive ePRO+ Battery Monitor
- 4 x SP-EN190W-B - Enerdrive 190W Black Monocrystalline Fixed Solar Panel
Optional Inverter:
- EN1120S-X - Enerdrive 2000W Pure Sine Wave Inverter with RCD & AC Transfer Switch
- EN1226S-X - Enerdrive 2600W Pure Sine Wave Inverter with RCD & AC Transfer Switch

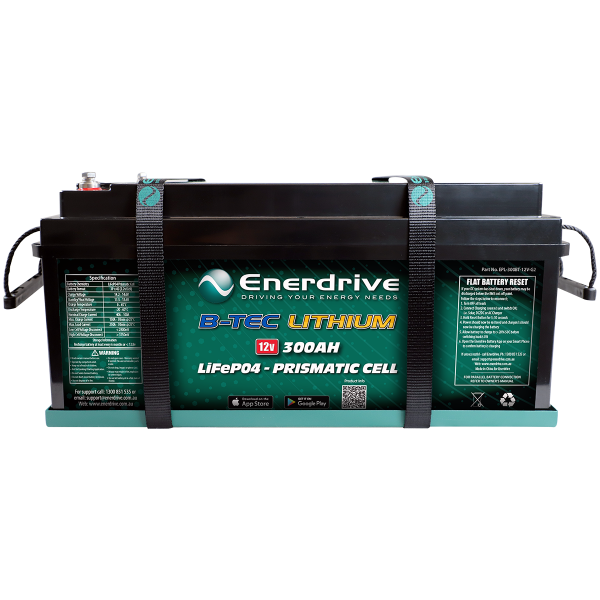

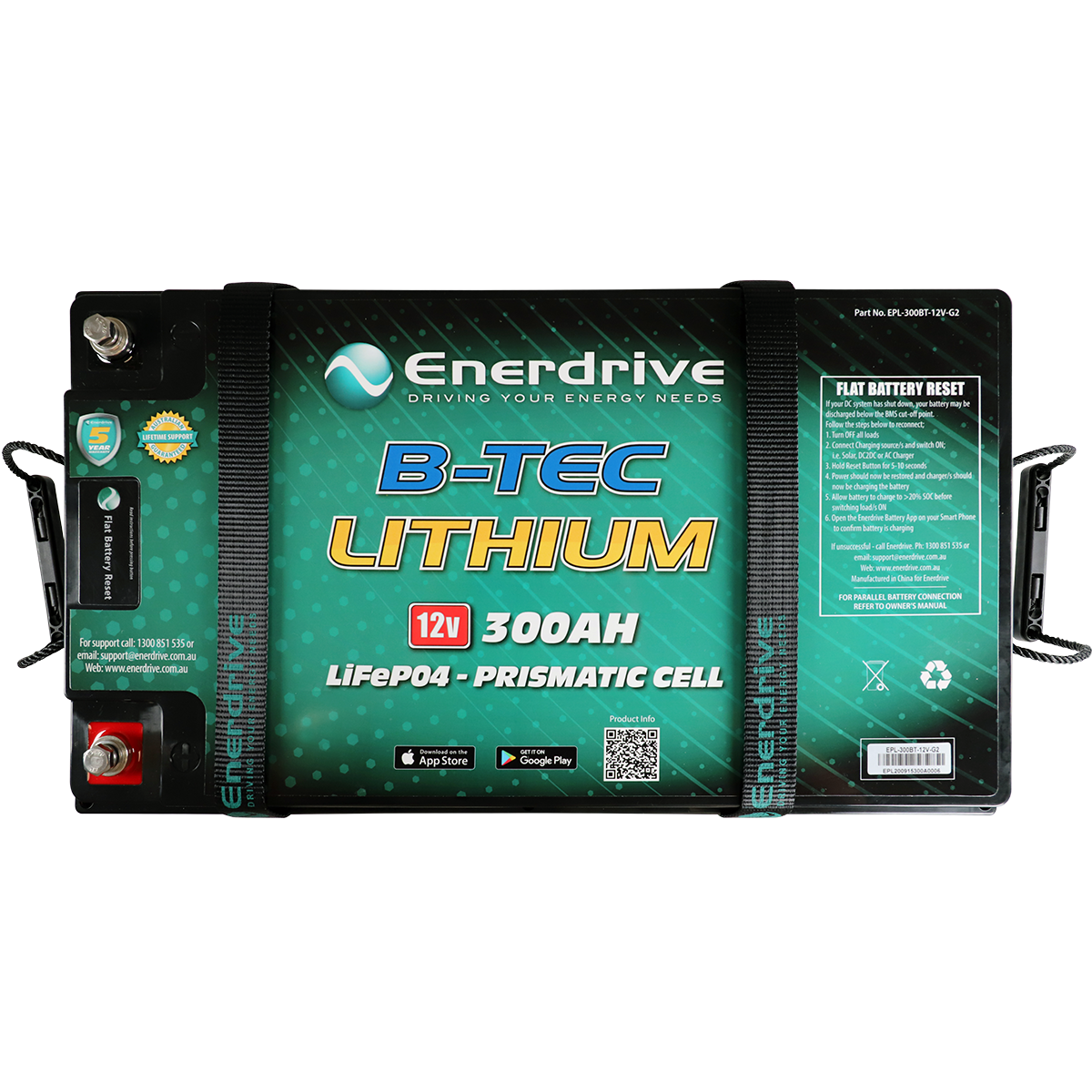

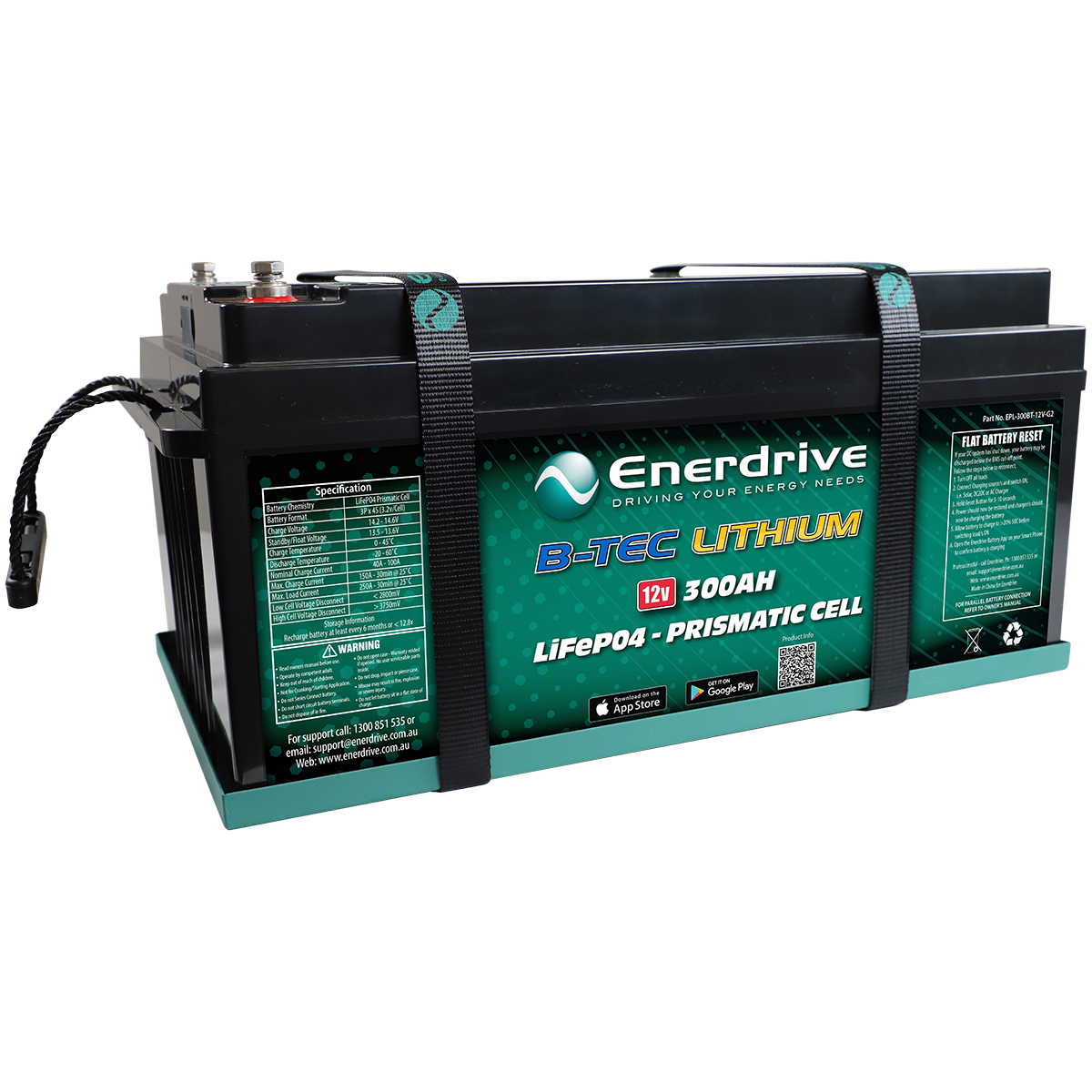

At the core of this bundle is the EPL-300BT-12V-G2 Enerdrive B-TEC 300Ah Lithium Battery, featuring a new design BMS and a maximum discharge current of 250A (15mins) - 200A continuous. With the ability to be connected in parallel (up to 4 batteries), this lithium battery provides ample power for all your off-grid needs. Plus, its built-in flat battery reset button and communication ports (RS485) for future integration make it a versatile and user-friendly choice.

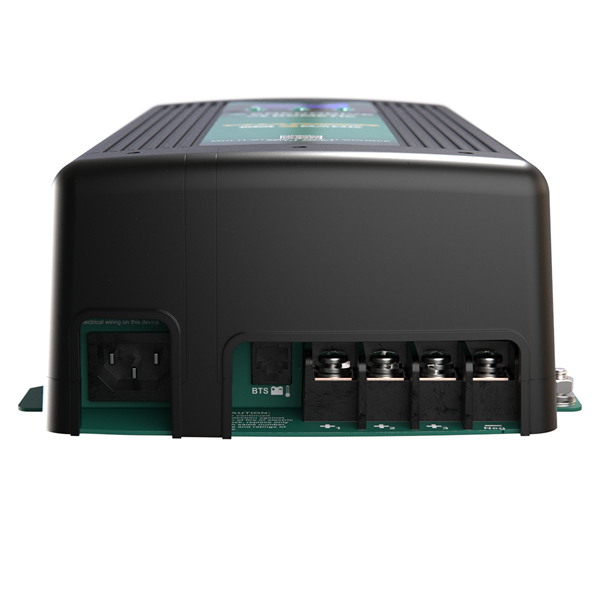

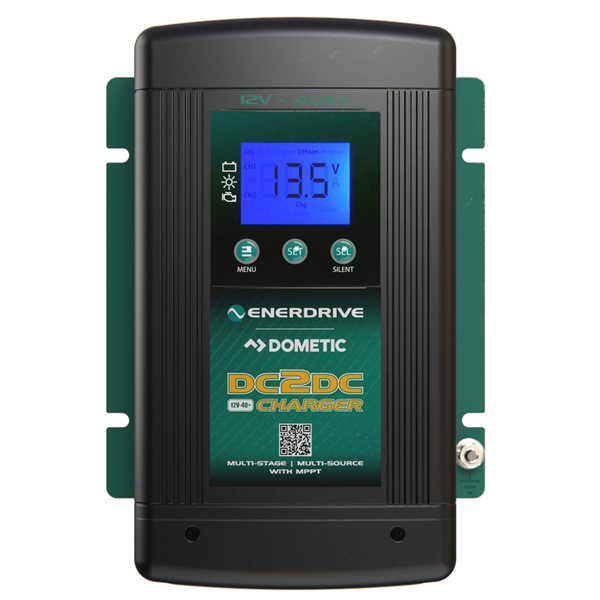

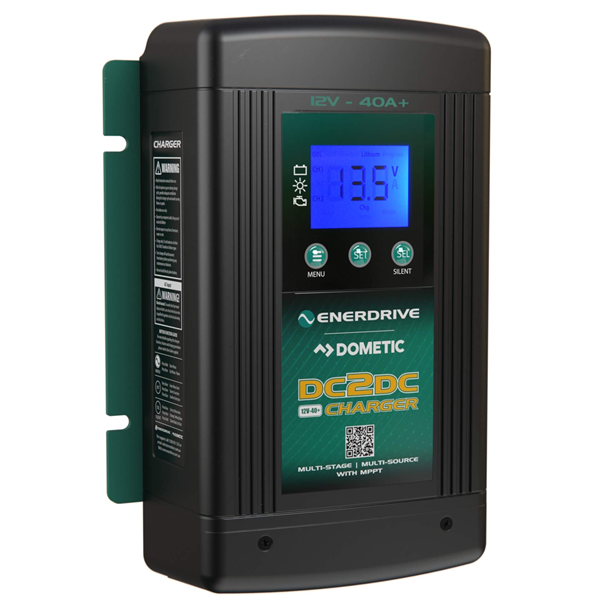

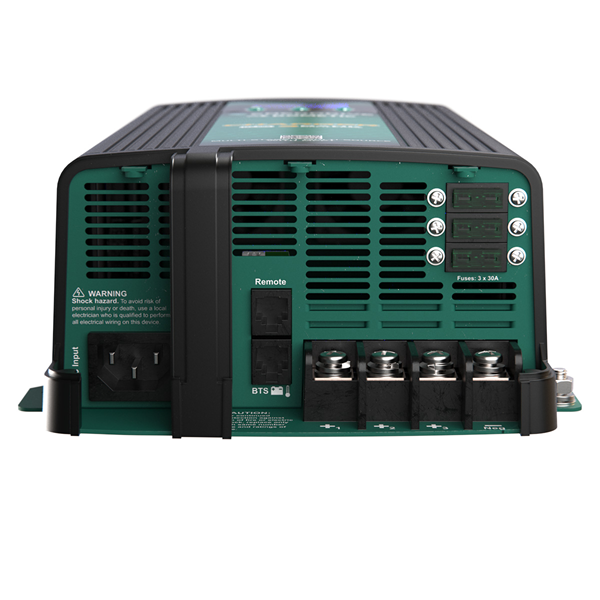

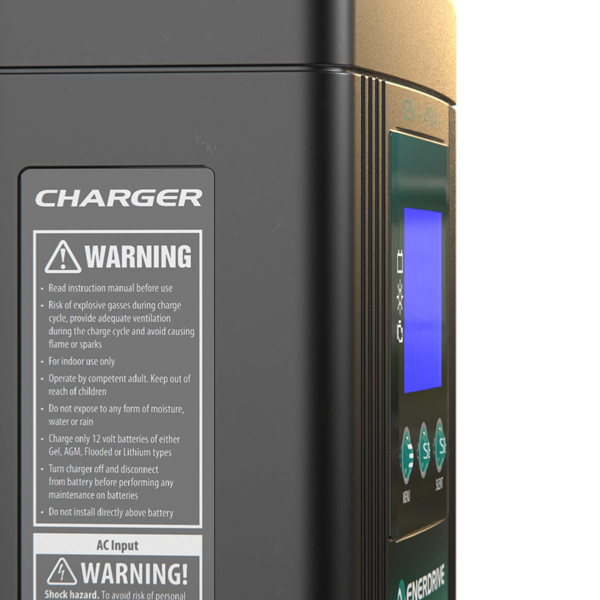

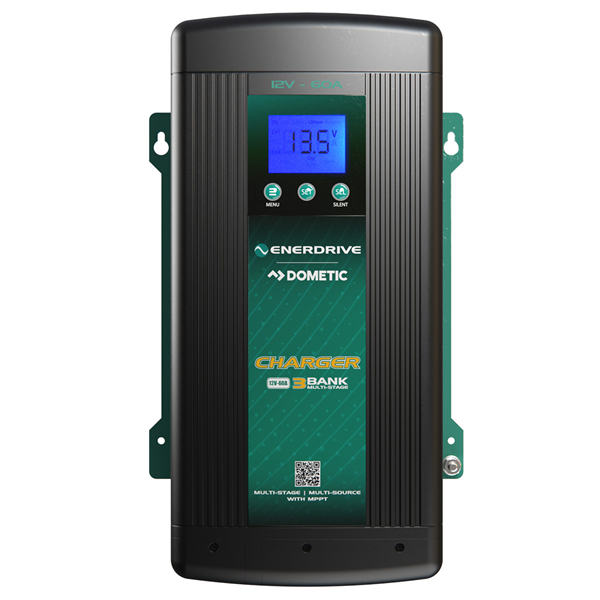

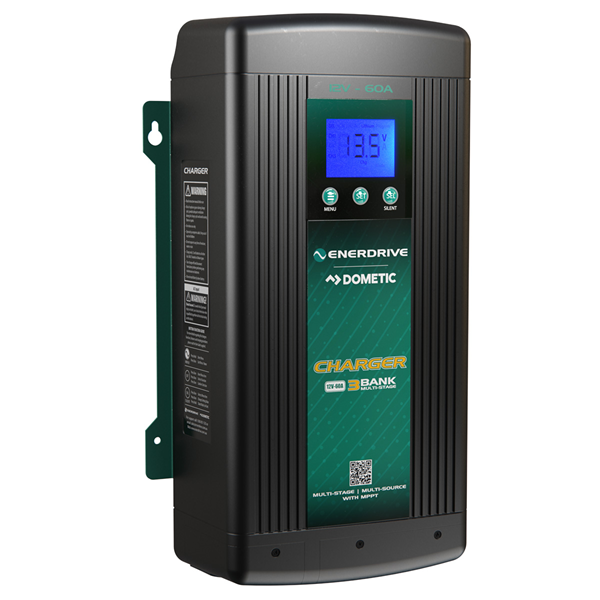

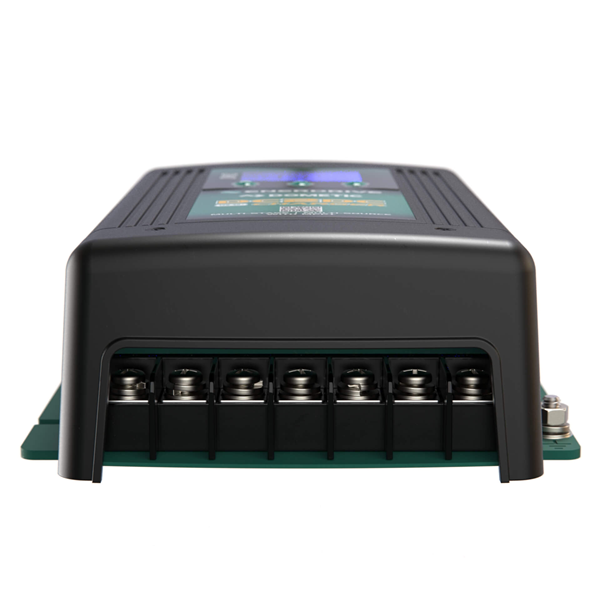

Keeping your battery bank charged and optimized is effortless with the inclusion of the EN3DC40+ 40A DC to DC Battery Charger and the EN31260 60A AC Battery Charger. These chargers offer multistage smart charging technology, ensuring fast and accurate charging while maximizing the life of your batteries. The EN3DC40+ features two totally independent DC inputs for both engine and solar regulation charging, while the EN31260 boasts fully programmable LCD display and separate battery bank charging capabilities.

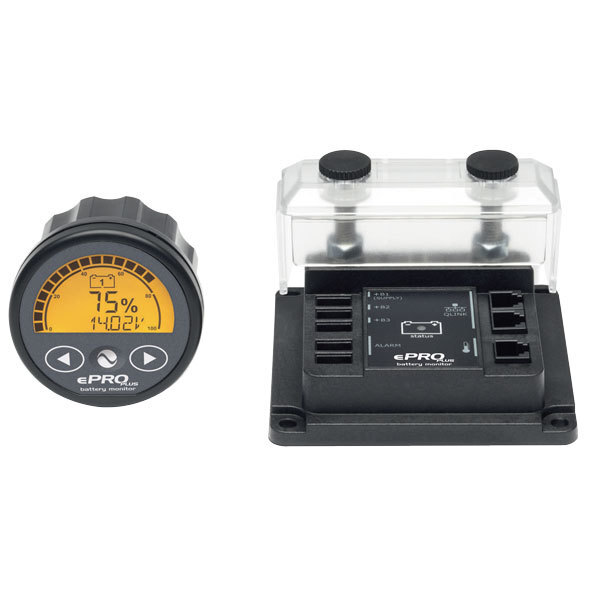

Monitoring your power system is made easy with the EN55050 ePRO+ Battery Monitor. This advanced battery monitor provides complete battery status information at a glance, including percentage, voltage, current, ampere-hour, wattage, temperature, and more. With support for up to three battery banks and simple 'Plug and Play' installation, the ePRO+ ensures optimal supervision of your battery system.

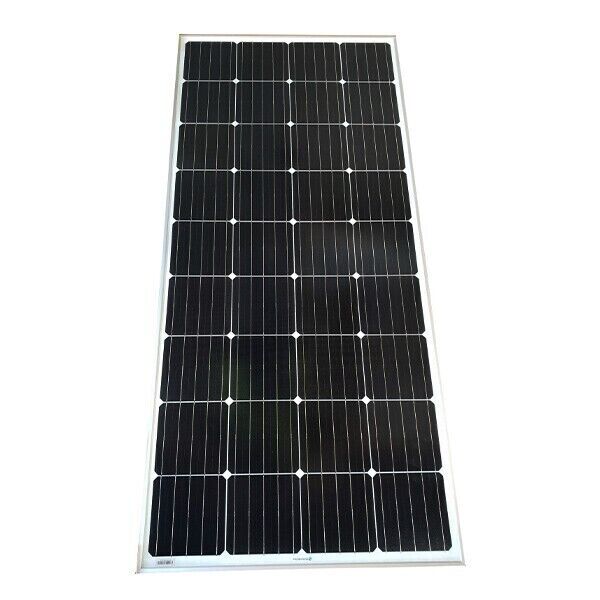

To harness the power of the sun, this bundle includes four SP-EN190W-B Enerdrive 190W Black Monocrystalline Fixed Solar Panels. These high-efficiency solar panels are designed to withstand harsh outdoor environments and deliver reliable performance even in challenging conditions.

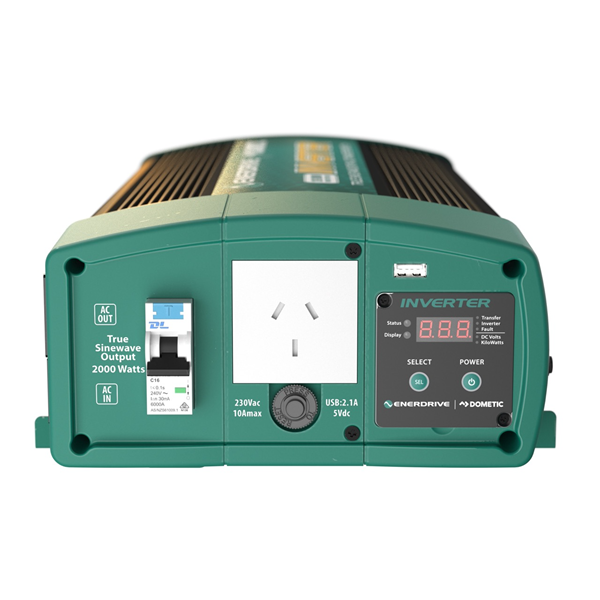

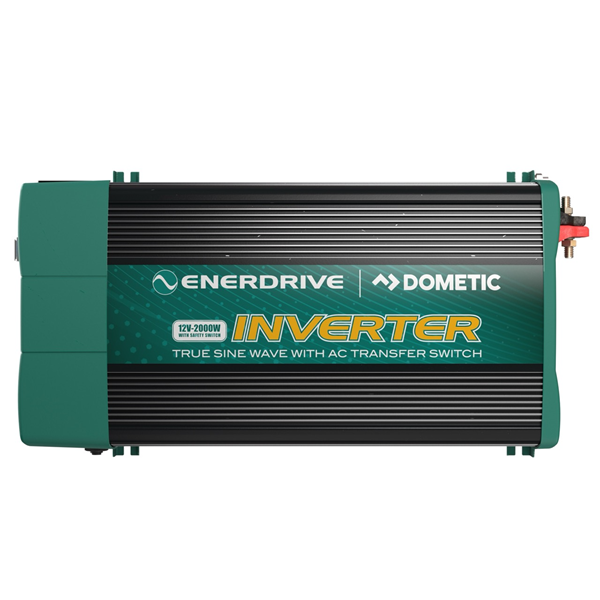

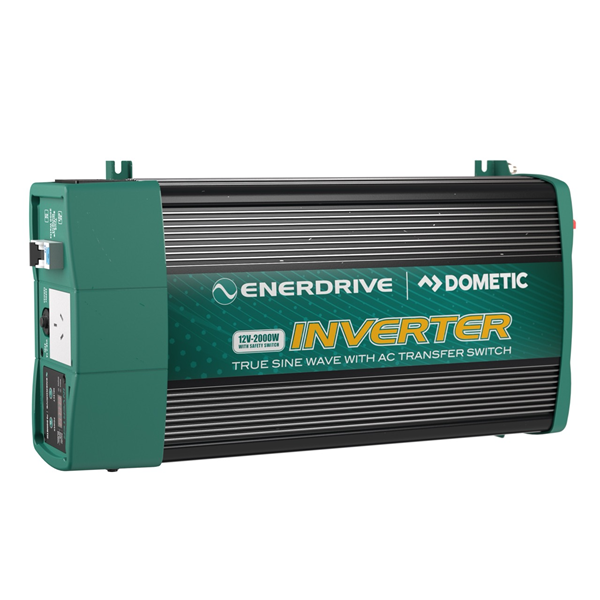

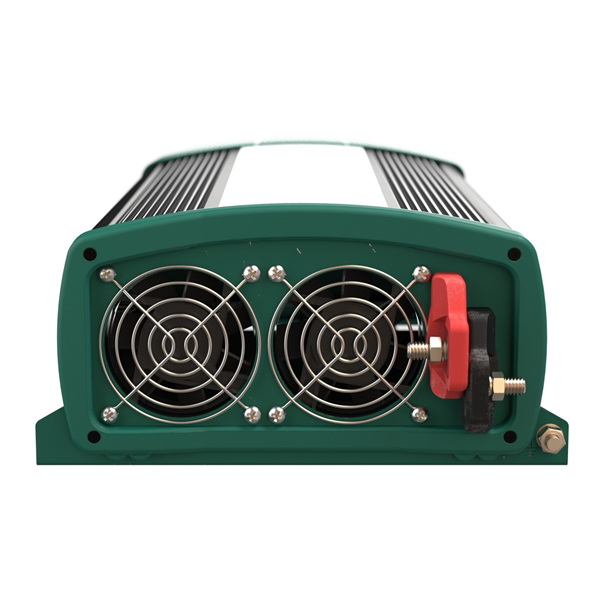

For added convenience, you can choose from two optional inverters: the EN1120S-X 2000W Pure Sine Wave Inverter with RCD & AC Transfer Switch or the EN1226S-X 2600W Pure Sine Wave Inverter with RCD & AC Transfer Switch. These inverters provide regulated pure sine wave output, seamless AC transfer, and silent operation, making them ideal for powering a wide range of appliances and devices.
With the Enerdrive 300Ah Solar Off-Grid 4x4 Bundle, you can embark on your off-road adventures with confidence, knowing that you have a reliable and comprehensive power solution to keep you charged and connected wherever the trail leads.
| Bundles | SOLAR300-KIT-2000X | SOLAR300-KIT-2600X |
| EPL-300BT-12V-G2 | * | * |
| EN3DC40+ | * | * |
| EN31260 | * | * |
| EN55050 | * | * |
| 4 x SP-EN190W-B | * | * |
| EN1120S-X | * | |
| EN1226S-X | * |
Battery Manual:
DC Charger Manual:
AC Charger Manual:
Battery Monitor Manual:
Solar Panel Information:
Specifications
SKU SOLAR300-KIT
Brand Enerdrive
Warranty Period: 5 Years
Product Category Battery Bundle
Battery Voltage 12V
Amp Hours (Ah) 300
Battery Length (mm) 521
Battery Width (mm) 280
Battery Height (mm) 238
Battery Weight (kg) 38.2
Solar Panel Type Fixed Solar Panels
Solar Panel Cell Type Monocrystalline
Watts (W) 760
DC Charger Output Current Rating (Amps) 40
AC Charger Output Current Rating (Amps) 60
Nominal Voltage 12.8V
Nominal Capacity 300Ah
Wattage (W) 2600
Wattage (W) 2000
Cycle Life (DOD – 80% under controlled conditions) ≥ 2000 Cycles
Battery Charge Temperature 0 ̴ 45°C
Normal Charge Voltage CV/CC* 14.20 Ì´ 14.60V
Standby (Float) Voltage 13.50 Ì´ 13.80V
Maximum Charge Current 190A @ 25°C for 30mins
Recommended Charge Current for Maximum Life 60~120A
Battery Discharge Temperature -20 ̴ 60°C
Battery Output Voltage Range 11.00 Ì´ 14.60V
Maximum Discharge Current 250A @ 25˚C ±5˚C for 15 mins
Pulse Discharge Current 450A for 1.0s
Discharge Cut-off Voltage ≤11.20V
Over-Charge Protection Per Cell 3.90V ± 0.03V
Over-Charge Release Per Cell 3.60V ± 0.05V
Over-Charge Release Method Discharge below release voltage
Over-discharge Protection Per Cell 2.80V ± 0.05V
Over-discharge Release Per Cell 3.20V ± 0.05V
Over-discharge Release Method Apply Charge/Voltage ≥12.8V
Battery Manual Reset Button Yes
Discharge Over Current 280A for 25s – 400A for 3.5s
Protection Reset Time Approx 10s Auto Release
Over Current Release Method Disconnect Load
Battery Charge Over Temperature Protection to 55°C ± 5°C, Release at 45°C ± 5°C
Battery Discharge Over Temperature Protection to 65°C ± 5°C, Release at 50°C ± 5°C
Short Circuit Protection Auto release after 5s
Case Construction Hi Impact ABS Plastic
Temperature & Humidity Range ≤ 30 days -20°C ̴ 60°C, 5 ̴ 75% RH, ≥ 90 days -10°C ̴ 45°C, 5 ̴ 75% RH
