Enerdrive 40A AC & DC RV80 DIY Installation Kit
SKU: K-RV-80-KIT Learn More»
Product Description

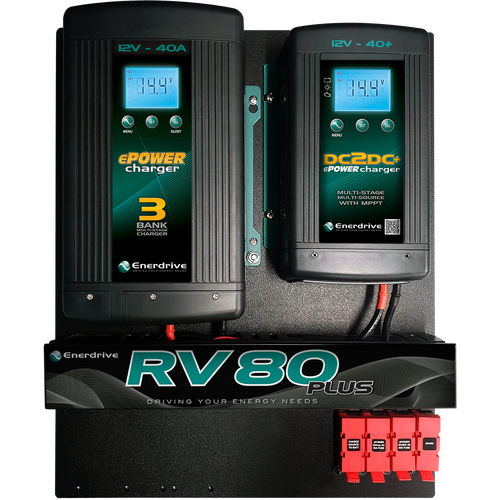

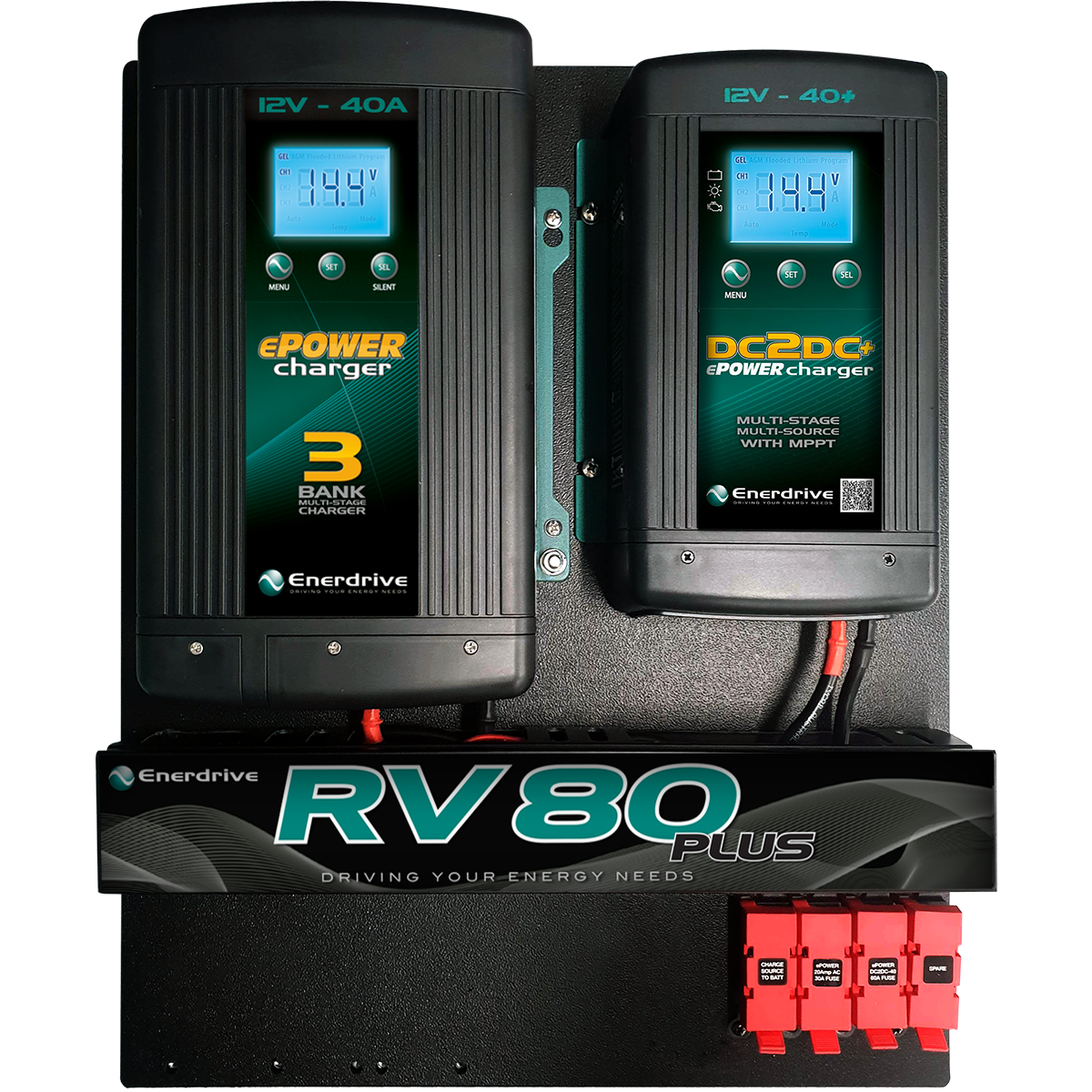

Enerdrive RV80 DIY Installation Kit with 40A DC2DC & 40A AC Battery Charger with Lithium Battery Option, 5 Year Warranty. Introducing Enerdrives RV Installation Kits for 4WD Canopies, Caravans, Camper Trailers, Commercial Work Vehicles and more.
Enerdrive have created many different layouts to fit nearly every possible application. Designed for the DIY handyman with basic electrical knowledge through to the professional looking to save installation time. You can choose kits ranging from 20A AC & 40A DC chargers through to 40A AC & DC units with monitoring and Low Battery Cutout.
These kits are all pre-wired by Enerdrive where possible to keep the kits simple to install. All RV boards have a full wiring diagram showing each circuit and where to connect your loads, battery and inverter cabling. All items are mounted on a 12mm Black plastic (water & rot resistant) board for simple mounting into the application.
Enerdrive also have you covered from a service and support angle with the RV Installation kits. Designed, constructed and pre-wired by Enerdrive, we know exactly the layout and wiring of your kit so any fault finding or support can be given quickly and concisely.
PRO TIP: Common accessories to go with this canopy system are; one or two AGM Board Cable Kits. Thickness, length & quantity will depend on installation type. Please check products cable description for details.

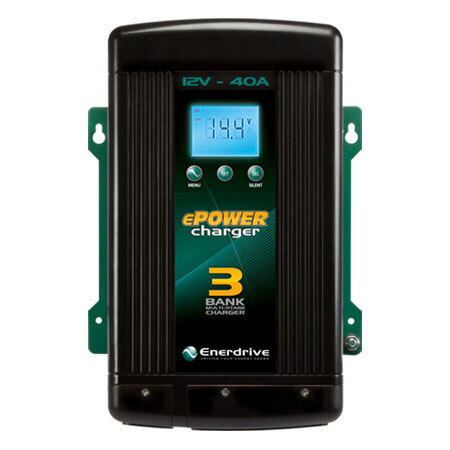

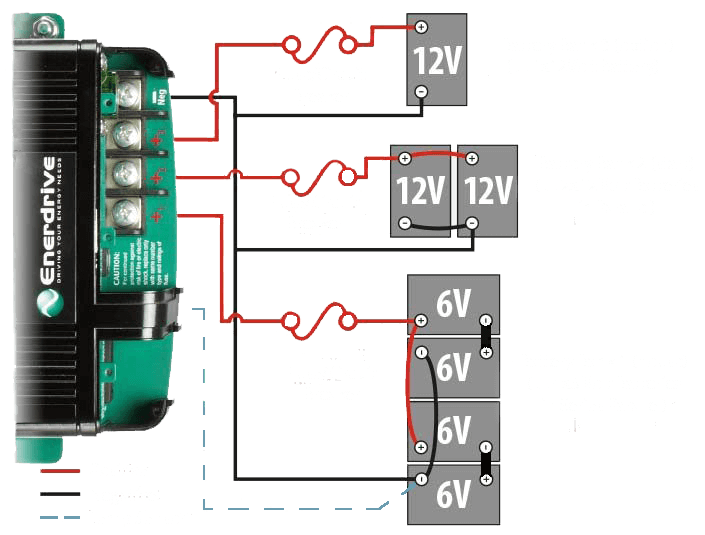

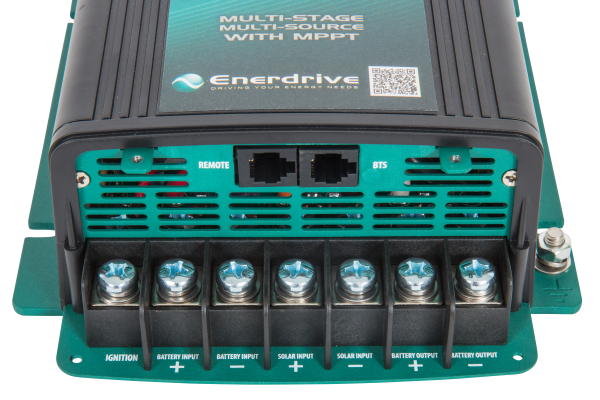

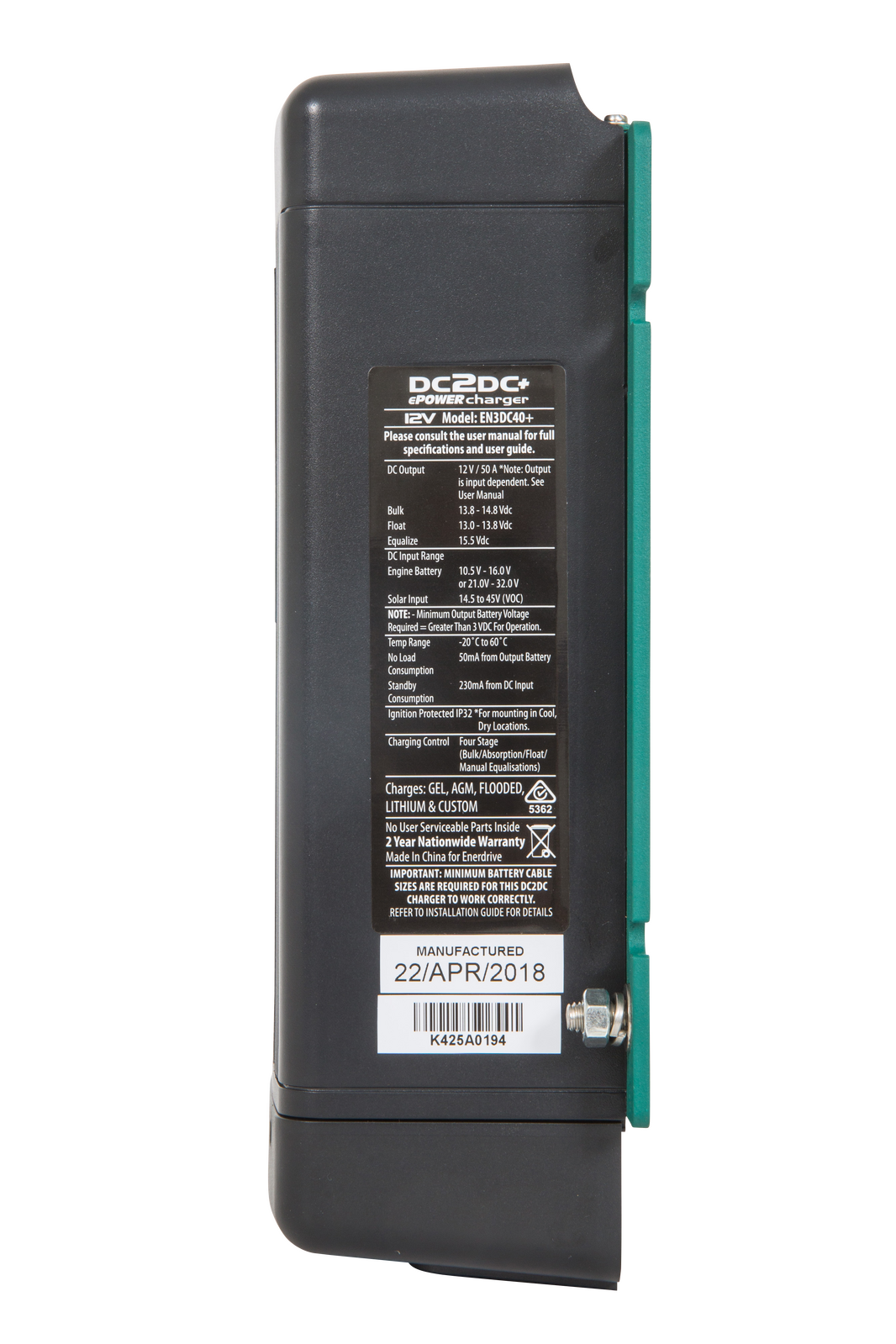

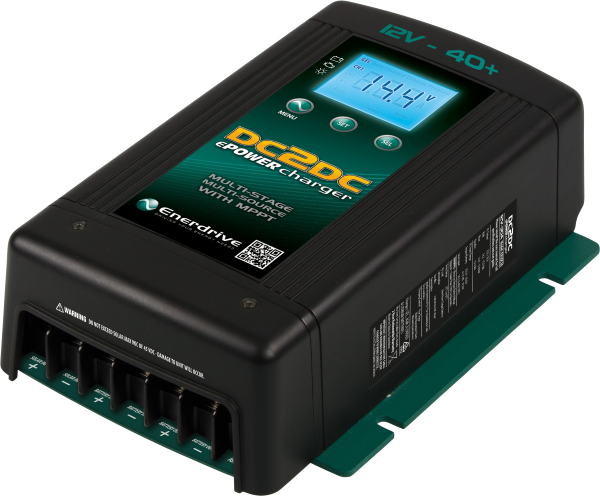

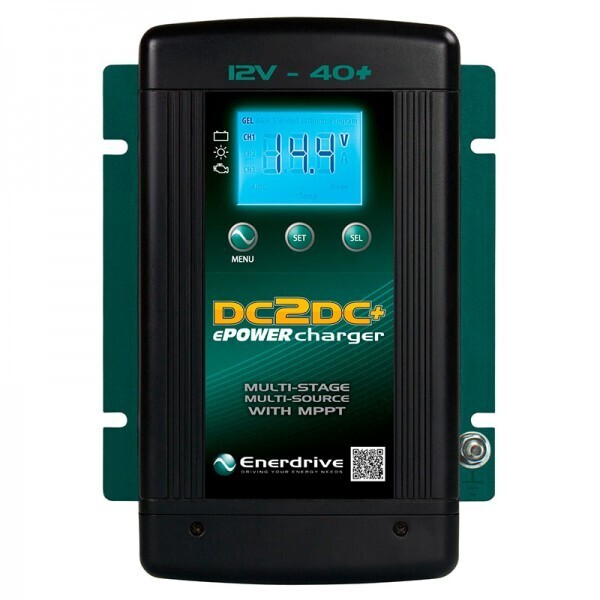

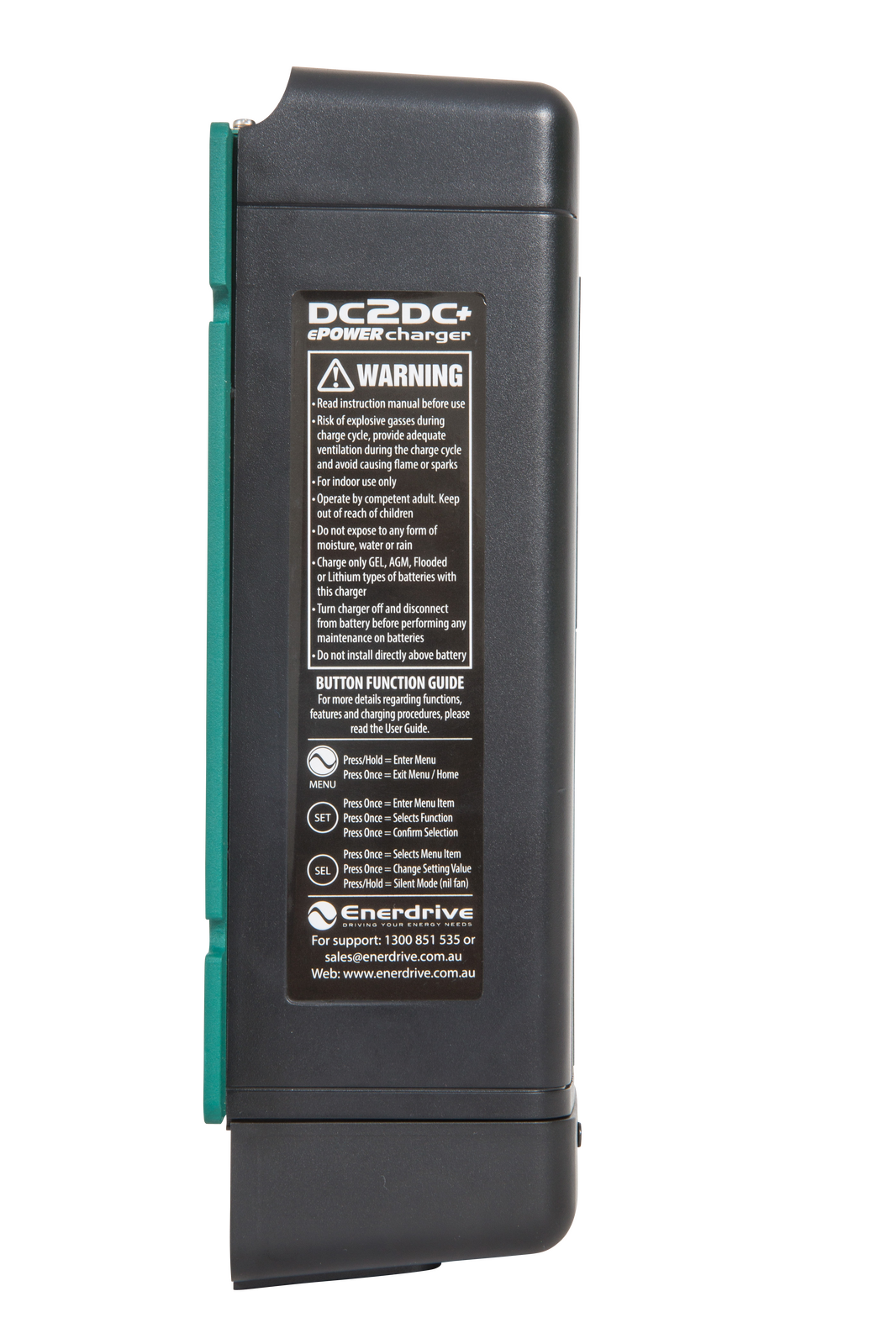

| RV80 Kits Includes: | K-RV080 | K-RV080-01 | K-RV080-02 | K-RV080-03 |
|---|---|---|---|---|
| ePOWER AC 40Amp 230v Charger | * | * | * | * |
| ePOWER DC2DC 40+ Charger (Vehicle/Solar) | * | * | * | * |
|
ePRO Plus 500A Battery Monitor with Remote Display, with |
* | * | * | |
| ePOWER AC Charger 50A Output Fuse Connection | * | * | * | * |
| ePOWER DC2DC 60A Output Fuse Connection | * | * | * | * |
| 50A Load Output Fuse Connection | * | * | * | * |
| 8 Circuit "Wedge" Fuse Block | * | |||
| Low Battery Cutout (Programmed in ePRO Plus via Users Data Input) |
* | |||
| 12mm Black Plastic Mounting Board. Water & Rot Resistance | * | * | * | * |
| Dimensions (L x W x D) mm | 480 x 400 x 100 | 480 x 400 x 100 | 480 x 400 x 100 | 480 x 400 x 100 |
| (*) Indicates Standard Fitment | ||||
RV80 Wiring Diagram:
RV80-01 Wiring Diagram:
RV80-02 Wiring Diagram:
RV80-03 Wiring Diagram:
Specifications
SKU K-RV-80-KIT
Brand Enerdrive
GTIN 9342616000816
Warranty Period: 5 Years
Product Category Power Systems
Nominal Voltage 12.8V (100Ah,125Ah & 200Ah Battery)
Nominal Capacity 125Ah (100Ah Battery) | 125Ah (125Ah Battery) | 200Ah (200Ah Battery)
Cycle Life (DOD – 80% under controlled conditions) ≥ 2000 Cycles (100Ah, 125Ah & 200Ah Battery)
Battery Charge Temperature 0 ̴ 45°C (100Ah, 125Ah & 200Ah Battery)
Normal Charge Voltage CV/CC* 14.40 Ì´ 14.60V (100Ah, 125Ah & 200Ah Battery)
Standby (Float) Voltage 13.50 Ì´ 13.60V (100Ah Battery) |13.50 Ì´ 13.80V (125Ah & 200Ah Battery)
Maximum Charge Current 60A @ 25°C for 30mins (25Ah Battery) | 150A @ 25°C for 30mins (200Ah Battery)
Recommended Charge Current for Maximum Life ≤ 40A (100Ah & 125Ah Battery) | ≤ 60A (200Ah Battery)
Battery Discharge Temperature -20 ̴ 60°C (100Ah, 125Ah & 200Ah Battery)
Battery Output Voltage Range 11.00 Ì´ 14.60V (100Ah, 125Ah & 200Ah Battery)
Maximum Discharge Current 80A @ 25°C for 30mins (100Ah Battery) | 100A @ 25°C ± 5°C for 30mins (100Ah & 125Ah Battery) | 200A @ 25°C ± 5°C for 30mins (200Ah Battery)
Pulse Discharge Current 450A for 1.0s (100Ah, 125Ah & 200Ah Battery)
Discharge Cut-off Voltage ≤11.20V (100Ah, 125Ah & 200Ah Battery)
Temperature Setting Low/ Normal/ High (Battery Temperature Sensor Standard) (DC Charger) | Hot, Normal, Cold (no sensor connected) (AC Charger)
Charger Efficiency 95% (DC Charger) | > 82% (AC Charger)
Total Charge Current Max 150A @ 25°C for 30mins (200Ah Battery)
Over Temperature Protection Yes, unit de-rated and shutdown (AC Charger)
AC Input Frequency Range 47 – 63 Hz (AC Charger)
Power Factor Correction Yes (AC Charger)
Reverse Polarity Yes, (with user replaceable fuse/s) (AC Charger)
Over Charge Yes, unit shutdown (AC Charger)
Output Short Circuit Yes, (with user replaceable fuse/s) (AC Charger)
Battery Temp Sensor Port RJ12 (standard battery temp. sensor supplied) (AC Charger)
AC Input Connection IEC with Supplied 1.2M Power Lead (AC Charger)
DC Output Connection Heavy Duty Terminal (3 banks) – Pan Heads 6mm Thread (AC Charger)
DC Output Ground Single Heavy Duty Common Ground Stud (AC Charger)
Output Current Rating 40Amps (DC Charger)
Standby Current < 2 mA (AC Charger)
DC Output Single (DC Charger) | Three (1 fully independent, 2 common with diode isolation) (AC Charger)
Dimensions 480 x 400 x 100 mm (LxWxD) (Unit)
Humidity 5-95%, relative humidity non-condensing (AC Charger)
Dimensions (LxWxH mm) 242 x 172 x 74mm (DC Charger) | 295 x 206x 86mm (AC Charger) | 65 x 41 x 82 mm (Low Battery Cutout) | 318 x 165 x 215 mm (100Ah Battery) | 318 x 165 x
Operating Range (temp) -20° to 60° C (AC Charger)
AC Input Voltage 90 to 265 VAC (AC Charger)
LCD Display Charging status, Battery Voltage, Output Current & Fault Codes. (AC Charger)
Output System Voltage 12V (AC & DC Charger)
Float 13.0V - 13.8V (DC Charger) | 13.4V - 13.8V (AC Charger)
Selectable Battery Type Gel, AGM, Flooded, Lithium, Program (AC & DC Charger)
Charging Control Three Stages (DC Charger) | Four stages (Bulk/Absorption/Float/Maintenance), Two stages (Bulk/Absorption)Constant Power Supply (Program setting), Prio
Ingress Protection IP32 (Basic drip proof in vertical orientation) (AC Charger)
AC Input Operating Range 207-265 Vac (3.8 A Max)90 – 125 Vac (7.7 A Max) (AC Charger)
Power consumption (DC 12V) 700W (Full Load) (AC Charger)
Cooling Forced air ventilation (thermo controlled fan) (AC Charger)
Voltage 12 / 24V (Low Battery Cutout) | Max. 32V DC (Fuse Block)
Storage Range (temp) -40° to 70° C (AC Charger)
Charger Mode Output Voltage 13.8V - 15.5V (DC Charger) | 14.2V - 15.5V (AC Charger)
Equalize 15.5V (DC Charger) | 16V (AC Charger)
