Enerdrive 40A DC to DC Battery Charger with Midi Fuse Installation Kit

Product Description

Enerdrive 40A DC to DC Battery Charger with Midi Fuse Installation Kit, 5 Year Warranty.

This kit has been designed for in-vehicle installation.

Kit Includes:

• Enerdrive DC2DC Battery Charger - 12V 40A, EN3DC40+
• 16mm ² Twin Core Cable 6 Meters
• 16MM – 8mm Diameter Cable Lugs x12 Pieces

• 2 x Enerdrive Modular Fuse Holder (Fuse Module)

• 1 x 60A Blade Fuse
• 1 x 70A Blade Fuse

Enerdrive DC2DC Battery Charger

Enerdrive ePOWER 12V 40A DC to DC Battery Charger designed to meet the rugged demands of Australian conditions and delivering multiple source charging for DC systems.

The Enerdrive ePOWER DC2DC Battery Charger is a fully automatic multistage, multi input battery charger with the ability to charge from either an alternator linked to a battery; or via solar power with the in built Maximum Power Point Tracking (MPPT) Solar Controller.

12V 40A DC2DC Battery Charger Features

• Two totally independent DC Inputs for both engine and solar regulation charging one house battery bank output
• DC M6 screw terminals that will allow for large battery cable connection between all sources
• A dedicated Maximum Power Point (MPPT) solar regulator
• The same battery algorithms as included in Enerdrives AC mains ePOWER battery charger including a specific lithium charging profile
• 40A output up to 40+°C with thermo controlled fan cooling
• Fully programmable LCD display to show which source is charging the battery along with charger status, voltage and amperage
• Temperature sensor included in charger for more accurate battery charging

For In Vehicle & Marine Wiring Diagram, click below:

For Towed Vehicle Wiring Diagram, click below:

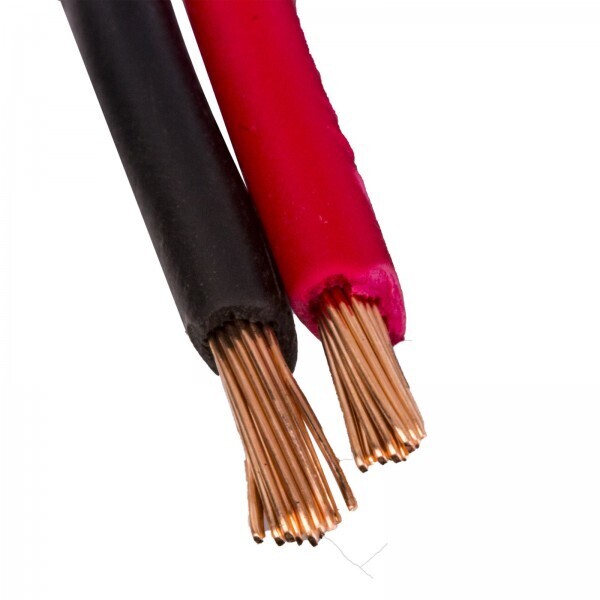

Enerdrive 16mm2 Solar Grade Twin Core Cable

• Enerdrive 16mm2 Solar Grade Twin Core Cable, 6 Metres

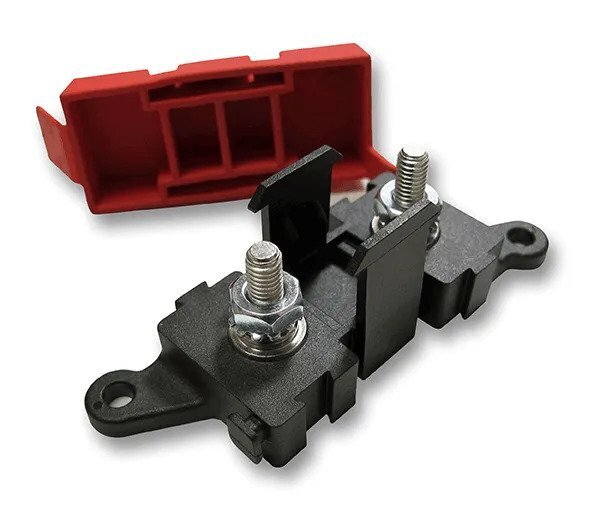

2 x Enerdrive Modular Fuse Holder (Fuse Module)

Bussmann now offers a heavy duty fuse panel called the LMI “Little Block”. The LMI is used for main branch primary fusing and industry standard Midi fuses. The LMI can be configured to fit up to 6 all bussed to a single input stud provides efficient power distribution suitable for many “under the hood” applications such as; Marine, Construction, Agriculture, Heav Trucking, Bus and Specialty Vehicles.

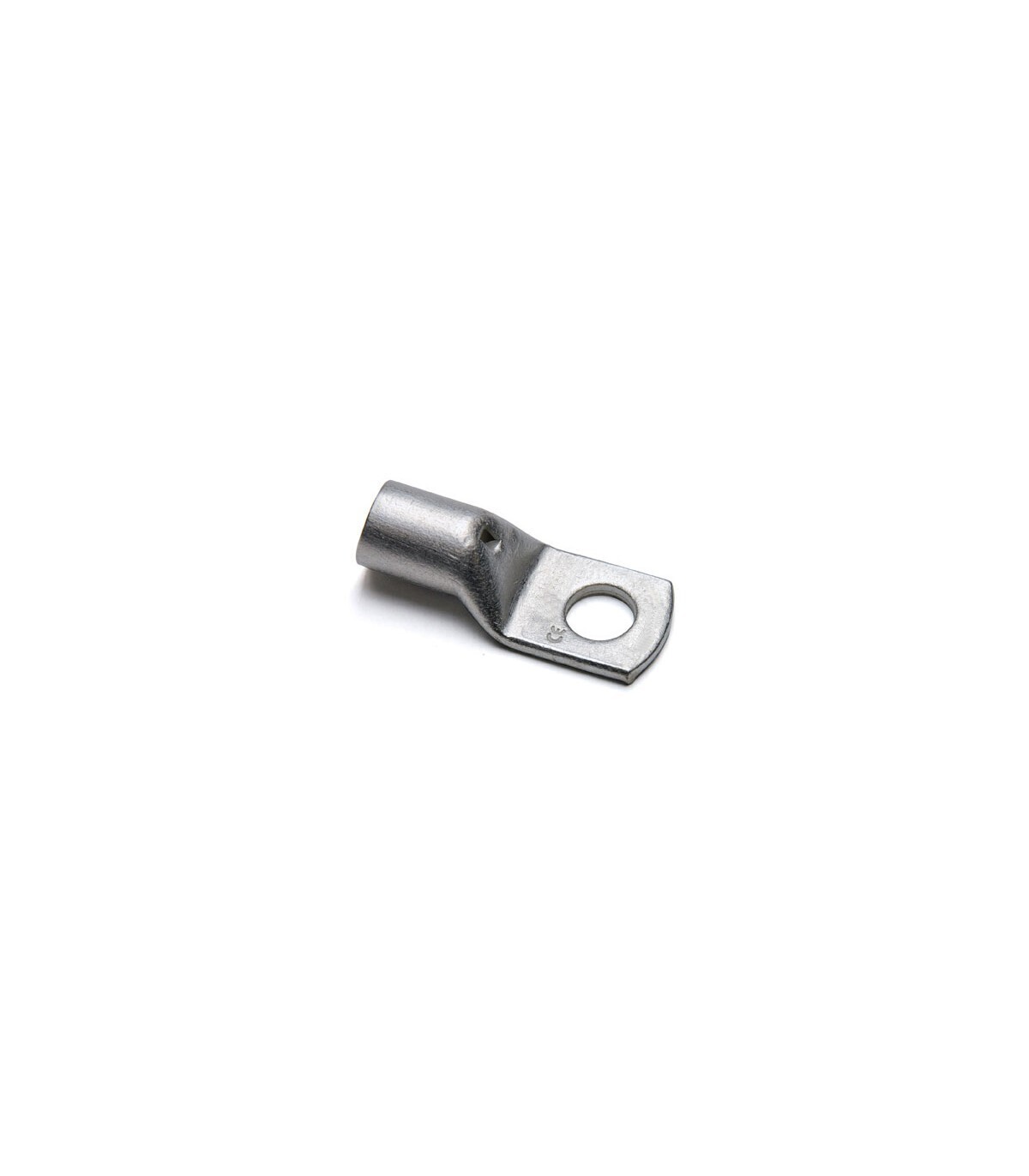

12 x Enerdrive 16mm2

This cable lug suits with:

• 16mm2 cable
• 10mm stud; 8mm stud; or 6mm stud
