Enerdrive 600Ah Caravan 2600W Bundle
SKU: MYG-SYS-19-21 Learn More»
Product Description
Enerdrive 600Ah Caravan 2600W Inverter Bundle, 5 Year Warranty. The Enerdrive 2 x 300Ah lithium battery, when used in combination with a 40A DC-to-DC charger, is typically part of a setup commonly used in various applications, including off-grid power systems, recreational vehicles (RVs), boats, and other mobile power needs.
The AC charger becomes relevant when you are connected to an AC power source, such as a campsite with electricity hookups or a marina with shore power. It provides a convenient means to recharge the battery when AC power is available.

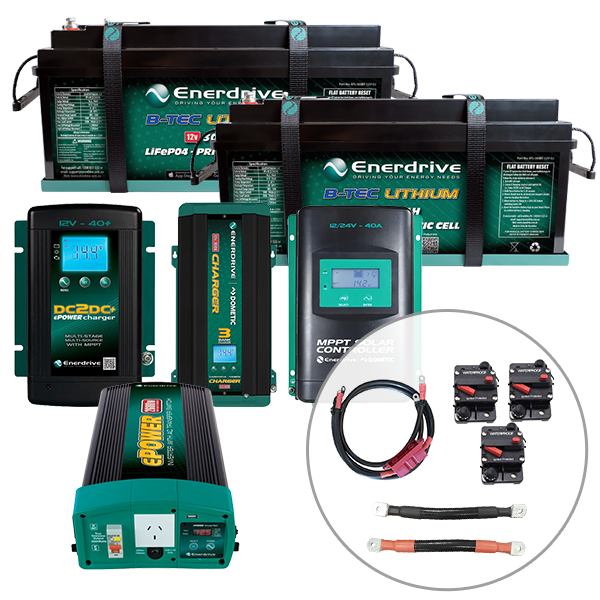

Bundle Includes:

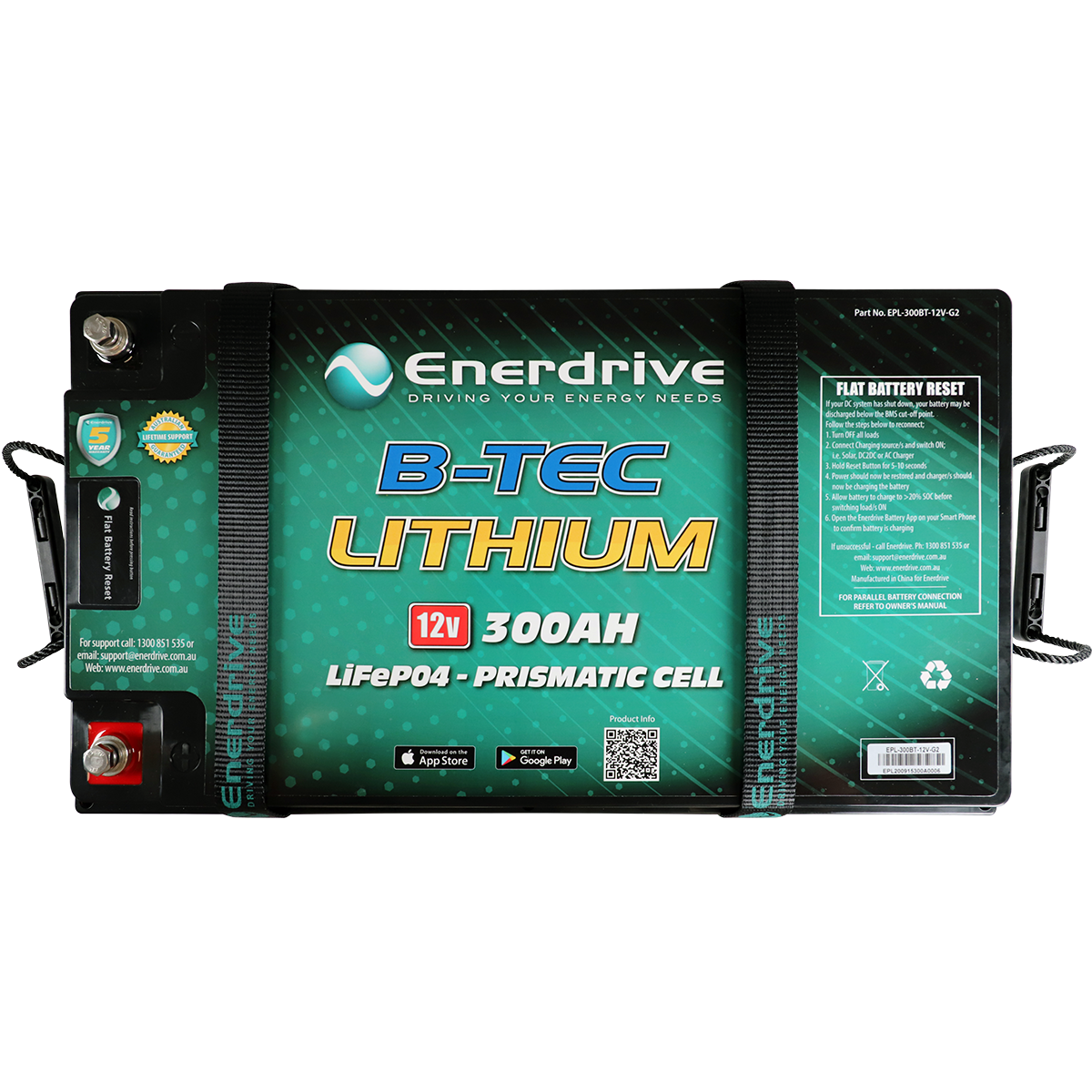

- 2x EPL-300BT-12V-G2 - Enerdrive B-TEC 2x 300Ah Lithium Battery

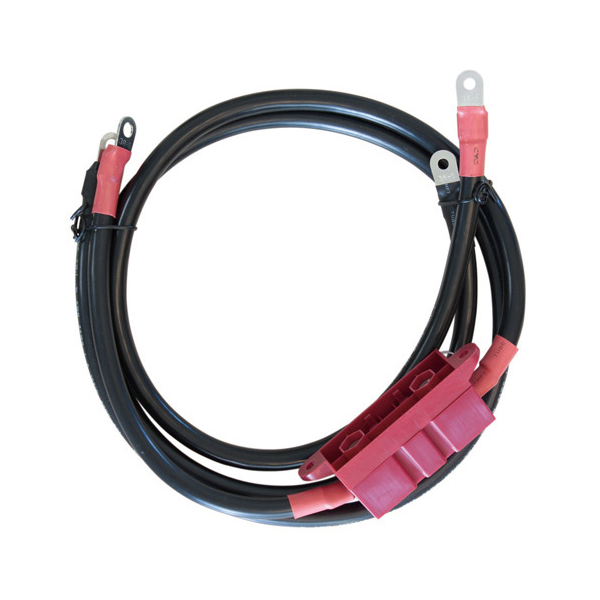

- ENC-KIT-PARALLEL-95-01 - Enerdrive 95mm2 x 200mm Battery Parallel Cable Kit, Positive & Negative

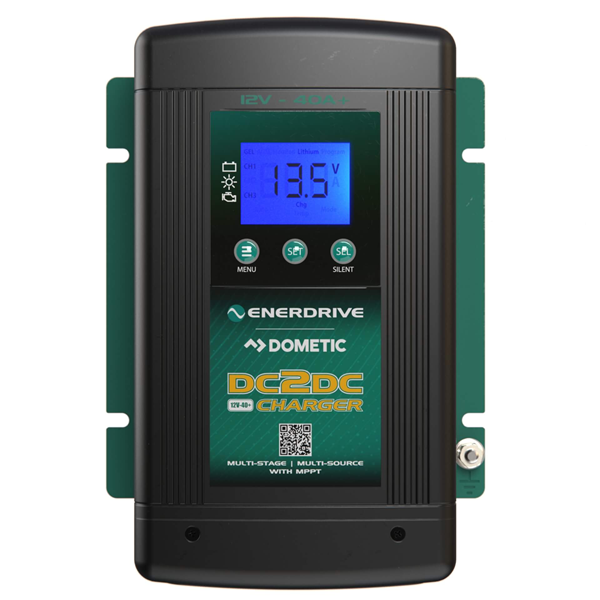

- EN3DC40+ - Enerdrive 40A DC to DC Battery Charger

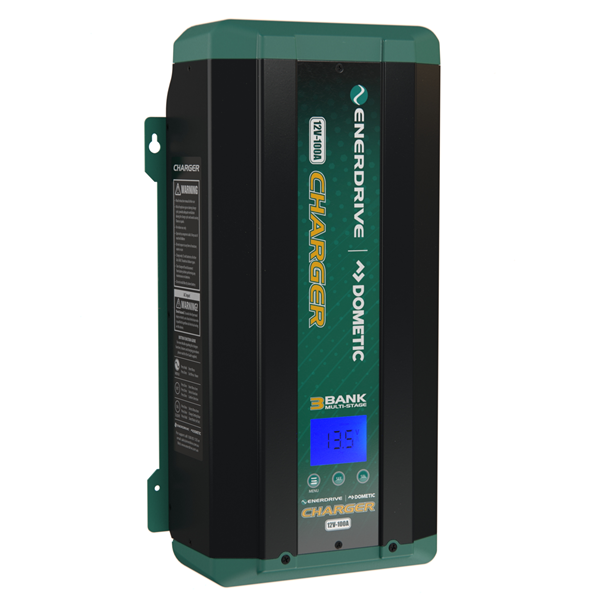

- EN312100 - Enerdrive 100A AC Smart Batteyr Charger

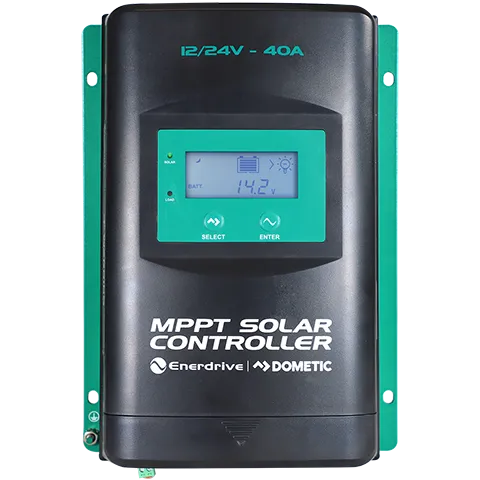

- EN43540 - Enerdrive MPPT 12/24V 40A Solar Controller with Display

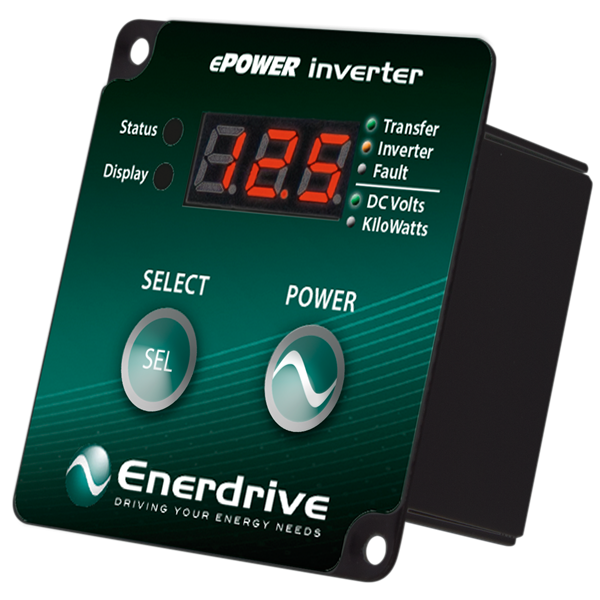

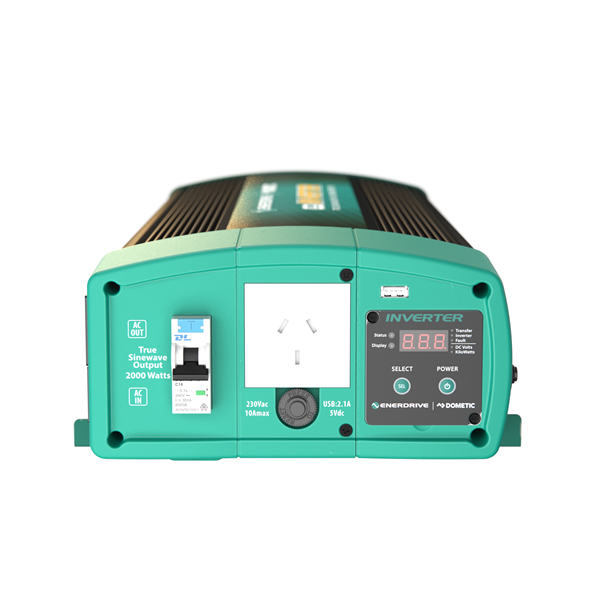

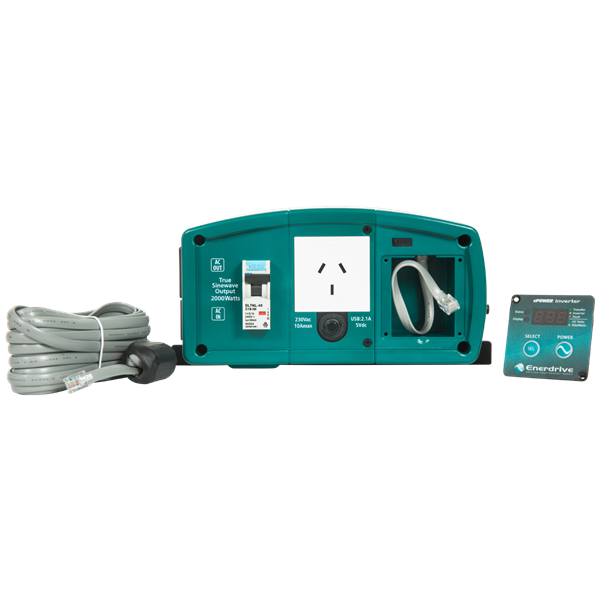

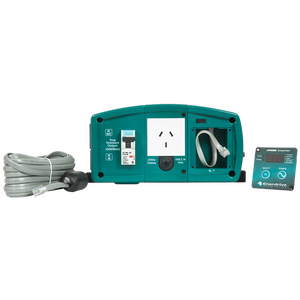

- EN1226S-X-KIT - Enerdrive ePOWER 2600W 12V Pure Sine Wave Inverter with RCD & AC Transfer Switch with Cable Kit
- 1 x EN-RCB40, 1 x EN-RCB60 & 1 x EN-RCB70 - 3 x Enerdrive Surface Mount Resettable Breaker
Optional Monitor:
Here's how these components work together:

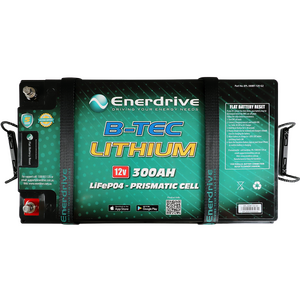

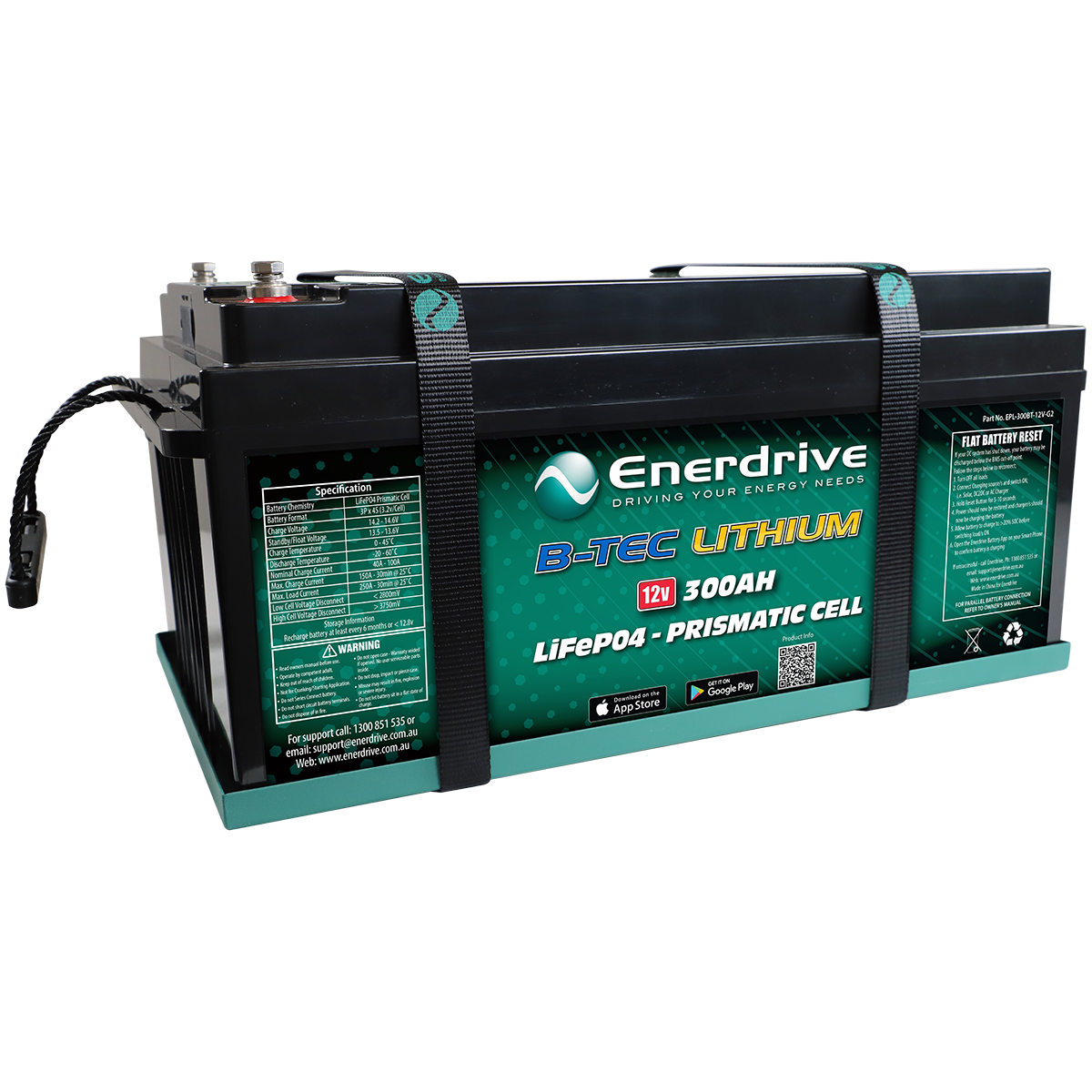

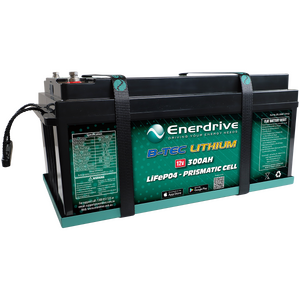

- B-TEC 2 x 300Ah Lithium Battery: The cornerstone of your energy storage system, boasting a 2 x 300-ampere-hour capacity. It serves as the primary source of electrical energy for various applications, such as RVs, boats, or other off-grid setups.

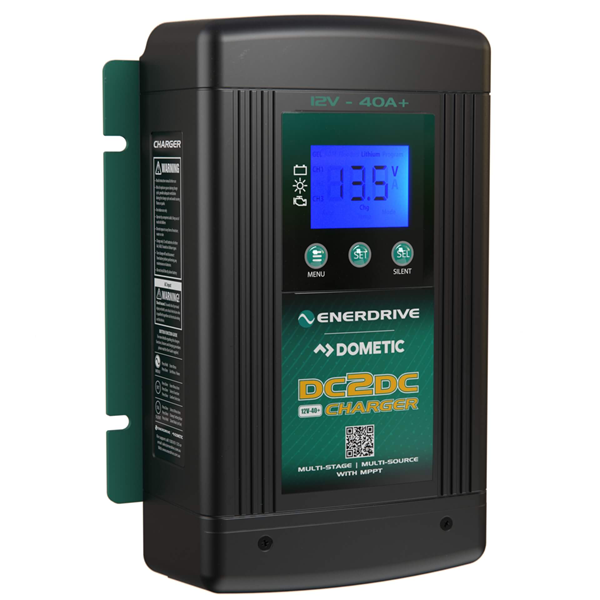

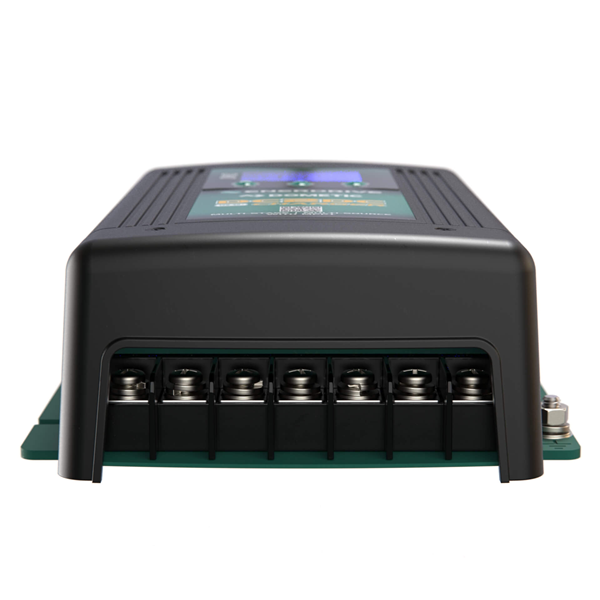

- 40A DC2DC Charger: This charger plays a pivotal role in regulating and transforming incoming DC power from diverse sources, such as a vehicle alternator or solar panels. It efficiently channels power to recharge the battery, ensuring optimal performance with a maximum 40-amp charging current from DC sources.

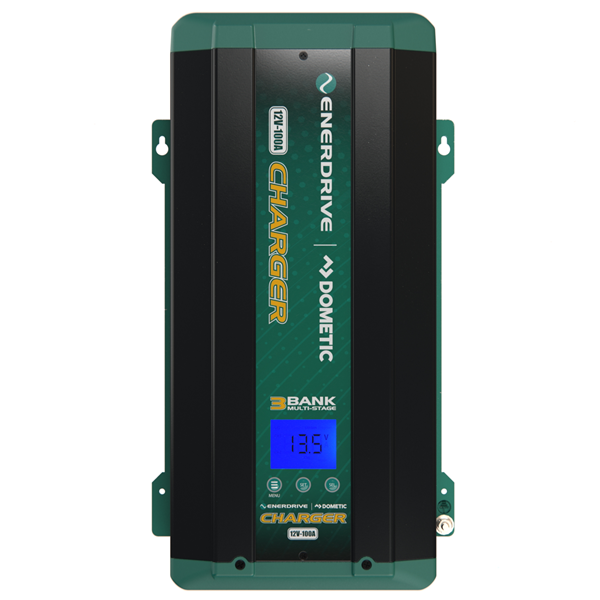

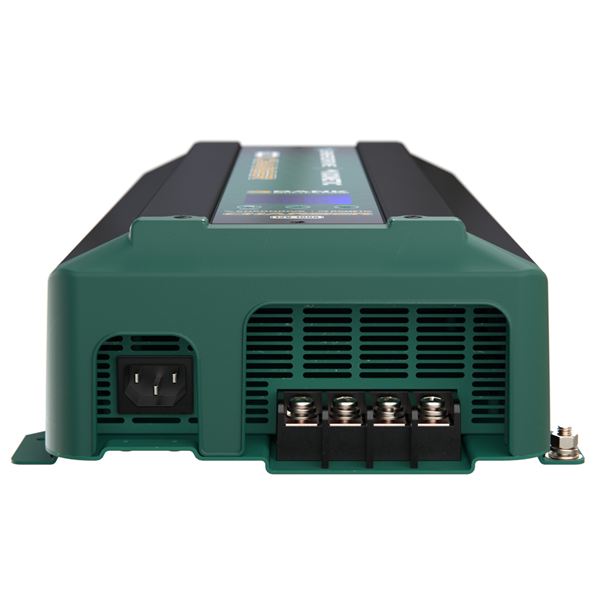

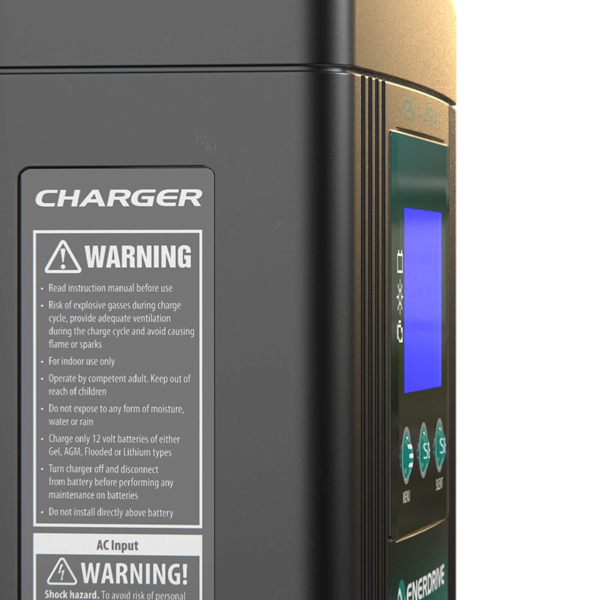

- 100A AC Charger: The AC charger recharges the battery when you have access to an AC power source, such as when your vehicle or setup is connected to shore power or an external generator. This charger converts AC power into DC power and delivers up to 100 amps to recharge the battery.

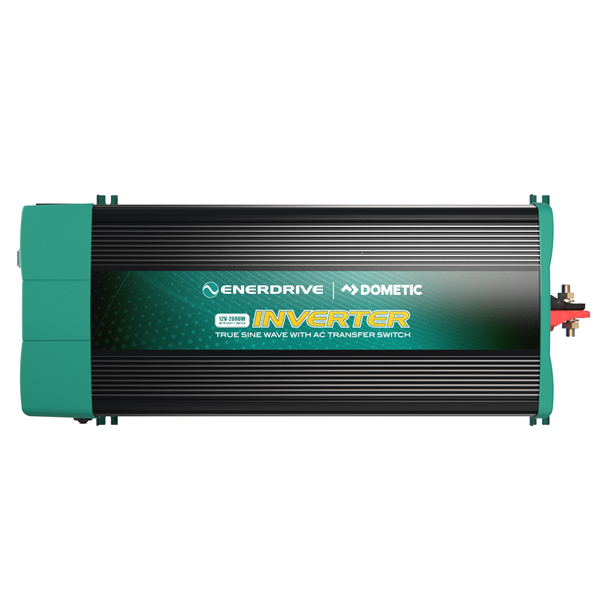

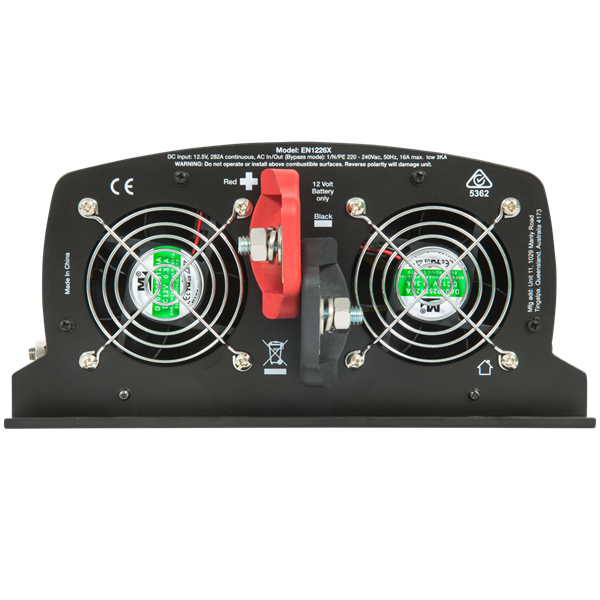

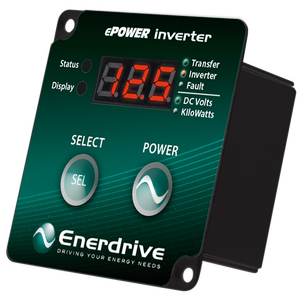

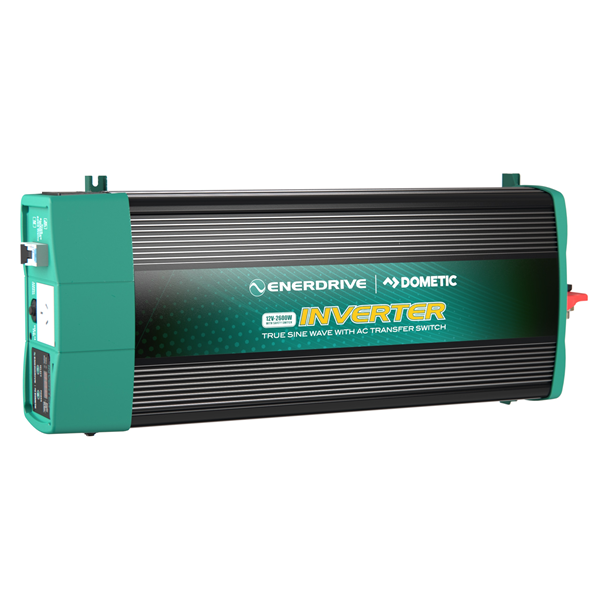

- Inverter: The Enerdrive pure sine wave inverter plays a vital role in your setup. It ensures that the power delivered to your appliances and devices is of the highest quality. The pure sine wave output guarantees clean, stable power, making it suitable for sensitive electronics, ensuring they operate without interference or damage. This inverter enables you to use standard AC-powered devices with confidence, enhancing the versatility of your energy system.
- Battery Monitor: A critical component providing real-time data on battery metrics such as voltage, current, state of charge, etc. It facilitates monitoring battery health for informed decisions about energy usage and recharging strategy.
- MPPT: The solar charge controller plays a crucial role in maximizing the efficiency and performance of a solar power system by tracking the maximum power point of solar panels, optimizing energy harvest, managing battery charging, and providing monitoring and protection functions. It helps ensure that solar energy is harvested and utilized effectively, making it an essential component in off-grid, grid-tied, and hybrid solar power systems.
| Bundles | MYG-SYS-19 | MYG-SYS-20 | MYG-SYS-21 |
| 2 x EPL-200BT-12V-G2 | * | * | * |
| EN3DC40+ | * | * | * |
| EN312100 | * | * | * |
| EN43540 | * | * | * |
| EN1226S-X-KIT | * | * | * |
| EN55050 | * | ||
| SI-PICO-3 | * |
Battery Information:
DC Charger Information:
AC Charger Information:
Inverter Information:
Solar Controller Information:
Specifications
SKU MYG-SYS-19-21
Brand Enerdrive
Warranty Period: 5 Years
Product Category Battery Bundle
Battery Voltage 12V
Amp Hours (Ah) 600
Battery Length (mm) 521
Battery Width (mm) 280
Battery Height (mm) 238
Battery Weight (kg) 38.2
Nominal Voltage 12.8V
Nominal Capacity 300Ah
Cycle Life (DOD – 80% under controlled conditions) ≥ 2000 Cycles
Battery Charge Temperature 0 ̴ 45°C
Normal Charge Voltage CV/CC* 14.20 Ì´ 14.60V
Standby (Float) Voltage 13.50 Ì´ 13.80V
Maximum Charge Current 190A @ 25°C for 30mins
Recommended Charge Current for Maximum Life 60~120A
Battery Discharge Temperature -20 ̴ 60°C
Battery Output Voltage Range 11.00 Ì´ 14.60V
Maximum Discharge Current 250A @ 25˚C ±5˚C for 15 mins
Pulse Discharge Current 450A for 1.0s
Discharge Cut-off Voltage ≤11.20V
Over-Charge Protection Per Cell 3.90V ± 0.03V
Over-Charge Release Per Cell 3.60V ± 0.05V
Over-Charge Release Method Discharge below release voltage
Over-discharge Protection Per Cell 2.80V ± 0.05V
Over-discharge Release Per Cell 3.20V ± 0.05V
Over-discharge Release Method Apply Charge/Voltage ≥12.8V
Battery Manual Reset Button Yes
Discharge Over Current 280A for 25s – 400A for 3.5s
Protection Reset Time Approx 10s Auto Release
Over Current Release Method Disconnect Load
Battery Charge Over Temperature Protection to 55°C ± 5°C, Release at 45°C ± 5°C
Battery Discharge Over Temperature Protection to 65°C ± 5°C, Release at 50°C ± 5°C
Short Circuit Protection Auto release after 5s
Case Construction Hi Impact ABS Plastic
Temperature & Humidity Range ≤ 30 days -20°C ̴ 60°C, 5 ̴ 75% RH, ≥ 90 days -10°C ̴ 45°C, 5 ̴ 75% RH
