Enerdrive 600Ah Caravan 3000W Bundle
SKU: MYG-SYS-01-09 Learn More»Product Description
Enerdrive 600Ah Caravan 3000W Bundle with option of Monitor & Solar Panels, 5 Year Warranty. The Enerdrive 2 x 300Ah lithium battery, when used in combination with a 40A DC-to-DC charger, is typically part of a setup commonly used in various applications, including off-grid power systems, recreational vehicles (RVs), boats, and other mobile power needs.
The AC charger becomes relevant when you are connected to an AC power source, such as a campsite with electricity hookups or a marina with shore power. It provides a convenient means to recharge the battery when AC power is available. The inverter allows you to convert DC power from your B-TEC battery into clean, stable AC power, suitable for sensitive electronics. Solar Panels provide a sustainable energy source to charge the battery bank and a battery monitor keeps you informed about its state, offering real-time data on voltage, current, state of charge, and more
Bundle Includes:

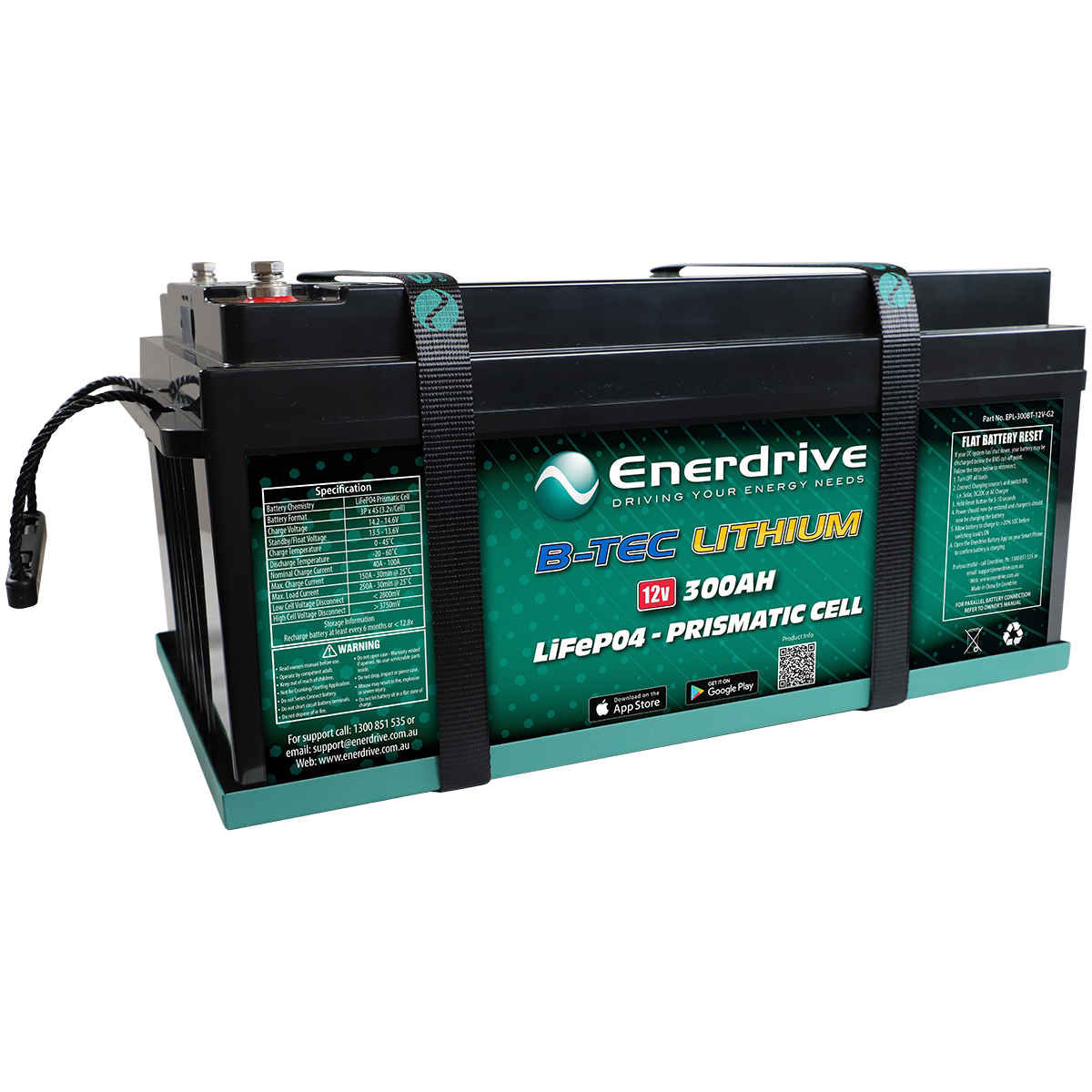

- 2 x EPL-200BT-12V-G2 - Enerdrive B-TEC 2 x 200Ah Lithium Battery

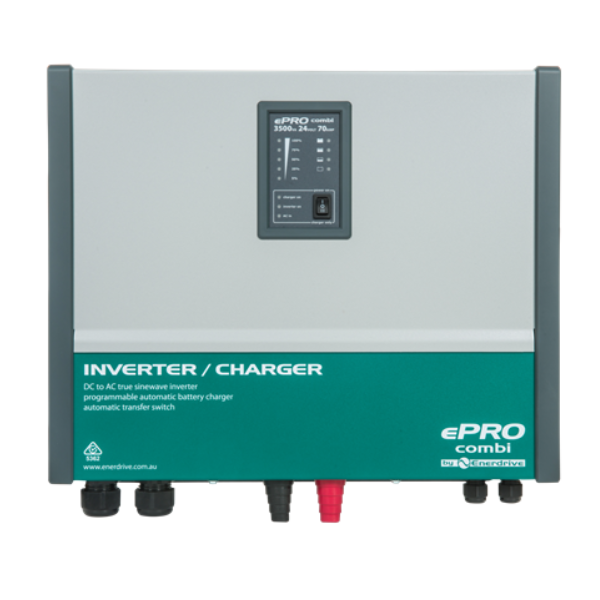

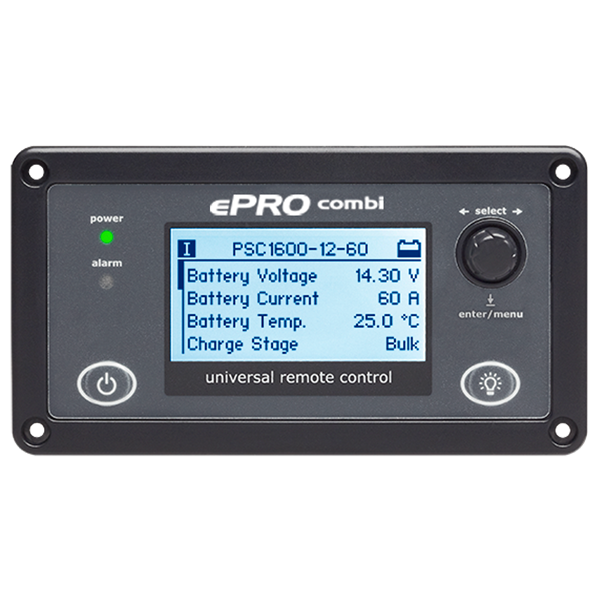

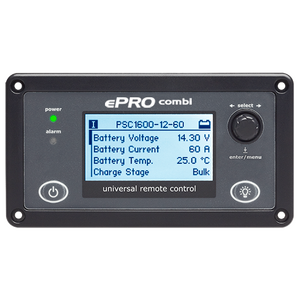

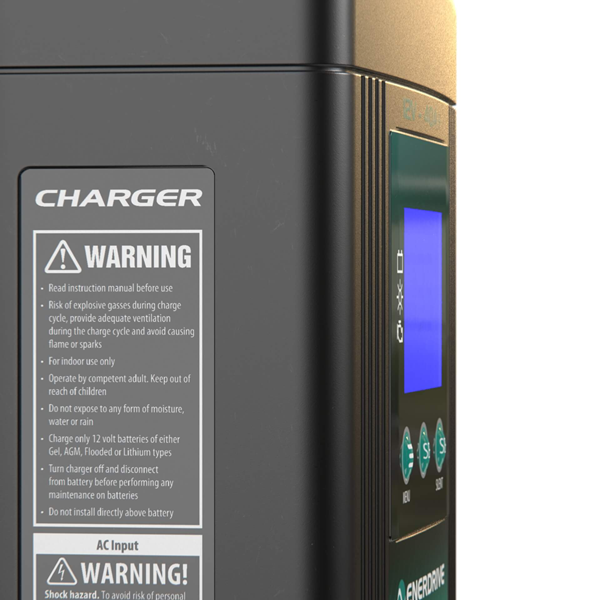

- EPC-3000-12-KIT - Enerdrive ePRO Inverter / Charger 3000W with Remote & Cable

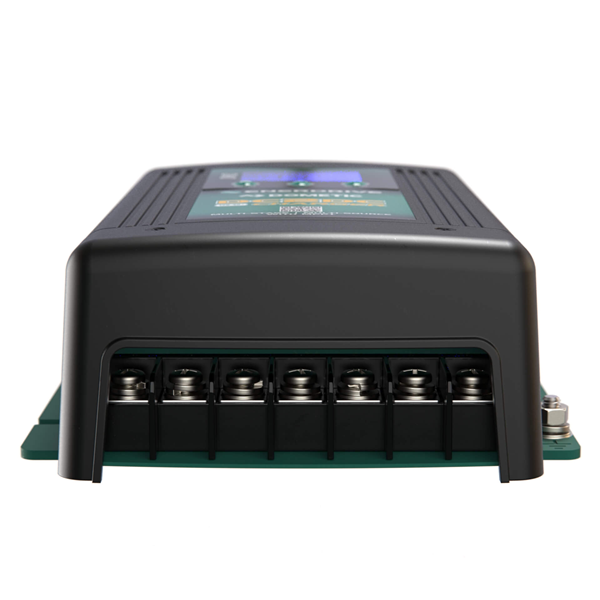

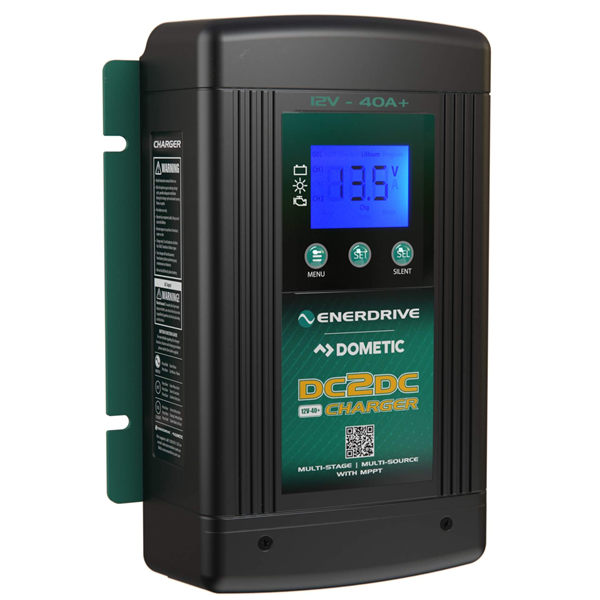

- EN3DC40+ - Enerdrive 40A DC to DC Battery Charger

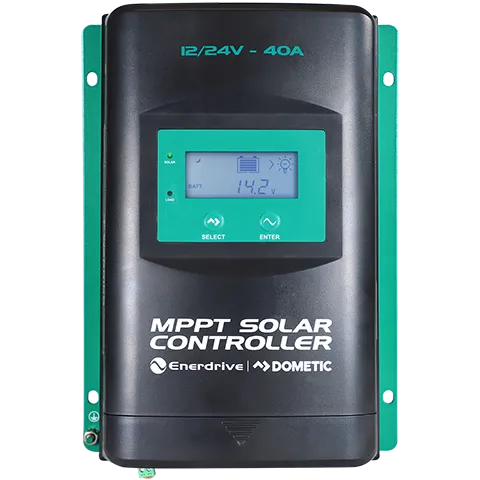

- EN43540 - Enerdrive MPPT 12/24V 40A Solar Controller with Display

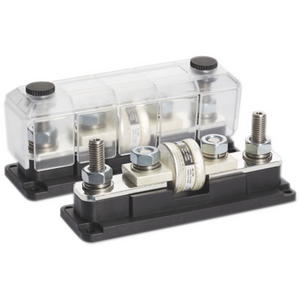

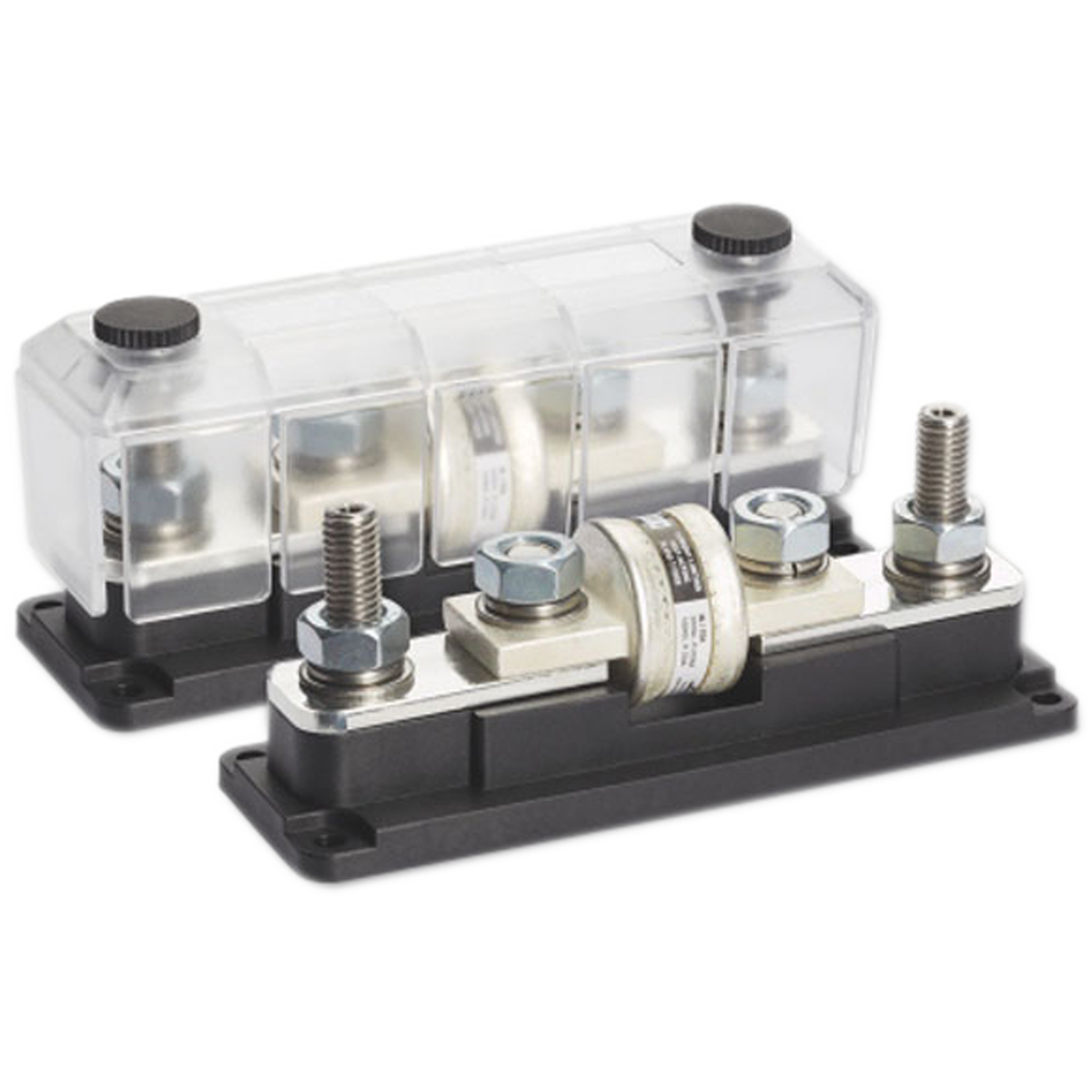

- DCM-5073850 - Enerdrive Class-T Fuseholder 50V/225A-400A
- BS-5121B - Bluesea Class T Fuse 400A

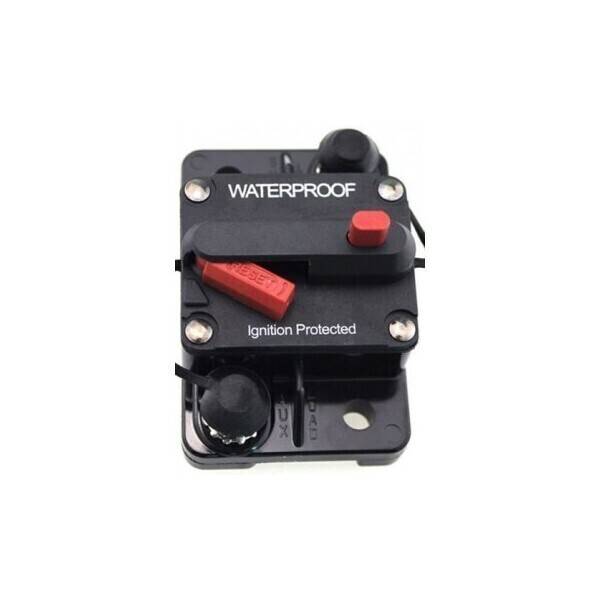

- 1 x EN-RCB50, 1 x EN-RCB60 & 1 x EN-RCB70 - 3 x Enerdrive Surface Mount Resettable Breaker

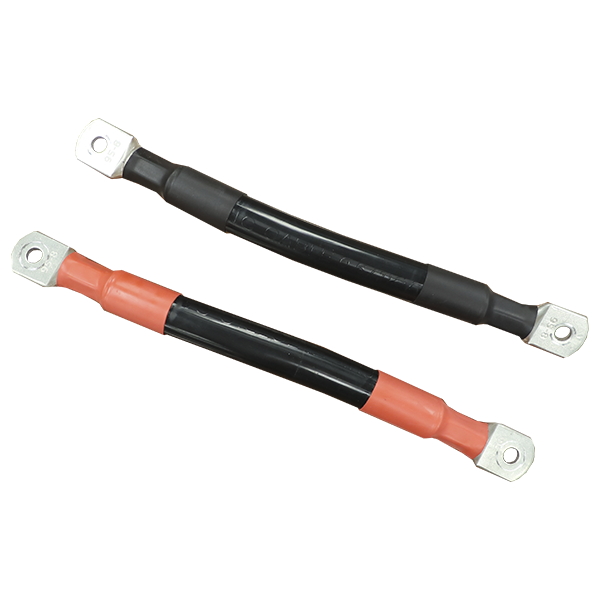

- ENC-KIT-PARALLEL-95-01 - Enerdrive 95mm2 x 200mm Battery Parallel Cable Kit, Positive & Negative
Optional Solar Panels:
- 2 x SP-EN190W-B - Enerdrive 190W Mono Crystalline Fixed Solar Panel, Black
- 4 x SP-EN190W-B - Enerdrive 190W Mono Crystalline Fixed Solar Panel, Black
Here's how these components work together:

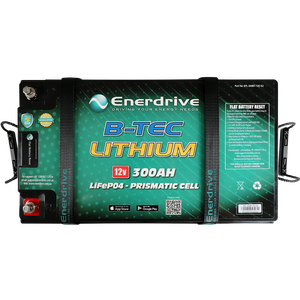

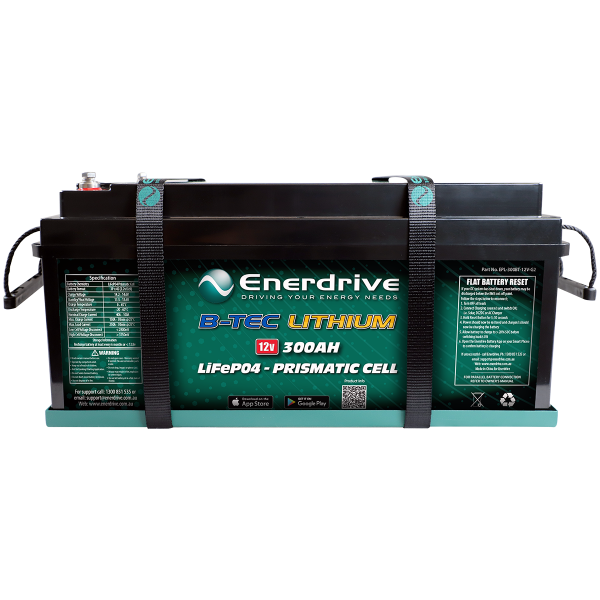

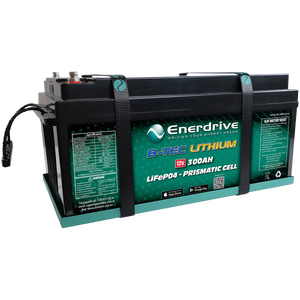

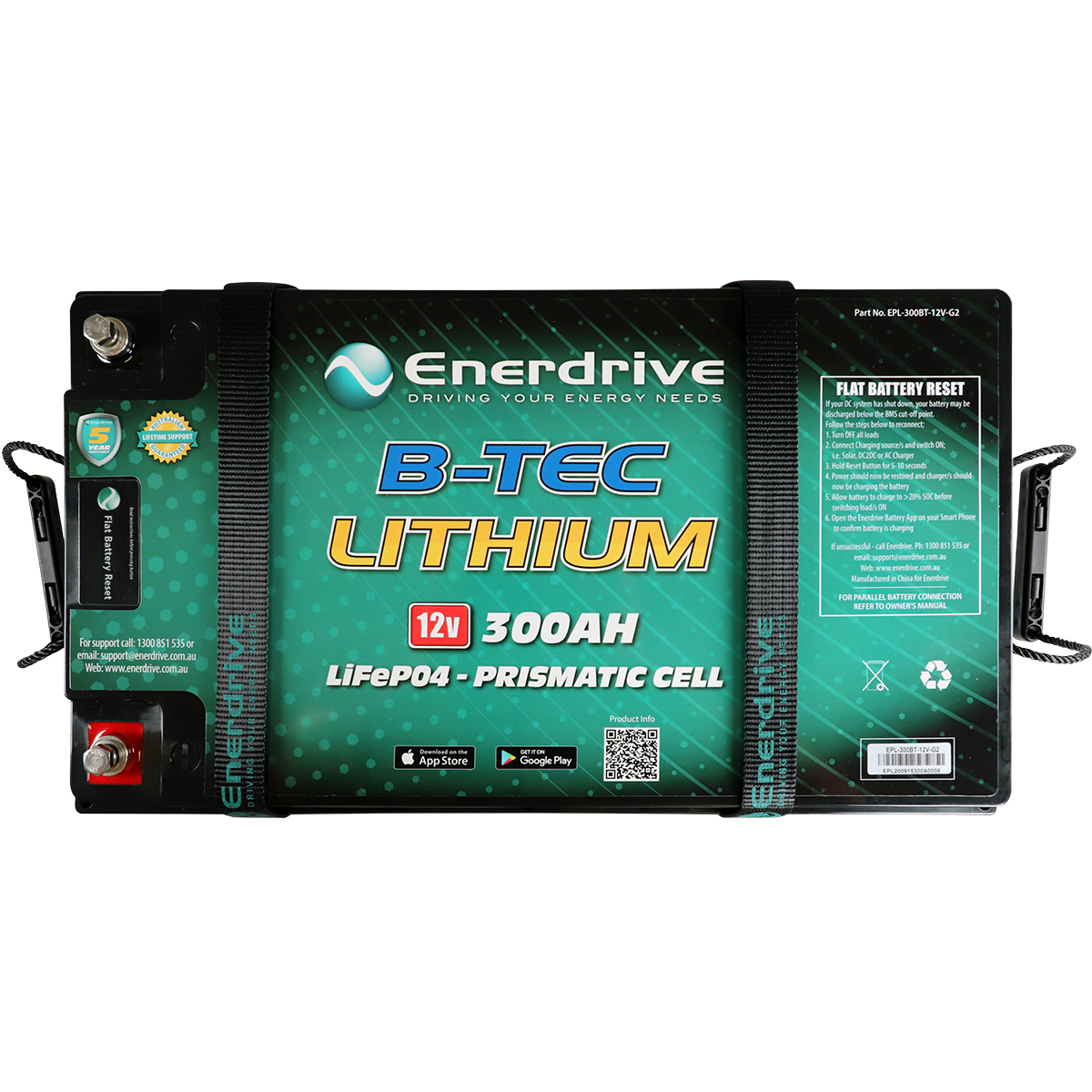

- B-TEC 2 x 300Ah Lithium Battery: The cornerstone of your energy storage system, boasting a 2 x 300-ampere-hour capacity. It serves as the primary source of electrical energy for various applications, such as RVs, boats, or other off-grid setups.
- 3000W Inverter Charger: The inverter charger plays a critical role in a caravan power system by providing AC power for appliances and devices, charging the battery bank when connected to external power sources, managing power transfer between different sources, and ensuring the safety and reliability of the electrical system. It enables caravan occupants to enjoy the comforts of home even while off-grid or on the road.

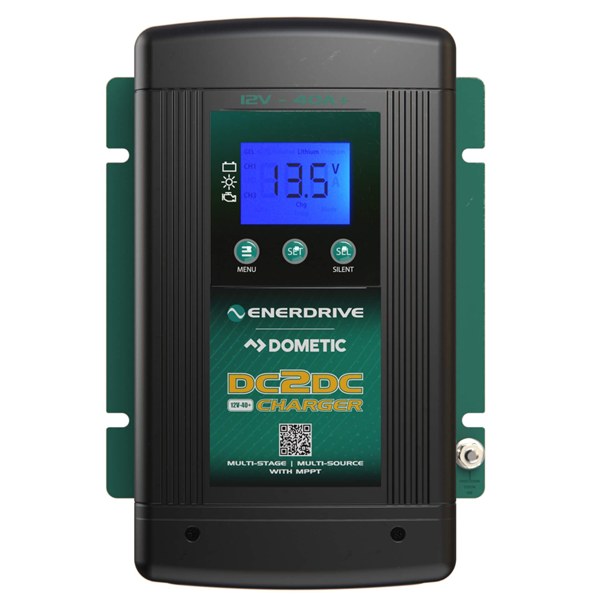

- 40A DC2DC Charger: This charger plays a pivotal role in regulating and transforming incoming DC power from diverse sources, such as a vehicle alternator or solar panels. It efficiently channels power to recharge the battery, ensuring optimal performance with a maximum 40-amp charging current from DC sources.
- Battery Monitor: A critical component providing real-time data on battery metrics such as voltage, current, state of charge, etc. It facilitates monitoring battery health for informed decisions about energy usage and recharging strategy.
- MPPT: The solar charge controller plays a crucial role in maximizing the efficiency and performance of a solar power system by tracking the maximum power point of solar panels, optimizing energy harvest, managing battery charging, and providing monitoring and protection functions. It helps ensure that solar energy is harvested and utilized effectively, making it an essential component in off-grid, grid-tied, and hybrid solar power systems.
- 190W Mono Crystalline Fixed Solar Panels: these panels provide a reliable and sustainable energy source for recharging the B-TEC 300Ah Lithium Battery. With a combined capacity of 380/760 watts, they enhance overall energy efficiency, reducing reliance on conventional power sources.
Bundles | 2 x EPL-200BT-12V-G2 | EPC-3000-12-KIT | EN3DC40+ | EN43540 | EN55050 | SI-PICO-3 | SP-EN190W-B |
MYG-SYS-01 | * | * | * | * | |||
MYG-SYS-02 | * | * | * | * | 2 x panels | ||
MYG-SYS-03 | * | * | * | * | 4 x panels | ||
MYG-SYS-04 | * | * | * | * | * | ||
MYG-SYS-05 | * | * | * | * | * | 2 x panels | |
MYG-SYS-06 | * | * | * | * | * | 4 x panels | |
MYG-SYS-07 | * | * | * | * | * | ||
MYG-SYS-08 | * | * | * | * | * | 2 x panels | |
MYG-SYS-09 | * | * | * | * | * | 4 x panels |
Battery Information:
Inverter / Charger Information:
DC Charger Information:
Solar Controller Information:
Specifications
SKU MYG-SYS-01-09
Brand Enerdrive
Warranty Period: 5 Years
Product Category Battery Bundle
Battery Voltage 12V
Amp Hours (Ah) 600
Battery Length (mm) 521
Battery Width (mm) 280
Battery Height (mm) 238
Battery Weight (kg) 38.2
Solar Panel Type Fixed Solar Panels
Solar Panel Cell Type Monocrystalline
DC Charger Output Current Rating (Amps) 40
Nominal Voltage 12.8V
Nominal Capacity 300Ah
Cycle Life (DOD – 80% under controlled conditions) ≥ 2000 Cycles
Wattage (W) 3000
Battery Charge Temperature 0 ̴ 45°C
Normal Charge Voltage CV/CC* 14.20 Ì´ 14.60V
Standby (Float) Voltage 13.50 Ì´ 13.80V
Maximum Charge Current 190A @ 25°C for 30mins
Recommended Charge Current for Maximum Life 60~120A
Battery Discharge Temperature -20 ̴ 60°C
Battery Output Voltage Range 11.00 Ì´ 14.60V
Maximum Discharge Current 250A @ 25˚C ±5˚C for 15 mins
Pulse Discharge Current 450A for 1.0s
Discharge Cut-off Voltage ≤11.20V
Over-Charge Protection Per Cell 3.90V ± 0.03V
Over-Charge Release Per Cell 3.60V ± 0.05V
Over-Charge Release Method Discharge below release voltage
Over-discharge Protection Per Cell 2.80V ± 0.05V
Over-discharge Release Per Cell 3.20V ± 0.05V
Over-discharge Release Method Apply Charge/Voltage ≥12.8V
Battery Manual Reset Button Yes
Discharge Over Current 280A for 25s – 400A for 3.5s
Protection Reset Time Approx 10s Auto Release
Over Current Release Method Disconnect Load
Battery Charge Over Temperature Protection to 55°C ± 5°C, Release at 45°C ± 5°C
Battery Discharge Over Temperature Protection to 65°C ± 5°C, Release at 50°C ± 5°C
Short Circuit Protection Auto release after 5s
Case Construction Hi Impact ABS Plastic
Temperature & Humidity Range ≤ 30 days -20°C ̴ 60°C, 5 ̴ 75% RH, ≥ 90 days -10°C ̴ 45°C, 5 ̴ 75% RH
Solar Panel Dimension 1500mm x 680mm x 35mm (each)
Voltage 12V
