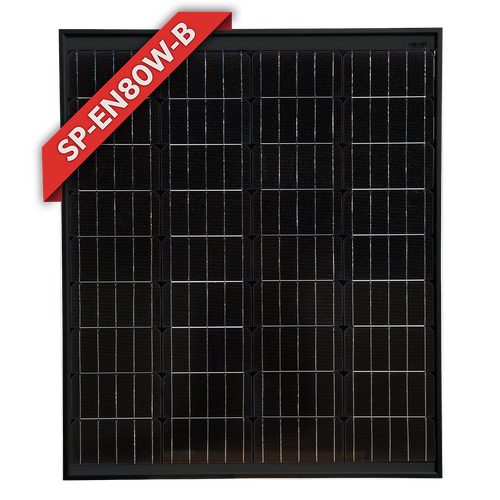

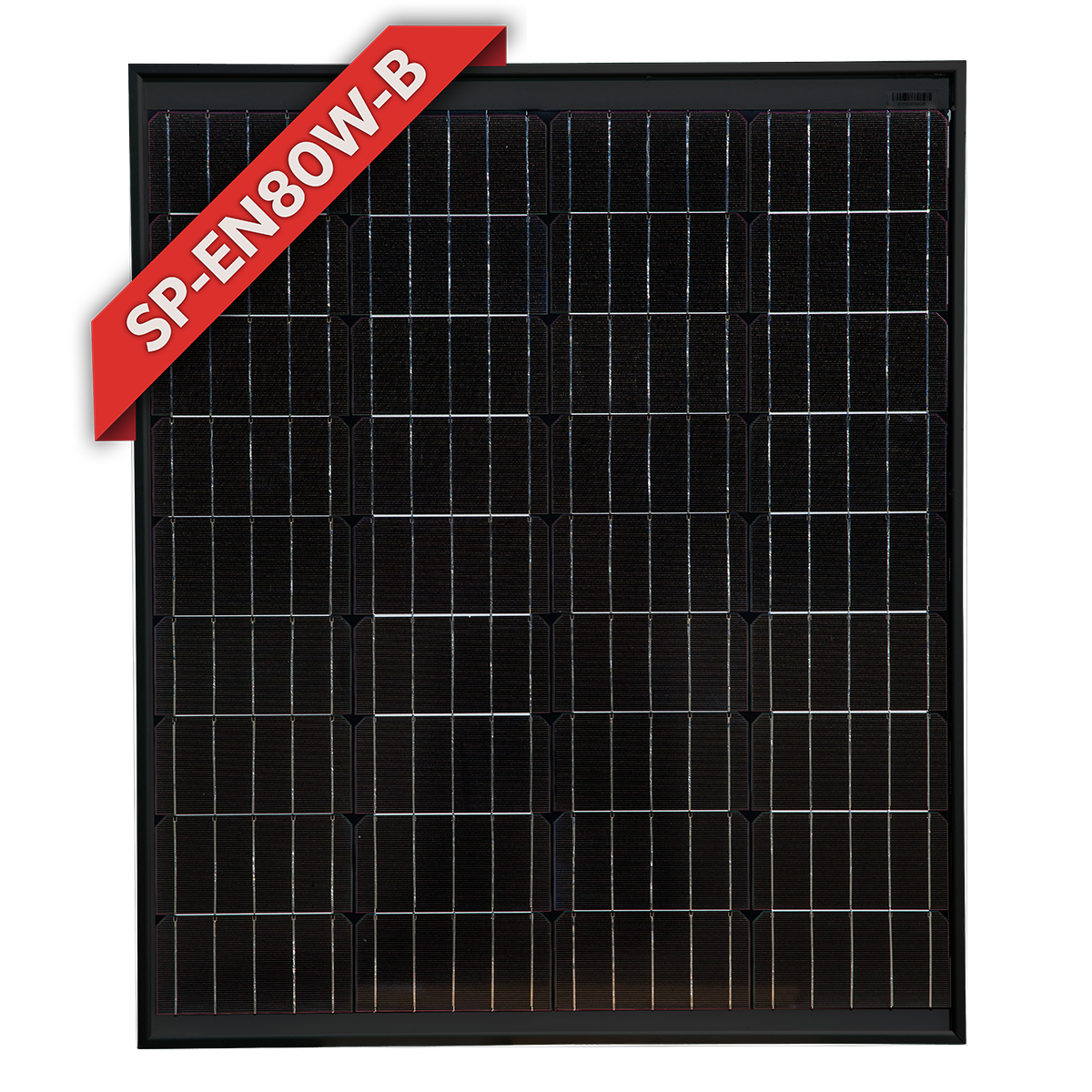

Enerdrive 80W Fixed Solar Panel, Black
SKU: SP-EN80W-B Learn More»
FREE SHIPPING
This item is sent via Express Courier. All freight is fully insured.
Accessories
Product Description
Enerdrive 80W Fixed Solar Panel, Black, 5 Year Warranty. Enerdrive solar panels are typically around 20+vdc open circuit and are well suited to 12v installations (or 24v by series connections of panels). A fly lead cable is provided for easy connection of the 10 & 20w panels while the larger panels have MC4 compatible solar cable connectors included.
Features
- High Conversion Efficiency. Module efficiency up to 15.17% achieved through advanced cell technology and manufacturing capabilities
- Positive Tolerance. Positive tolerance of up to -1%+~3% delivers higher output reliability
- High PID Resistant. Advanced cell technology and qualified materials lead to high PID resistant
- Current Sorting Process. System output maximised by reducing mismatch losses up to 2% with modules sorted and packaged by amperage
- Extended Wind and Snow. Load tests Module certified to withstand extreme wind (2400 Pascal) and snow loads (5400 Pascal)
- Withstanding Harsh Environment. Reliable quality leads to a better sustainability even in harsh environments in the outdoors
.png "Enerdrive Product Brochure")
Specifications
SKU SP-EN80W-B
Brand Enerdrive
Warranty Period: 5 Years
Product Category Solar Panels
Solar Panel Type Fixed Solar Panels
Solar Panel Cell Type Monocrystalline
Watts (W) 80
Dimensions 780 x 676 x 35mm
Short Circuit Current Isc(A) 4.85
Popular Product Applications Caravan solar panels, 12V solar panel, RV solar panels, campervan solar panel kit, 4WD solar panels, Enerdrive solar panels
Max Power Voltage Vm(V) 17.99
Max Power Current Im(A) 4.45
Open Circuit Voltage Voc(V) 22.19
Max System Voltage (VDC) 1000
Test Conditions 1000W/m² , AM1.5 , 25°C
Net Weight (kg) 7.9
Frame Colour Black
Videos
Powering Your Trip With Caravan or Camping Solar Panels
Product Q&A
-
Does this panel have any connectors on the cables?
Yes, it will have MC4 connectors.
-
How long are the cables coming from the junction box?
The cable length will be 600mm.
